2.92mm Female Field Replaceable Connector 4 Hole Flange Mount with Insulator Through Wall Pin

2.92mm Connector features

  • Can terminate to coax, PCB (printed circuit board), field replaceable contact or terminal;
  • Can be male or female gender in standard polarity or reverse polarity threads, with 50ohm impedance;
  • Body can be straight or right angle;
  • Mount Method can be press in, bulkhead, 2 hole panel, 4 hole panel, threaded or mount-less;
  • Attachment methods include clamp/solder, field replaceable or solder;
  • Body is brass or stainless steel.

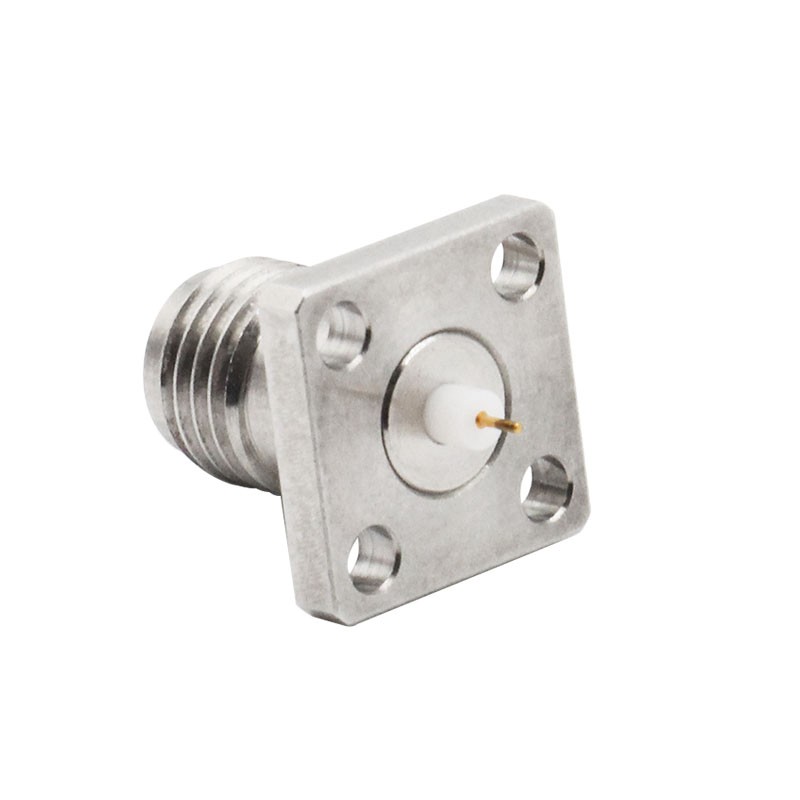

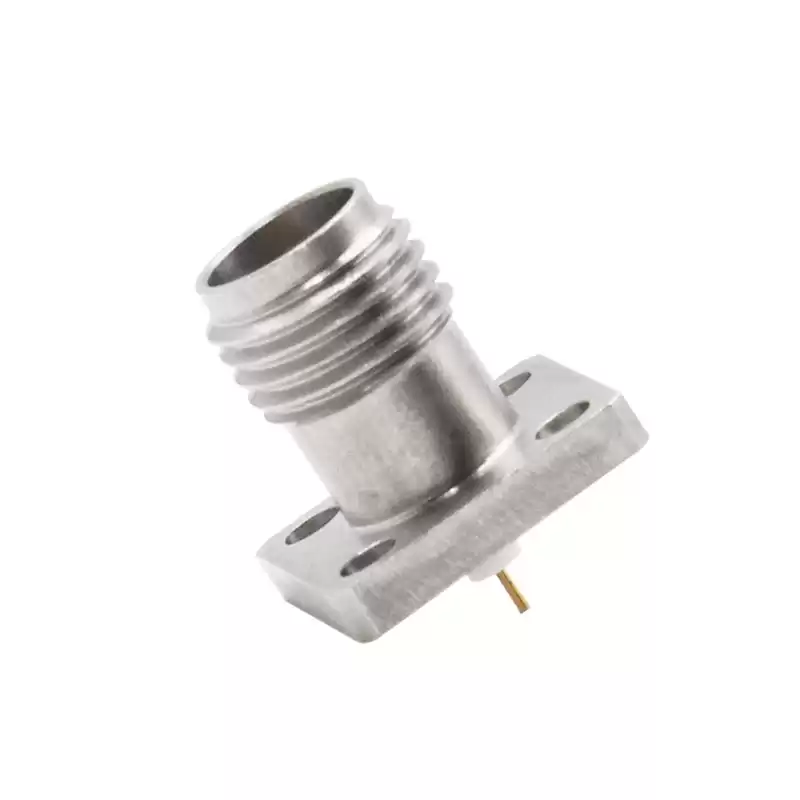

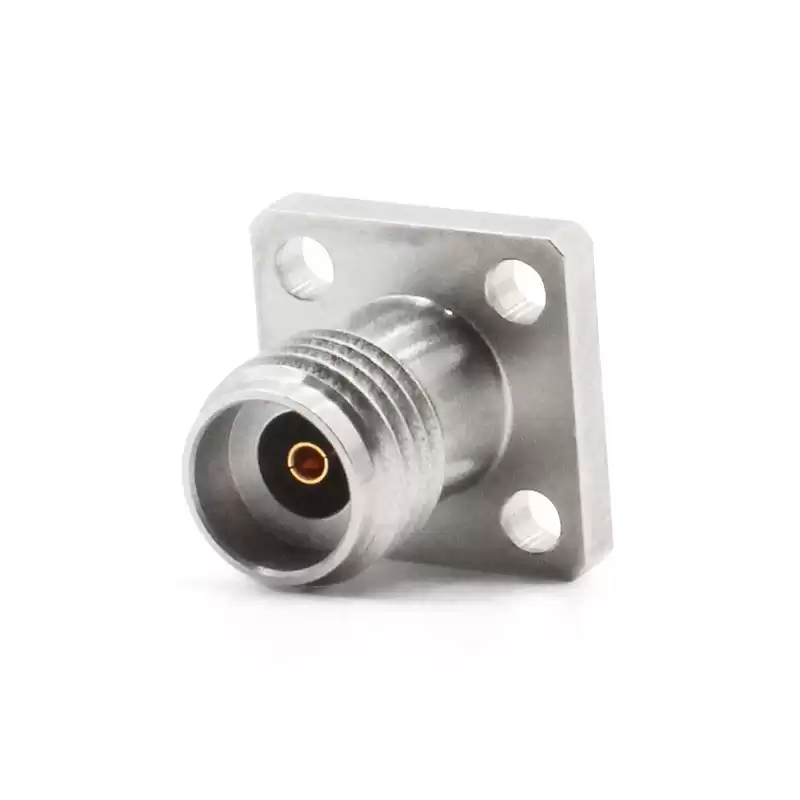

2.92mm Female Field Replaceable Connector 4 Hole Flange Mount with Insulator Through Wall Pin



The 2.92mm connector(also known as 2.92mm, K connector, K Type, SMK adapter) was designed with highly rugged physical interfaces in mind that would mate with 3.5mm and SMA dimensions. The 2.92mm series use an air dielectric, with the performance up to 40 GHz. The outer contact ID is 2.92 mm, and OD is 4.55 mm; this 2.92mm female Connector with 4 hole flange connector has an interface type of insulator through walll pin and a 50ohm impedance, attachment method uses shield/contact, its straight body is passivated stainless steel.



Specifications

ELECTRICAL DATA
Impedance 50 ohms
Maximum Frequency Range 40GHz
VSWR Straight:1.3 max
Voltage Rating (at sea level, in V rms,50Hz) 500 max
Dielectric Withstanding Voltage  (at sea level, in V rms,50Hz) 1500 max
Insulation Resistance 5000 M min
Insertion Loss 0.03 x SQRT F(GHz) max
Contact Resistance Center Contact2.0 m max
Out contanct0.4 m max
MECHANICAL DATA
Mating Threaded Connection
Durability 500 matings max
Coupling Nut Torque 8 – 10 in-lbs
Coupling Nut Retention Force 60 lbs max
Contact Captivation 6 lbs max
Cable Retention .085, SFT-316
ENVIRONMENTAL DATA
Temperature Range -55℃ to +125℃
Thermal Shock US MIL- STD 202, Meth. 107, Cond. B
Vibration US MIL- STD 202, Meth. 204, Cond. D
Corrosion MIL-STD-202,Method 101,Condition B
Temperature Cycling MIL-STD-202F, Method 213B, Condition A
MATERIAL DATA
Connector Body Stainless steel,Passivated
Center Contact--Male Beryllium Copper per QQ-C-530Gold Plating
Center Contact--Female Beryllium Copper per QQ-C-530Gold Plating
Insulator PEEK



Applications

  • 5G Wireless Communication
  • test sets
  • instrumentation cables
  • high-frequncy products




Product Tags 2.92mm RF Connector          2.92mm Female Connector          2.92mm Female RF Connector          2.92mm 4 Hole Flange Connector          2.92mm Field Replaceable Connector          2.92mm Connector
