2.92mm Female to 2.4mm Female RF Coaxial Connector Adapter

2.92mm adapters Features:

  • Includes bulkhead, 4 hole panel or mountless configurations;
  • Allow to interface 3.5mm connectors with 1.85mm, 2.4mm, 2.92mm, 3.5mm, SMP or N connectors;
  • Available in female to female, female to male, female to sexless, male to female, male to male or male to sexless gender combinations;
  • OEM & ODM available for special design with competitive Factory price;
  • 40GHz 3.5mm adapter maximum frequency is provided;
  • Can be Customized for unique material or performance requirement.

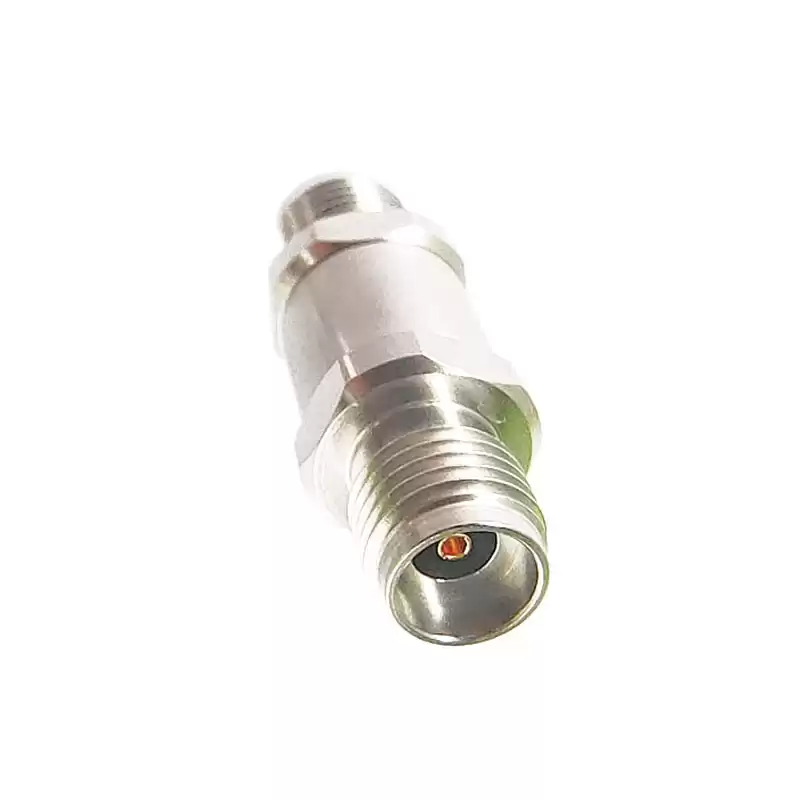

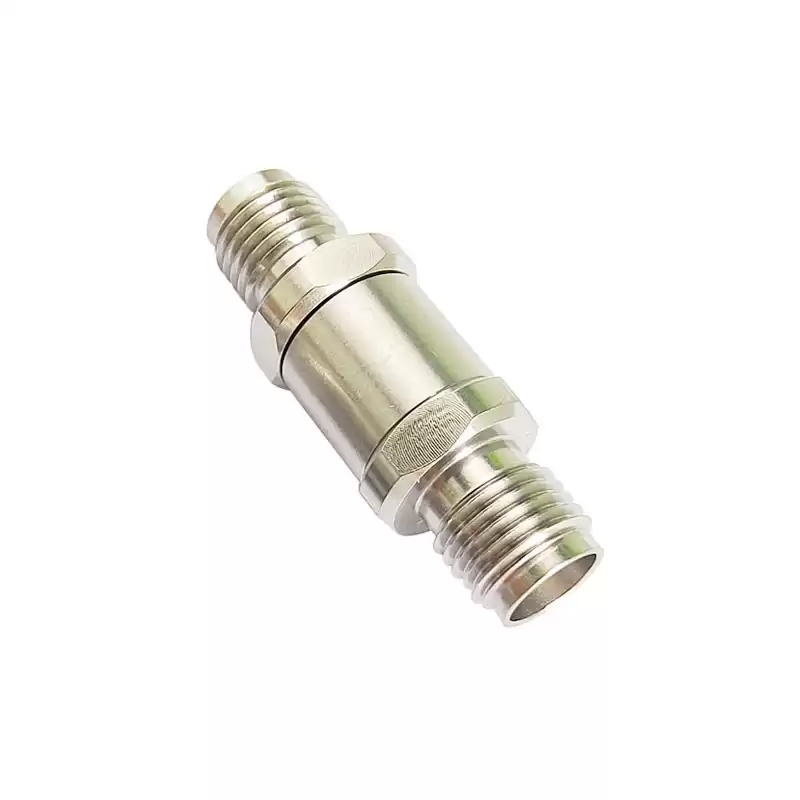

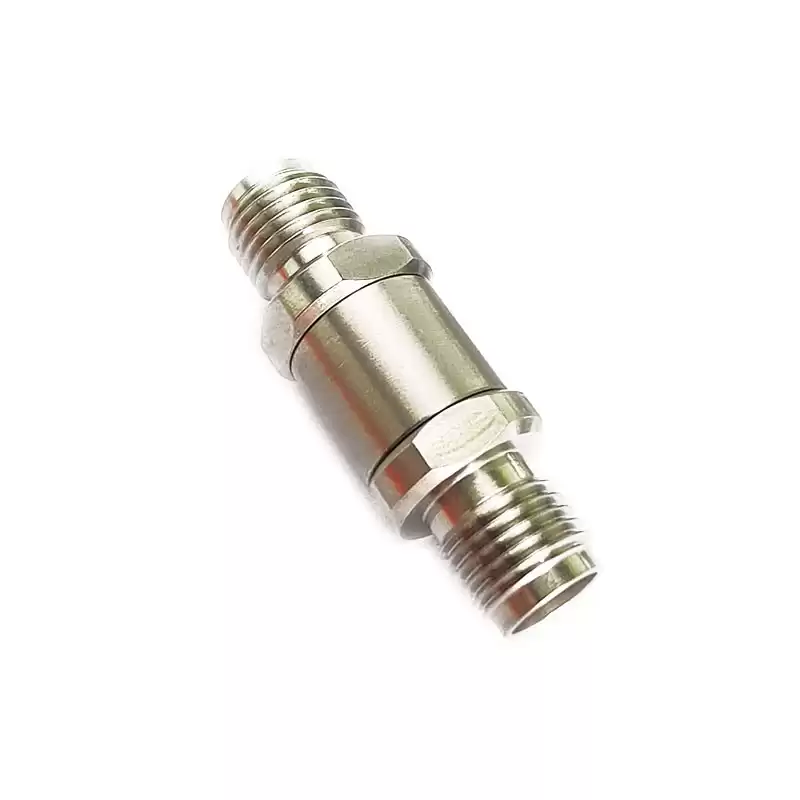

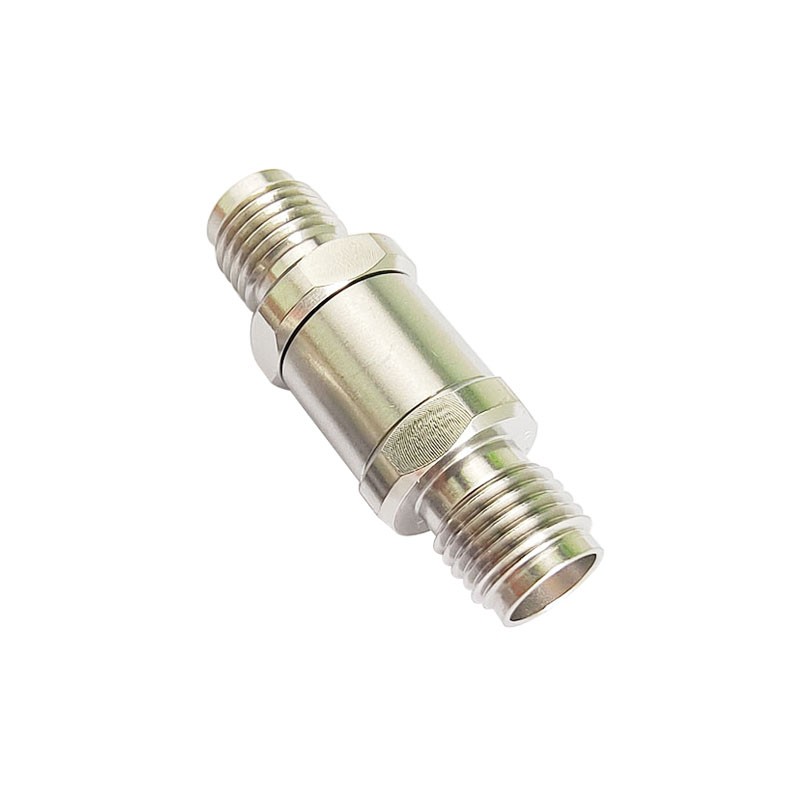

2.92mm Female to 2.4mm Female RF Coaxial Connector Adapter



The 2.92mm Adapter has 2.92mm to 2.4mm standard polarity adapter gender. The 2.92mm to 2.4mm adapters has female to female, female to male, male to female or male to male gender; it has 50ohm impedance standard polarity, and has straight or right angle versions. The 2.92mm adapter was designed with highly rugged physical interfaces in mind that would mate with 3.5mm and SMA dimensions. The outer contact ID is 2.92 mm, and OD is 4.55 mm. This 2.92mm female to 2.4mm female adapter has a maximum frequency of 40GHz, and is a right angle RF adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series
2.92mm
Adapter Side 1 Style
Female
Adapter Side 2 Series
2.4mm
Adapter Side 2 Style
Female
Frequency (Max GHz)
40
Impedance (Ohms)
50
Low PIM
No
Orientation
Right Angle
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Connector Body Stainless steel 303
Body Finish Passivated
Contact Material Phosphor Bronze/Beryllium Copper
Contact Finish Gold/Silver
Insulator PTFE



Applications

  • 5G Wireless Communication
  • Test sets
  • High-frequncy products
  • Instrumentation cables
