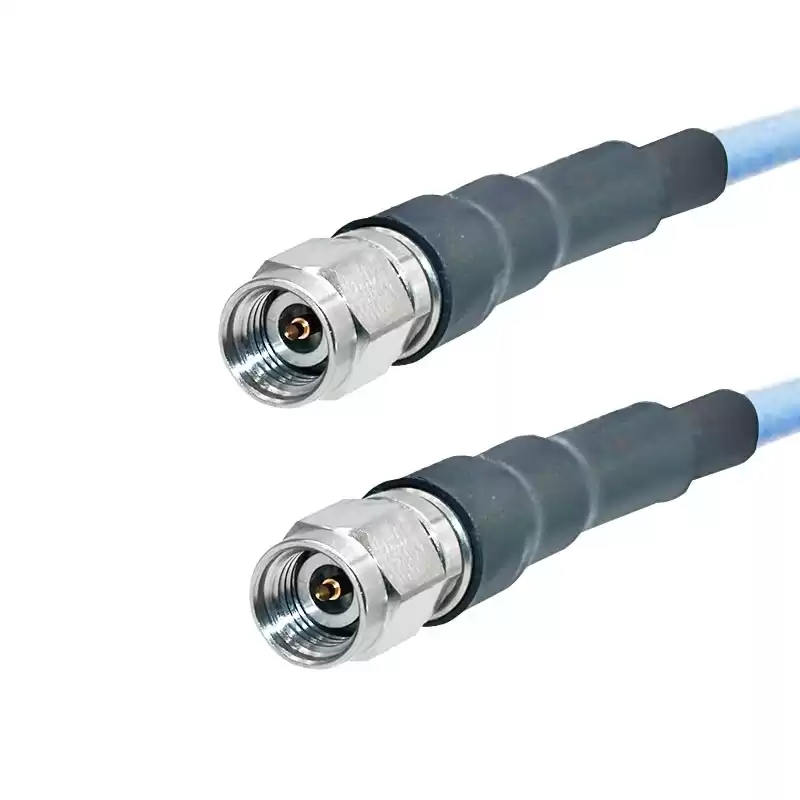

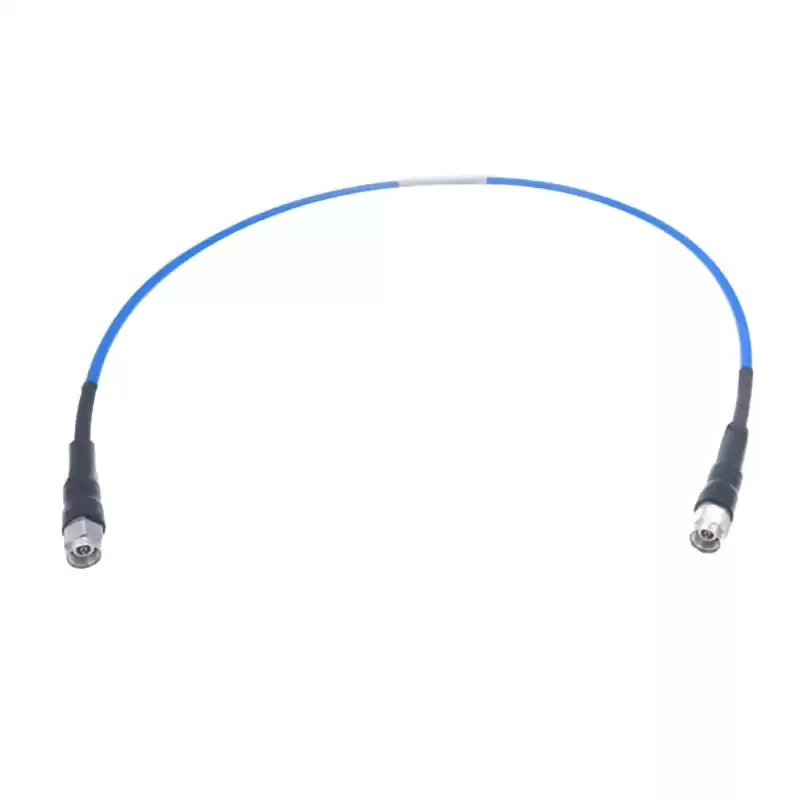

2.92mm Male to 2.92mm Male Connector Cable Assembly with .085 Flexible Spiral Strip Cable

2.92mm Cable assembly Features:

  • Can be combined with 1.85mm, 2.4mm, 2.92mm,3.5mm, SMP, or SMA connector;
  • Body is all straight connectors;
  • Cable Can use flexible, formable or semirigid cable.



2.92mm Male to 2.92mm Male Connector Cable Assembly with .085 Flexible Spiral Strip Cable



The 2.92mm cable assembly can use flexible, formable or semirigid coaxial cable such as RG405, RG402 Cable; the body of 2.92mm to 2.92mm cable assembly is straight connectors which is female to female, male to female or male to male gender. This 2.92mm male to 2.92mm male cable assembly uses a 50ohm straight 2.92mm for connector 1 and a 50ohm straight 2.92mm for connector 2, Cable is 50ohm .085" Cable.



Specifications

ELECTRICAL DATA
Connector 1 Series 2.92mm
Connector 1 Style Str Male
Cable Type .085" Cable
Connector 2 Series 2.92mm
Connector 2 Style Str Male
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM Yes
Max Frequency 40GHz
Working Temperature -65°C  to +165°C
ELECTRICAL DATA
Body Material
Stainless Steel
Body Finish
Passivated
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material PTFE



Applications

  • VNA network analyzer
  • RF and microwave test instrument
  • production line test
  • ATE system
  • laboratory
