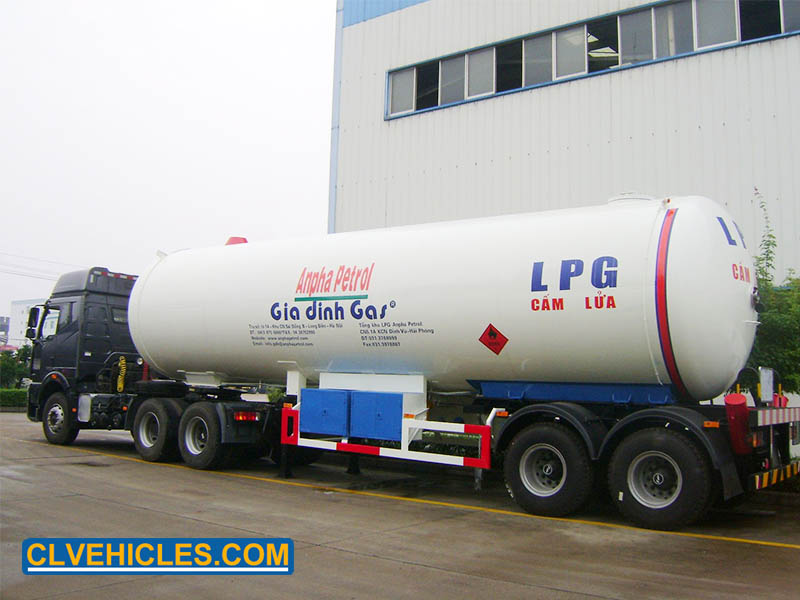

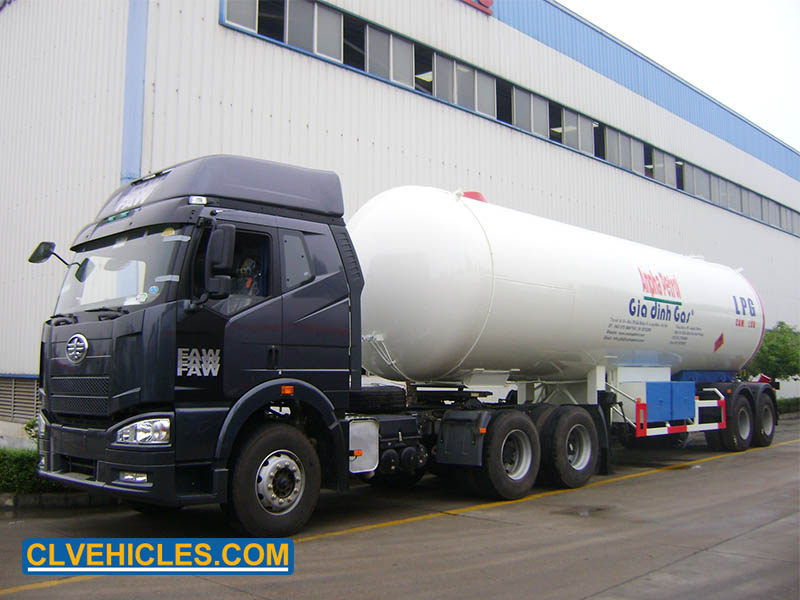

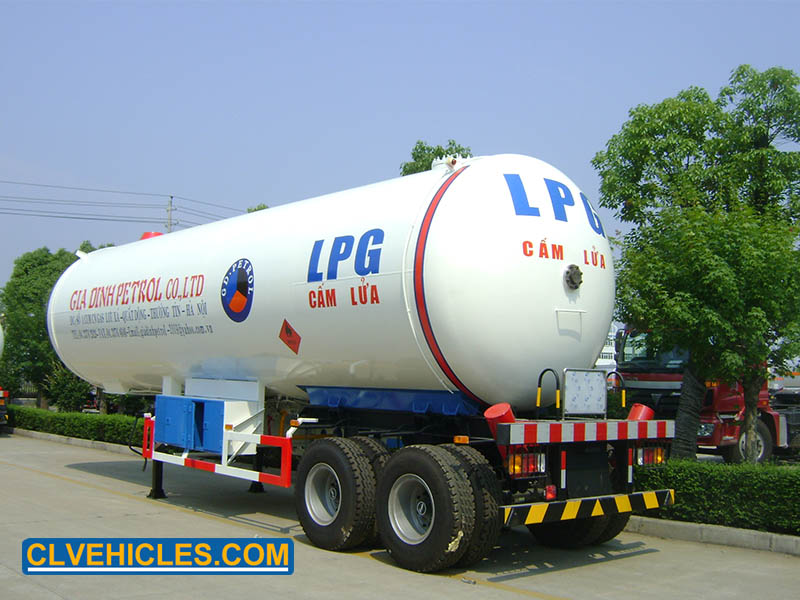

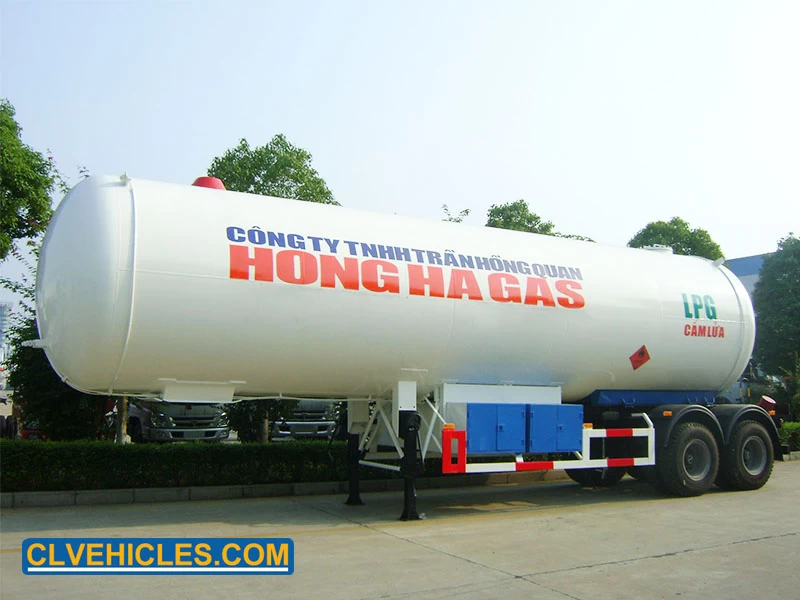

2 axle 40500 liter Propane Storage Tank Semi Trailer
LPG semi trailer takes advantage of compression resistant tank for transporting the liquefied ,which is the special vehicles(For example propane, propylene, liquid ammonia, liquid nitrogen, liquid hydrogen, liquefied natural gas, liquid sulfur dioxide and so on) .
The LPG tanker material uses Q345R steel for high pressure tanker, which is anti-corrosive and keeps a good stability at low or high temperature.
Quick Details
|
LPG tank trailer size
|
11324*2500*3730
|
|
Propane tank capacity
|
40500 liter
|
|
Design temperature
|
50℃
|
|
Design pressure
|
1.77Mpa
|
|
Leak test pressure
|
1.77Mpa
|
|
Hydraulic test pressure
|
2.3Mpa
|
Applications
LPG tank semi trailer (also called propane storage tank semi trailer , lpg storage tank truck semi trailer ,lpg semi trailer ,lpg tank semi trailer ,lpg road tank semi trailer , propane semi trailer ,lpg gas semi trailer ,lpg transport semi trailer ,propane delivery semi trailer ) is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dim-ethyl ether (DME), isobutene, etc
Competitive Advantages
|
|
|
|
Our LPG tanker trailer is made of Q345R steel which is specialized for pressure vessel 100% X-ray inspection
|
Emergency shut off valve fore safety
|
|
|
|
Double side for discharge and loading ,double tool box and valve box
|
LPG dispenser optional with automatic fault detection and overload protection
|
