Bogie Suspension trailer was popular by logistics companies as its multipurpose application. It can be used to transport containers , bulk cargo and other goods. Which is popular for heavy loading and widely export Africa Kenya, Algeria, Zambia, Togo, Congo, etc.
40 feet Bogie Suspension semitrailer supplier
Congo Customer Choose 2 axle 40T bogie suspension container semi-trailer supplier:
★ High tensile strength steel Q345B for I-beam
★ Axle: German BPW or American style from 12 tons to 20 tons

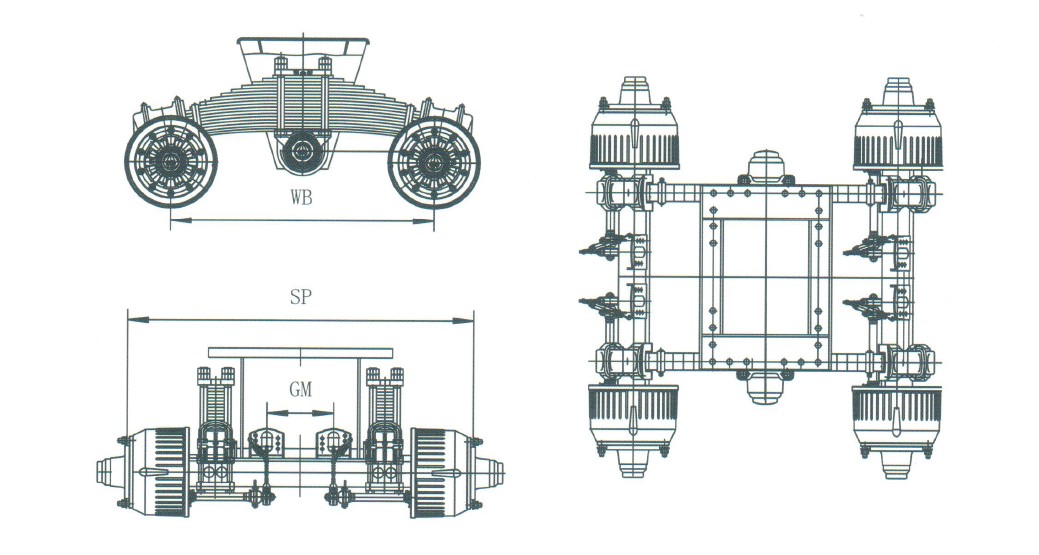

★ Suspension: bogie suspension for heavy duty capacity.
★ Tyre: 10.00R20, 10R22.5, 11.00R20, 11R22.5, 12.00R20 or 12R22.5 (Other size is optional)
★ King pin: JOST brand Optional for 2" or 3.5" Kingpin
★ Side wall height: Optional for 600mm, 800mm or 1000mm
★ Twist locks: Optional (4 PCs, 8 PCs, 12Pcs)

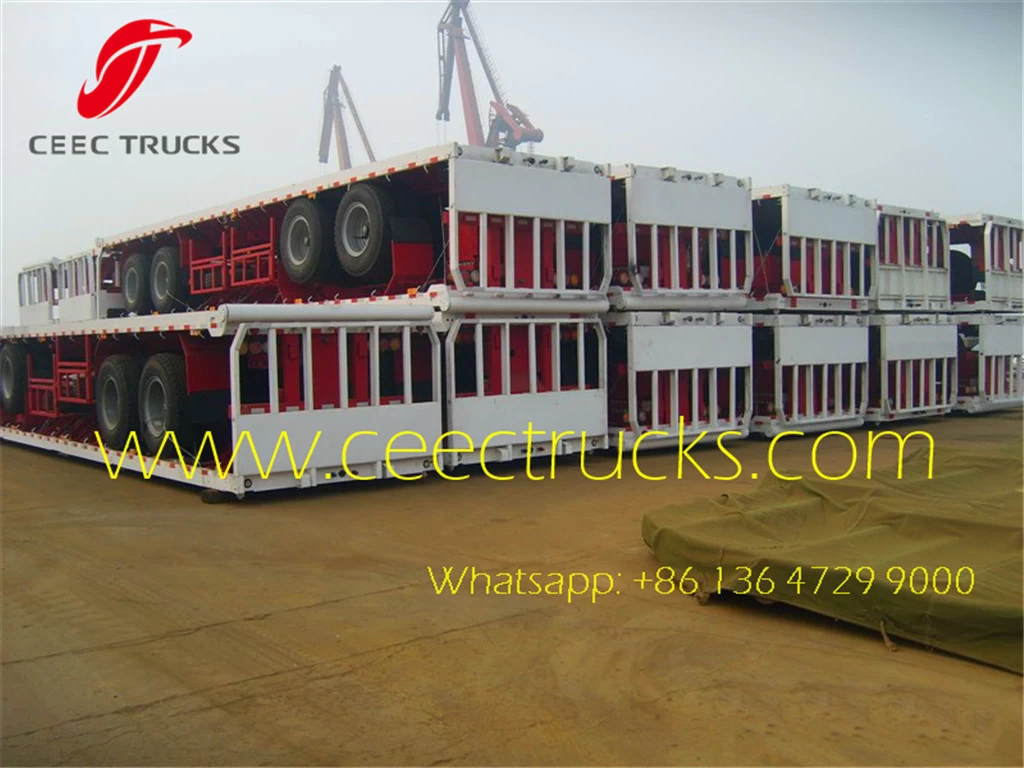

CONGO best semi remorque supplier for 40 T bogie suspension semi remorque, 60 T bogie suspension semi remorque, 70T bogie suspension semi remorque. We exported more than 100 unis bogie suspension semi remorque to CONGO, POINTE NOIRE.
Similar Key Works: bogie suspension semitrailer, 2 axle flatble semitrailer, 40 feet 2
axle bogie suspension contrainer trailer, 40 T bogie suspension
trailers, 40feet flat bed container semitrailer, container bogie suspension trailer

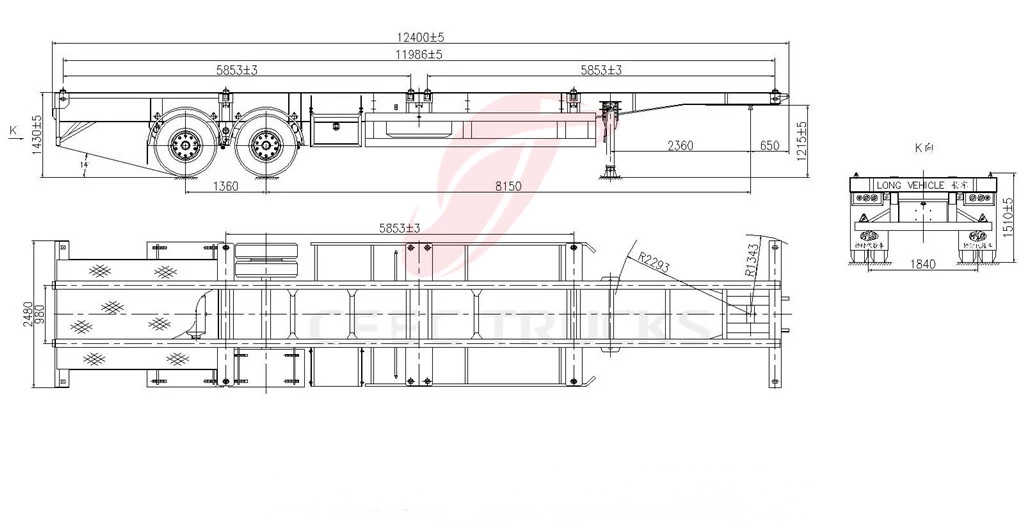

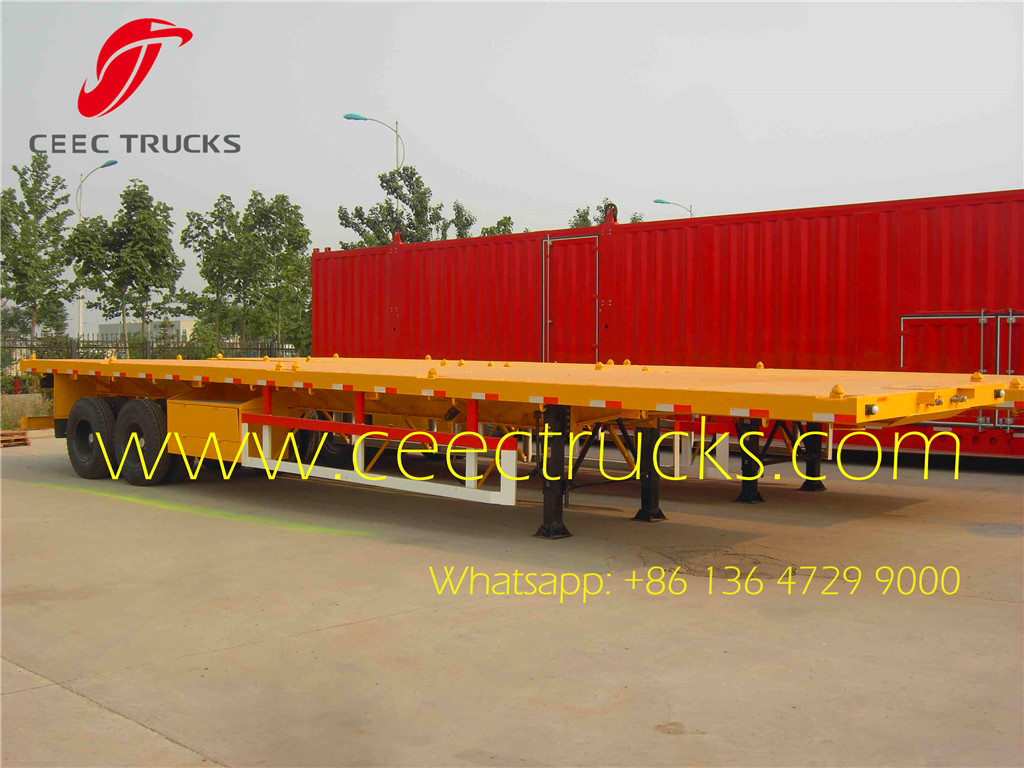

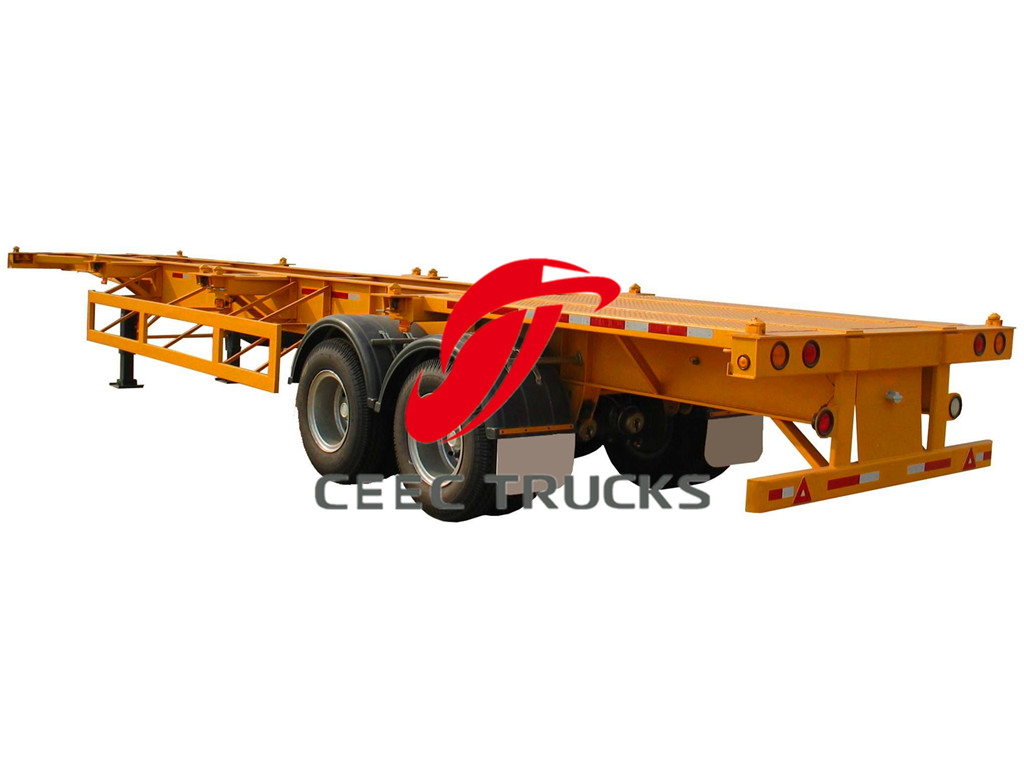

| 40Feet 2Axles Bogie suspension Container Semi-trailer (12 pieces Twist Lock)
|
|
| DIMENSIONS
|
|
| Tare Weight
|
5000kg
|
|
| Payload
|
35000kg
|
|
| Total Weight
|
40000kg
|
|
| Overall Length
|
12400mm
|
|
| Overall Width
|
2480mm
|
|
| Overall Height
|
1480mm
|
|
| Wheel track
|
1840mm
|
|
| Wheel base
|
8350mm+1300mm
|
|
| STANDARD SPECIFICATION
|
|
| Main Frame
|
Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
505mm Height, Top Flange 14mm,width 140mm; Middle Flange 6mm;Bottom Flange 16mm,width 140mm
|
|
|
| Axle
|
Two Units of Germany BPW(brand) 13Ton axle,15T axle, 16Taxle
|
|
| Suspension
|
Germany BPW (brand) mechanical 2-axle suspension
|
|

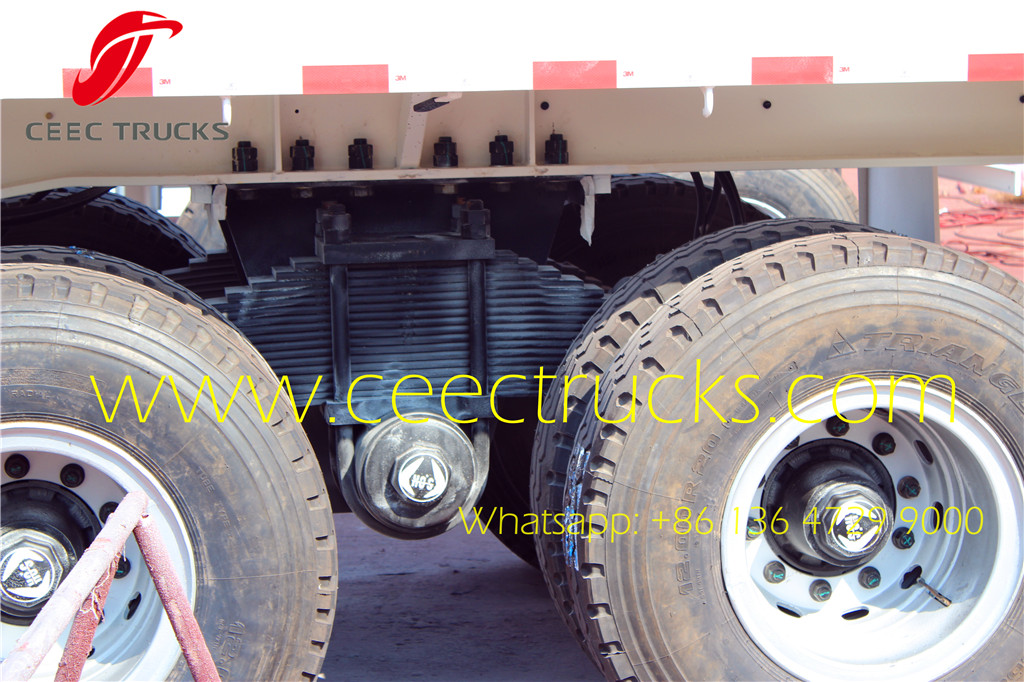

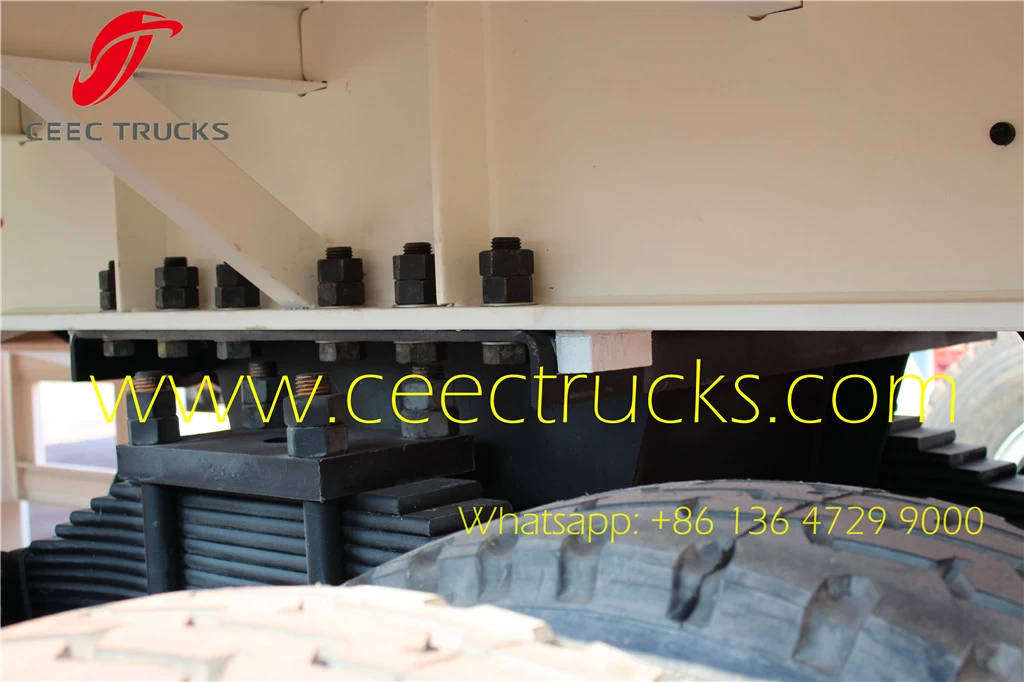

| Leaf Spring
|
Four sets of reliable local brand, 7-piece leaf spring,16x90mm
|
|
| King Pin
|
One unit of 2`` SAE standard bolted-in kingpin
|
|

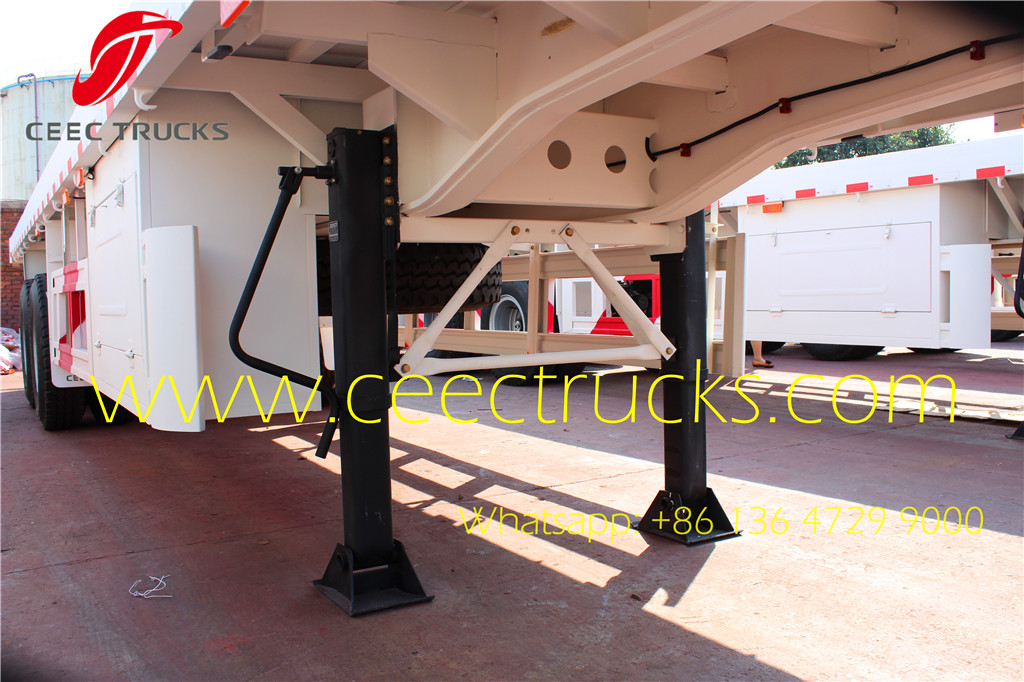

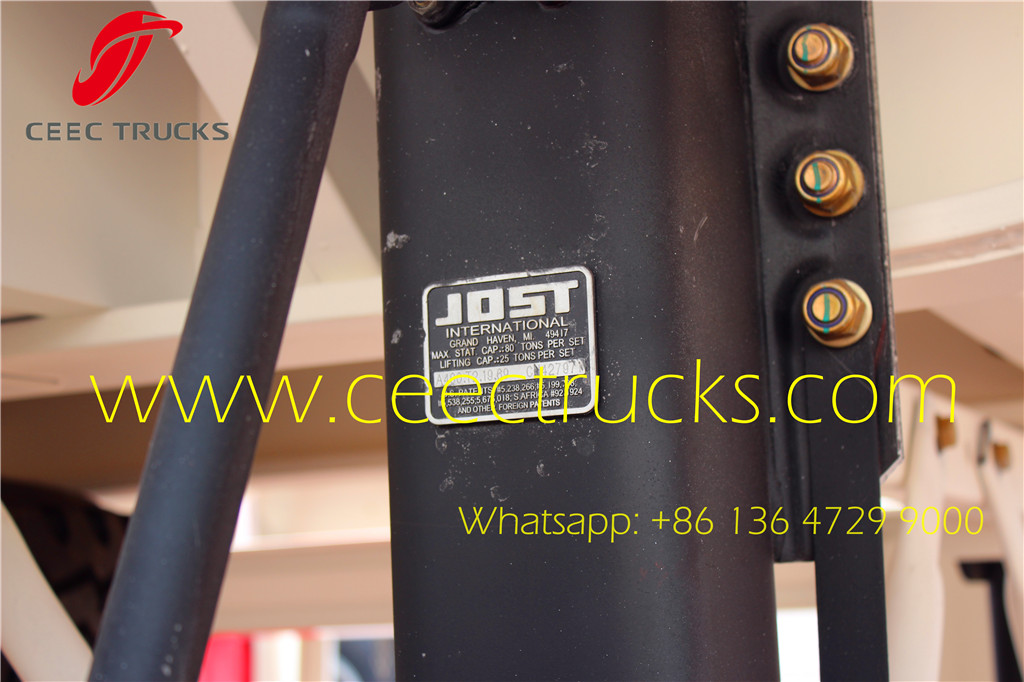

| Landing Gear
|
JOST-D200,Two-speed manual operation, heavy duty landing gear
|
|
| Wheel Rim
|
Eight units of 8.0-20 rim
|
|
| Tyre
|
Eight units of 12.00R20 nylon tyre
|
|
| Twist Lock
|
12 pieces---four pieces are fasten mode, eight pieces are up-down mode, of ISO twist lock for 2x20ft;1x40ft container, central locks can be laid down.
|
|

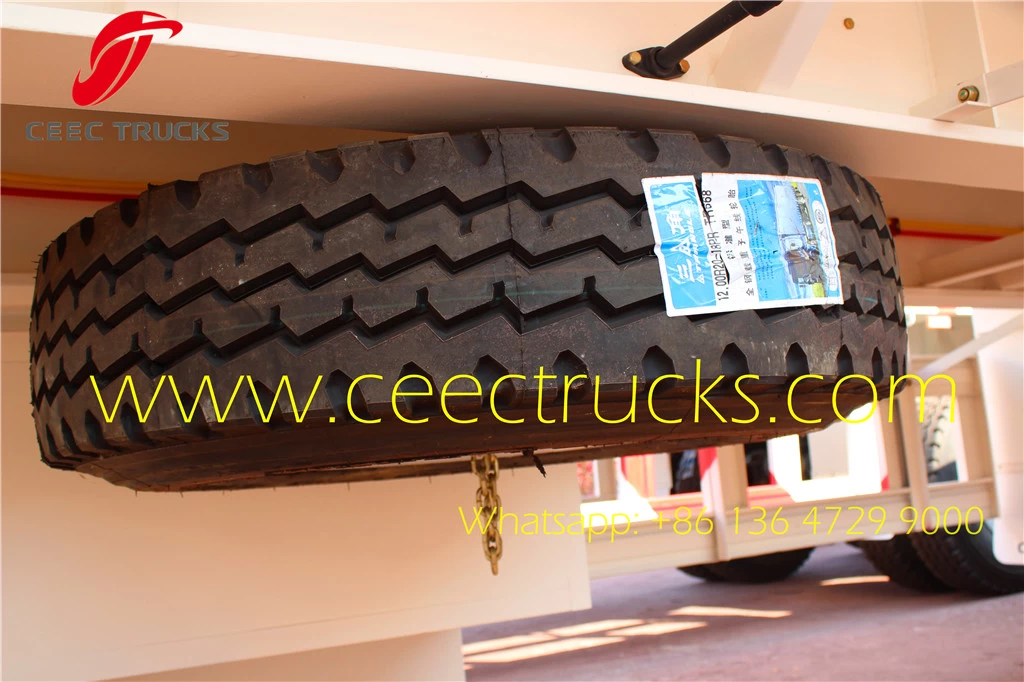

| Spare Wheel Carrier
|
One set of spare wheel carrier including a riser.
|
|

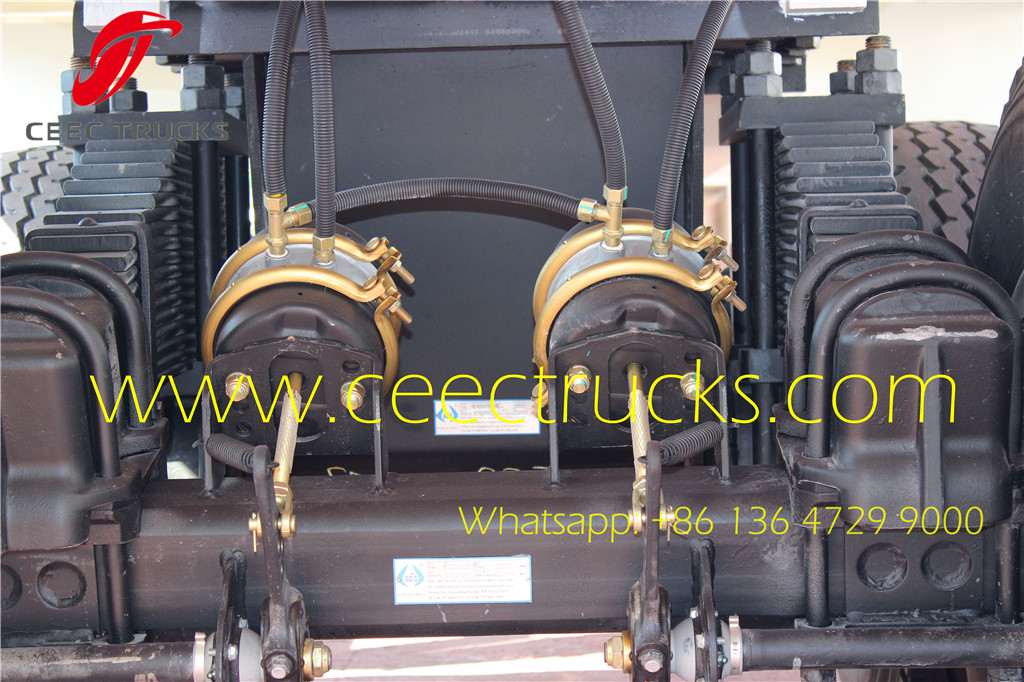

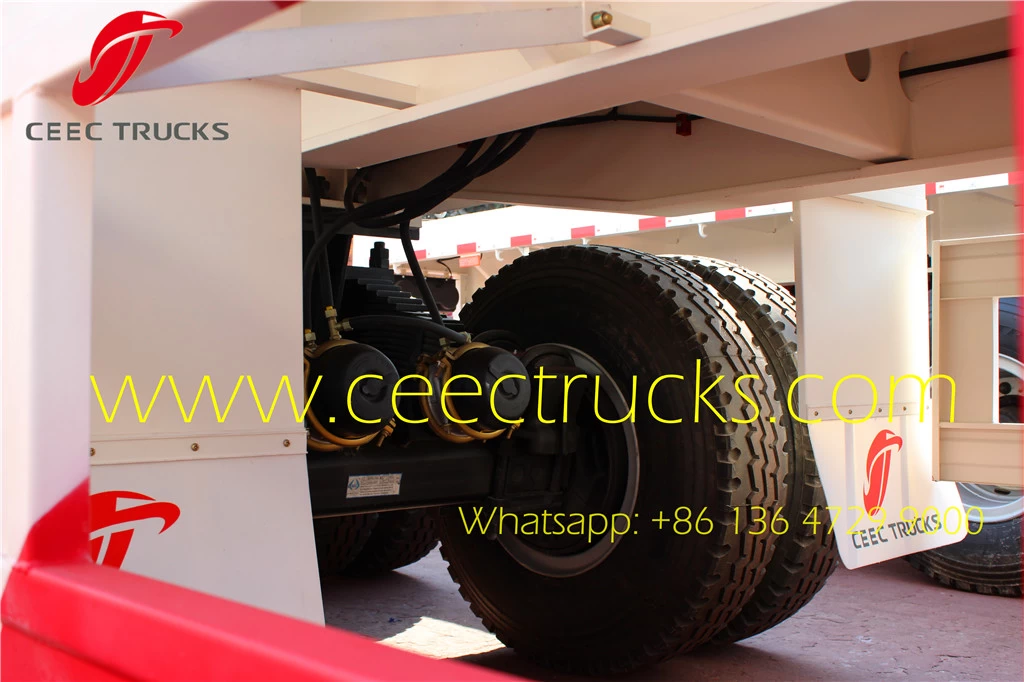

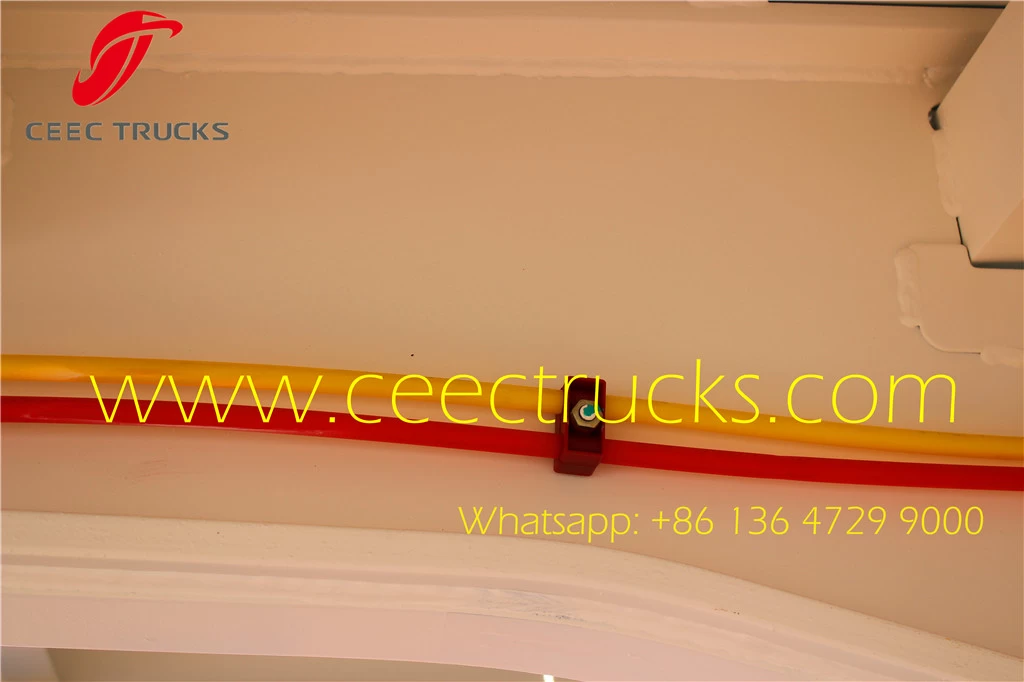

| Pneumatic Braking System
|

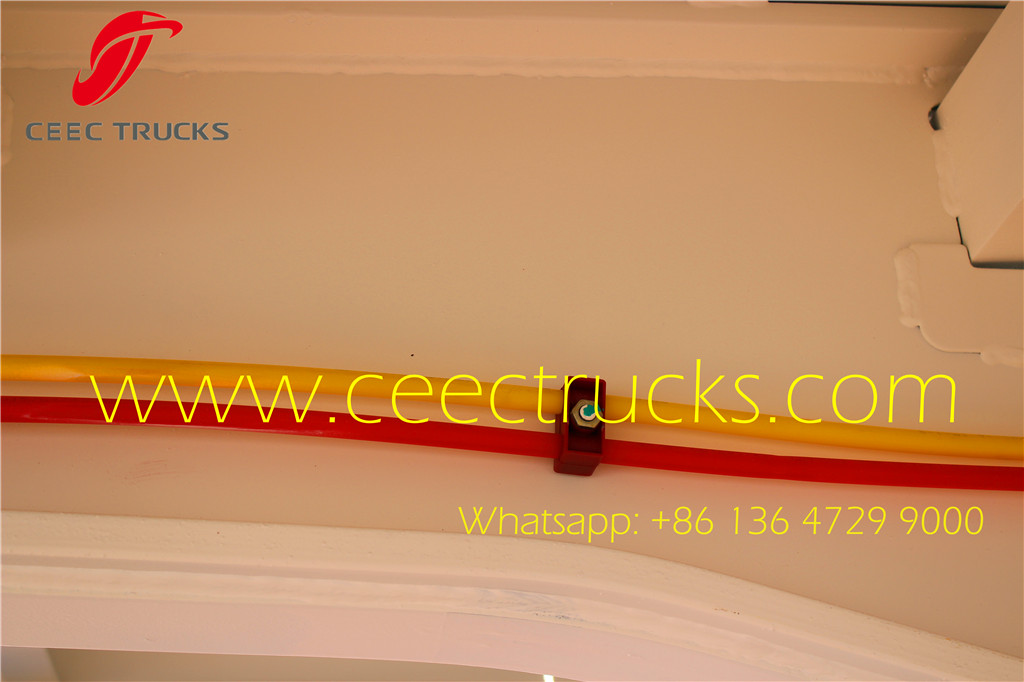

One unit of WABCO RE 6 relay valve; four units of T30/30 spring brake chamber; one unit of reliable local brand 40L air tank ; two units of reliable local brand standard coppery air-connector.
|
|

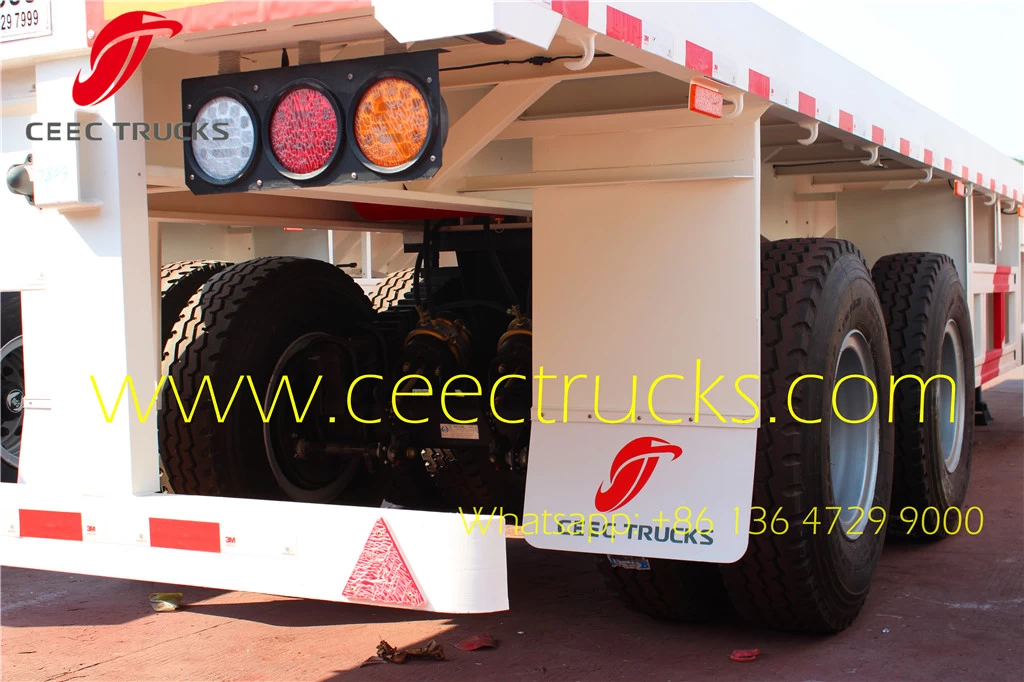

| Electrical System
|
One unit of JAEGER POWAY ,24V 7-pin ISO 1185 socket; two sets of reliable ,local brand standard rear light, turn light, rear reflector, side light, side reflector etc.
One set of DAFA(brand ) 6-core standard Cable.
|
|
|
| Painting
|

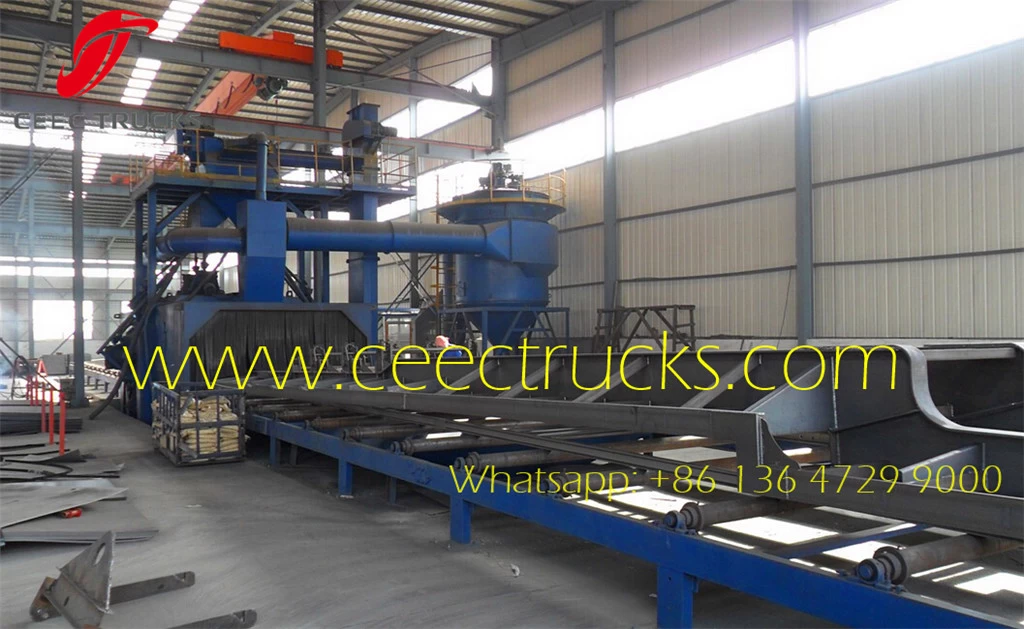

Sand blasting before painting;
|
|
| two coats of primer, anti corrosion;
|
|
| one coat of finish painting;
|
|
| Color advised by client.
|
|
| Accessory
|
One box with a set of standard trailer tool
|
|
| For the specification above, we reserve the right to make any changes without notice.
|
|

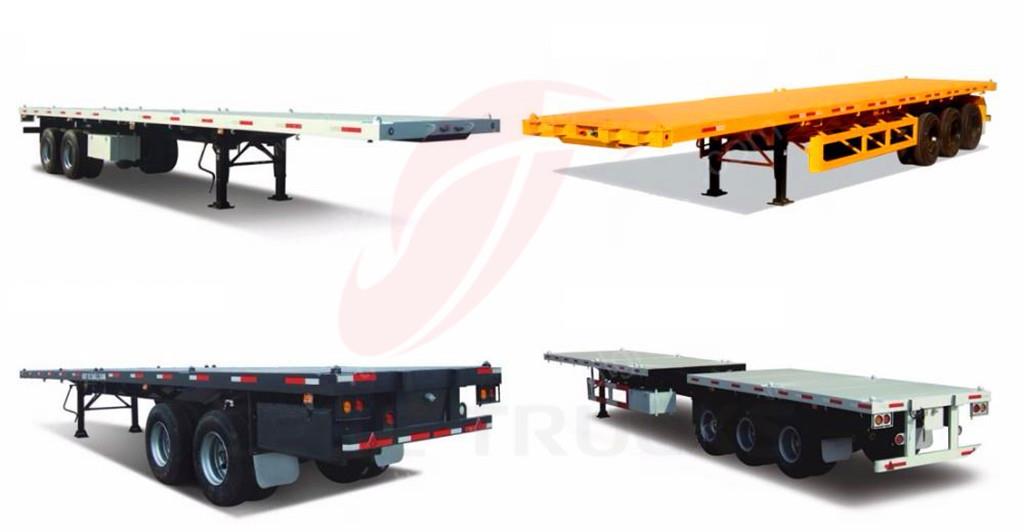

China Best Semitrailer on sale
