Introduction

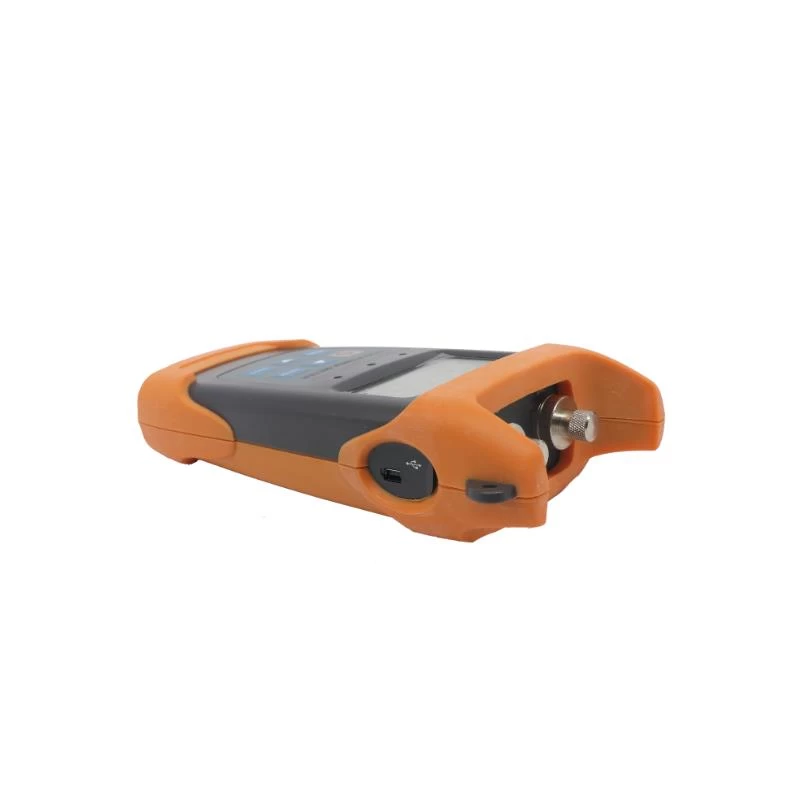

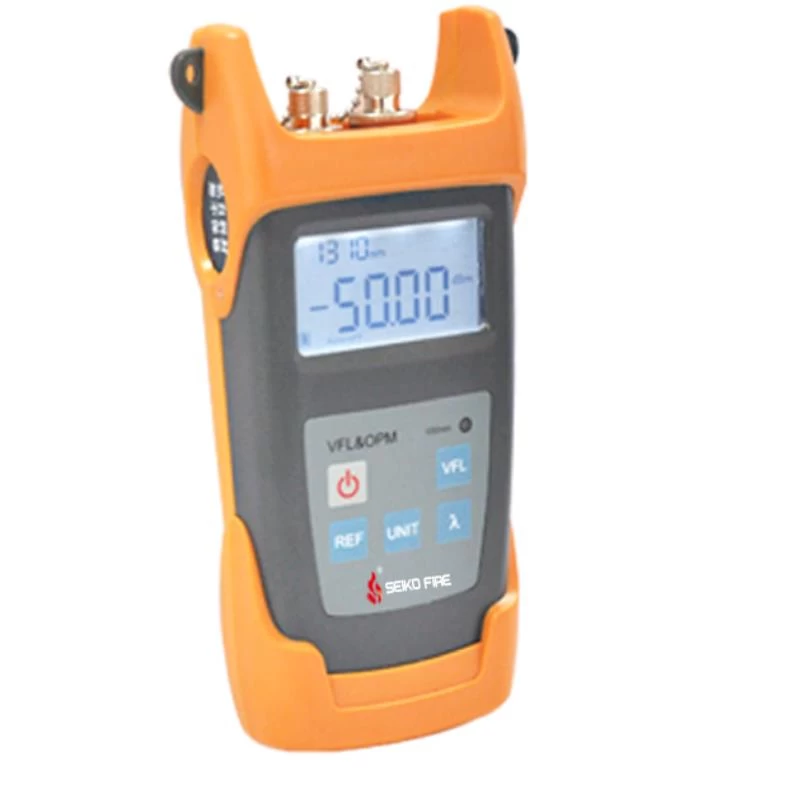

S405 Power meter and VFL integrated in one unit, this tester
allows to perform both optical power/loss measurements and fiber faults tracing
visually.
Features
S405 power
meter and VFL is an ideal tester used in quickly mechanical splicing and FTTx networks.

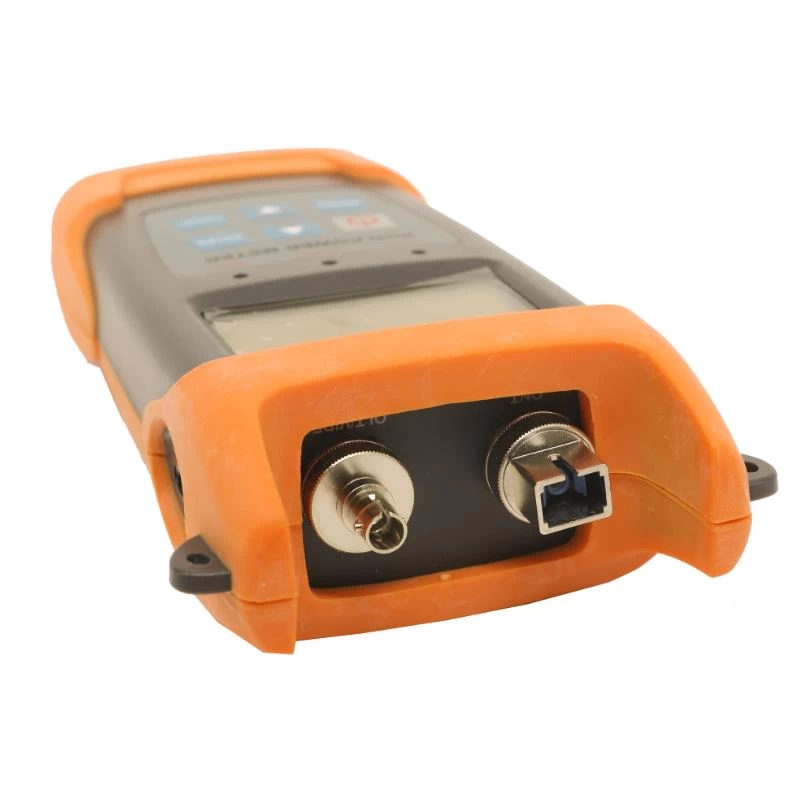

Optical port:
FC, SC interchangeable supports various optical connectors.
Applications
-
Maintenance
in Telecom
-
Maintenance
CATV
-
Fiber
Optic Lab Testing
-
Other
Fiber Optic Measurements
Specifications
|
Model
|
S405
|
|
Operating wavelength(Power Meter Module)
|
850/1300/1310/1490/1550/1625
|
|
Detector Type
|
InGaAs
|
|
Output power (VFL module)
|
1mw or 10mw
|
|
Power Measurement Range
|
-70~+6dBm/-50~+26dBm
|
|
Uncertainty
|
±0.5dB
|
|
Resolution
|
0.01
|
|
Operation temperature
|
-10~+60 ℃
|
|
Storage Temperature
|
-25~+70℃
|
|
Auto-off function
|
Yes, Auto-off after 10minutes idle time
|
|
Battery Life @ OPM
|
180 hours
|
|
Battery Life @ VFL
|
60 hours
|
|
Power Supply
|
3pcs AA Batteries
|
|
Weight
|
700g (including batteries)
|
|
Size
|
192*102*50mm
|
