2 LAN Embedded Box PC 6 COM 128G MSATA Intel 3317U
Product Introduction
All-aluminium fan-free embedded IPC, board-pasted 4th generation i3/i5/i7 U series CPU, 2LAN 6COM.
| Specifications |
optional configurations |
| Chassis |
All aluminum case with teeth, sandblasted and oxidized black |
Other colours can be customized |

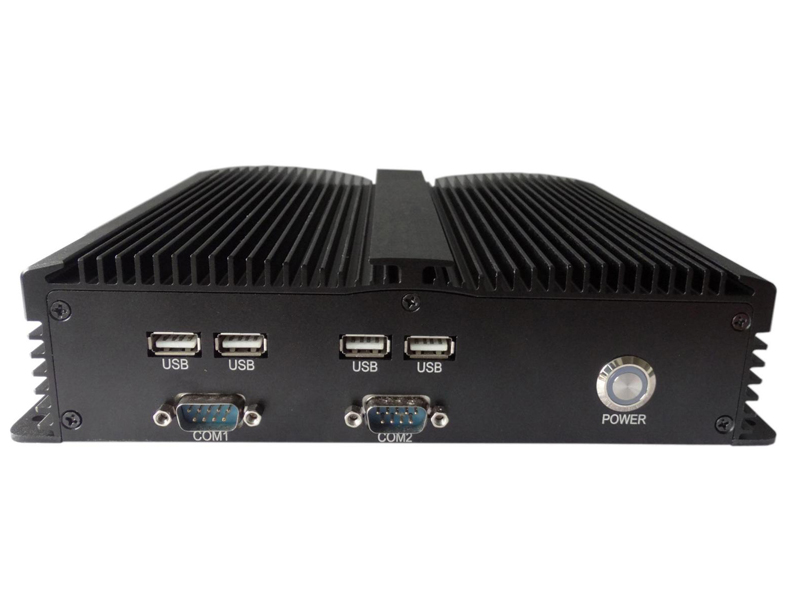

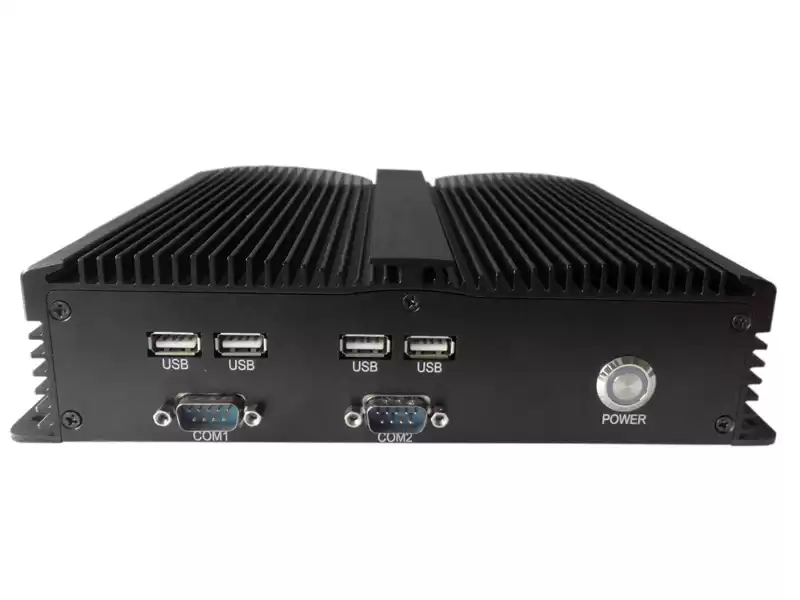

| Front |
With power indicator switch; 2COM; 4USB2.0 (6th gen 2USB2.0) |
Customizable with customer logo or more serial or parallel ports |

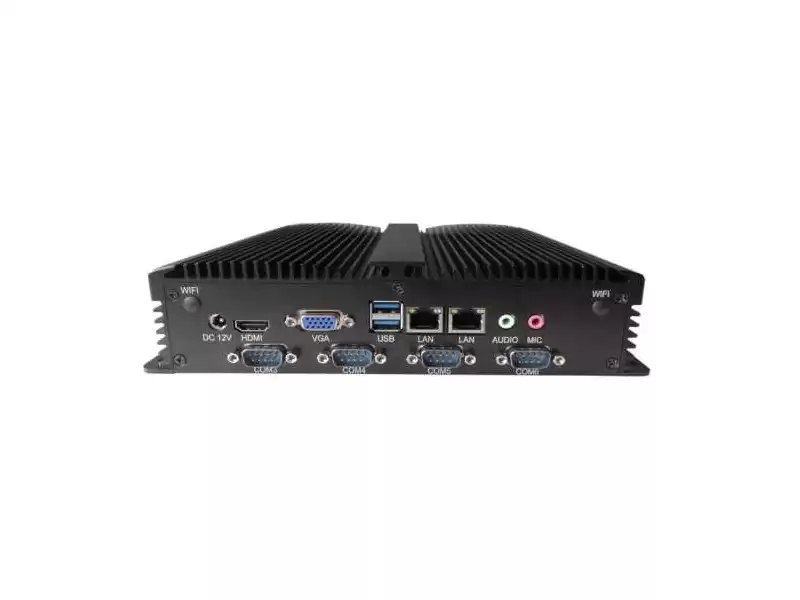

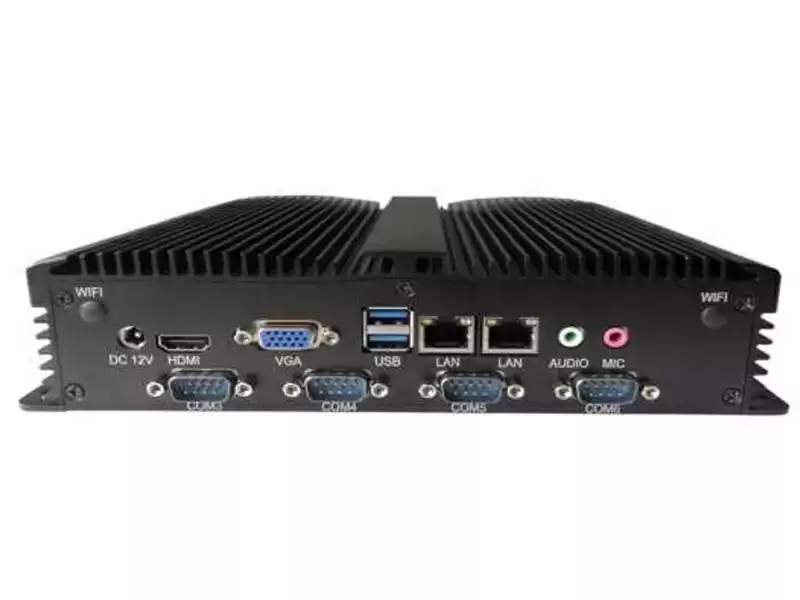

| Back |
DC 12V input; VGA + HDMI display; 2USB; 2RJ45 gigabit network port Line out + MIC in; 4COM; 2 antenna aperture (support WIFI or 4G) |
6COM is RS232 by default, RS422 or RS485 can be selected; except for the 3rd generation U motherboard, the others all support 2 USB3.0. |
| Hard disk rack |
1 hard disk rack, supporting 1* 2.5 inch HDD/SSD |
Optional Double Hard Disk Rack |
| Adaptive Motherboard |
MINI-ITX motherboard for all U-series CPU in Yanyue |
|
| CPU/GPU |
Intel i5 4300U |
Optional Soldered Onboard Intel J1900 or All Generation i3/i5/i7 U Series CPU |
| Memory |
4G DDR3 |
Optional 2G/8G/16G,Max up to 32G notebook memory |
| Hard Disk |
128G MSATA |
Optional 32G/64G/256G up to 1T mSATA SSD; support 2.5 inch SSD and HDD |
| Ethernet |
2LAN (Gigabite Network) |
Optional Intel network CHIP(4th Gen U) |
| Display Interface |
VGA+ HDMI |
|
| Size |
234*200*64.5mm |
Net/Gross Weight |
3/3.5KG |
| Power Supply |
Standardized 12V@5A adapter |
|
| Installation mode |
Bracket installation |
Product Features
■ All-aluminium toothed fan-free design, fully sealed
■ MINI-ITX motherboard supporting all Generation U-series CPU in Yanyue
■ 2LAN, 6 COM, 6 USB
■ Optional Intel network CHIP(4th Gen U)
■ Support MSATA + 2.5 inch dual hard disk
■ Support VGA+HDMI dual display
■ support WIFI or 4G
| Work and Environment |
| Working temperature |
（-20～60）℃ |
Storage temperature |
-40～75℃ |
Environmental humidity |
0~90% air humidity, no condensation |
| |
|
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |

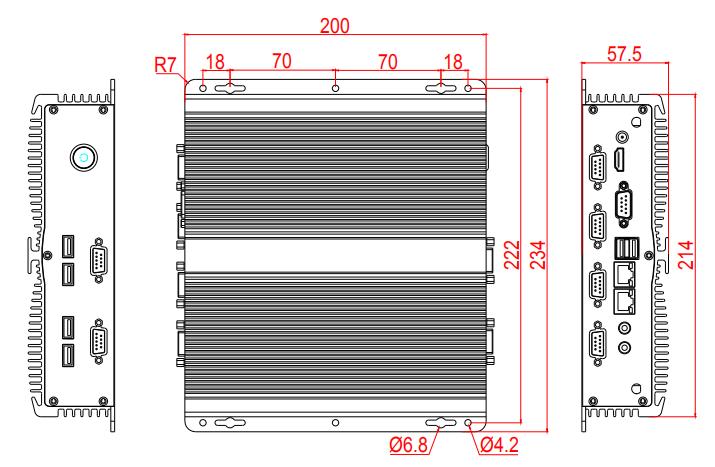

Product Installation Dimension Diagram
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
