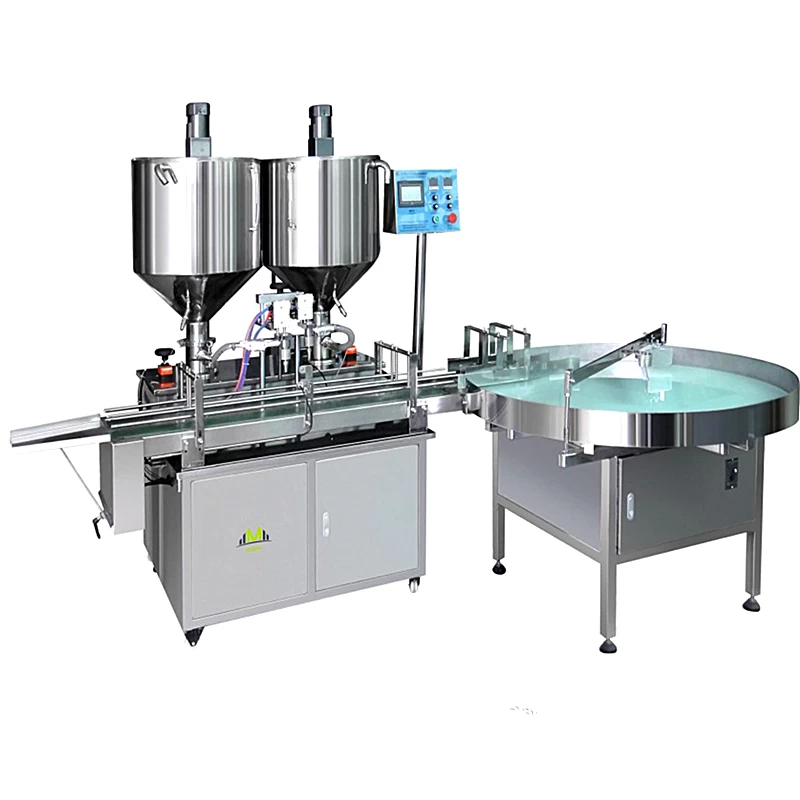

2 Nozzles ketchup full-auto filling machine

The whole Filling Machine is made of stainless and anti-corrosion materials. This Full-auto Filling Machine can be suitable for the filling requirements of bottles(containers)with different shape and liquid non containing gases.



2 nozzles ketchup full-auto filling machine

Customized And OEM Service Available

Cosmetic Filling MachineDescription:


This machine is made of high precision Bottle Filling Machine to provide indexing equal-dividing disk positioning plug cover;acceleration cam drive provides capping head lifting; Rotary Filling Machine constant torque capping;high precision screw metering filling; without touch screen control. Bottle filling,without inner plug, the outer cover. With accurate positioning, stable transmission, protective cap, accurate in measurement. The advantages of simple operation, fully in line with the GMP requirements of the national.


Fetures:


1.it can be conveniently maintained. it can be easily disassembled asssembled and cleaned without the need of  using any tools, the adjustment is convenient, when adjusting the metering ,first adjust the value to be near the  metering at a wide range ,then make the fine adjustment, ti can realize accyrate metering and make sure no filling is made in case of on bottle or bottle shortage.


2. full automatic bottle loading and filling machine filling systerm of the machine adopts the ferrule type quick installed sanitary connector, the whole cylinder can  easilr assembled and disassembled, cleaned   without the need of using any tools, it is featured by simple  structure design and convenient operation and maintenance.


TECHINCAL SPECIFICATIONS


Model

MZH-F 2 nozzles ketchup full-auto filling machine

Filling Range

50-500(ml)

Bottling Speed

30-80 (B/MIN)

Accuracy Of Gauge

±1%

Nominal Power

0.75 (kw)

Working Voltage

220V

Working Pressure

5~7(kg/cm)

Gas Consumption

0.5 (m3/min)

Net Weight

650kg

Overall Dimension

3000×870×1700mm



Technical  parameter


Filling volume(ml)

Productivity(b/h)

Filling speed

Filling precision

Air supply

10-120ML

1500-3500

adjustable

 ≤  ± 1%

0.4-0.8mpa

25-250ML

1500-3000

adjustable

≤  ± 1%

0.4-0.8mpa

100-1000ML

1500-2500

adjustable

≤  ± 1%

0.4-0.8mpa

250-2500ML

1500-2500

adjustable

≤  ± 1%

0.4-0.8mpa

500-5000ML

1000-2000

adjustable

≤  ± 1%

0.4-0.8mpa

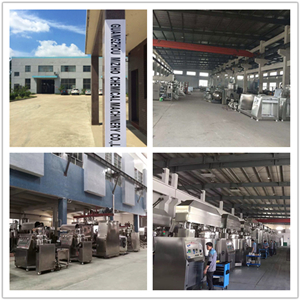

Company overview



We are leading manufacturer in China which specialized in  Cosmetic machinery, Food machinery and Pharmacy machinery products supplying for over 15 years; good quality and professional service help us gain many good reputation all over the world;

we hope you can join us in the future.


Package: Plywood Case Packing




Our Service

Pre-Sales Service                                                             After-Sales Service

1. Inquiry and consulting support.                                      1. Training how to instal the machine, training how to use the
 2.Sample testing support.                                                  2. Engineers available to service machinery overseas.
  3.View our Factory.


FAQ
1. Q: Are you factory or trading company?

 A: We are the professional manufacture of cosmetic machinery in China more than 15years,We have our own factory and skilled workers, rich-experienced R&D and professional service team.


 2. Q: Where is your location?

A: Company and Showroom located in Guangzhou china, Factory located in Jiangsu and Shanghai Province.


 3. Q:How about the  Product Range?

A: We can provide a wide range of products for your One-stop sourcing. Also we can customize according to your specific requirements.


 4. Q: How does your factory do regarding quality control?

A: Our quality is built on good quality material, imported from Japan, Germany etc. We have passed ISO9001,CE, GMP. Our price is based on the quality, and we will give reasonable prices  to every customer.


 5. Q:How about the after service?

A: We can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket  cost and arrange the hotel accommodation as well as the means for Seller’s engineer. We will send some free set of spare parts for you change it.

 Our Company to customer satisfaction for the development of three goals: product quality, product technology and after-sales service!
