2 T

JMC brand 2T boom crane trucks on sale, JMC diesel engine 92HP, Manual 5-shift gearbox for hot sale, with Left hand drive and Right hand drive model for optional. Equipped with SK2SQ1Q telescopic boom crane, maximum lifting height can be 2000kg. With Remote Control for customer choose

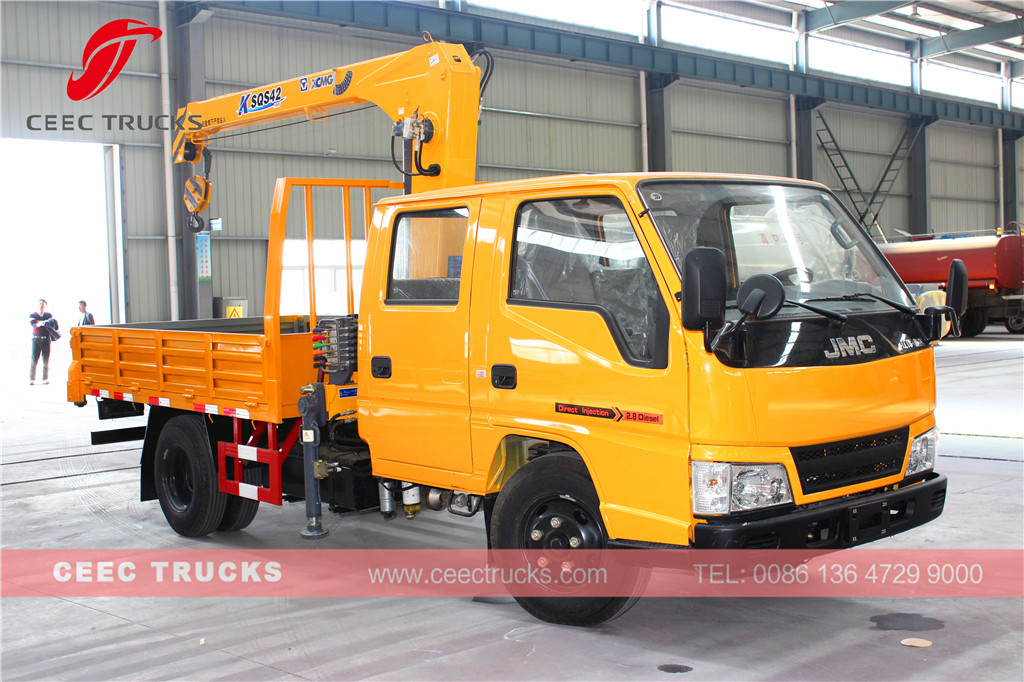

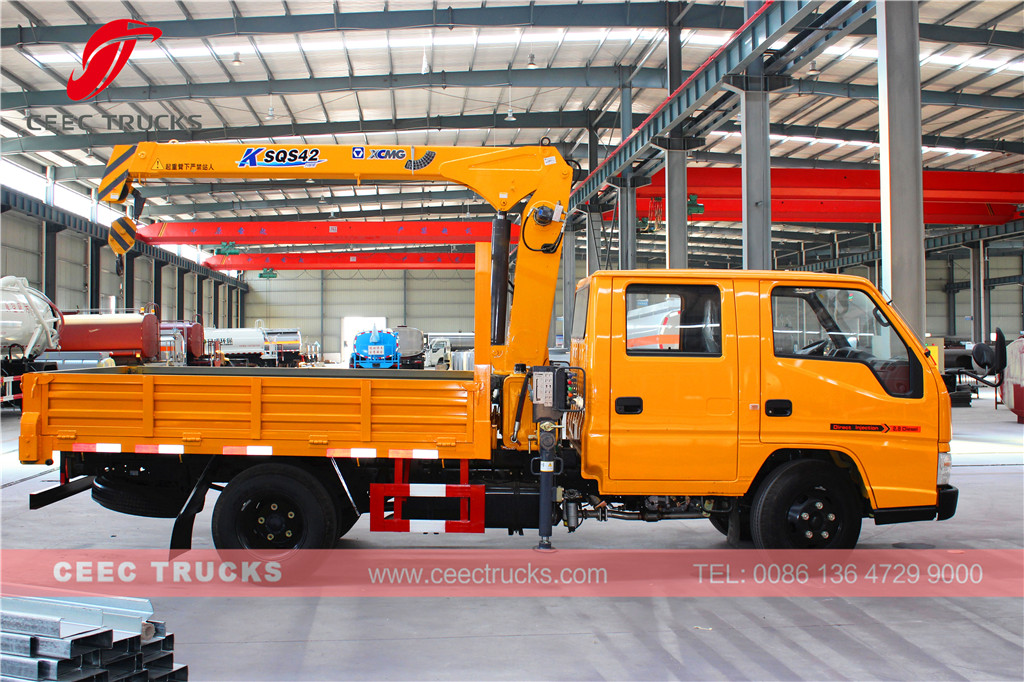

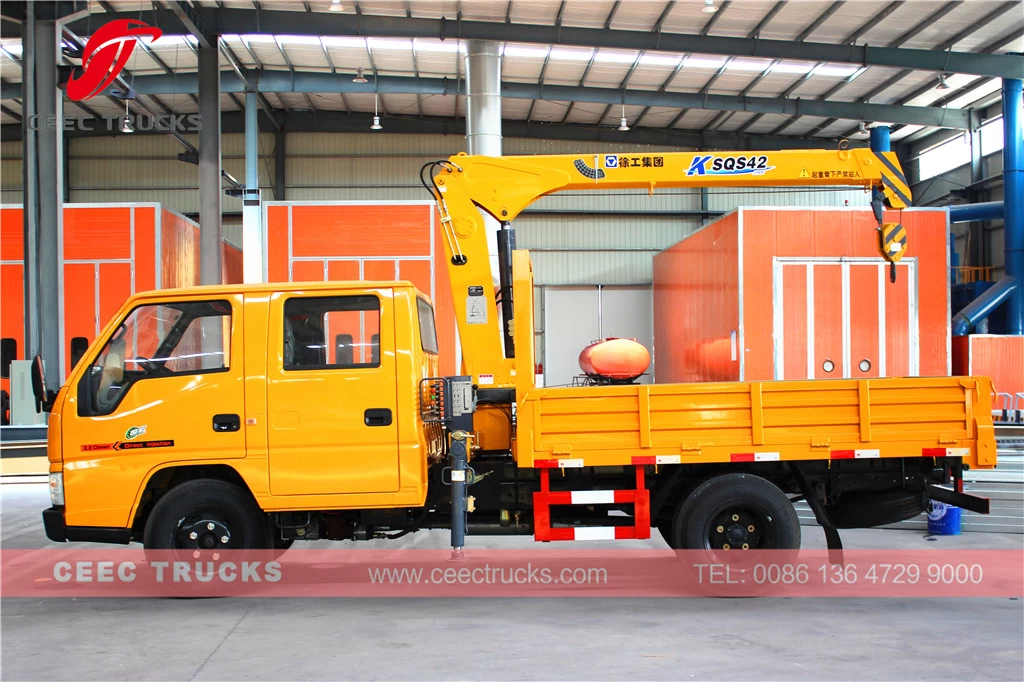

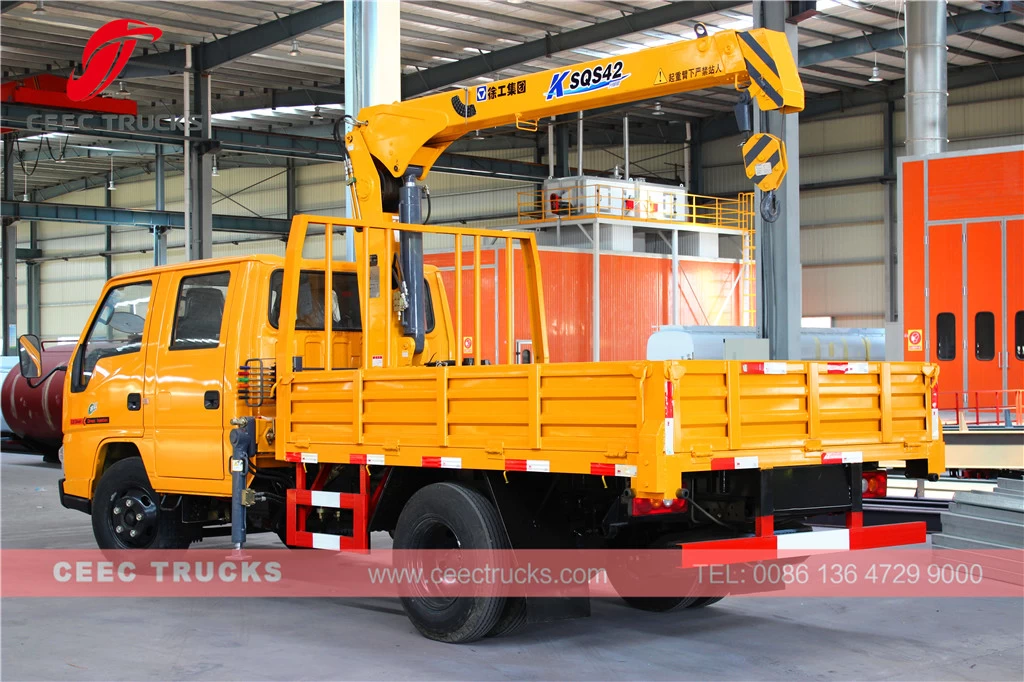

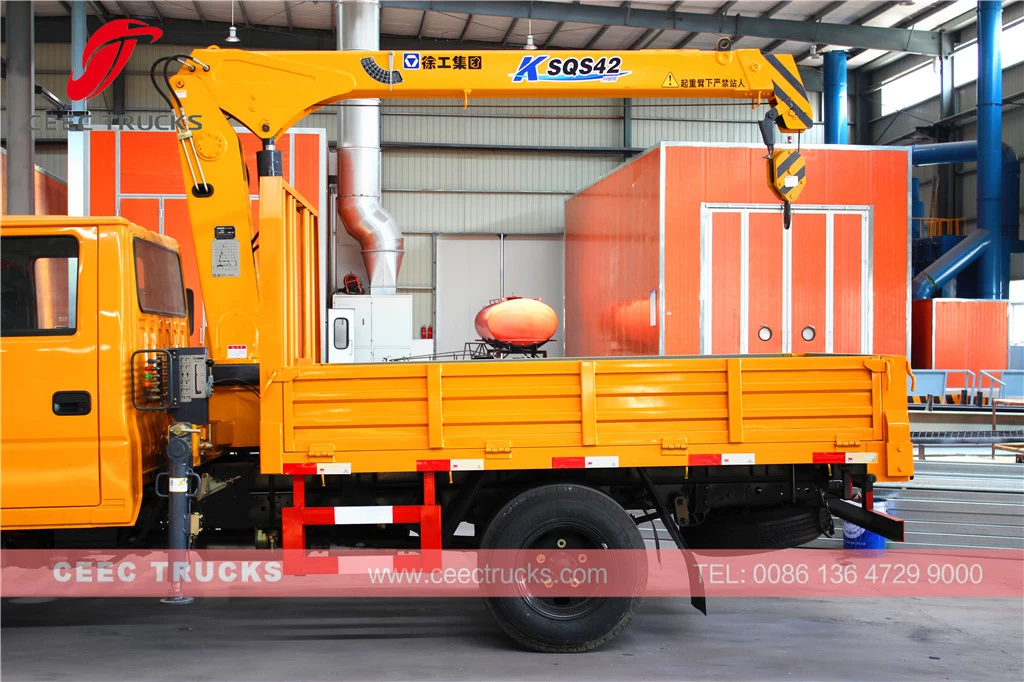

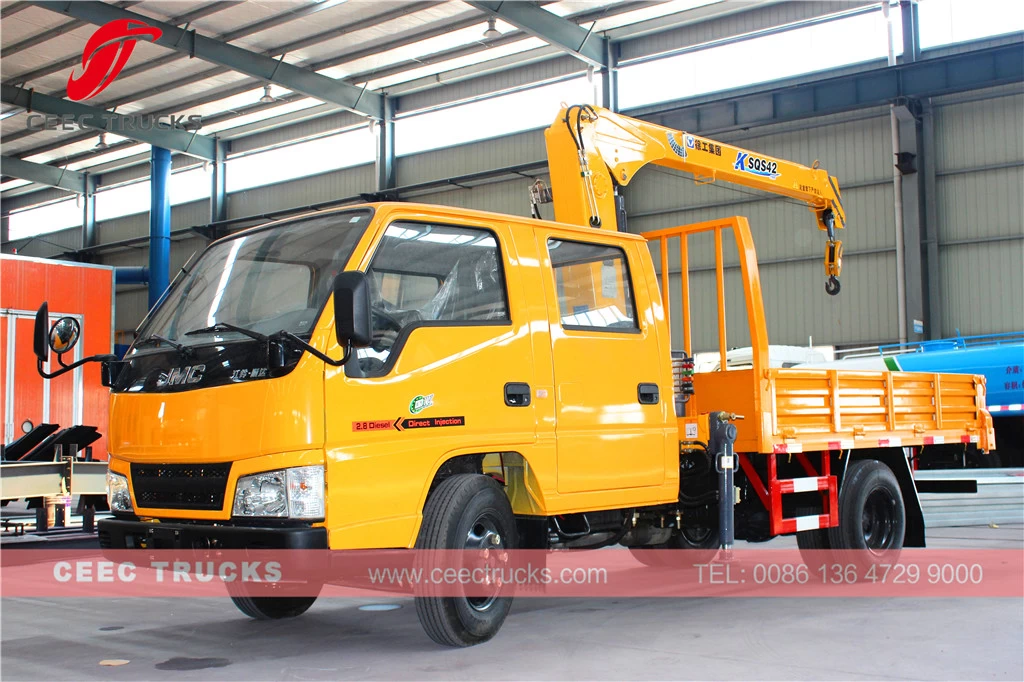

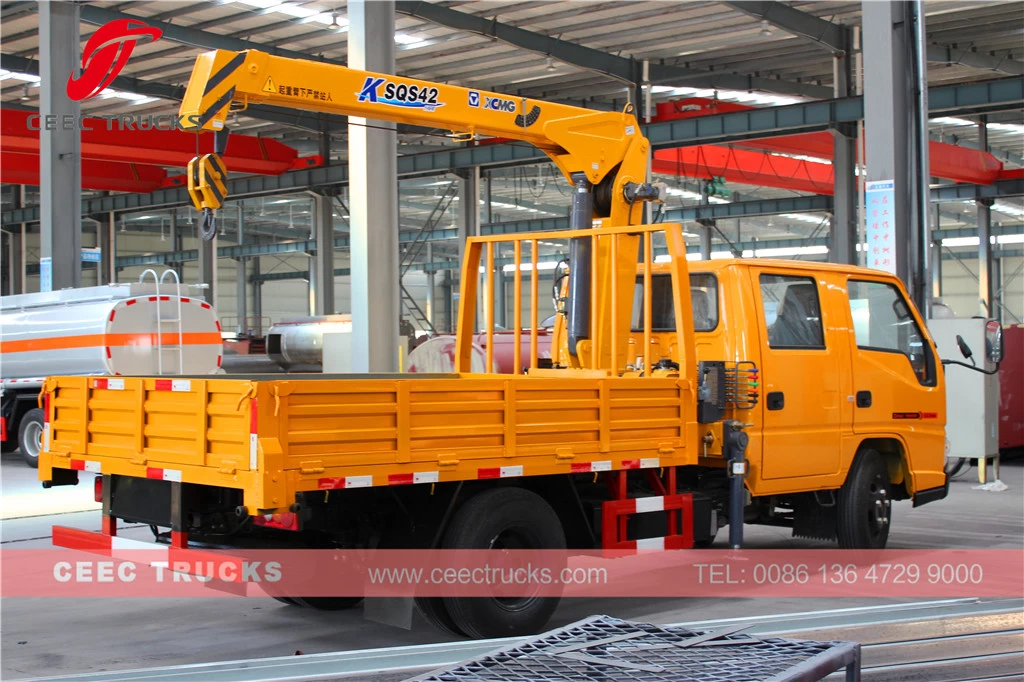

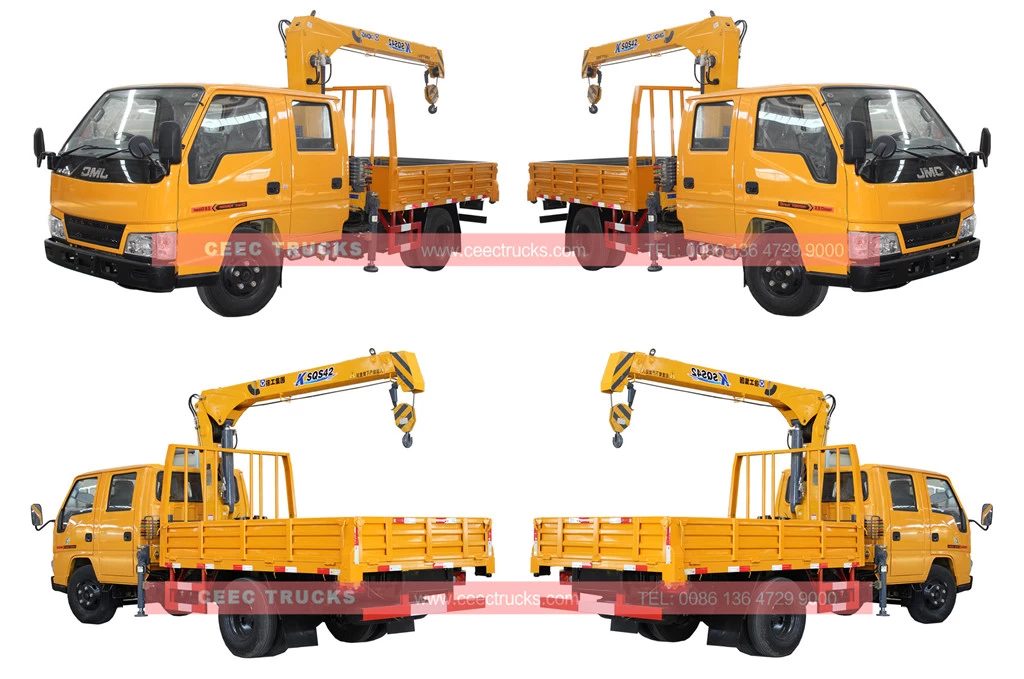

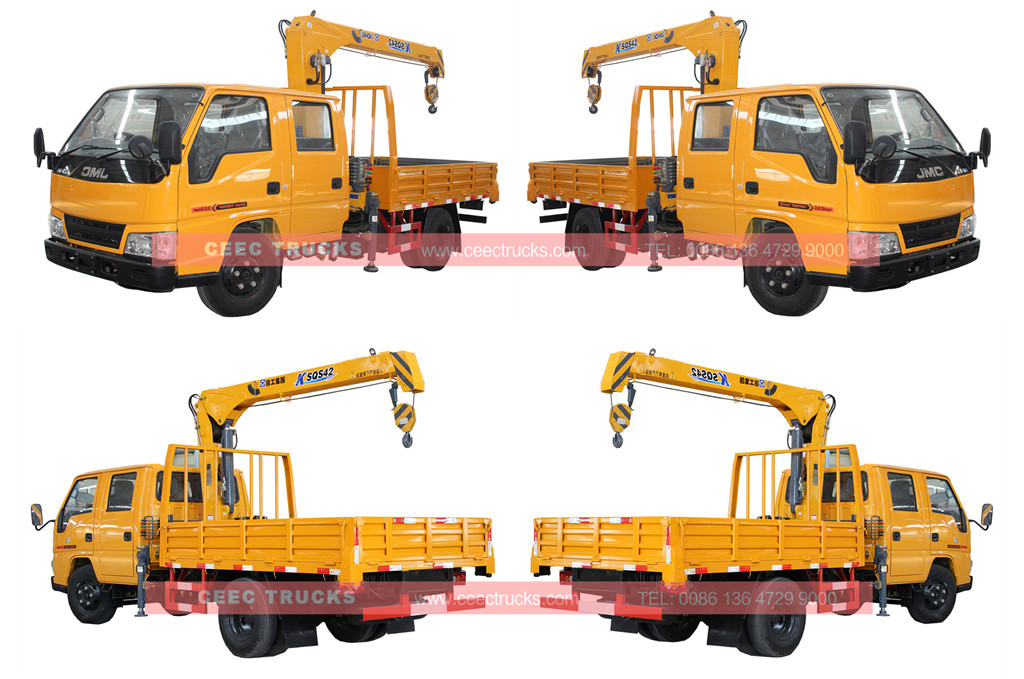

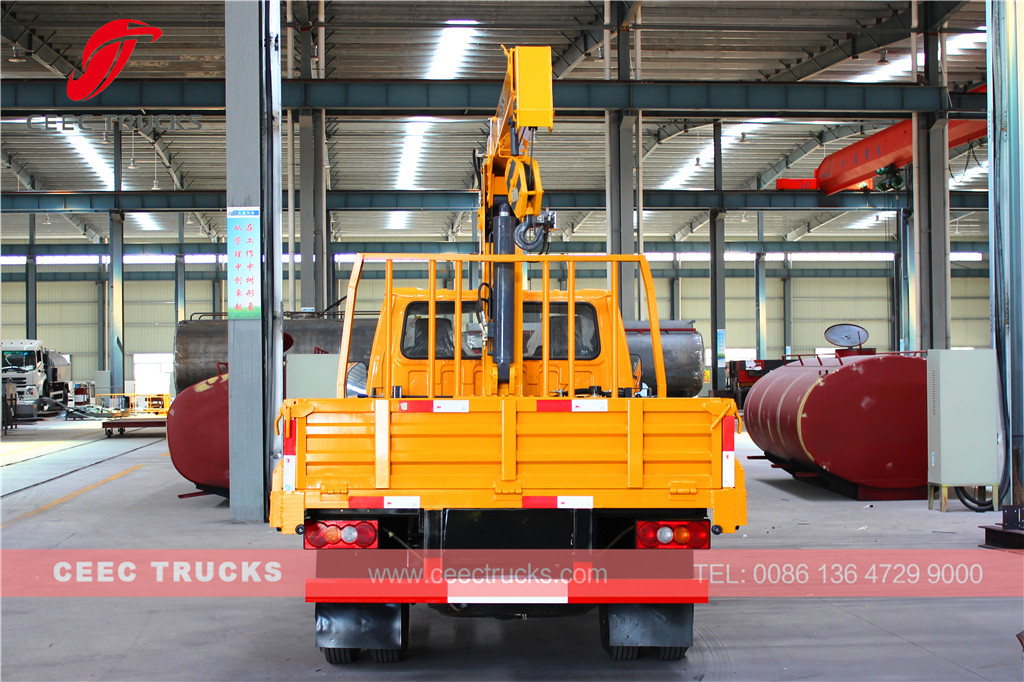

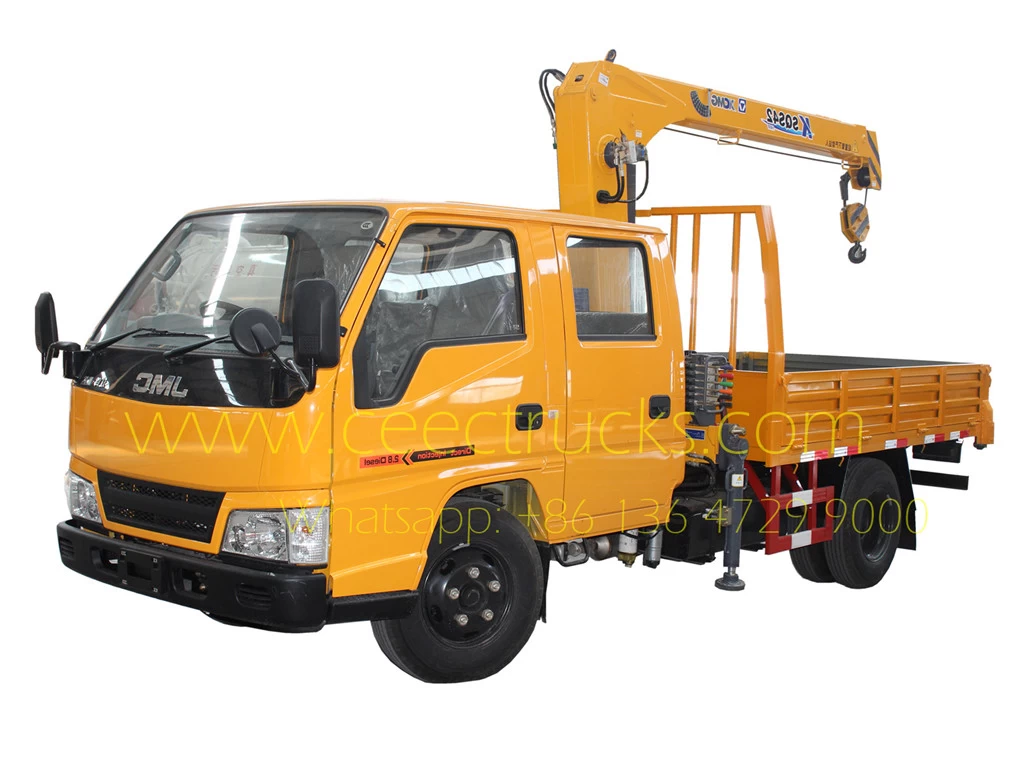

Wholeview for JMC 2T telescopic boom crane



 Applications:



Truck Mounted Crane (also called XCMG crane, UNIC crane, crane truck, lorry mounted truck, truck cargo with loader, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck) is used to lift the cargo, load, transport and unload heavy stuff.



There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton, 50T, 100T



The Cranes can be of famous brands as Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.



 Key Features:



---- JMC chassis ensures perfect performance on driving

---- JMC technology engine, super powerful, no overhaul within 100,000 km.

---- High strength cargo body, nice shape and rational structure.

---- Easy operation and easy maintenance.

---- Premium cranes Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.

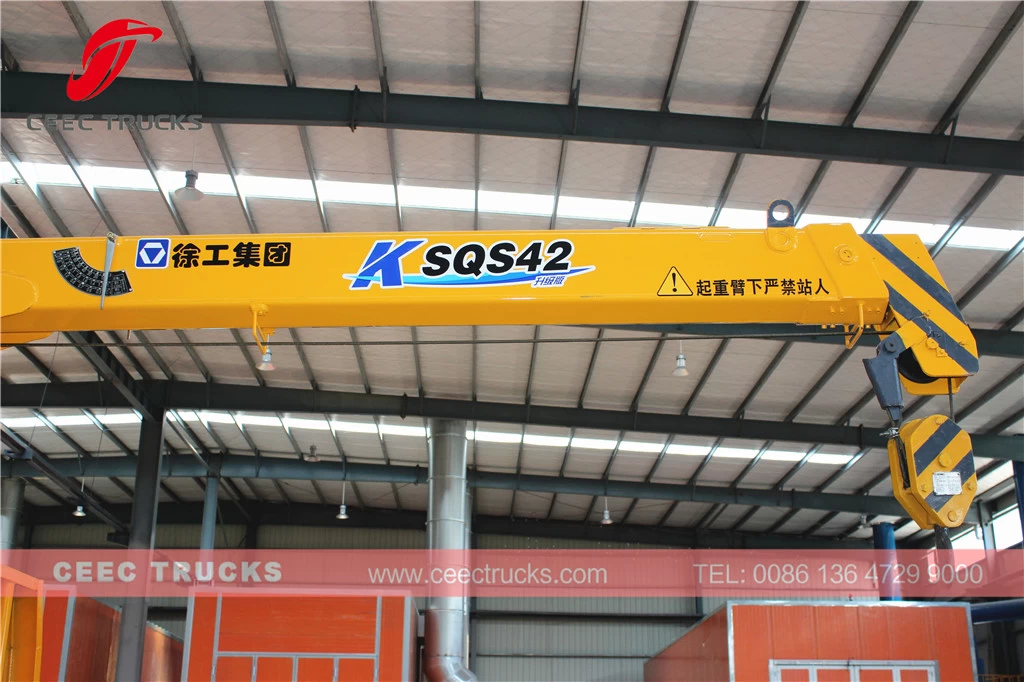

Crane Features:

---- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.

---- Advanced development means make sure that the design is very reliable.

---- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.

---- Compact hinge point design take up smaller space

---- The work is more safety after fitted over-winds alarm equipment.

---- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.

---- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.

---- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.

---- Anti-slewing impulse equipment that make vehicle running safely



 Specifications:



Telescopic boom Crane truck JMC (2Ton boom crane SQ2SK1Q)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

JMC

Overall Dimension

6000 * 2000 * 2870 mm

GVW / Kerb Weight

6,995kg / 3,250kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

JMC

Power

92 HP (68 KW)

Displacement

2771 ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

4X2, (Left hand drive or Right hand drive)

Transmission

Manual 5 speed levers with 1 reverse

Wheelbase/No. of axle

3360 mm / 2

Tire Specification

7.00-16

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Cargo Box Dimension

3450*1790*400 mm

Crane Type

Telescpoic boom crane

Max Lifting Capacity

2000 kg

Slewing Angle

360° All rotation

Crane Weight

875 kg

Installation Space

850 mm

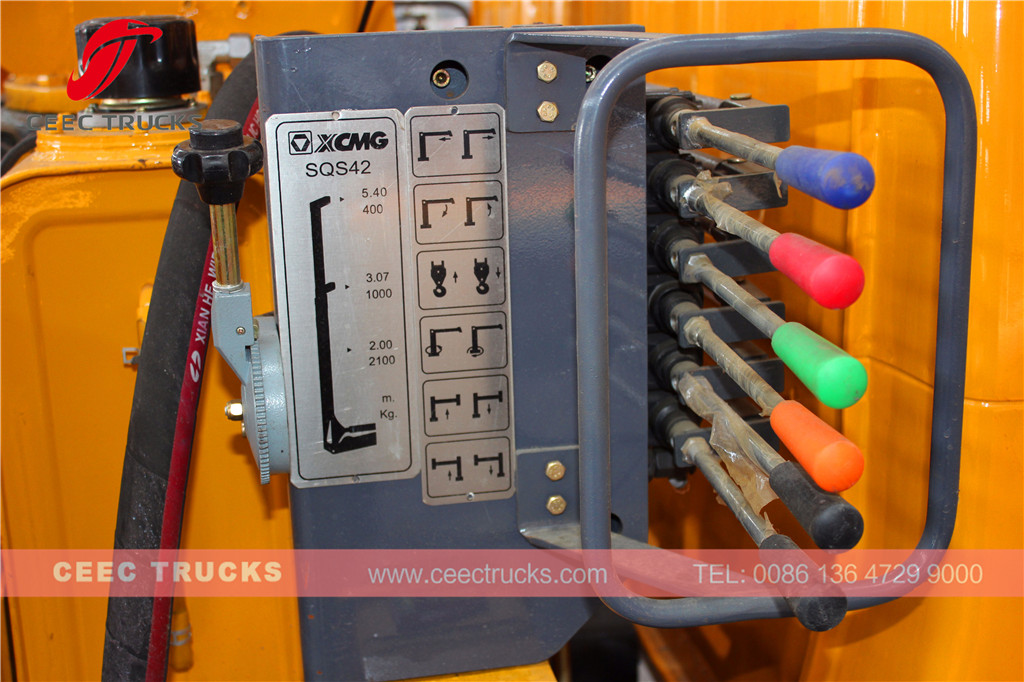

Control panel

English or Your language

All standard accessories: Basic tool kit, English manual……

Optional

** Knuckle boom crane.

** Hydraulic tipper box.

** Box thickness according to requirement.

** Box height could be nominated
** Remote Control Box optional

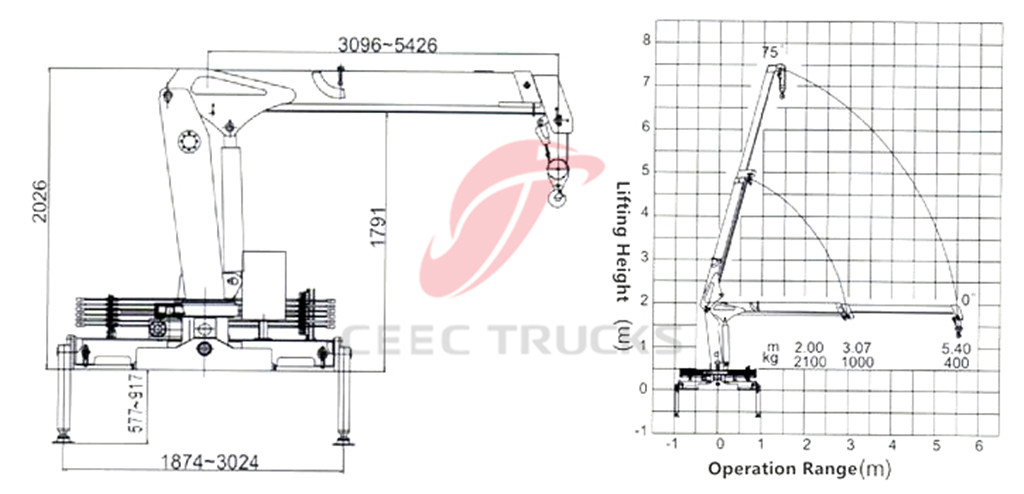

CEEC 2T boom crane trucks dimenstion CAD Drawing
