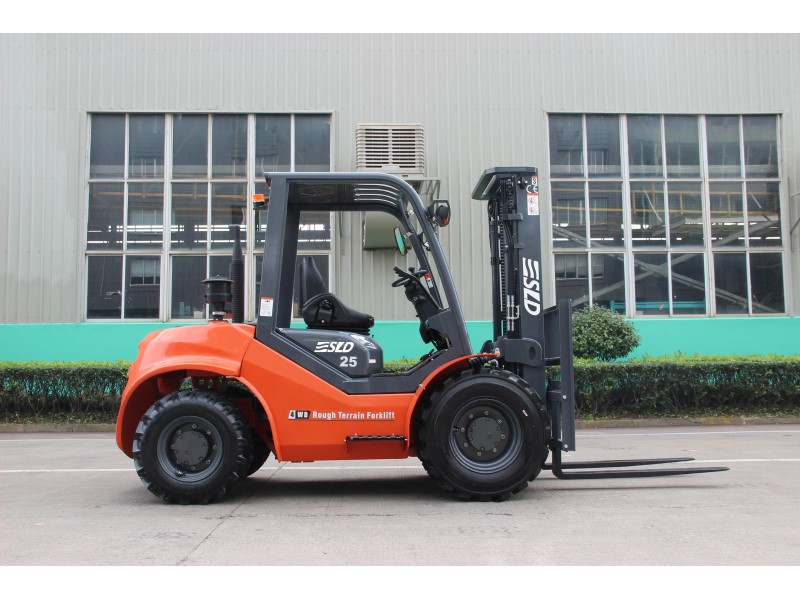

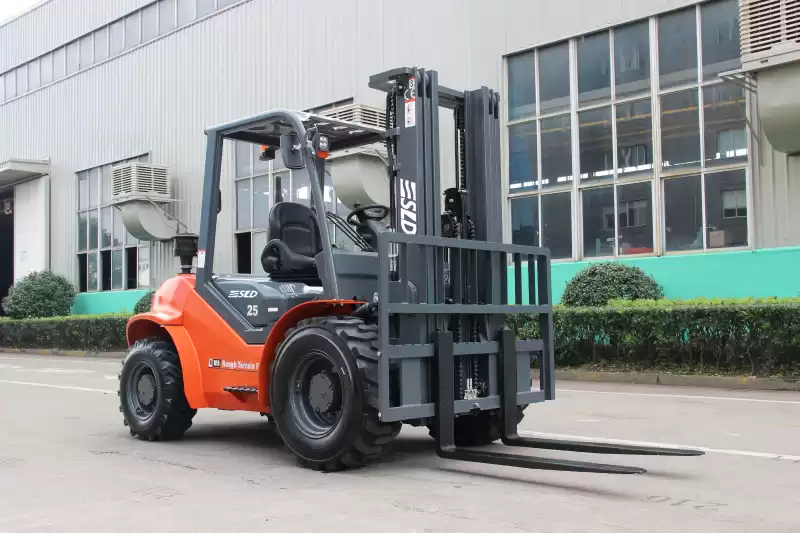

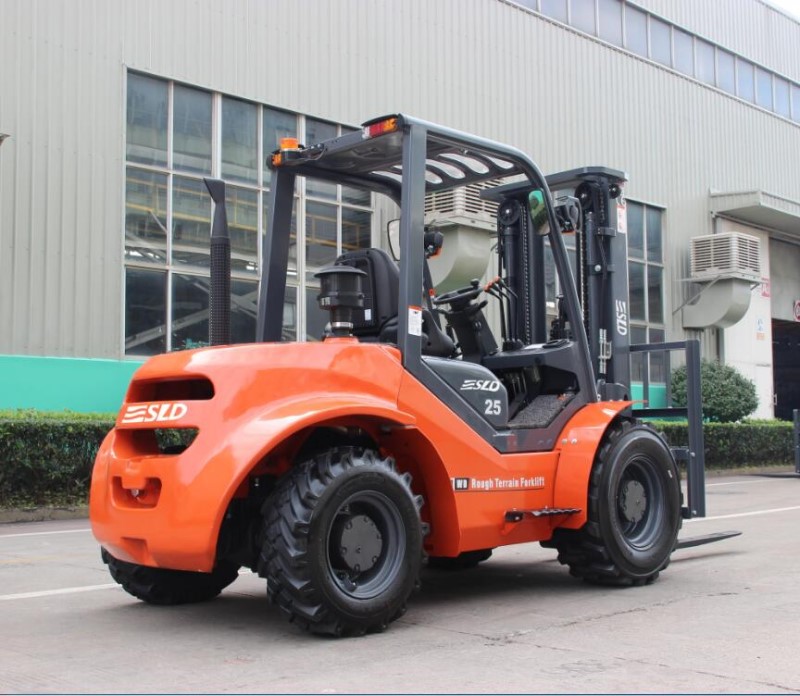

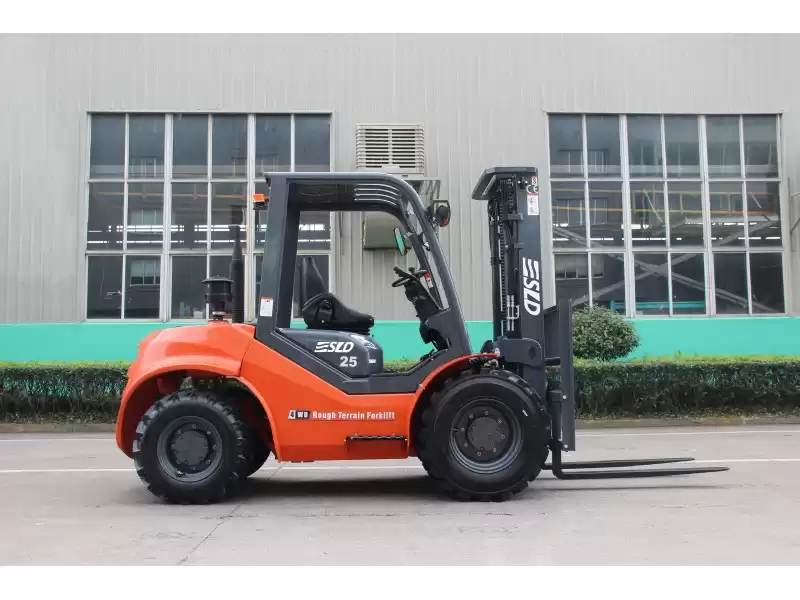

2 ton 2.5 Ton 4 Wheel Drive Rough Terrain Forklift

Drive type: 4WD

Rated capacity: 2500kgs

Load center: 500mm
2 stage mast lifting height: 3000mm
Fork length:1070mm

Chinese Xinchai 4D32G31 engine

Automatic transmission

Pneumatic tires

Overhead guard

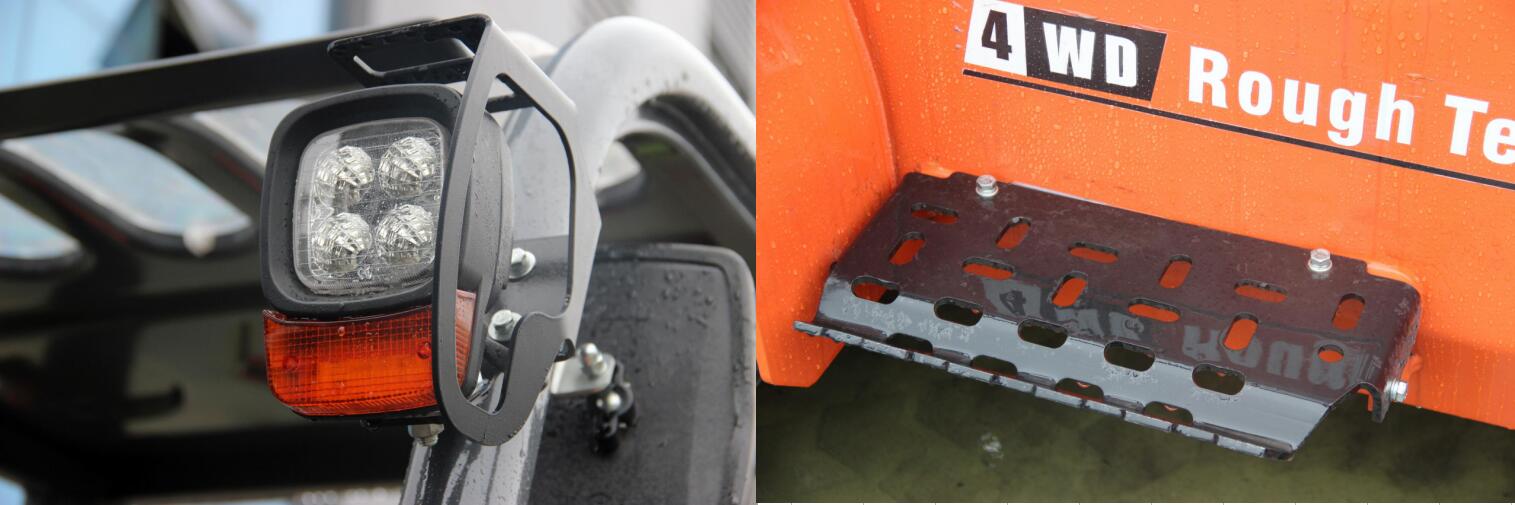

Led lights and warning light

Options: 42KW Kohler KDI1903TCR EURO IIIB / TIER 4F engine



Main Features of 2.5 ton Rough terrain Forklift

Quality and safety:

2.5 ton Rough terrain Forklift adopts the latest ergonomics technologies and concepts in designing and manufacturing, superior visibility, unmatched productivity, safety and ergonomics designing for operator.

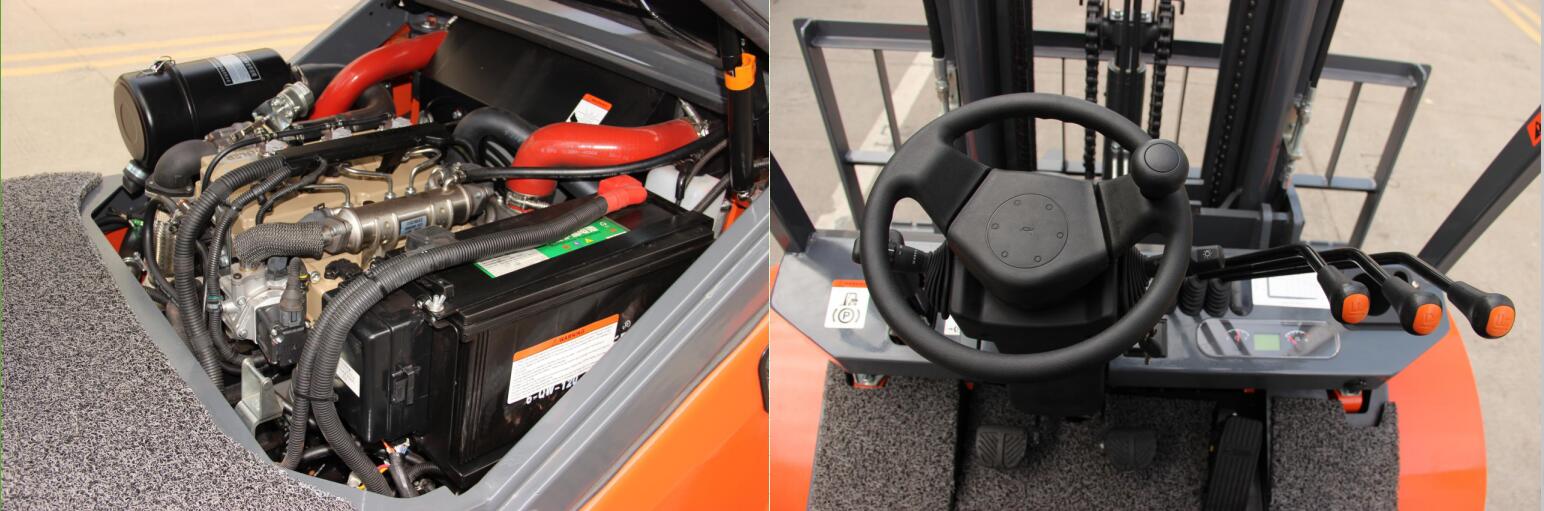

Engine: Chinese engine or 42KW Kohler KDI1903TCR engine EU Stage III B/ North America EPA Tier 4 Final engine. Our engineers have prioritized the use of a mechanical motor to ensure minimum unit maintenance costs. Users will save on service parts and labour.

Transmission system: TCM technology transmission with floating system highly reduces the forklift vibration and noise, the special differential structure on the transmission ensure the stable manoeuvrability performance in muddy condition.

Electrical system: Light indication / LCD display provides extensive information on truck operation and maintenance state, it is with waterproof and shock proof protection. The advanced wiring harness, waterproof connectors ensure the safety and dependability of the electro circuit. LED lights reduces the energy consumption and maintenance costs.

Hydraulic system:

The high quality hydraulic components and rational distribution of the pipes helps to control the oil pressure and highly improved the forklift performance.

Exhaust and cooling system:

Adopts the large capacity radiator and optimized heat dissipation channel. The combination of engine coolant and transmission fluid is designed for maximum air flow passing through the counterweight.

Steering and brake system:

Hunting steer axle allows either wheel to stride over obstacles keeping the machine and load horizontal. Flotation drive & steer tires provide excellent hauling power and stability. The small turning radius is 2.75 meter.

Confort: SLD 2.5 ton 4 wheel drive rough terrain forklift has a safe adjustable seat as well as a mast design that allows a wide view of the cargo and operations.


Product Tags 4x4 off road forklift          4WD rough terrain forklift          rough terrain forklift 2.5 ton
