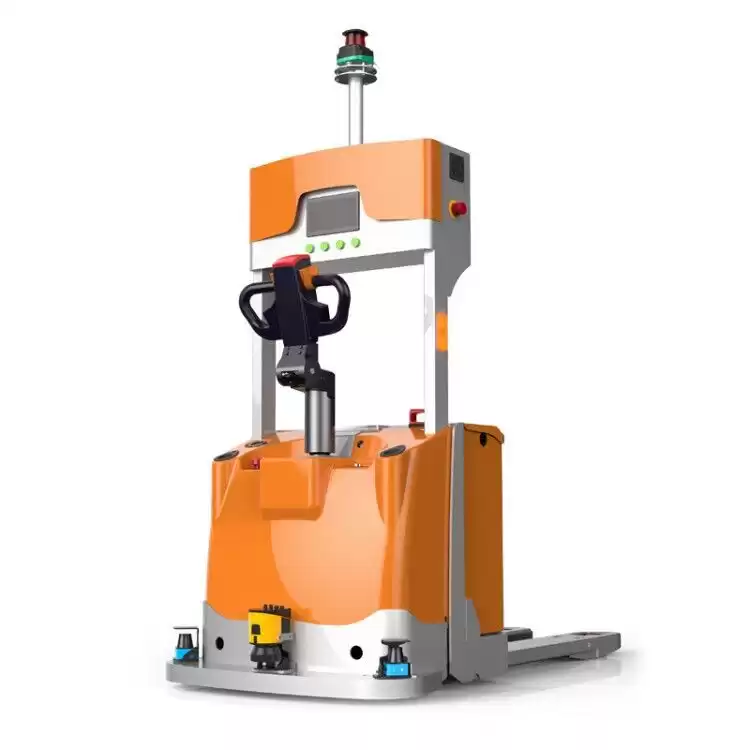

MPA 20 has a rated load capacity of 2000kg, which improves the flexibility of load handling. The product can be customized for fork size. And can choose to install damaged tray detection, obstacle detection and other modules to ensure safety. And modules such as handheld terminals and automatic charging devices can be selected to meet customer project customization needs. MPA 20 can be equipped with RFID readers, Lora communication modules and other industrial Internet of Things modules, and cooperate with the existing WMS/ERP system to perform order processing to meet the needs of modern enterprise intelligent manufacturing.
Height Recongnition
Suitable foir transporting of goods in different height-level area by height recognition system.
System control
Trough the system control,it can stack the goods by itself.
Applicable pallets
Suitable for different size of pallets which are made of wooden, plastics,metal etc.
NetworkRecognition
Equippedd with automatic.recensures the safety work. and wireless communication function,ensures the safety work.
|
Load Capacity
|
kg
|
2000
|
|
Load Center
|
mm
|
600
|
|
Overhang
|
mm
|
191.5
|
|
Wheelbase
|
mm
|
1450
|
|
Front track
|
mm
|
518
|
|
Driving Wheel Size
|
mm
|
230
|
|
Overall Height
|
mm
|
2130
|
|
Lifting Height
|
mm
|
205
|
|
Forks height, lowered
|
mm
|
86
|
|
Overall Length
|
mm
|
1950
|
|
Overall Width
|
mm
|
915
|
|
Fork dimensions
|
mm
|
196/55/1150
|
|
Fork Width
|
mm
|
570/680
|
|
Turing Radius
|
Wa mm
|
1757
|
|
Travel Speed loaded/unloaded
|
km/h
|
4.8/5.6
|
|
Lift Speed loaded/unloaded
|
mm/s
|
40/50
|
|
Lower Speed loaded/unloaded
|
mm/s
|
50/40
|
|
Max gradeability loaded/unloaded
|
%
|
5/10
|
|
Noise level at operator’s ear
|
dB(A)
|
<70
|
