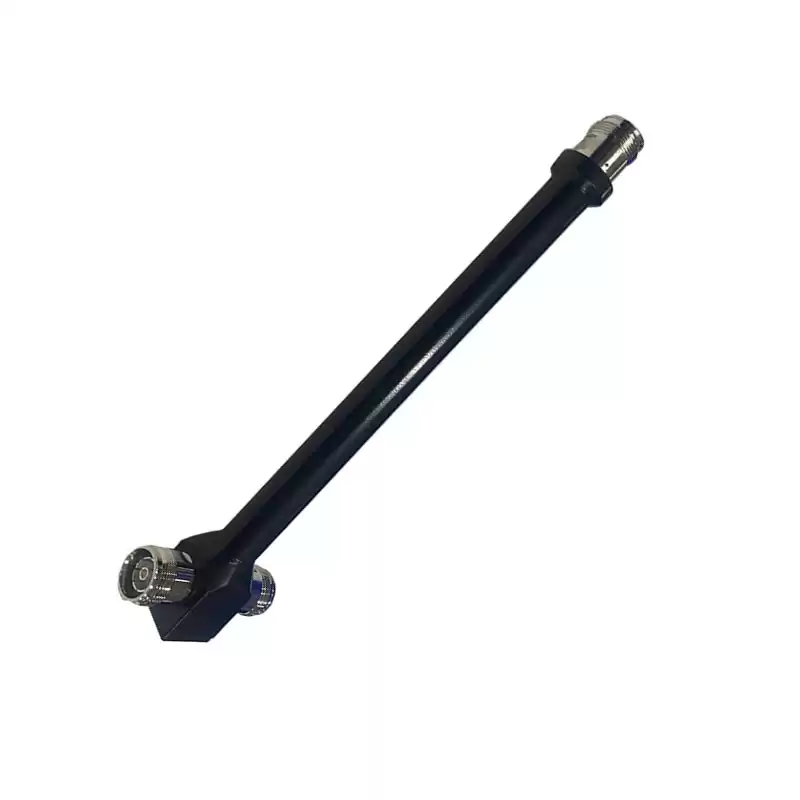

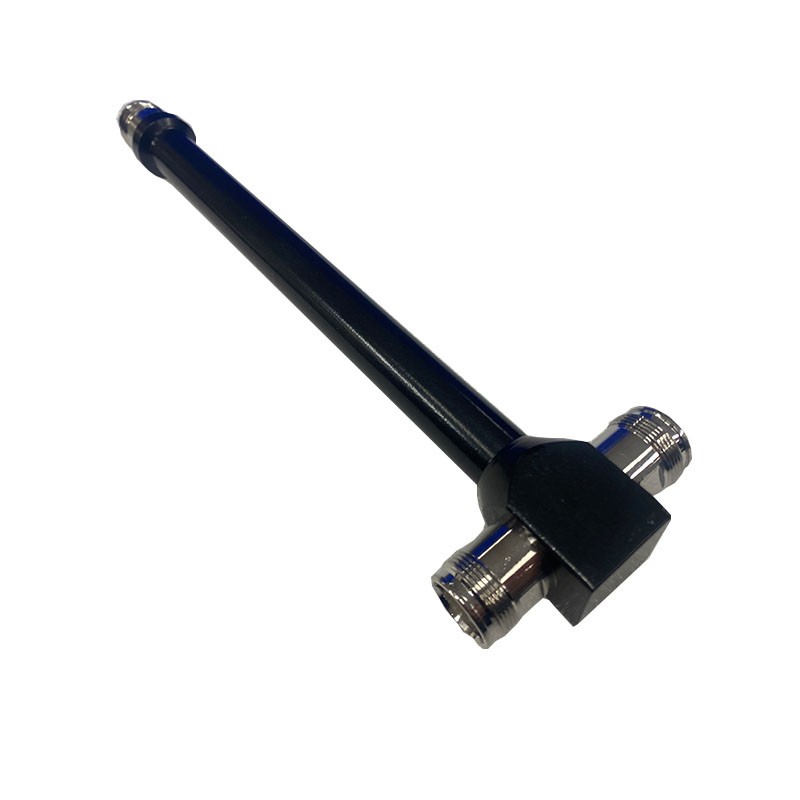

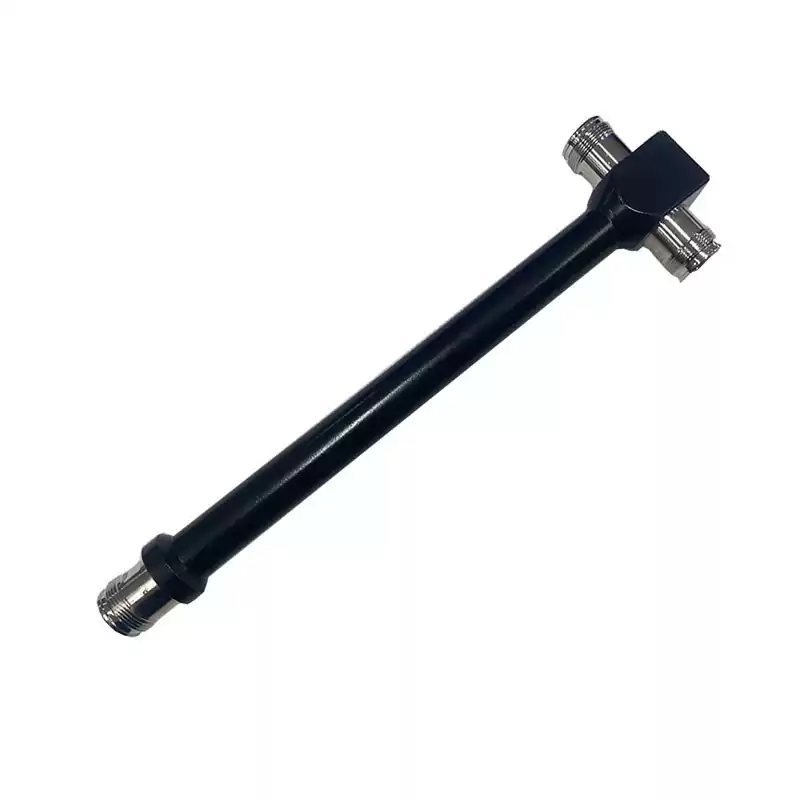

2 Way Telecom Parts IBS Power Splitter 698-4000mhz MINI DIN 4.3-10 Female RF Passive Power Splitter Divider
The 4.3-10 Power Splitters (also known as MINI DIN Power Divider) are used in a wide variety of applications and can satisfy almost any requirement where a signal needs to be distributed or combined. ROHO offers 2 Way, 3 Way and 4 Way configurations fitted with N, 7-16 DIN Female or SMA Female connectors at all ports;The splitters cover the carrier bands of 698-2700Mhz and public safety/carrier bands of 380-2700Mhz. PIM performance is less than -160dBc 3rd order IM;Mainly used in repeater or base station to split, can also be used in indoor distribution system,All the specifications can be customized.
Specifications
| Electrical Specifications |
|
| Frequency Range(MHz) |
698-4000 |
| Type |
2 Way |
| Impedance(Ω) |
50 |
| Average Power(W) |
300W |
| VSWR |
≤1.25 |
| Split Loss(dB) |
≤3.1 |
| Insertion Loss(dB) |
≤0.3 |
| PIM (dBc) |
≤-150dBc@2*43dBm;≤-160dBc@2*43dBm;Or specify |
| RF Connector Interface |
4.3-10 Female |
| Environmental Specifications |
|
| IP Grade |
IP65 |
| Operating Temperature(℃) |
-35~ +65 |
| Relative Humidity |
5%-95% |
| Application |
Indoor or Outdoor |
Applications
- Mobile Communication Network Optimization and Indoor distribution system.
- Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio.
- Radar, Electronic Navagation and Electronic Confrontation.
- Aerospace Equipment systems.
