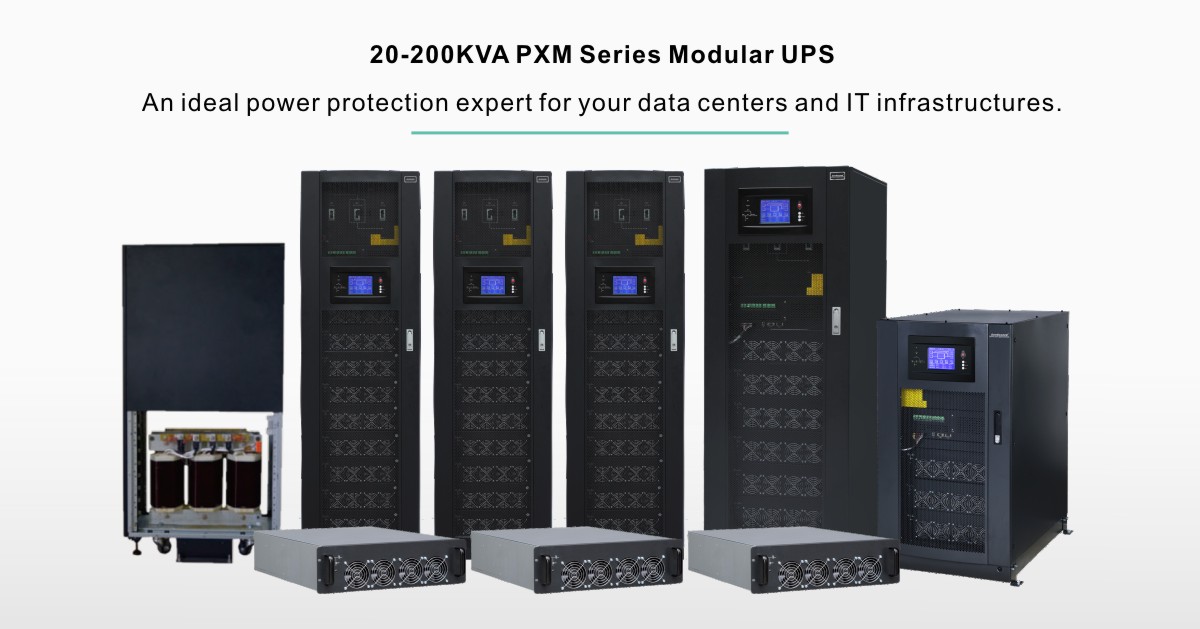

20-200kVA PXM Series Modular UPS

20-200kVA PXM Series Modular UPS

20kVA module, 380/400/415VAC, 3:3

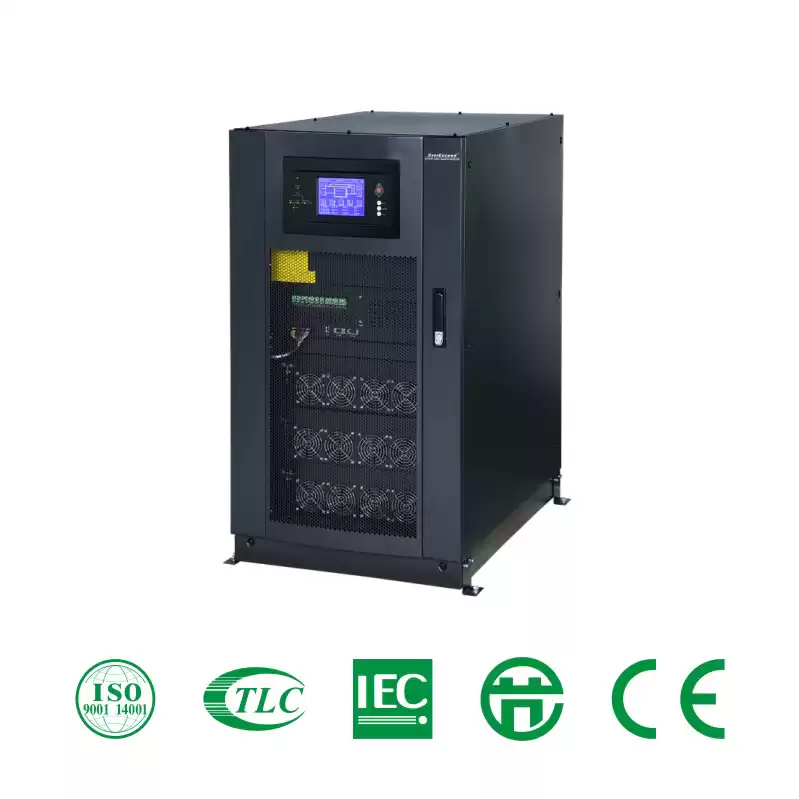

PXM series is a modular online UPS for sensitive equipments. The single cabinet's power rating covers from 20kVA to 200kVA.With the latest IGBT three-level and full DSP control technology, the PXM series deliver the best combination of reliability, hot swappable and flexibility. The PXM series develop the in-built transformer type range from 20kVA-60kVA as customer's requirements.


  • CertificateCE, TLC
  • ApplicationsISP, IDC, Computer room, data center, Intelligent equipment
  • EfficiencyUp to 99%
  • Rated frequency40Hz-70Hz
  • Rated voltage380/400/415VAC
  • Rated capacity20-200KVA
  • TypeModular
  • ModelPXM



Technical Features




High power density

Modular design with transformer

High efficiency

20 KVA power module in 2U height, saving great amount of space, easy for capacity expansion.200kVA with footprints of about 0.5m2, saving valuable data center space
Up to 20 power modules in parallel online hot-swappable N+X redundancy. Up to 60KVA with built-in isolation transformer , meeting different requirement for customer
Green and energy saving due to smart sleeping mode: Up to 99% system efficiency, input PF>0.99 while THDi <3%



Intelligent charging management

Independent air channel

High reliability

The intelligent charger for each module can intelligently control the whole process of charging & discharging, effectively improve the life time of the battery
Cooling air runs in isolated channel ,keeping PCB free of dust
Integrated IGBT in one module, less failure points with higher performance and reliability



Battery cold start

Easy connection access

Multi communication interface

UPS can be powered on from the battery without utility. It will add great value to your workflow by providing on-demand power.
Top and bottom cable entry connection are supported, more convenient for site installation
Provide RS232, RS485, USB, SNMP & programmable dry contacts.7" touch color LCD with graphic display which is easier for customer to operate


Applications

•ISP (Internet Service Provider), •IDC (Internet Data Center), •Computer Room, •Small or medium data centers, •Intelligent equipments, •Precision instruments
