20-22m Telescopic Boom Isuzu Aerial Working Platform Truck
Isuzu Aerial
Working Platform can be applied in
various conditions for aerial working, such as urban road, suburban road,
highway, airport, bridges and culverts and so on.
Key Features:
◆ Can be
operated at both turret and platform
◆ Step less
speed regulation
◆ Imported key
components, higher reliability, excellent property and long life-span.
◆ Larger span of trigger,
higher stability
◆ Urgent power
for emergency
◆ Operation height : 12M, 14M, 16M, 18M, 20M, 22M
Main
specifications:
|
Model
|
PT5080JGK22
|
|
Driving
Type
|
4x2 (Left
hand drive)
|
|
Wheelbase
|
3815 mm
|
|
Engine
|
88 kw (120hp)
|
|
Structure type
|
Three-section Telescopic boom
|
|

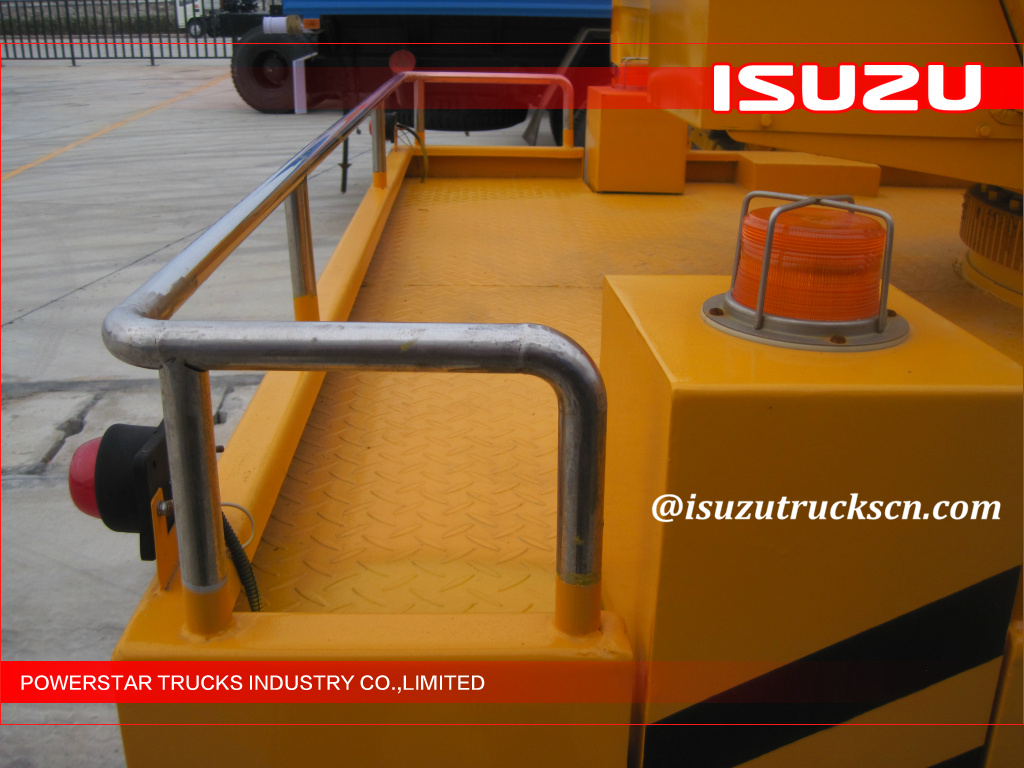

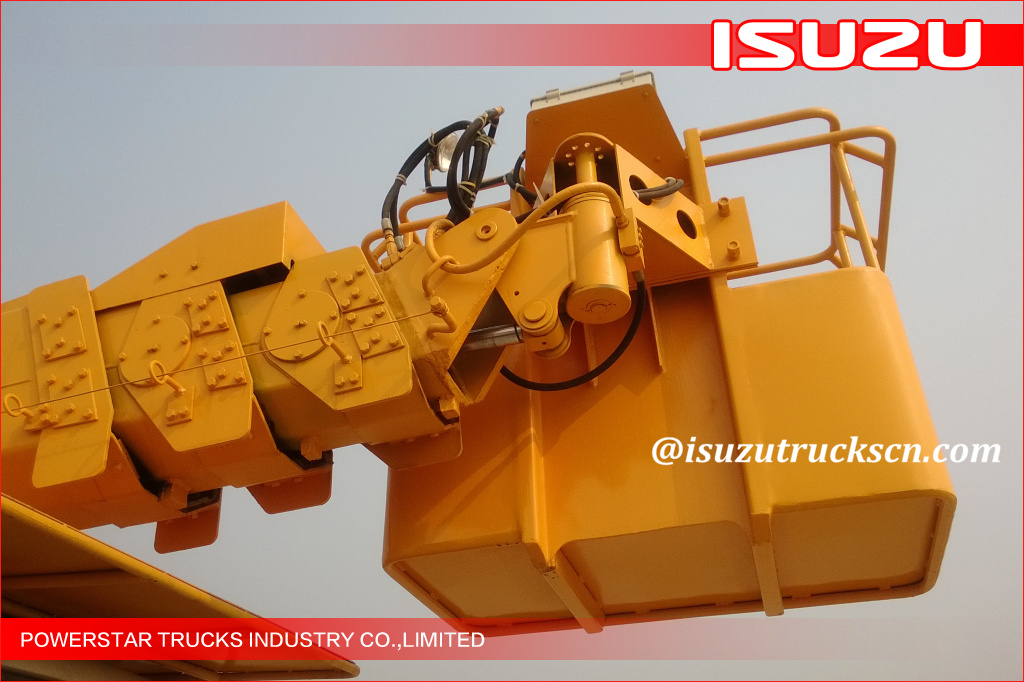

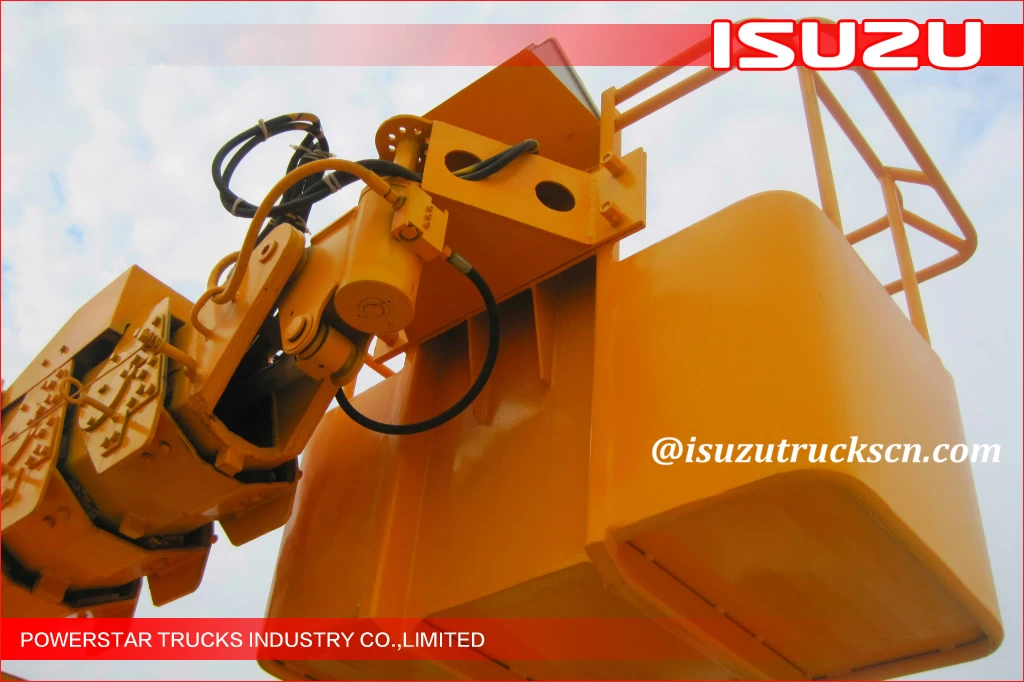

Working
Platform
|
Internal size
|
1100×600×1100 mm
|
|
Rated loading
|
200kg (or 2 persons)
|
|
Max. Working height
|
22
M
|
|
Max. Height from ground
|
18700 mm
|
|
Max. Working
radius
|
9300 mm
|
|
Working radius
when doing the highest height
|
5200 mm
|
|
Working
Boom
|
Lifting angle of
main boom
|
-18 º~80 º
|
|
Boom rack ration
angle
|
360 º
|
|

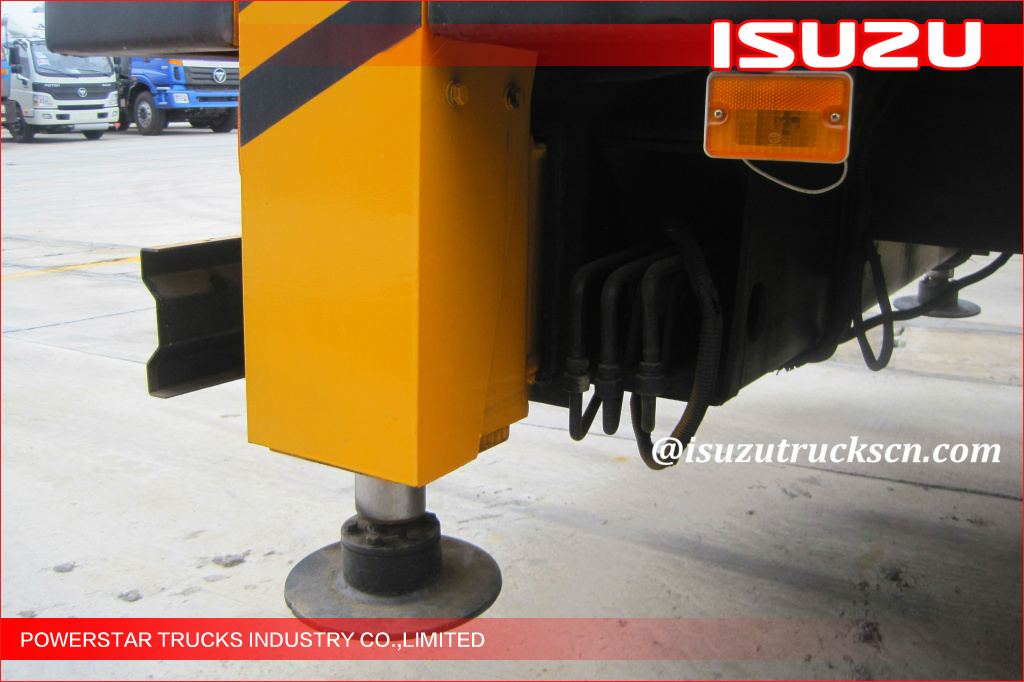

Outrigger
|
Vertical span
|
4150 mm
|
|
Horizontal span
|
4000 mm
|
|
Traveling of vertical outrigger
|
550 mm
|
|
Adjustment
|
Single adjustable
|
|
Color
|
Yellow (Any color & logos up to wish)
|

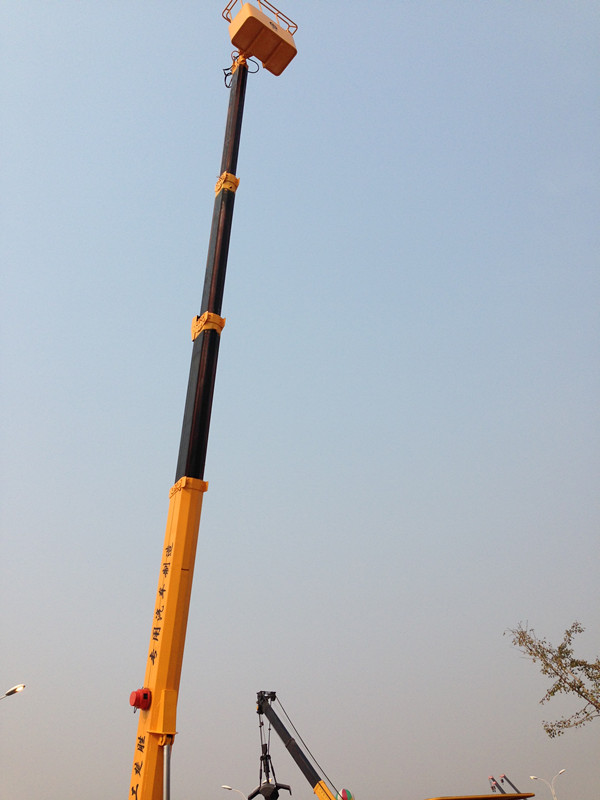

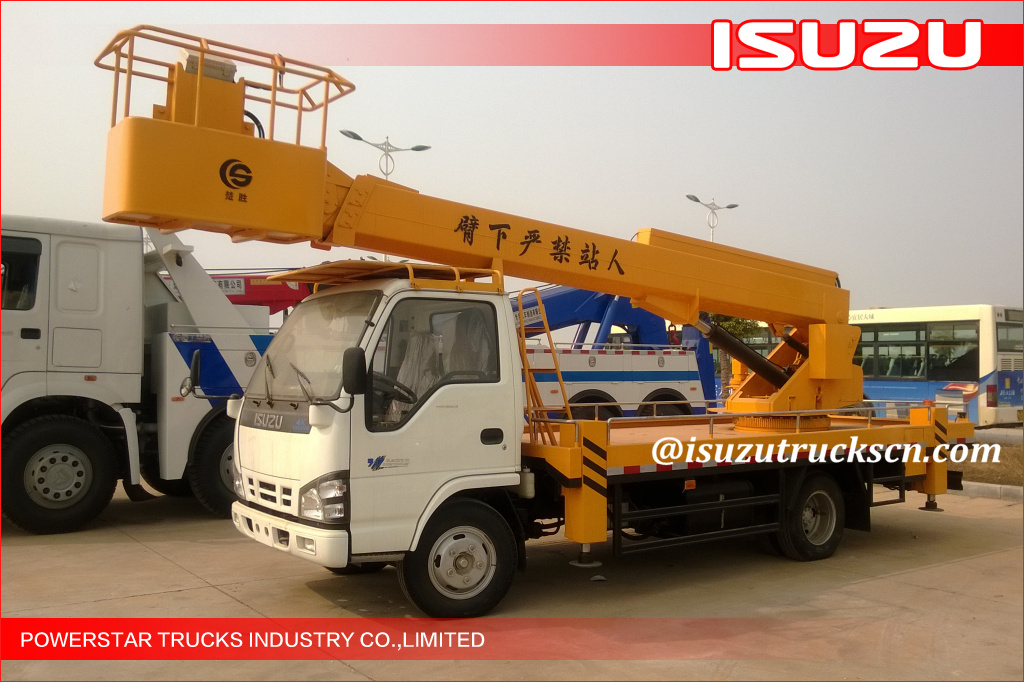

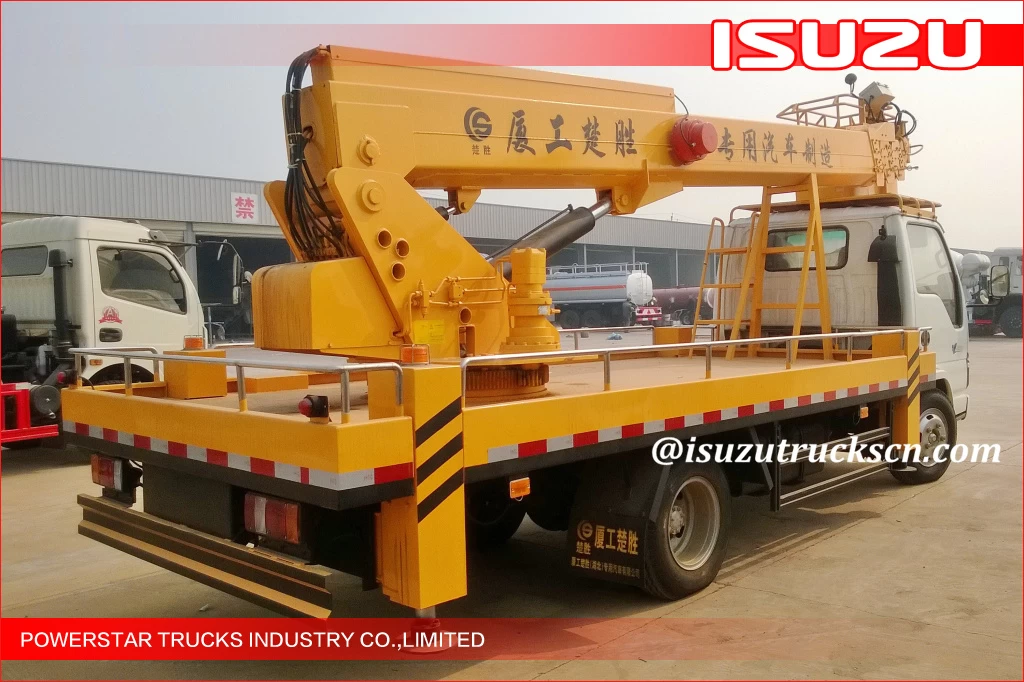

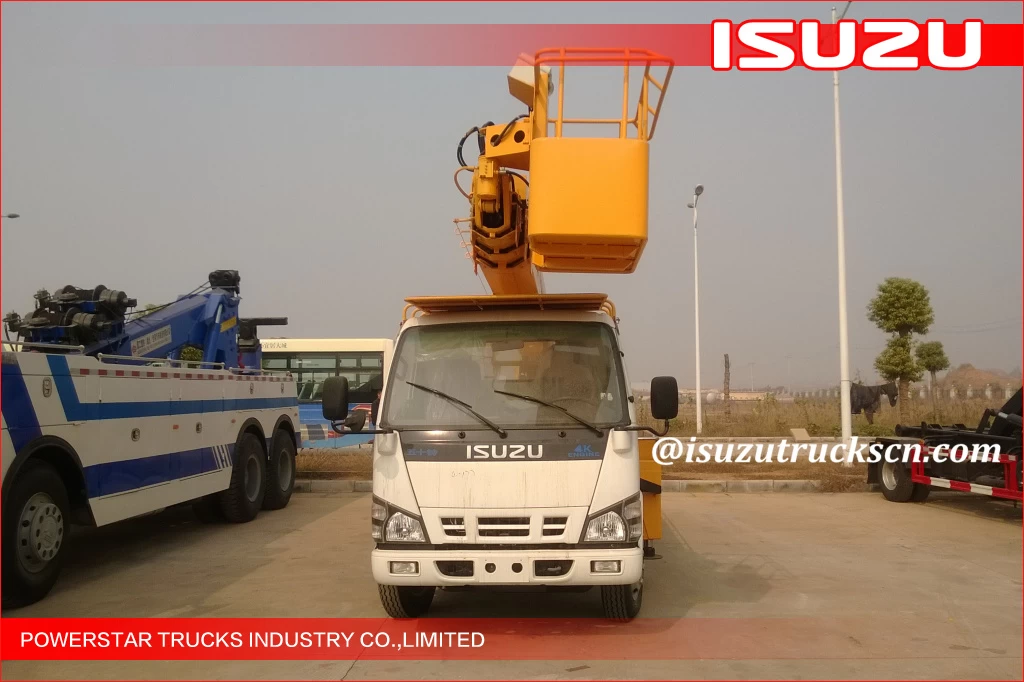

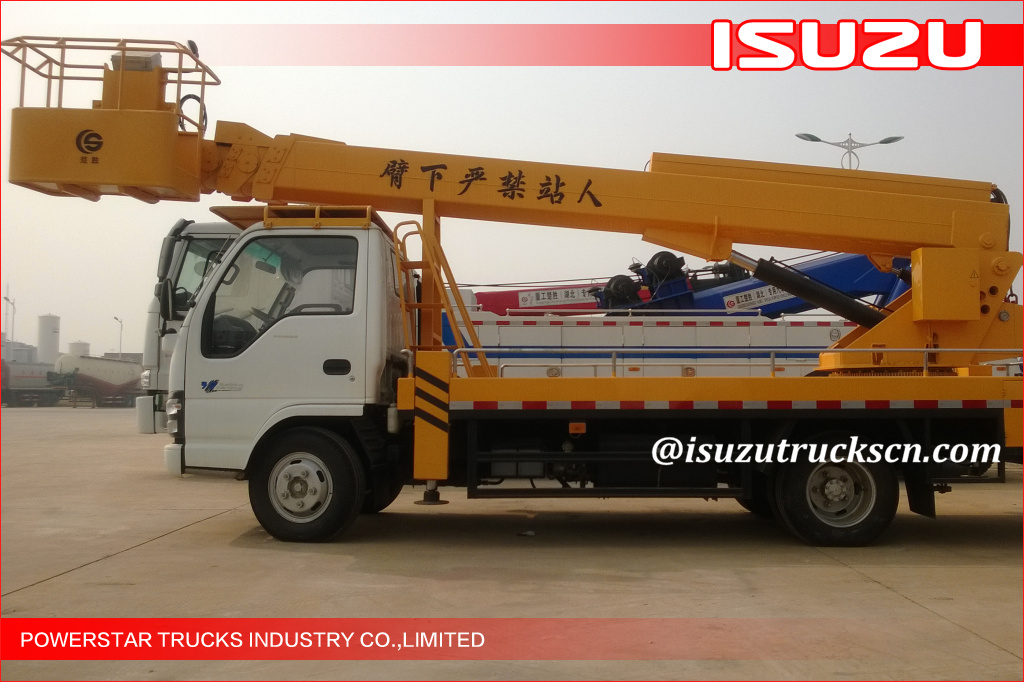

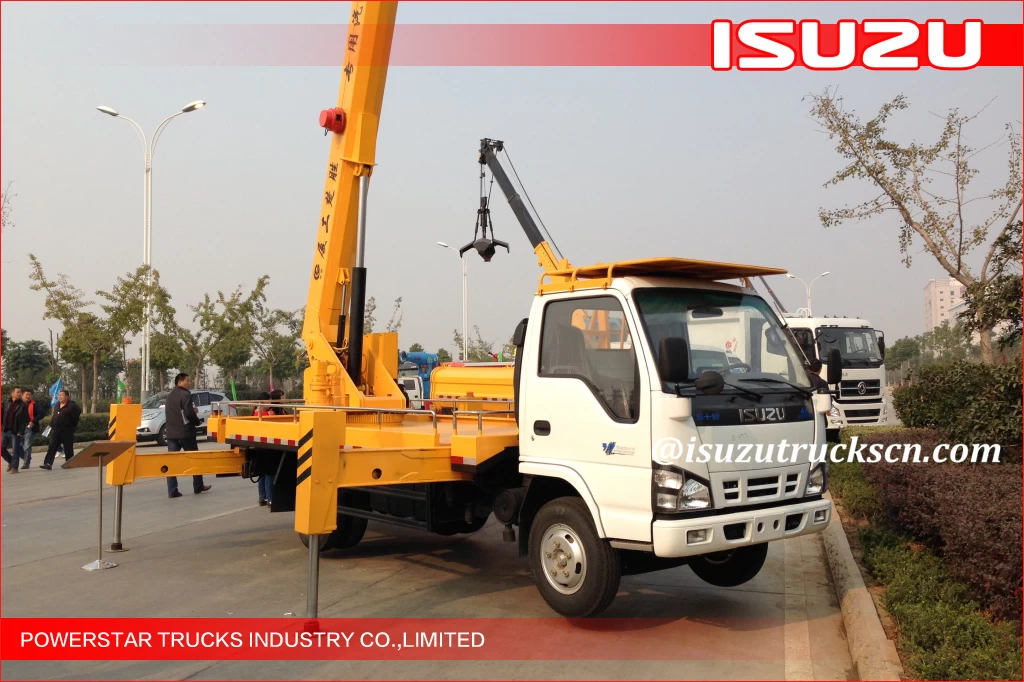

Recently Built Aerial Working Platform Truck:
