Applications:

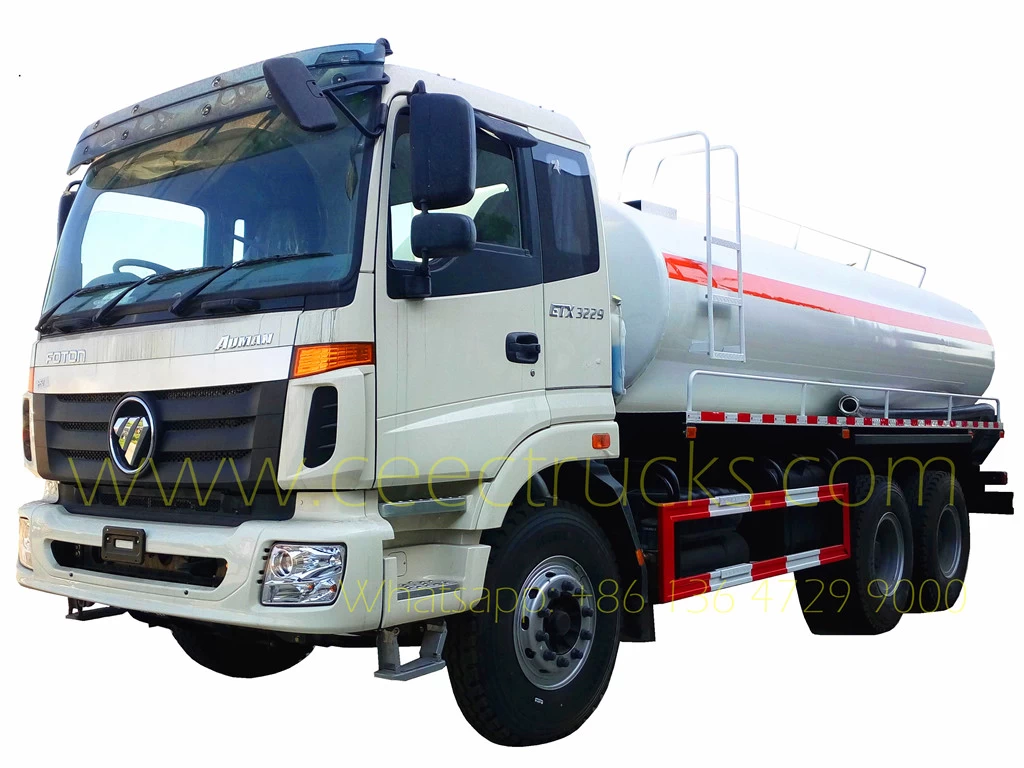

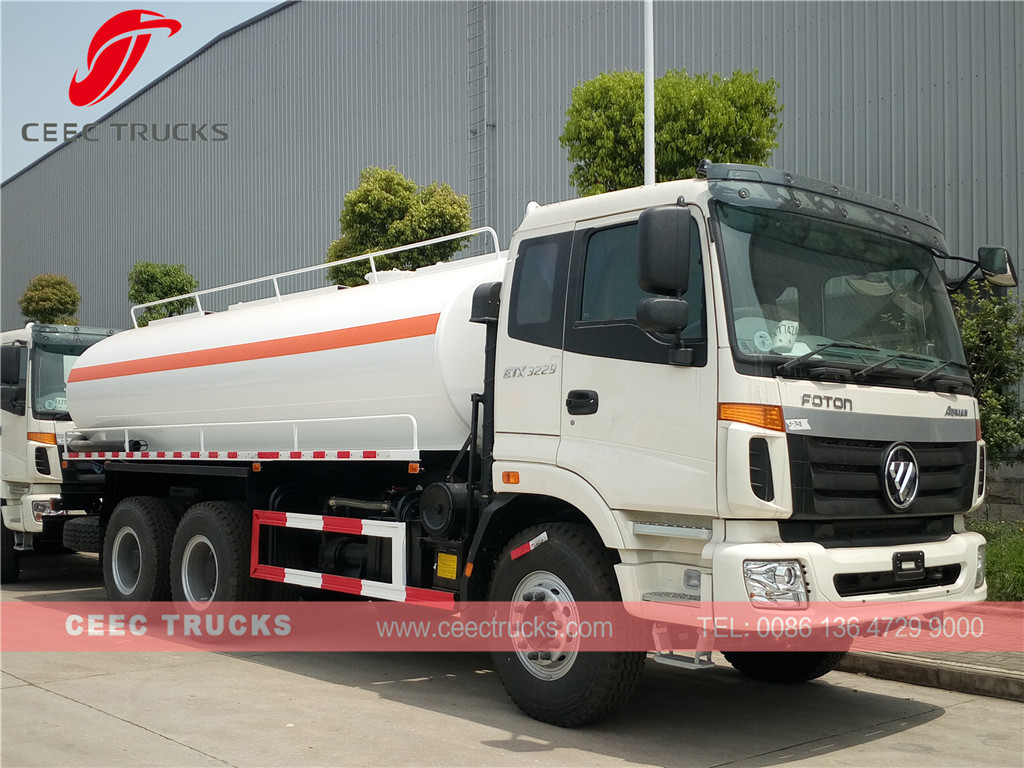

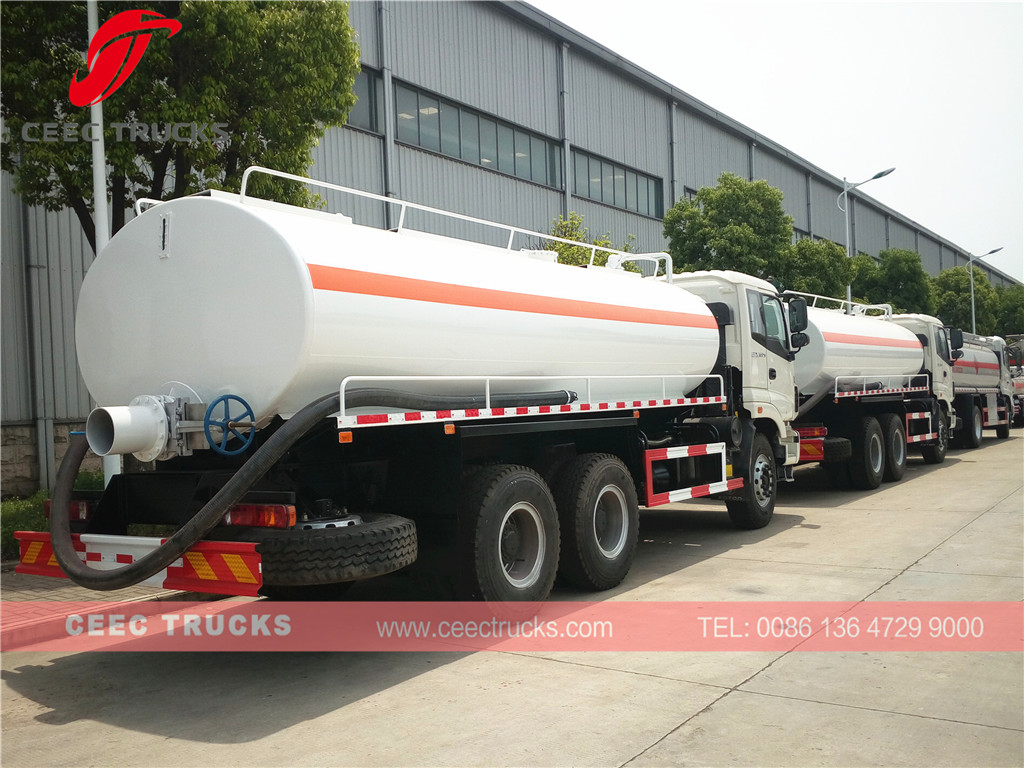

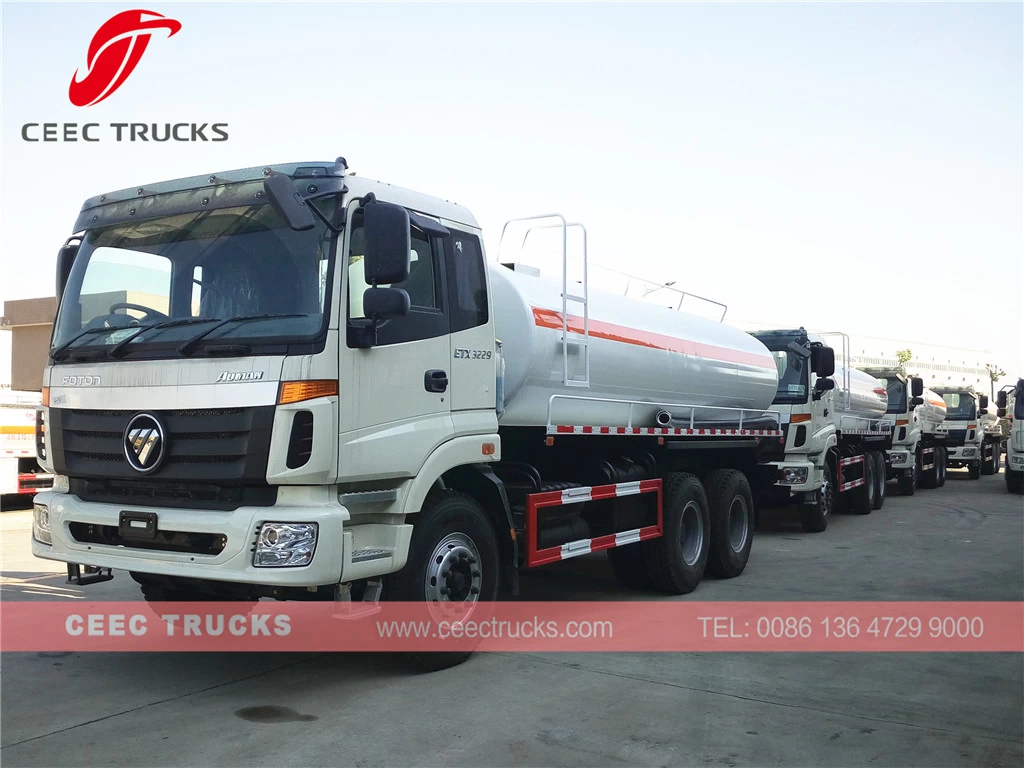

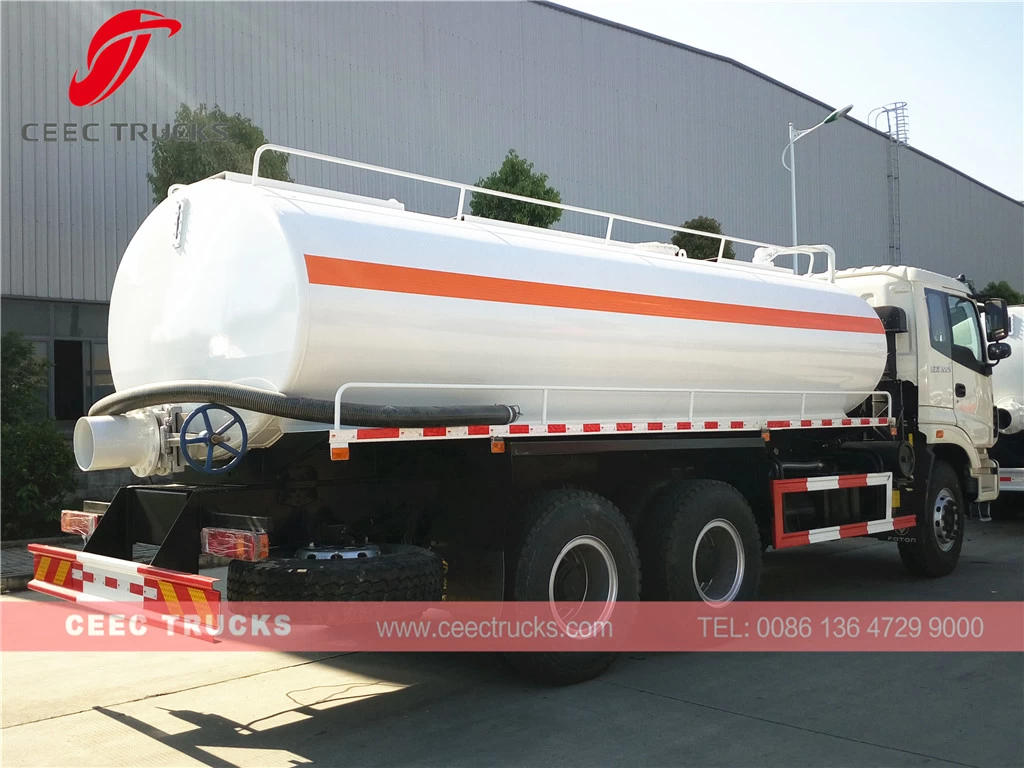

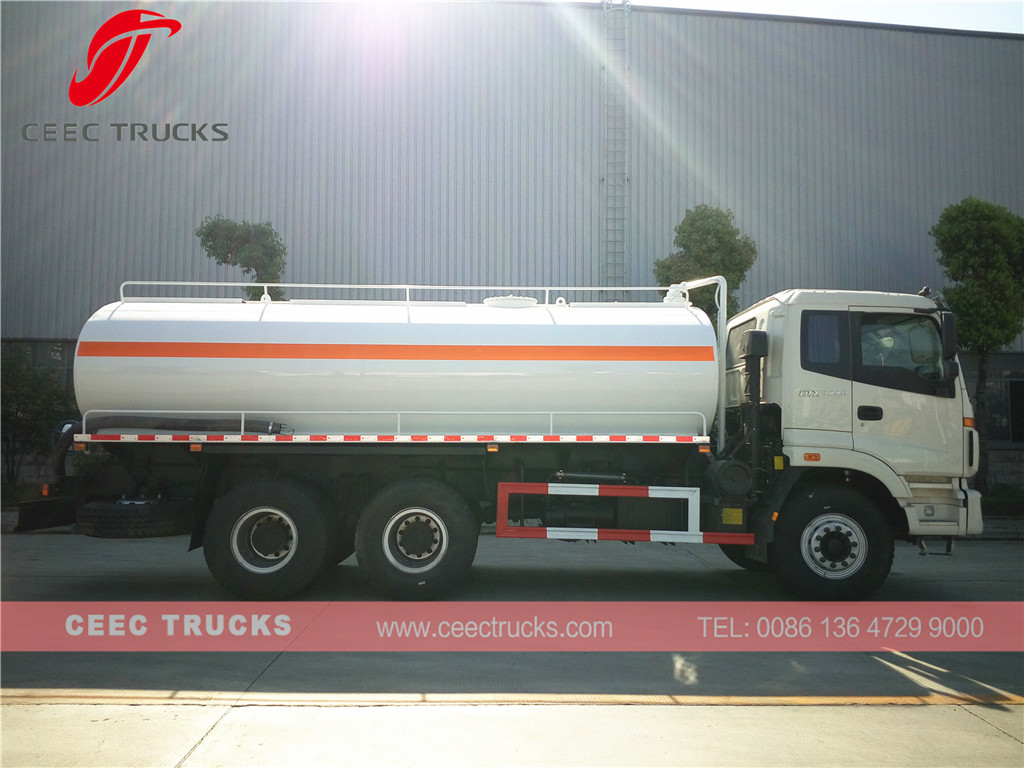

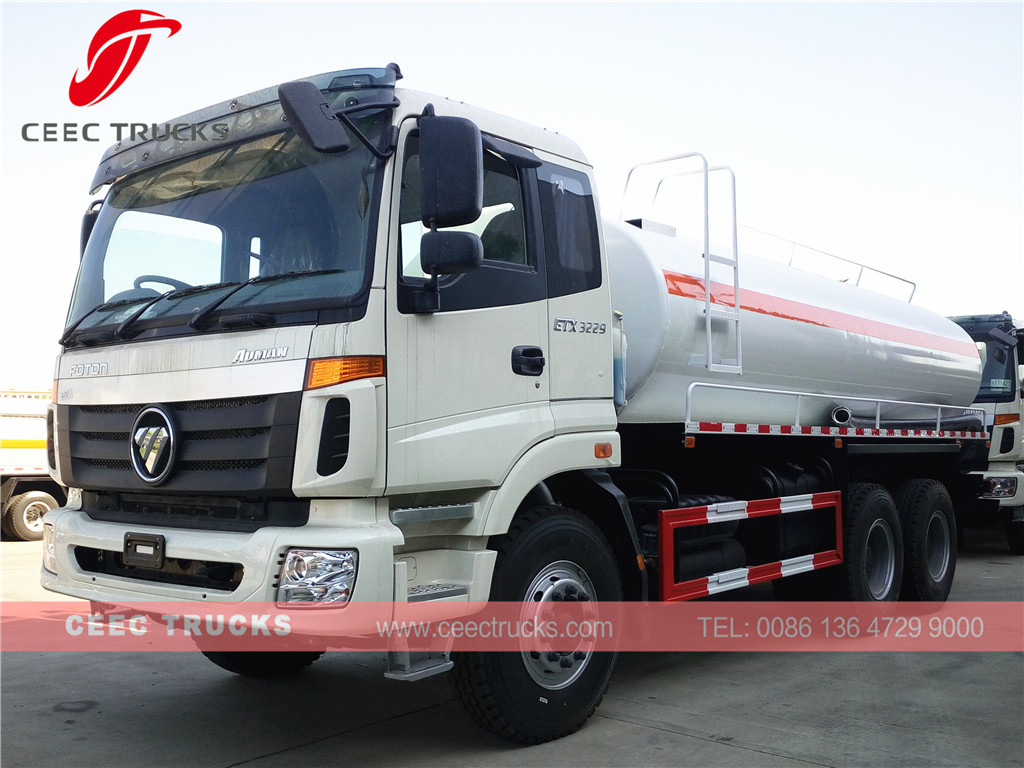

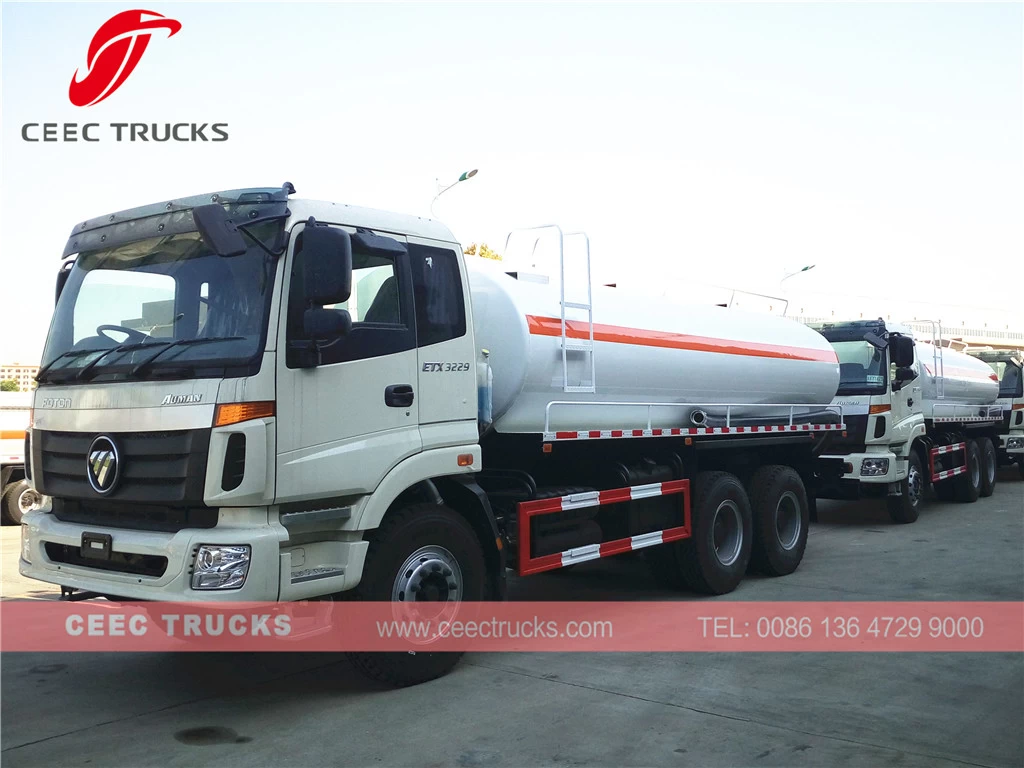

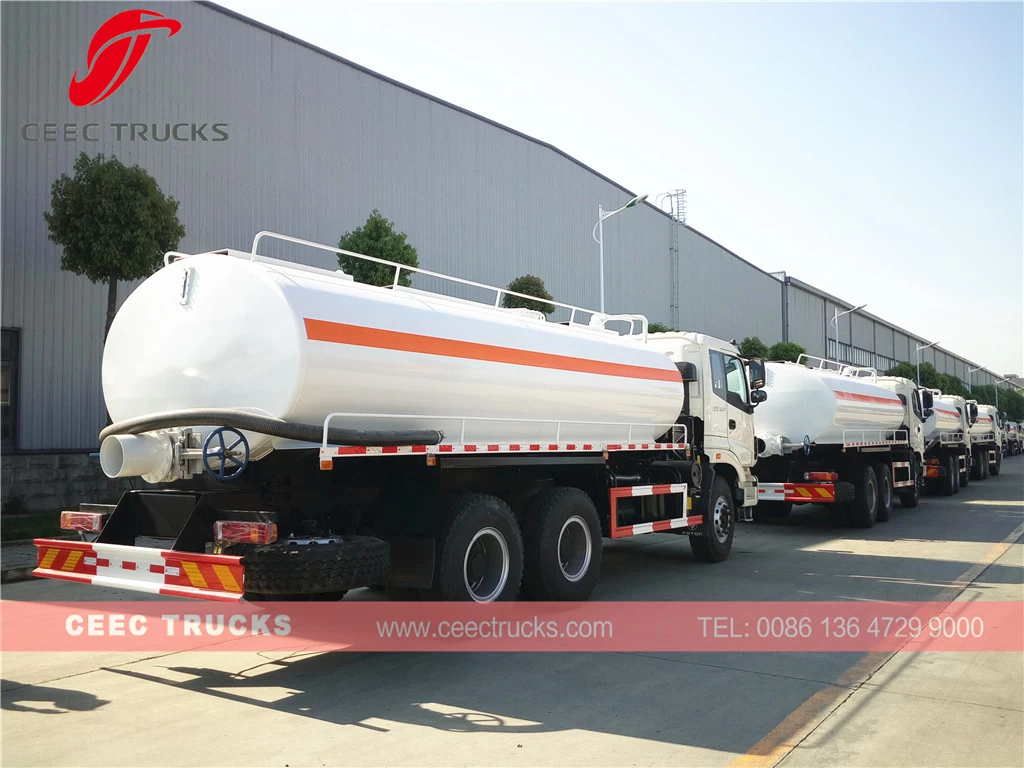

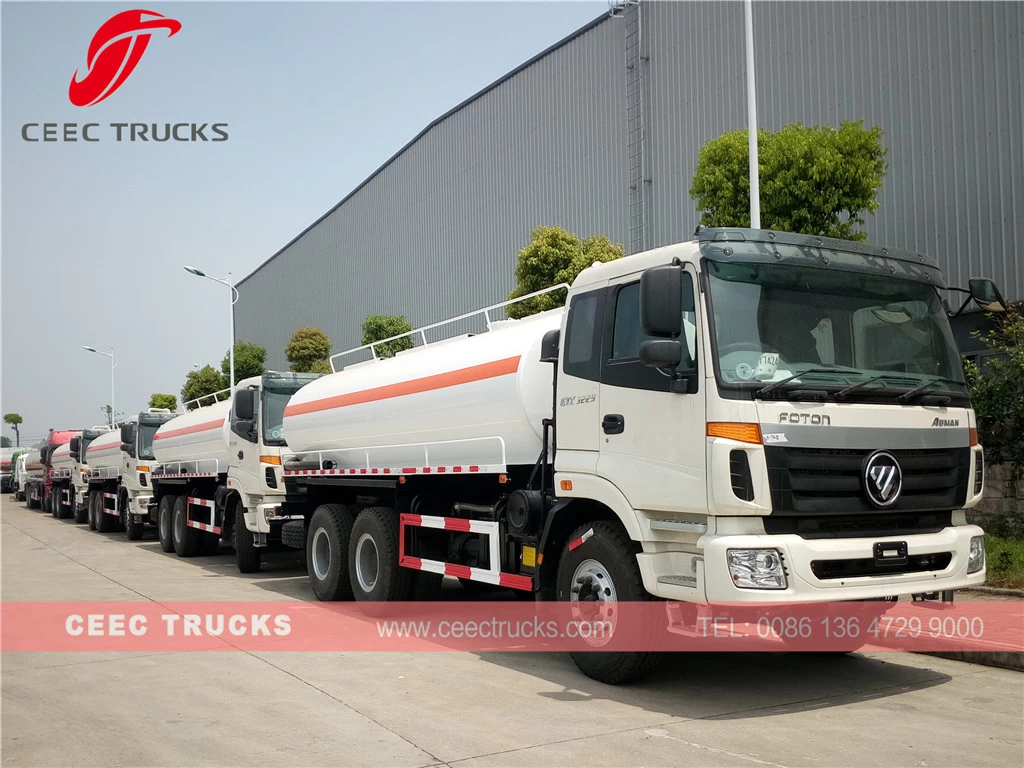

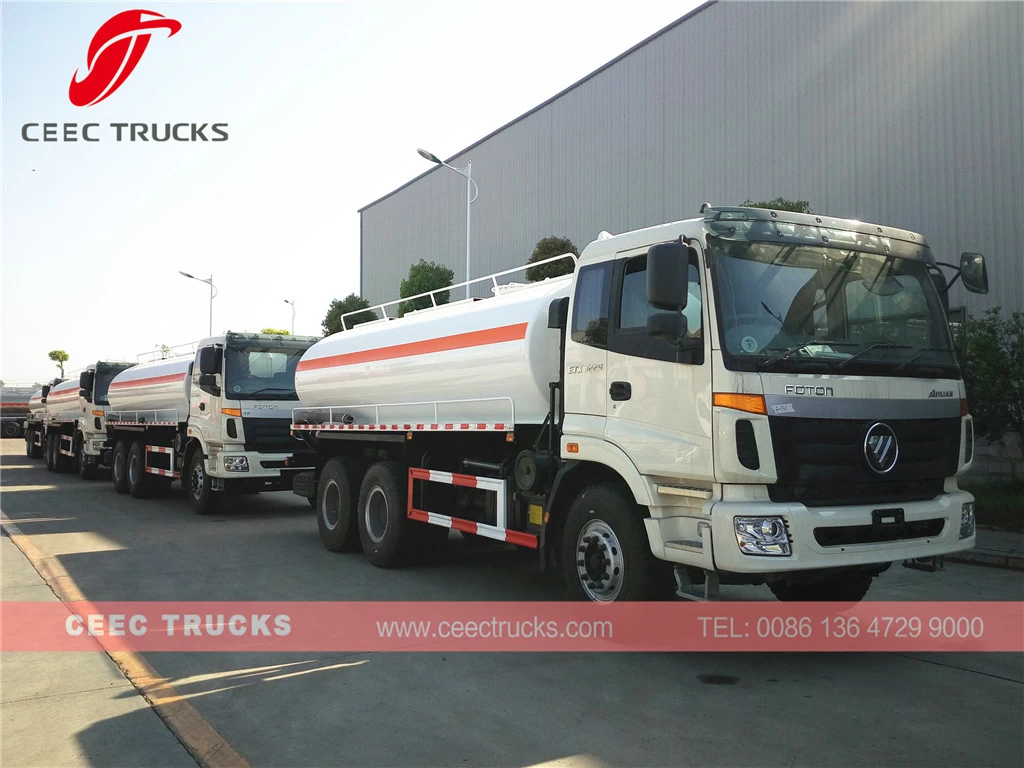

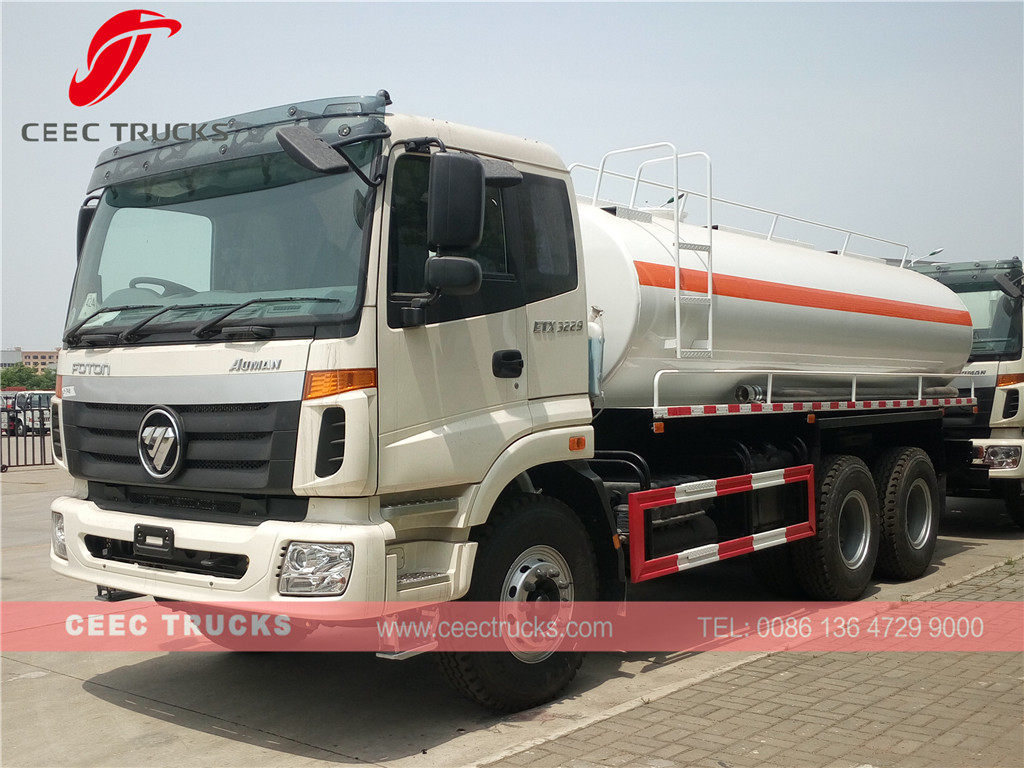

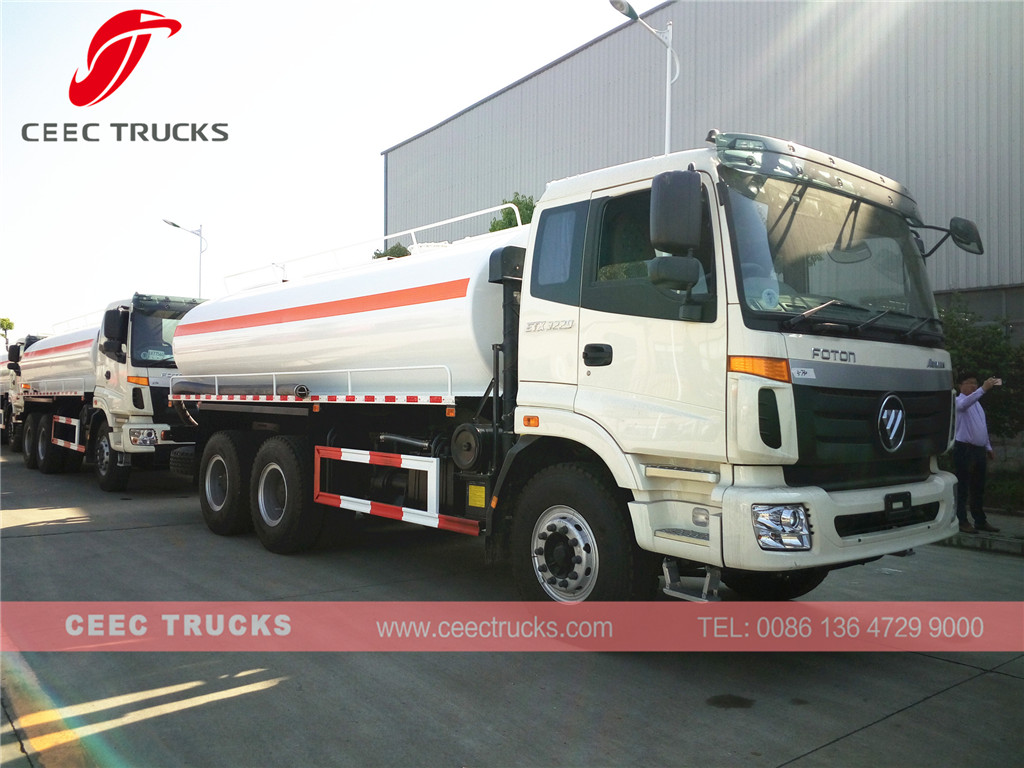

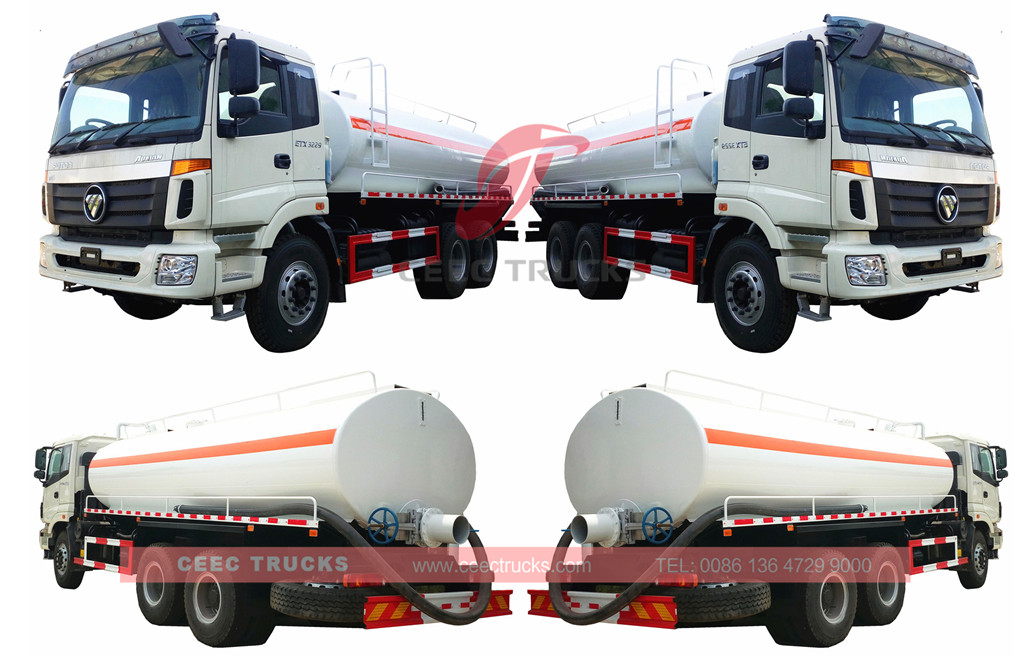

FOTON 20 CBM Tank Truck (also called Water bowser, Water spray truck, Water tanker truck, Water tank lorry, Portable water tanker) is is used for the road flushing, tree and lawn greening, high building cleaning, construction of road and factories. It has the functions of flushing, watering, transporting water and fire fighting.
Beiben water truck is mainly composed of chassis, tanks, pumps, valves, and the water pipe, sprinkler and other parts. Water truck is made of high quality carbon steel sheet.
Key Features:
---- Beiben strong chassis, perfect performance
---- CUMMINS 270HP engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
Specifications:
| Water Tanker Trucks FOTON (20,000L)
|
| General
|
Vehicle Brand
|
CEEC TRUCKS
|
| Chassis Brand
|
FOTON
|

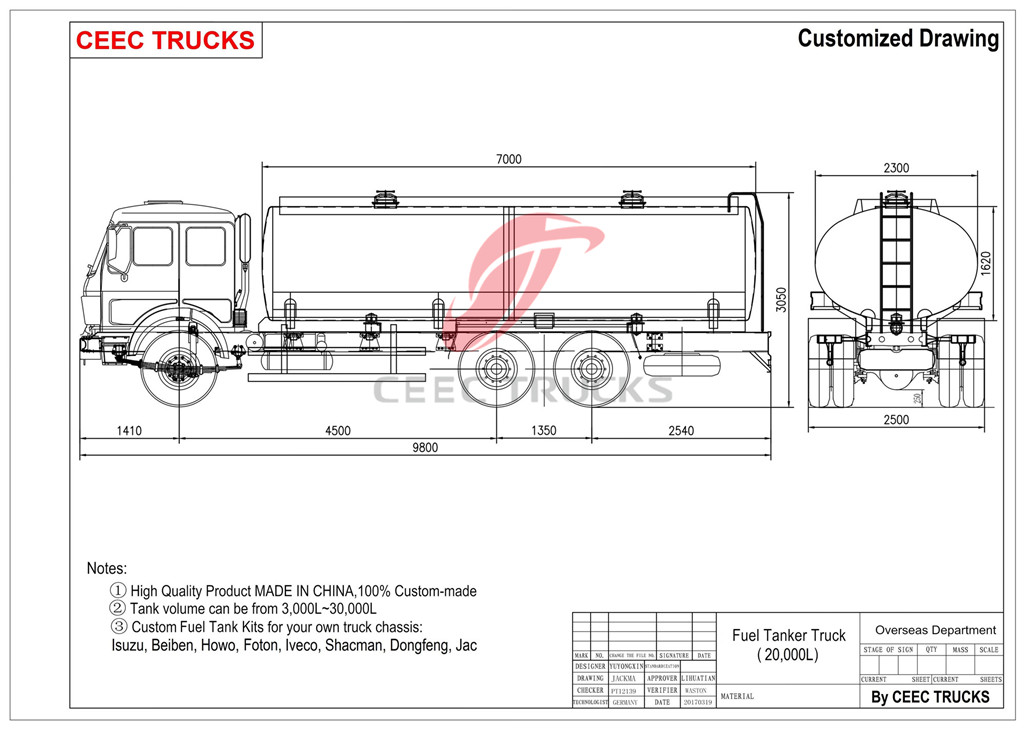

| Overall Dimension
|
9800 * 2500 * 3050 mm
|
| GVW / Kerb Weight
|
25,000kg / 12,000kg
|
| Cab
|
Cab Capacity
|
2+1 persons allowed
|
| Air Conditioner
|
Heating/cooling air conditioner
|
| Engine
|
Fuel Type
|
Diesel
|
| Engine Brand
|
CUMMINS
|
| Power
|
270 HP (198 KW)
|
| Displacement
|
6700 ml
|
| Emission Standard
|
Euro II
|
| Chassis
|
Drive Type
|
6X4, (left hand drive)
|
| Transmission
|
FAST 9 speed levers with 1 reverse
|
| Wheelbase/No. of axle
|
4500+1350 mm / 3
|
| Tire Specification
|
11.00R20
|
| Tire Number
|
10 tires and 1 spare tire
|
| Max Speed
|
95 km/h
|
| Paint
|
Metallic paint
|
| Superstructure
|
Tank Capacity
|
20,000 Liters
|
| Tank shape
|
Ellipse
|
| Material
|
Carbon steel, 5mm
|
| Body Material
|
Whether resisting steel
|
| Water pump
|
China famous brand
|
| Loading type
|
Self loading
|
| Front spray bar
|
YES
|
| Rear spray bar
|
YES
|
| Water Canon
|
28 meters
|
| Fire coupling
|
Standard
|
| Control
|
Manual (Optional air operated)
|
| Control panel
|
English or Your language
|
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
|
| Optional
|
** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.
|
