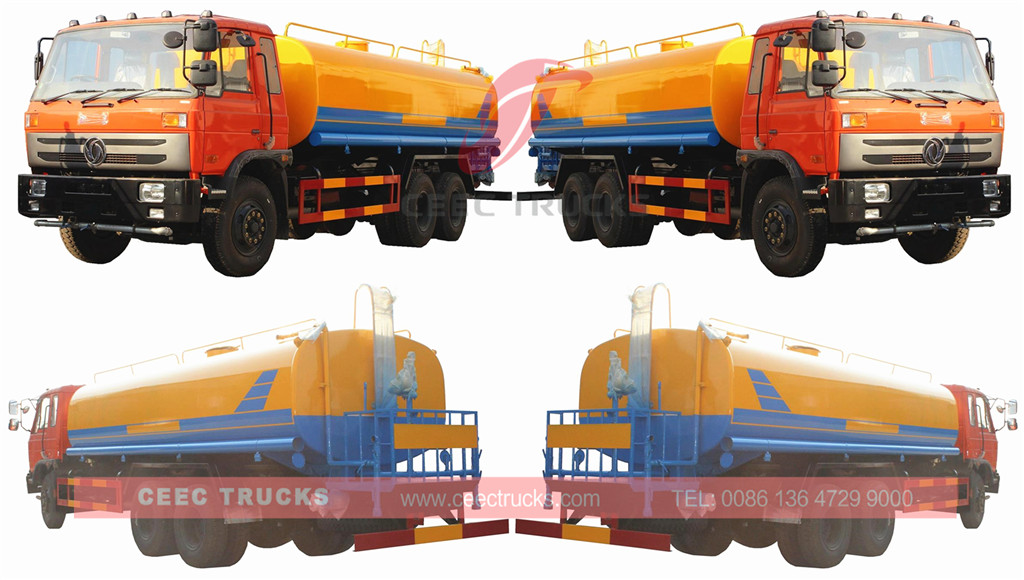

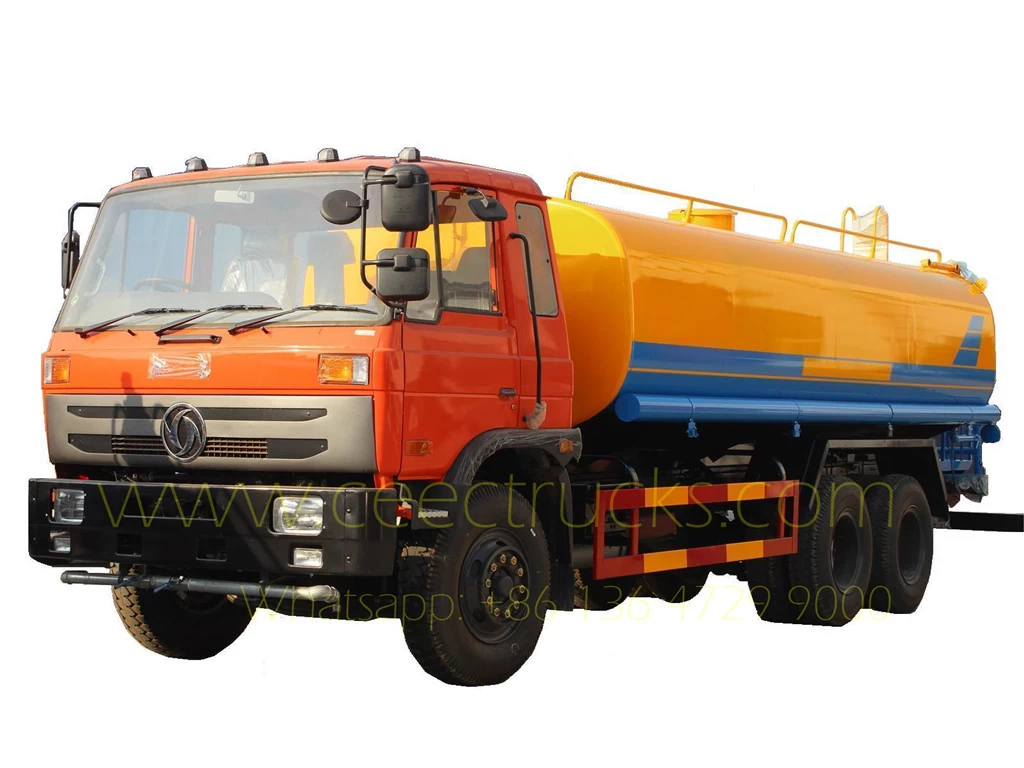

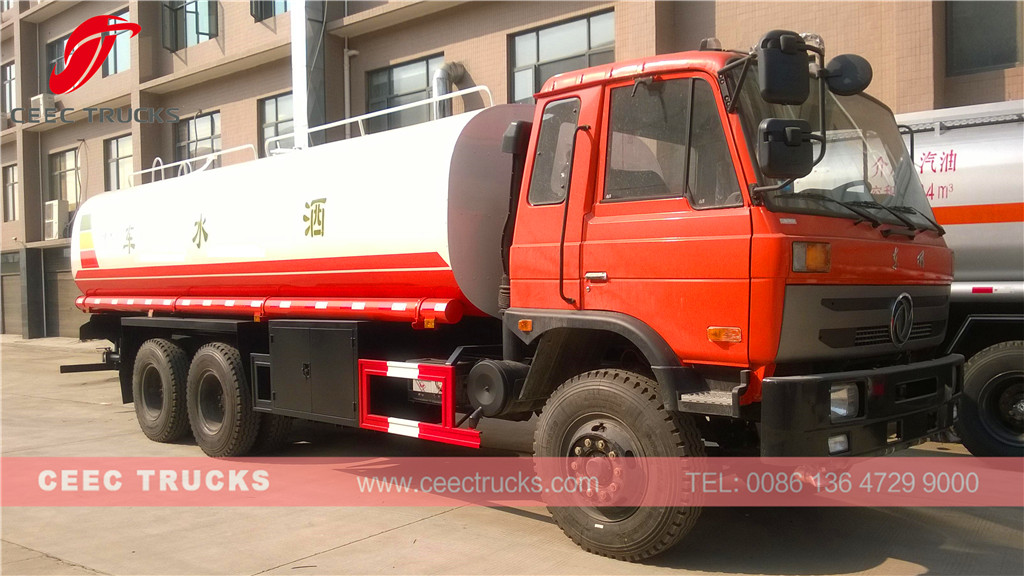

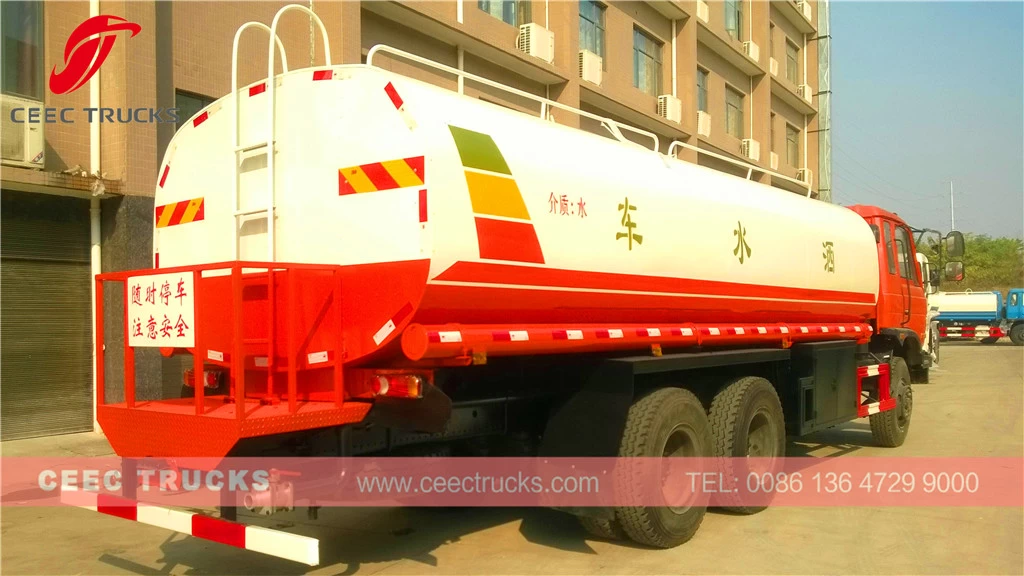

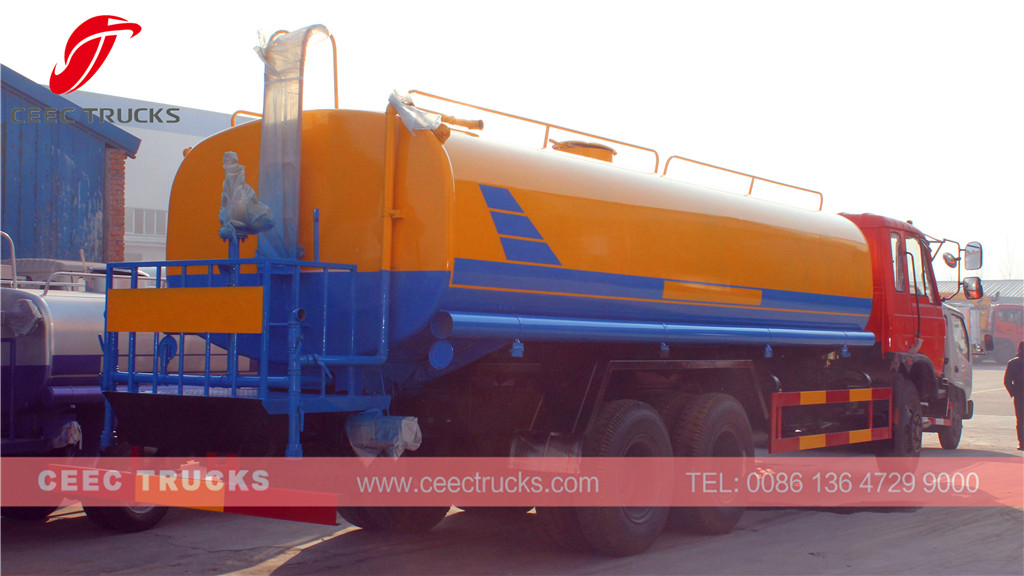

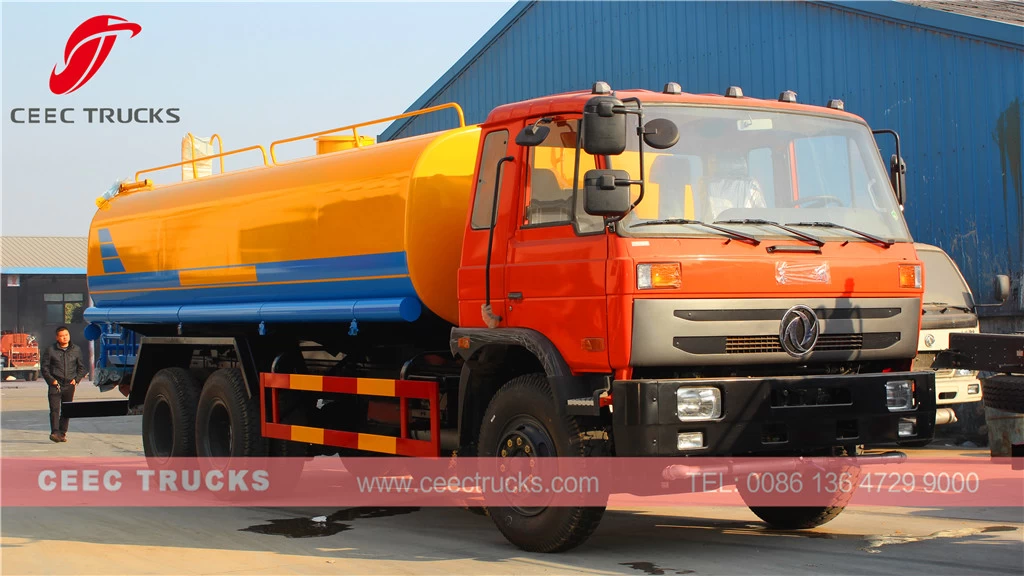

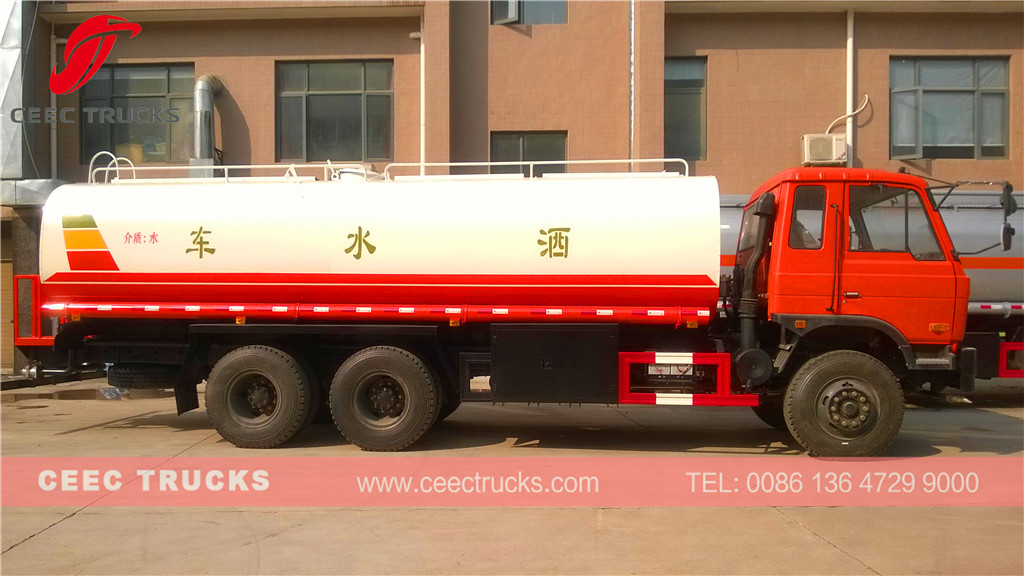

20 CBM water tank truck

Cheapest price dongfeng 20000 litres water tanker, which use dongfeng 6*4 chassis, with LHD & RHD optiona, CUMMINS 210HP as standard diesel engime, 5900ml emission. 8-shift manual gearbox for easy operation, 5mm thickness high strength steel water tanker material extend the service life of the water bowser, painting and logos depend on request





CEEC supply DONGFENG 20cbm water bowser



 Applications:



Dongfeng 20 CBM Water tanker (also called Water bowser, Water spray truck, Water tanker truck, Water tank lorry, Portable water tanker) is is used for the road flushing, tree and lawn greening, high building cleaning, construction of road and factories. It has the functions of flushing, watering, transporting water and fire fighting.


Beiben water truck is mainly composed of chassis, tanks, pumps, valves, and the water pipe, sprinkler and other parts. Water truck is made of high quality carbon steel sheet.



 Key Features:



---- Beiben strong chassis, perfect performance

---- CUMMINS 210HP engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Nice shape, rational structure

---- Water pump super powerful, efficient pump in and out

---- Strong, durable, perfect performance



 Specifications:



Water Bowser Vehicle DFAC (20,000L)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

DONGFENG

Overall Dimension

9800 * 2500 * 3050 mm

GVW / Kerb Weight

25,000kg / 12,000kg

Cab

Cab Capacity

2+1 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

CUMMINS

Power

210 HP (154 KW)

Displacement

5900 ml

Emission Standard

Euro Ⅱ

Chassis

Drive Type

6X4, (left hand drive)

Transmission

Manual 8 speed levers with 1 reverse

Wheelbase/No. of axle

4400+1400 mm / 3

Tire Specification

10.00-20

Tire Number

10 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Tank Capacity

20,000 Liters

Tank shape

Ellipse

Material

Carbon steel, 5mm

Body Material

Whether resisting steel

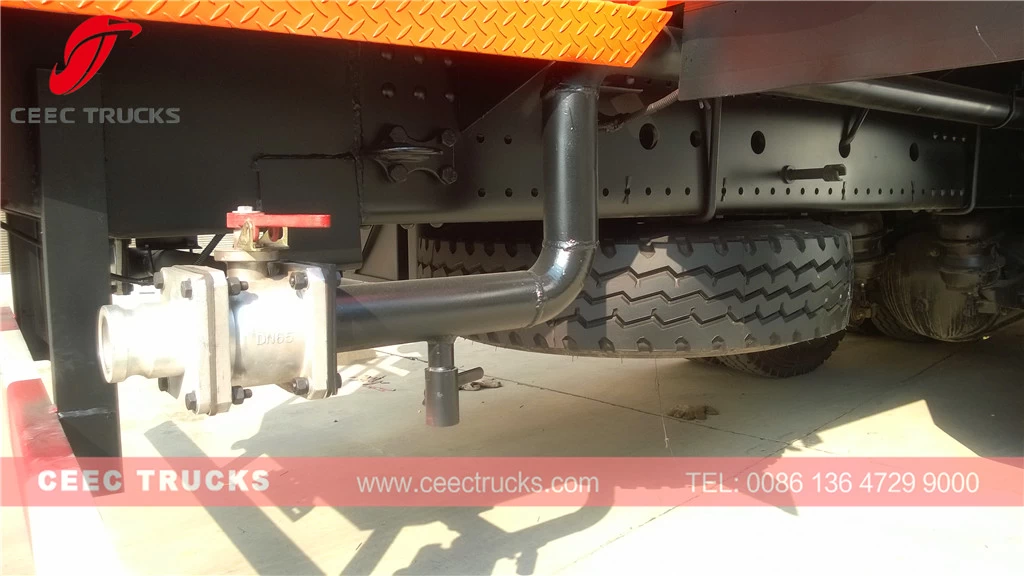

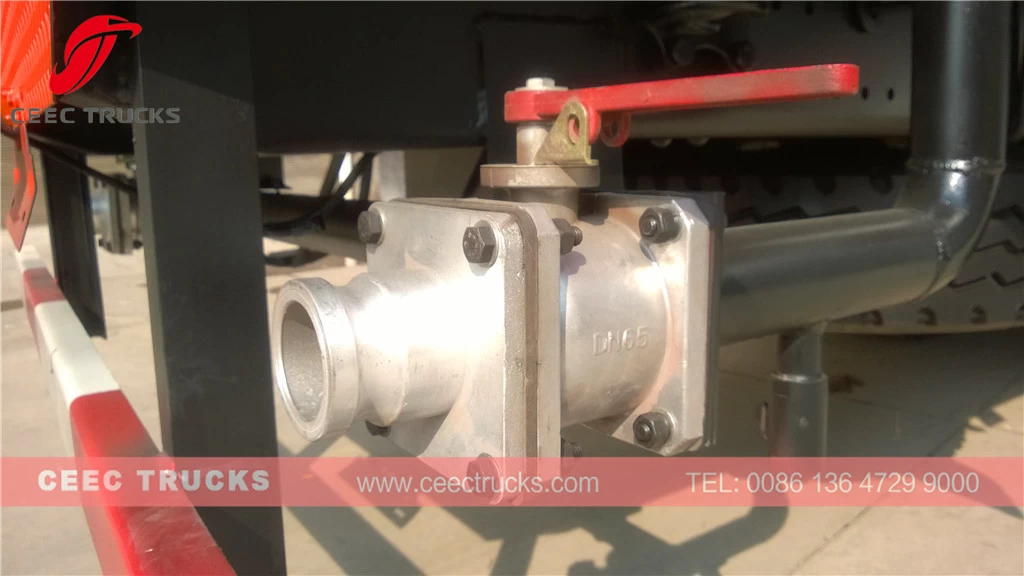

Water pump

China famous brand

Loading type

Self loading

Front spray bar

YES

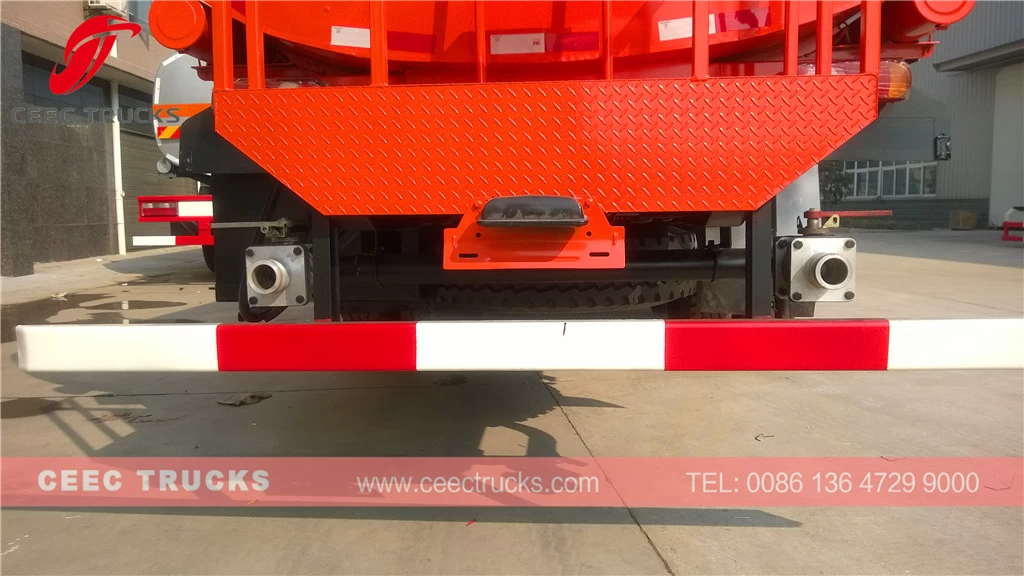

Rear spray bar

YES

Water Canon

28 meters

Fire coupling

Standard

Control

Manual (Optional air operated)

Control panel

English or Your language

All standard accessories: Warning lights, music alarm, basic tool kit, English manual……

Optional

** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.

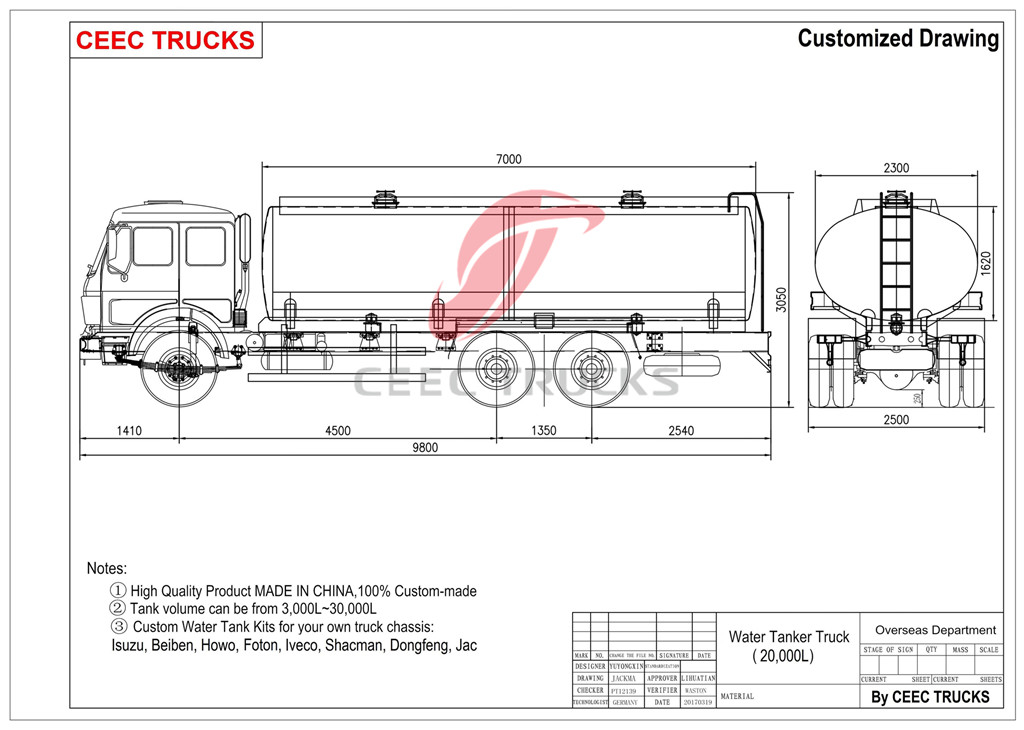

 CEEC 20cbm tanker truck Technical drawing
