20 Inch 32mm Width 25mm Depth 406 Carbon Rims

20 inch 32mm wide 25mm deep 406 rims are constructed from Toray T700&T800.The tire type of 20 inch 406 rims is tubeless ready clincher.



20 Inch 32mm Width 25mm Depth 406 Carbon Rims


Product Feature

  • Super lightweight,20 inch 32mm wide 25mm deep 406 rim is constructed from Toray T700&T800 that tructure minimize the rotational weight.
  • 4D Drill Technology. The 4 directions angled spoke drilling holes that follow the path of the spokes. Make the rim greater strength and durability.
  • Specific resin rims brake track is designed for BMX race and street. Carbon specific pad required.
  • Wider Design. gives a slightly larger volume to the tyre, meaning you can run less air pressure for a better ride, while still maintaining rolling speed.
  • The inside of the rim had been especially designed for high pressure tyre mounting. The rims are super stiff and strong, yet still achieve a low weight.
  • Low Profile Design for optimum stiffness and damping. Reduces the buffeting effect of cross winds on outdoor tracks. Don’t be afraid of crosswinds at the track anymore!
  • The tire typr of 20 406 rim is tubeless ready clincher.
  • 406 carbon rim weighs 300±10g.
  • The basalt track is available for 406 carbon rims.


Specification

Item No.:

BMX406-32X25

Rim type:

20 inch bmx bike 406 rims

Material:

Toray T700&T800 carbon fiber
Finish:
Matte / Glossy
Weave:
UD / 3K / 12K
Brake track:
Basalt Track / No Brake Track
Depth:
25 mm
Rim Width:
( External ) 32 mm
Rim Width:
( Internal ) 25 mm
Tire Type:
TubelessReady Clincher
Valve :
Standard Schrader / Presta valve
Weight:
300g + / - 10g per pieces
Drills:
 28H , 32H , 36H

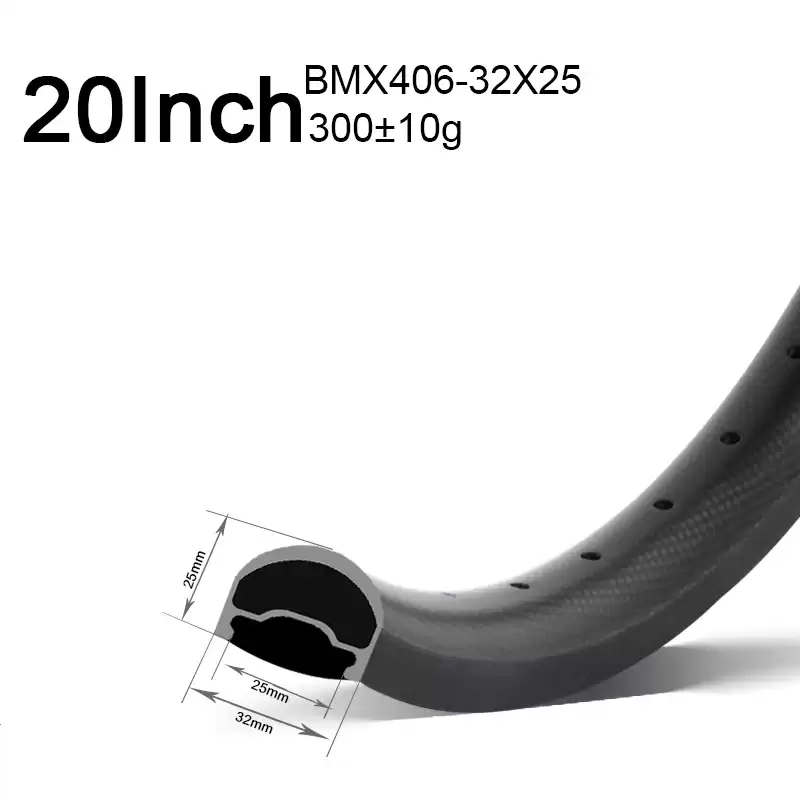

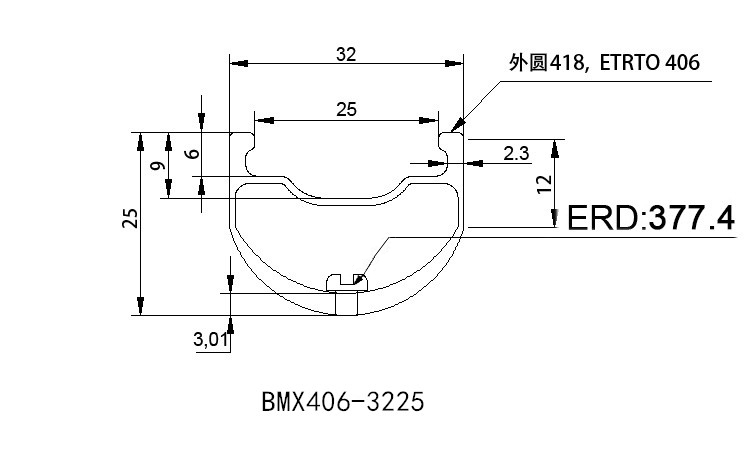

Geometry

20 inch 406 rims



Product Overview




Manufacturing process:

Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.

Read More For Production Of Carbon Rims By DCH Factory



100% Quality Inspection:

DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.

Read More For Testing Of Carbon Rims By DCH Factory
