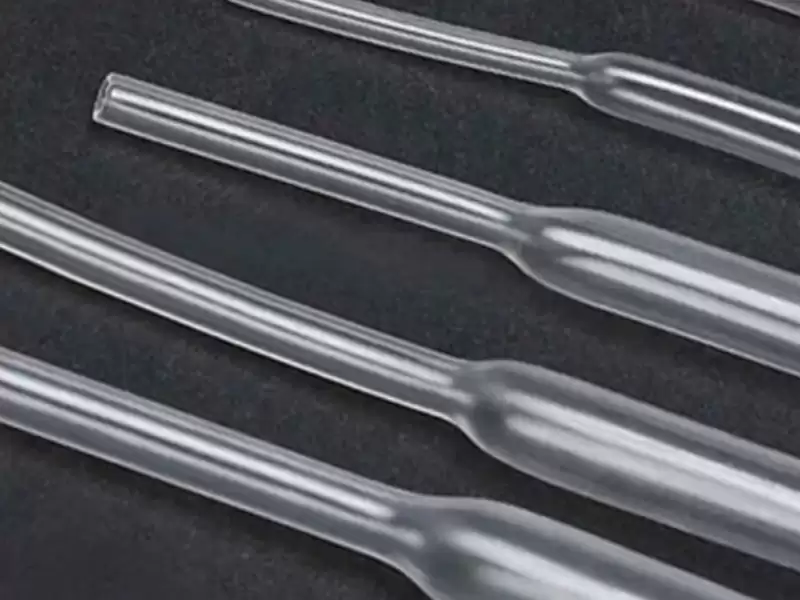

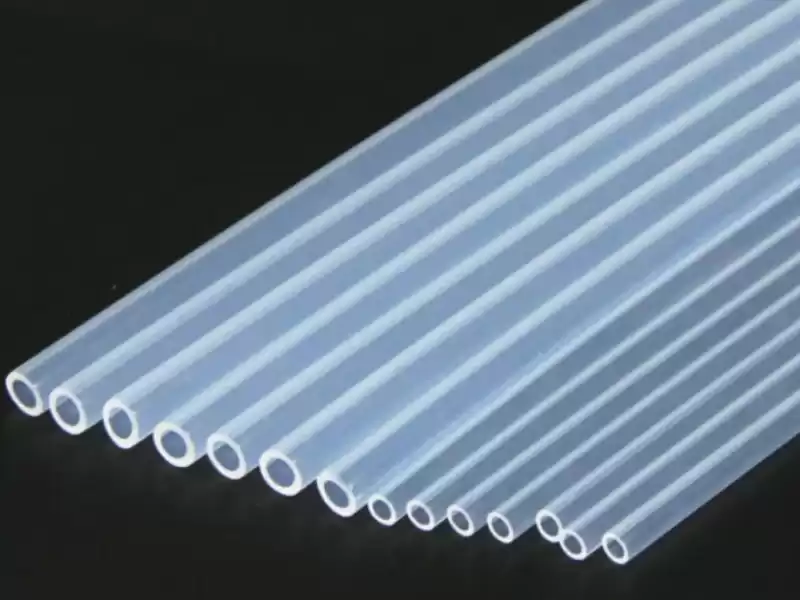

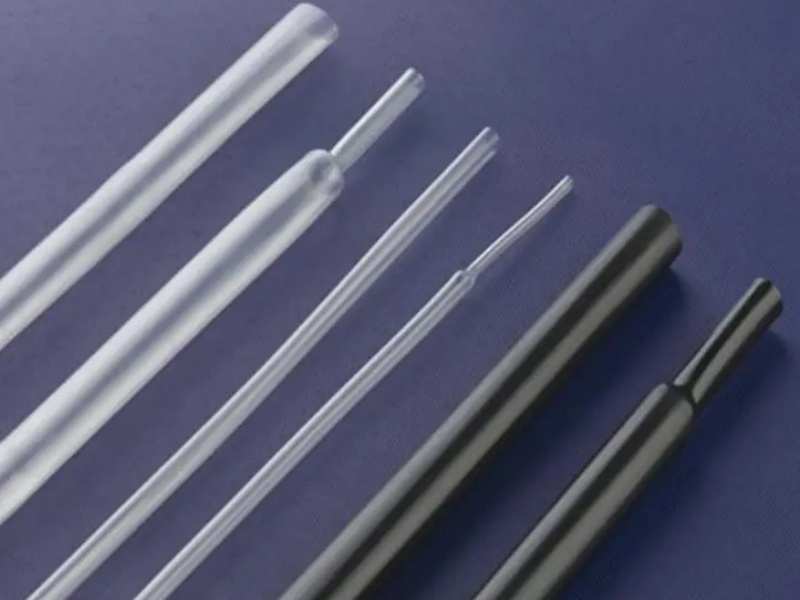

200°C Temperature Resistant FEP Heat Shrink Tube

200°C Temperature Resistant FEP Heat Shrink Tube with excellent 200℃ high temperature performance, chemical resistance, high insulation anc excellent mechanical properties. FEP has excellent abrasion resistance and excellent clarity. Designed to provide insulation and mechanical protection in severe chemical and thermal environments. Widely use in electronic, aerospace, military and communication fields.





Features


✔ Part Number: G-FEP



Material: Fluorinated ethylene propylene



Working Temp.: -65℃~+200



Mini. shrink temp.: 195



Mini. fully shrink temp.: 210



Flame Retardant Rating: UL224 600V WW-1



Approval: SAE AMS-DTL-23053/8



Standard Color: Clear



Packing: Paper spool plate and carton

Shrink ratio 1.25:1



Excellent clarity



Excellent flammability



High temperature resistant to 200℃



Superior physical and chemical properties



RoHS and REACH compliant



Testing Performance



Property

Requirement

Test method

Typical data

Longitudinal shrinkage

5%

ASTM D 2671

3%

Tensile strength

13.8 MPa min.

ASTM D 638

19 MPa

Elongation at break

150% min.

ASTM D 638

250%

Tensile strength after ageing(232℃,168hrs)

9.7MPa min.

ASTM D 638

14 MPa

Elongation after ageing (200℃,168hrs)

100% min.

ASTM D 638

≥250%

Heat shock (260℃, 4hrs)

No crack

ASTM D 2671

No crack

Low-temperature

Flexibility (-55℃. 4hrs)

No crack

ASTM D 2671

No crack

Dielectric voltage

withstand

2500V, 60sec, no

breakdown

ASTM D 2671

No breakdown

Volume resistivity

10¹⁵Ω·cm min.

ASTM D 876

10¹⁵Ω·cm

Corrosion

No corrosion

ASTM D 2671

No corrosion

Flammability

VW-1

UL224

pass



Specification



Size

As supplied (mm)

After recovered

(mm)

Standard packing

(m/pc, m/roll)

PN#

mm

(mini.)

Inside Dia.

 (max.)

Inside Dia.

Wall thickness

G-FEP

2.5

2.5

2.0

0.20±0.05

100

G-FEP

3.5

3.5

2.8

0.20±0.05

100

G-FEP

4.7

4.7

3.8

0.20±0.05

1

G-FEP

5.5

5.5

4.5

0.20±0.05

1

G-FEP

7.0

7.0

5.6

0.20±0.05

1

G-FEP

9.0

9.0

7.5

0.20±0.05

1

G-FEP

11.5

11.5

9.3

0.30±0.05

1

G-FEP

14.5

14.5

11.7

0.35±0.05

1

G-FEP

19

19

15.3

0.35±0.05

1

G-FEP

24

24

19.3

0.40±0.10

1

G-FEP

28

28

22.5

0.40±0.10

1

G-FEP

35

35

28.1

0.45±0.10

1



NOTES

• Special size can be customized by requirement.

• Special color and package can be customized by requirement.

• Detailed specification is available if needed.
