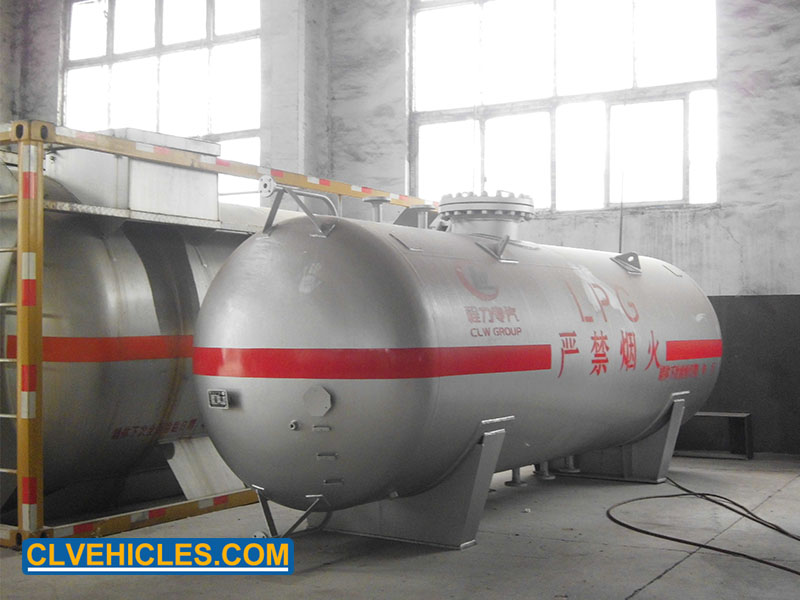

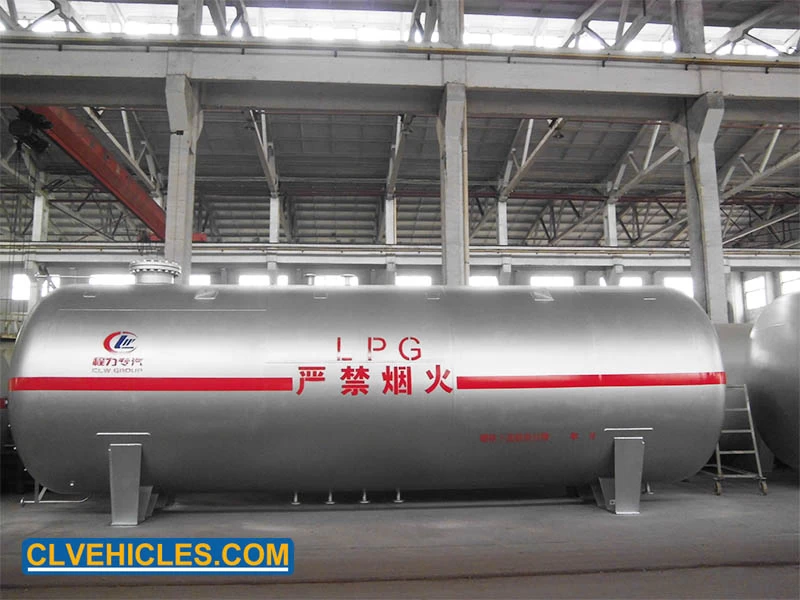

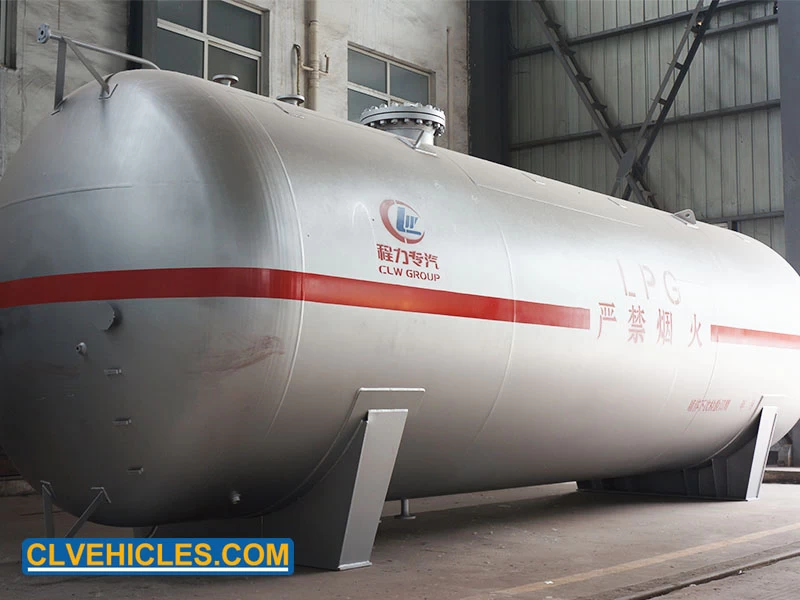

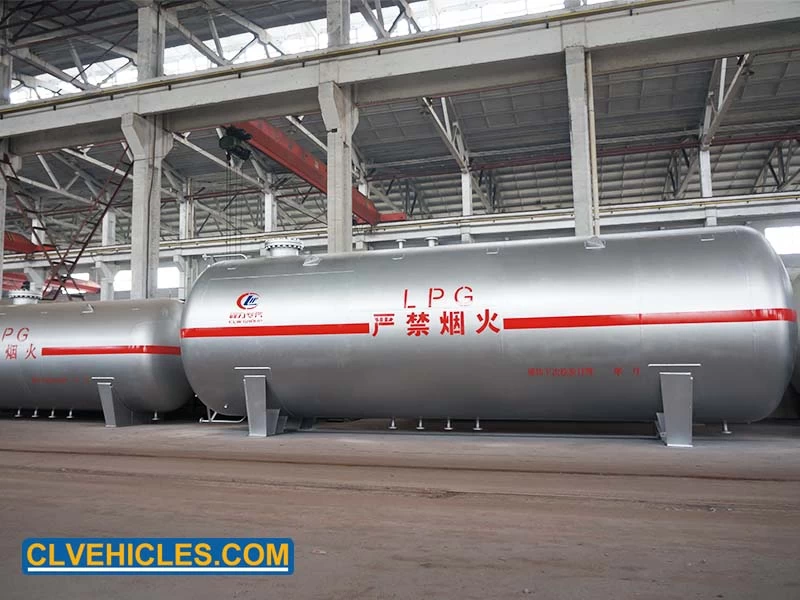

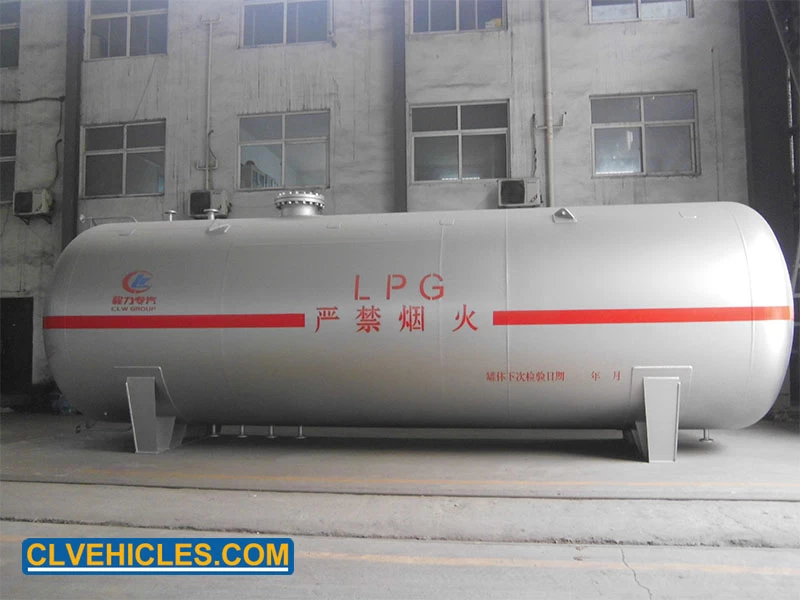

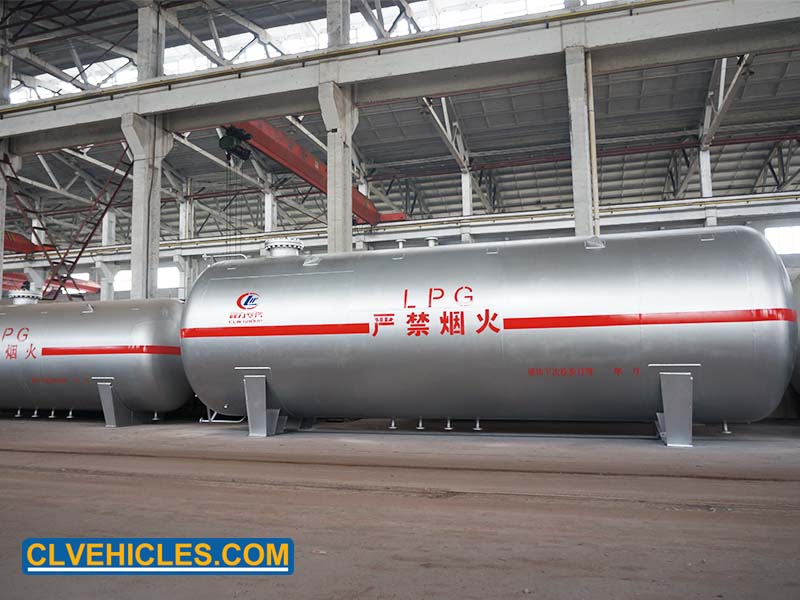

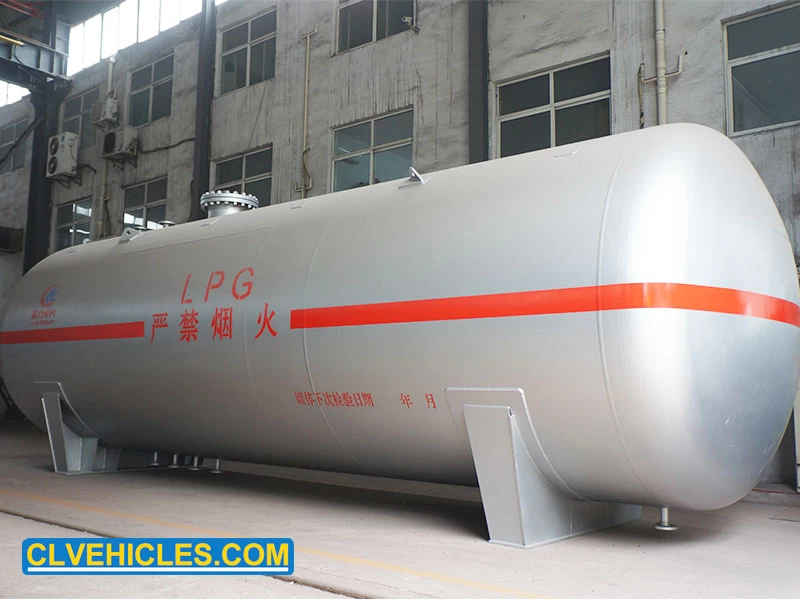

20000 liter propane storage tank

The lpg storage tank  is made of special material Q345R. As a professional lpg storage tank manufacturer in China, we have  the aptitude to design and manufacture A2 type of pressure vessel,the manufacturing processing of lpg storage tank is complex and strict. All the lpg gas tanks must do nondestructive examination, air tight test, hydrostatic test and any other inspections.


  • Delivery Time25~35 days after we get the deposit
  • Payment TermsT/T, L/C, Western Union
  • PriceUSD9800
  • Minimum Order Quantity1 Unit
  • Model No.20000 liter LPG TANK
  • BrandCLVEHICLES.COM
  • ShippingRo-Ro/Bulk cargo/Container shipment / SKD / CKD / etc

20000 liter propane storage tank


Liquefied petroleum gas storage tanks can be divided into fixed volume storage tanks and active volume storage tanks according to the volume change of containers. Large fixed volume LPG storage tanks It is made into a spherical shape, and the small one is made into a cylindrical shape.
Storage tank is a double cylinder structure, tube and pipe were used austenitic stainless steel manufacturing, outer cylinder with Q235-B/Q345R manufacturing, sandwich filled with perlite, and vacuum pumping, and setting the after special treatment of the adsorbent to extend the life of vacuum tank.


Quick Details



LPG tank size 6154*2124*2714

Propane tank capacity

20000 liter

Design temperature

50℃

Design pressure

1.77Mpa

Leak test pressure

1.77Mpa

Hydraulic test pressure

2.3Mpa


Applications


LPG storage tank is widely used in the gas industry, hospitals, metal smelting,filling stations and liquefaction plants and other large gas users, is to achieve the best central air supply products.




Competitive Advantages



Our LPG tanker trailer is made of Q345R steel which is specialized for pressure vessel  100% X-ray inspection

Emergency shut off valve fore safety

Double side for discharge and loading ,double tool box and valve box

LPG dispenser optional with automatic fault detection and overload protection


Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.
