2000L Fire truck with water ISUZU
Feature:
- Special for Urban public fire brigade
- Mines, ports, docks, forest and other departments
- Airport, station or Crowded areas
- More than 22 kind of fire-fighting equipment with fire truck
Main specifications:
Chassis
|
NKR77/600P Light-duty chassis for Fire-fighting application
|
Model
|
PT5070GXF
|
Driving Type
|
4x2 (Left hand drive)
|
Wheelbase
|
3815 mm
|
Overall Dimension
|
6730×1980×2785 mm
|
Tank capacity
|
2000L water
|
Fire Pump
|
Rated low pressure:1.0MPa, Flow rate:30L/S. Rear-mounted，Water delivery time：≤35s
|
Fire Monitor
|
Rated pressure≤1.0MPa,Rated Flow rate:20L/s, Throw range≥50m, Rotation angle：360°,
|
Cab
|
Double cab with Four doors, 5 seats with safe belts.
|
Engine
|
Model:
|
4KH1-TCG40
|
Type:
|
Diesel, turbo charged inter-cooled, 4 cylinder
|
Max. Power:
|
88 KW (120HP)
|
Gearbox
|
MSB 5-shift, mechanical type, 5 forward and 1 reverse with
|
Tire
|
7.00-16
|
Color
|
Red (Any color & logos up to wish)
|
Max Speed
|
100 km/h
|

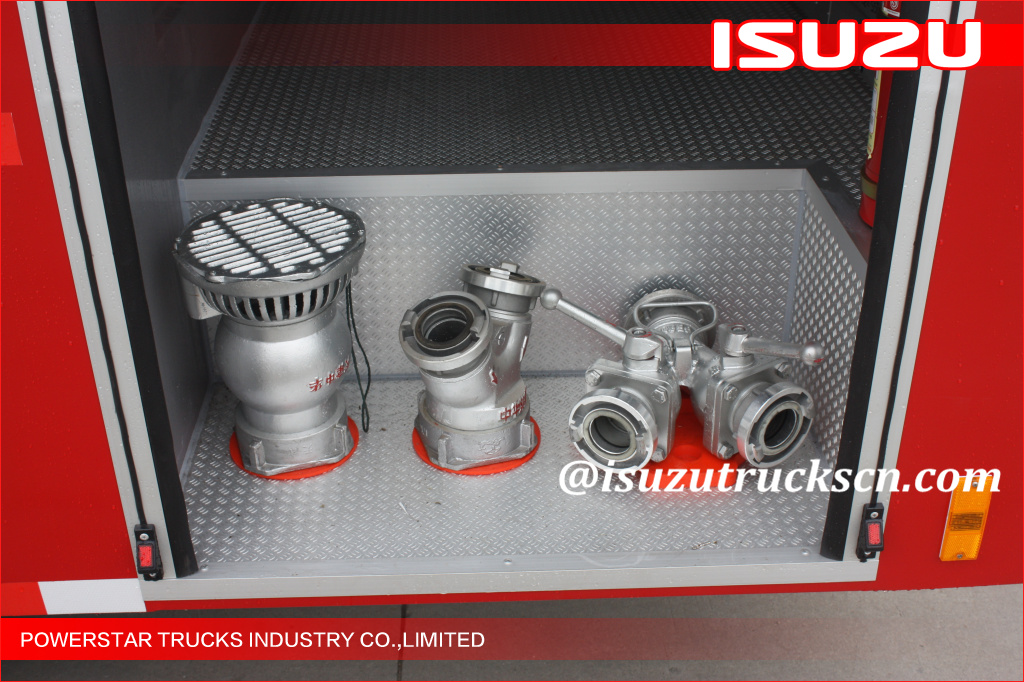

Accessories List:
(With below equipment, you can put into fire-fighting immediately)

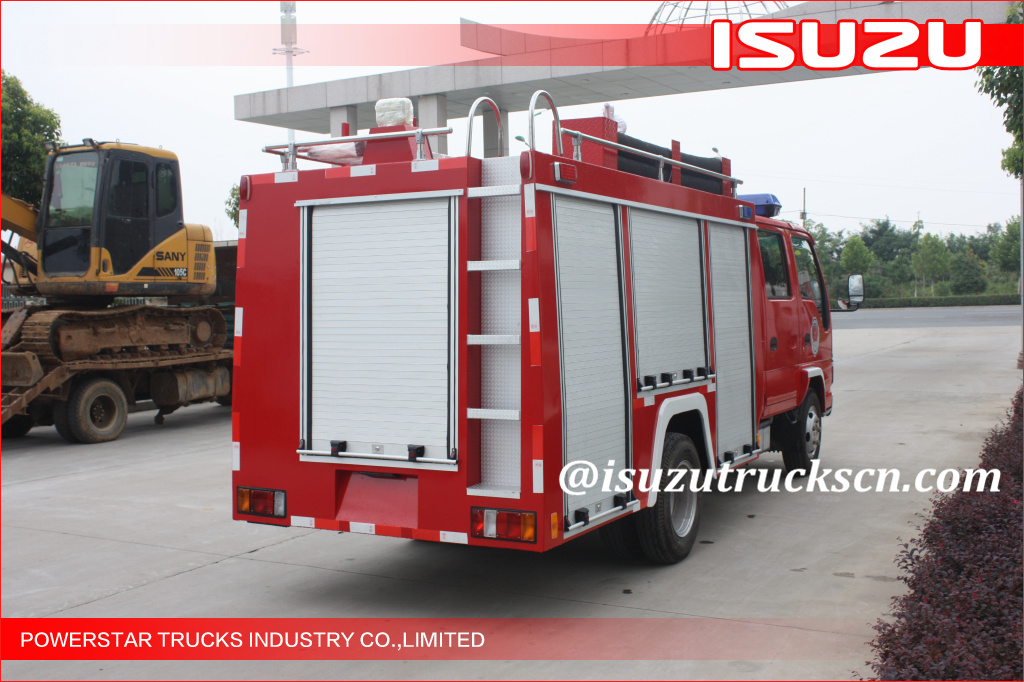

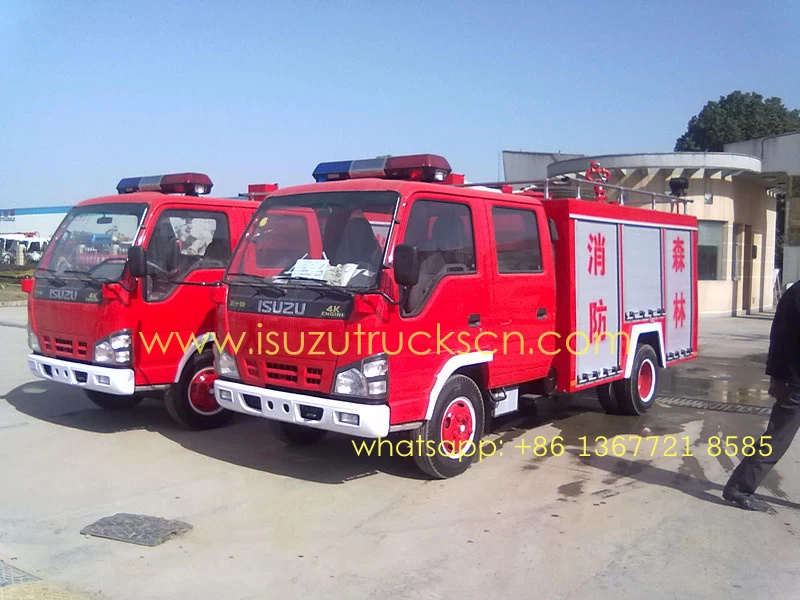

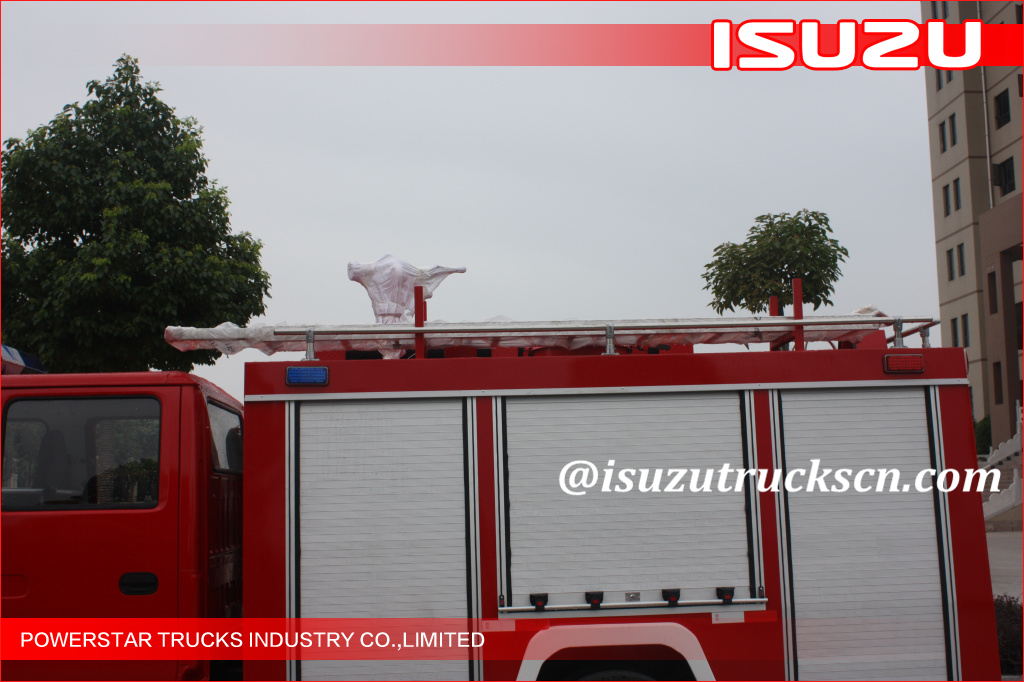

Over view of Isuzu water fire truck
 |
 |

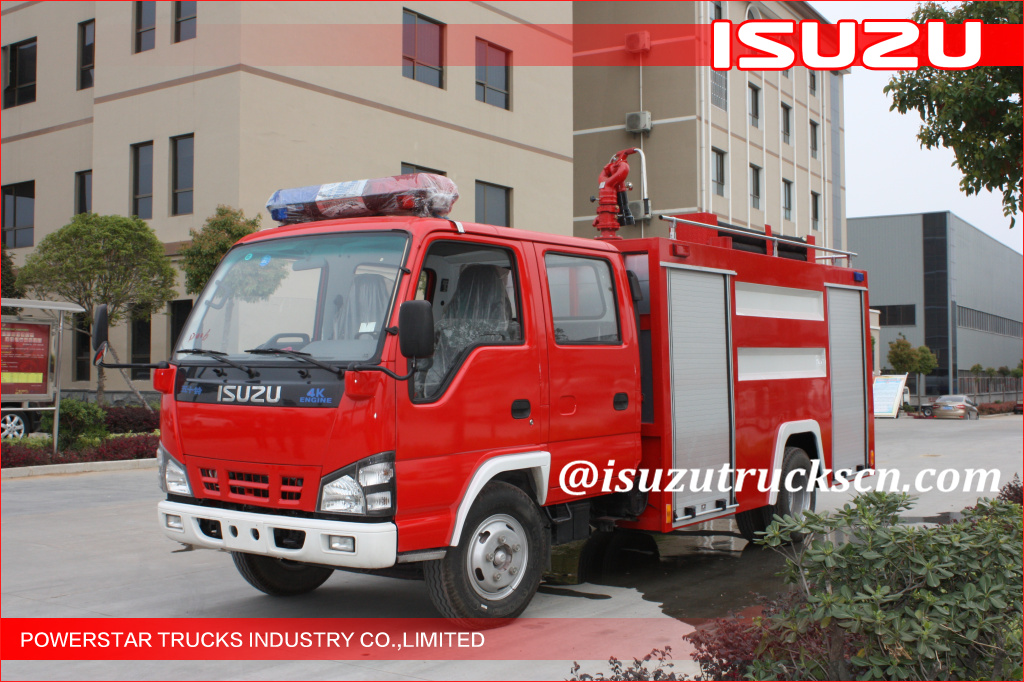

| Front right view |
Front left view |
 |
 |

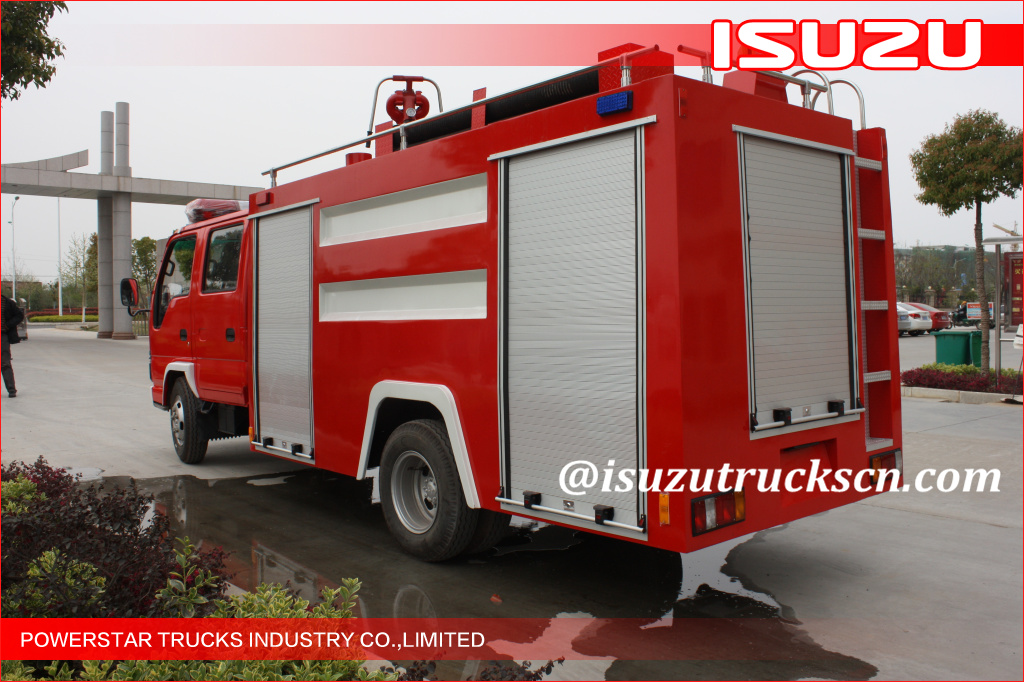

| Rear left view |
Rear right view |
 |
 |

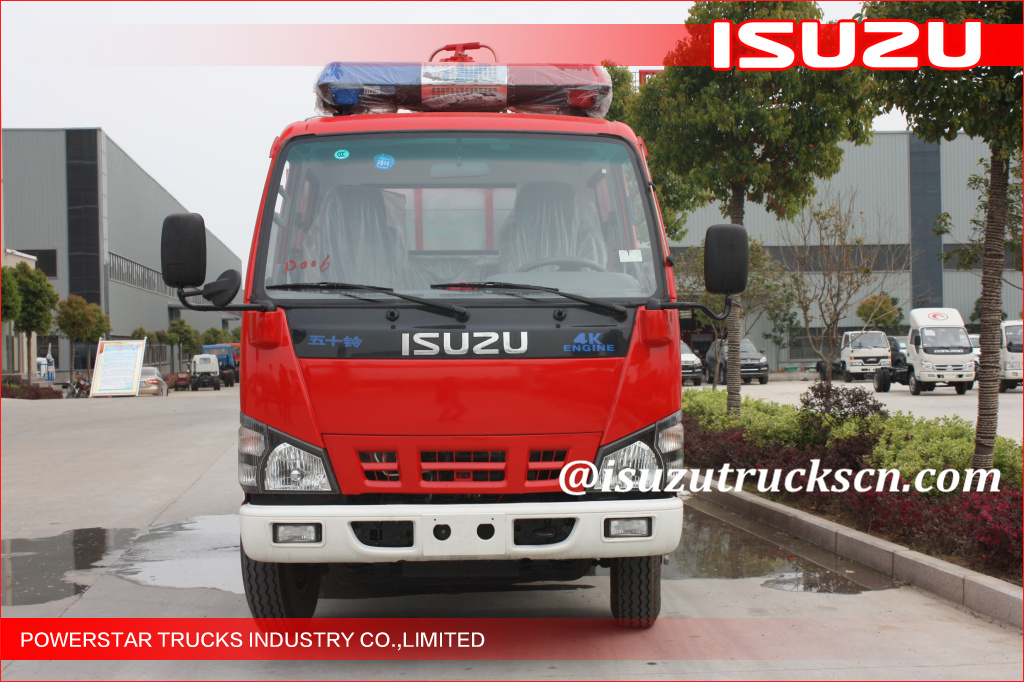

| Front view |

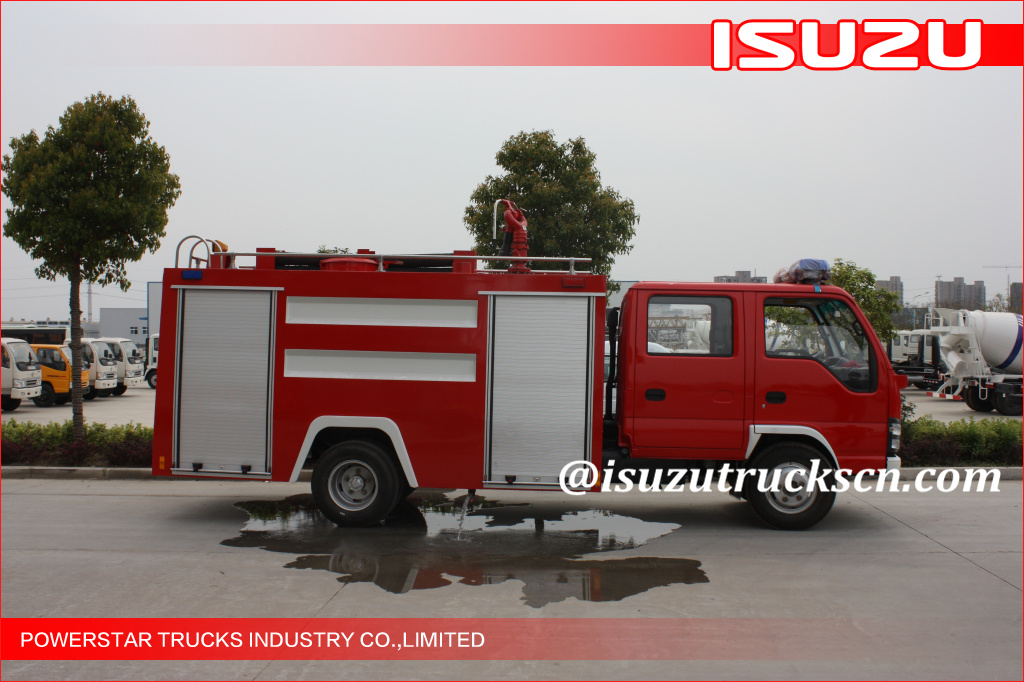

Right side view |
