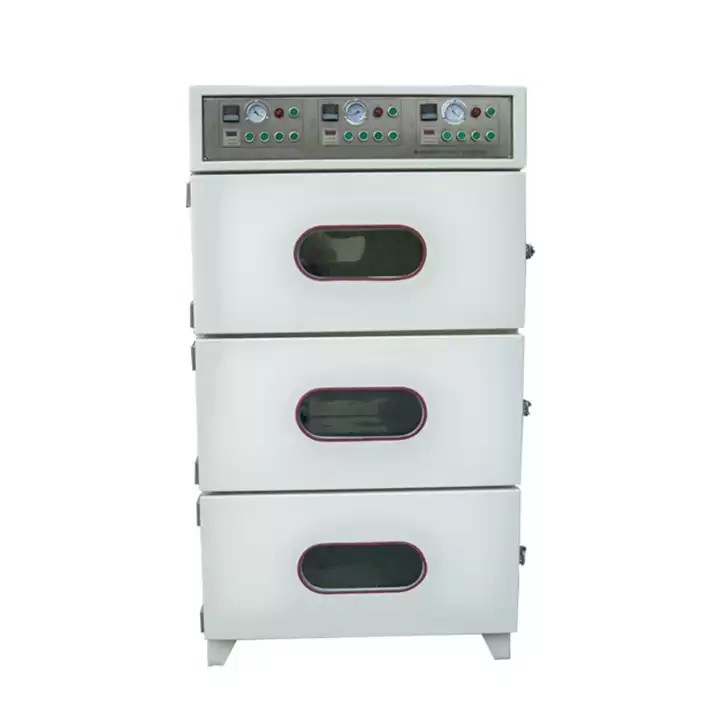

200C High Temperature Three Layers Vacuum Drying Oven With Vacuum Pump


This oven is mainly used with square vacuum chamber, can make full use of space. Pumping speed fast and efficient, high vacuum, easy to operate. Toughened bulletproof double glass observation window clearly the object of the working chamber. The tightness of the box can be adjusted, the overall shape of the silicon rubber gasket to ensure a high vacuum chamber. This product is suitable for the production process of electronic products off the bubble, dehydration, hardening and drying after cleaning treatment under vacuum heat treatment, the LED optical original lithium battery, and battery electrode,and so on, has a high reputation in the electric industry field.


Parameter

performance

Description/model

Battery special vacuum oven

Workroom size

height:300mm  width: 800mm   depth: 600mm*3 layers

Outline size

height:1850mm  width:1420 mm  depth: 890mm

Working temperature

room temperature :+15℃~200℃

The speed of risingtemperatur

not more than 120 minutes when rising to the max.temperature

Heating power

4.5KW*3

Electrical supply

Three- phases380V

Outside material

Cold-rolled plate,spay platics

Color

According to the customer’s color standard

Working room material

SUS304 stainless steel plate

Stratified

Multi

Layer floor

2 layer mesh partition / layer

Exhaust connection

back

Open method

Single-door, flexible double steel glass, with over pressure protection function

Sealing ring

silicone rubber ring with high temperature resistance, no connector

Temperature instrumentation

digital temperature controller

Temperature control mode

PID regulator

Temperature accuracy

±1℃

Temperature uniformity

±5℃

Temperature Sensor

PT100

Timing Control

10 -hour timer, the alarm buzzer

Over temperature protection

over-temperature protection,when over the temperature, cut off the heating power and alarm buzzer

Heating device

Heating wire

Vacuum

100Pa, 6 hours pointer does not move ,12 hours to keep 98% , 24 hours to keep 95%

Gas leakage

≤300pa/h

Remark

three studios to work independently, independent heating, three sets of temperature control system, can work alone, can also work at the same time.Manual control vacuum switch, vacuum- sealed well when the power cut. The vacuum chamber can be individually, separately add nitrogen, without disturbing each other
