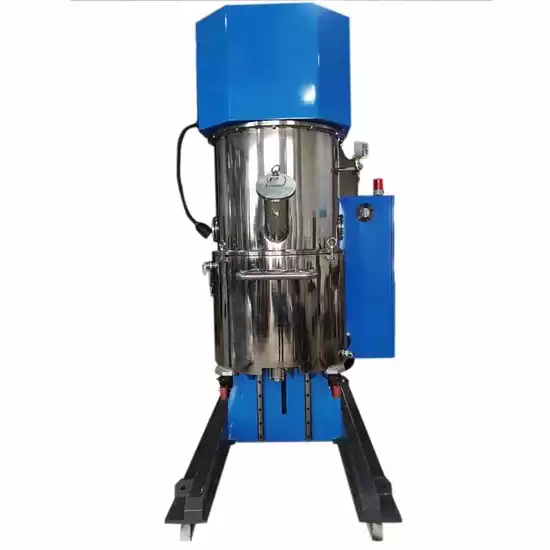

200L Planetary Vacuum Mixer for Lithium Battery Anode and Cathode Material Mixing

The vacuum planetary mixer is programmable in vacuum operation , raise or down, speed adjusting by the frequency inverter , temperature show/control , urgent stop , and so on.

It is excellent for preparing LiCoO3, LiFePO4, Phosphors...electrode slurry and ceramic slurry without gas bubble.

Technical Parameters

Viscosity range	12,000-20,000 cp
Volume	Design volume: 265L, effective volume: 200L
Mixing barrel	φ750mm, depth 600mm
Machine material	SUS304
Power	15KW
Vacuum degree	-0.098Mpa
Temperature control range	20~90℃
Lifting stroke	700mm
Dimensions	L2400mm x W1600mm x H2750mm
Machine weight	about 4.0 tons

Safety protection

1. There is an audible and visual alarm when the mixing tank rises or falls;

2. After the mixing tank is in place, the mixer can work;

3. The barrel body cannot be raised and lowered when the mixer is working;

4. Automatic protection of electrical appliances; emergency stop protection for operators;

5. Mixer, electrical cabinet and control box should be grounded.

Equipment technical parameters:

1, the equipment is suitable for viscosity: 1 thousand -20,000 cp;

2, the total power: about 37kw;

3. Vacuum: ≤-0.098Mpa;

4. Positive pressure of water-cooled jacket of mixing tank: ≤0.4Mpa.
