200W Smart Led Street Lights Energy Savings Lighting for Sale In China Manfacturer

  • 12 Years+ China Outdoor Led Street Lights Energy Savings Manufacturers Experience

  • Your Reliable Led Street Lamp China Supplier

  • Mean Well&Philip Led Chip with 5 Years Warranty

  • OEM&ODM  Kinds of Led Street Lights Specially For You

  • Professional Engineers Make the Dialux for Your Projects

  • Fast Delivery Only Within 5 Days Production



200W Smart Led Street Lights Energy Savings Lighting for Sale In China Manfacturer

China Led Street Lights Manufacturer provide Kinds of Housings high quality Led Street Lights

OEM &ODM Specially for you, from 50W to 300W, with factory Directly Sale Competitive Price,

 5 Years Warranty.


Epistar, Bridgelux, Philips, Osram, Nicha, CREE LED chip.

Meanwell or other high quality drivers for your reference.

Here must have a model you need!Wait for your Logo print on the lights!

Welcome to email us at sales@smartlightdesigner.com for best quotation!


Specifications:


Model: SED-SLH-200W
Lumens Per Watt: 130lm/w
Wattage:
200w
Voltage: AC85-265V
Frequency: 50-60 hz
Power Factor: >0.90
Color Temperature: 2700~7000K
Led Chip: 240PCS Philips SMD3030
Life Time: >50,000 hours
Dimmable 0-10V or Phase Cut or DaLi Optional
CRI: >80
Beam Angle: T2、T3、T4°
Storage Temp: –30 ~ 55°C
IP Rating: IP65
OEM&ODM Yes
Housing: Grey Finish/Aluminum die-cast housing
Certificates: CE、ROSH、LVD、EMC
Product Size: 69.7*31.1*11.2cm
Net Weight:  4.5KG
Packaging Size: 69.7*31.1*11.2cm
Quantity/Carton: 1PCS/Carton
Gross Weight: 5.3KG
Warranty: 3 to 5 years
Driver: Mean Well Or CE Driver Optional


Features:

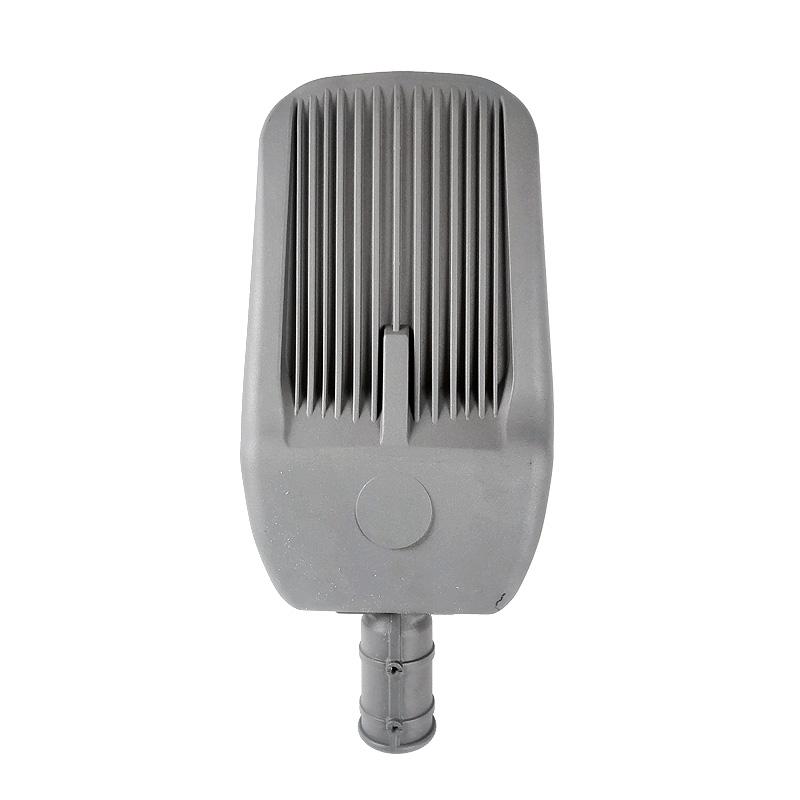

  • Pure aluminum with good heat dissipation

  • Level 17 hurricane resistant

  • IP66 waterproof, 5 years warranty

  • High-quality components Original Philips Led Chip,Mean Driver

  • Lifetime over 50000 hours

  • The Led Street Lights are provided with die cast fitters that Suiable for 40-60 mm arms. An adjustable head joint with mounting steps allows 0-15° tilt to facilitate photometric adjustments in both horizontal arm mount applications and vertical pole top installations. Wall mounting brackets and square pole mounting adapters are available.

led street lights energy savings


led street light manufacturer china



street lighting manufacturer



LED Street Light Common Application:

Widely used in public lighting of highways, roads, streets, bicycle tracks,

parking lots, sidewalks, footpaths, bridges, tunnels, squares, parks, residential areas, industrial areas, etc.

street lamp suppliers



Smart Led Street Lights Energy Savings Lighting Instructions for use

1. This item working voltage is AC85-265V/AC 50/60 Hz, please don't exceed the working range voltage;

 2. Since the lamp has a PC lens accessory, please handle it lightly when move & storage

3. installation methods for the product, please check the following diagram to complete the installation;

4. Working environment temperature ·30 C+55 C;

5. When installing the amps, all the wires should be sealed to prevent akage;

6. When connecting an external power cord, cor responding water proof and water leakage measures must be taken;

7. Anti-glare design, uniform light distribution;

8. Independent power box design, which is beneficial to the heat dissipation of the lamp body, reduces light

attenuation and prolongs the service life of the light source;

9. Support light sensor installation, can realize intelligent control of lamps, Improve energy efficiency.




Maintenance instructions

1. All Street Lights Accessorries 5 years warranty;

2. Periodicaly Clean the PC lens of the luminaire to maintain the high transmittance of the luminaire;

3. Reguarly clean the lamp housing and the radiator dust to maintain good heat disspation;

4. Be careful not to use strong corr osive solutions for cleaning.


 ★Warranty & After-sales service

1. This item with full warranty 5 years, under normal conditions of use, quality assurance is based on the correct storage, installation, use and maintenance of the product;

2.Product damage caused by improper installation and use and violation of product operating procedures  not covered by the warranty;

3. For quality problems during the warranty period, our company will fix, replace (parts) or replace new products,

Materials and labor costs will be appropriately charged beyond the warranty period
