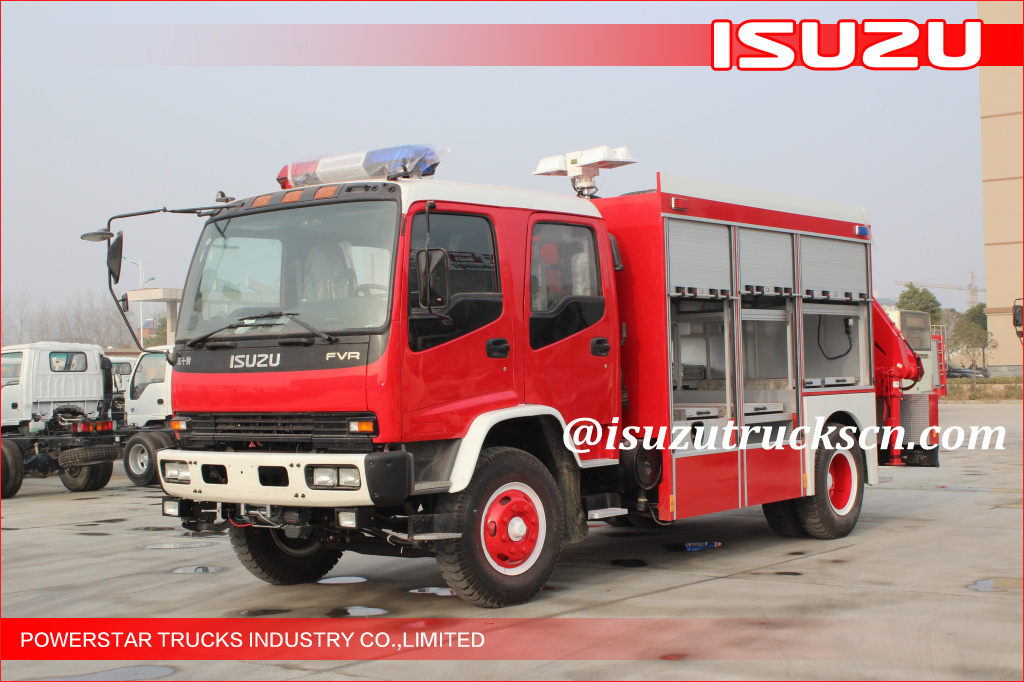

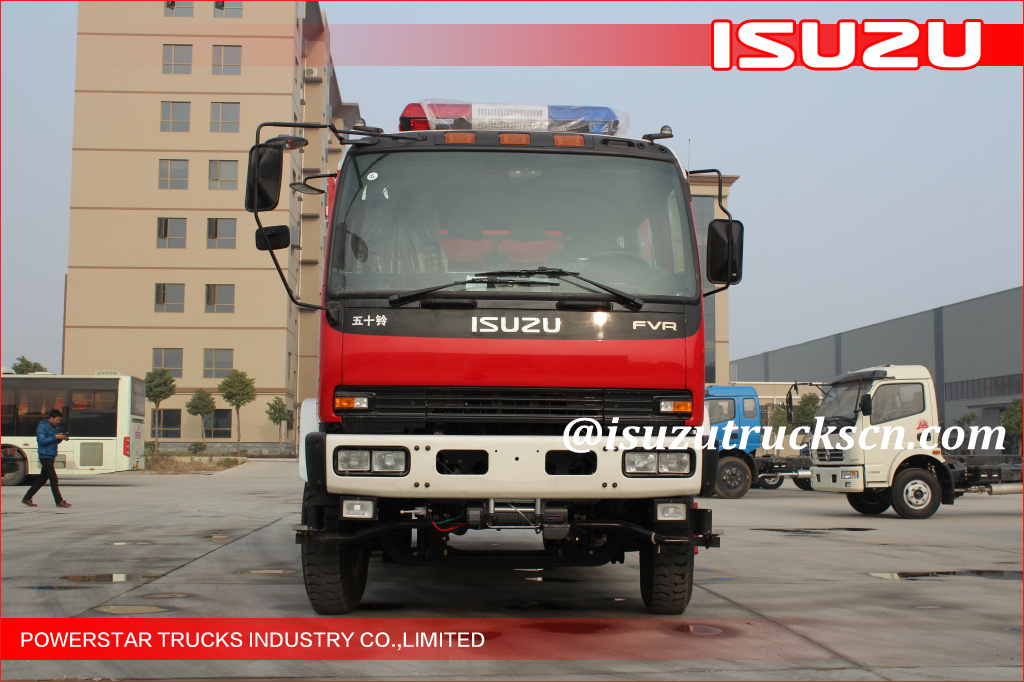

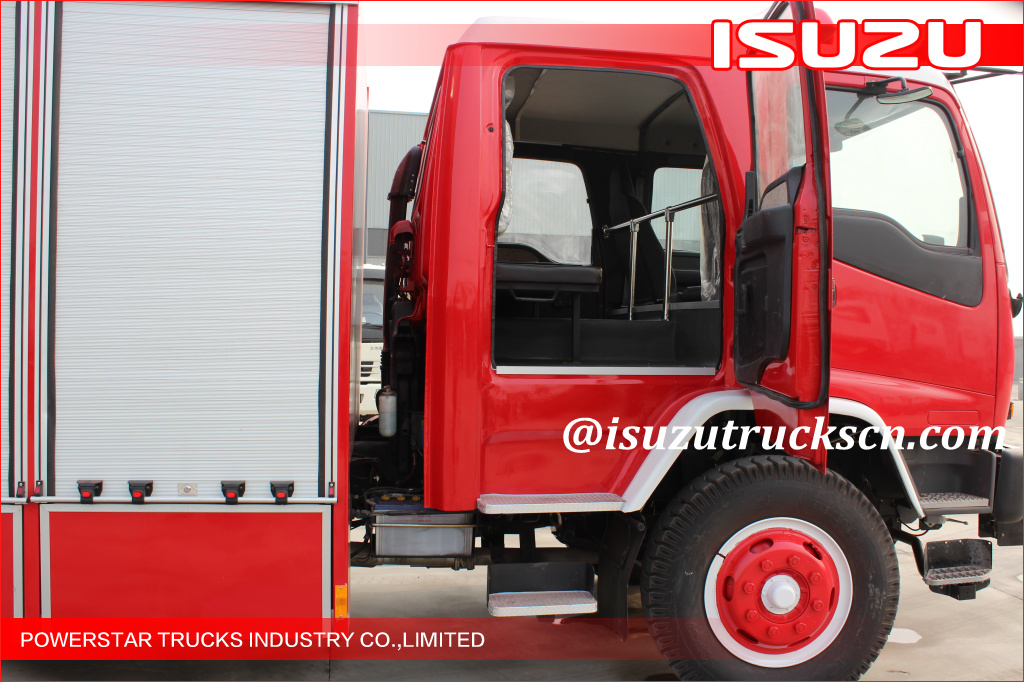

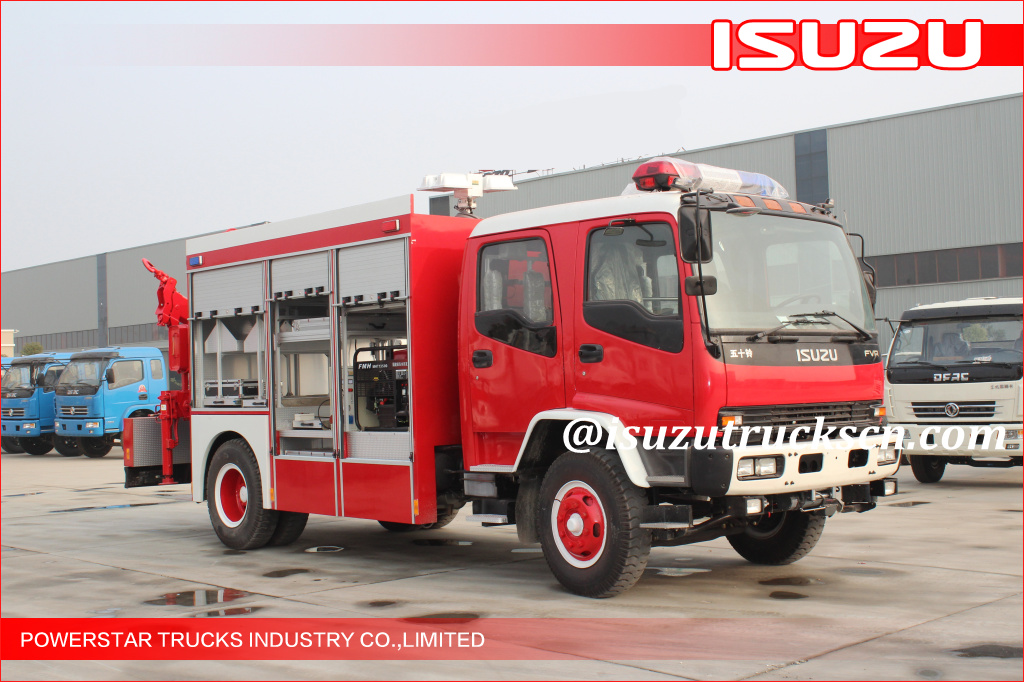

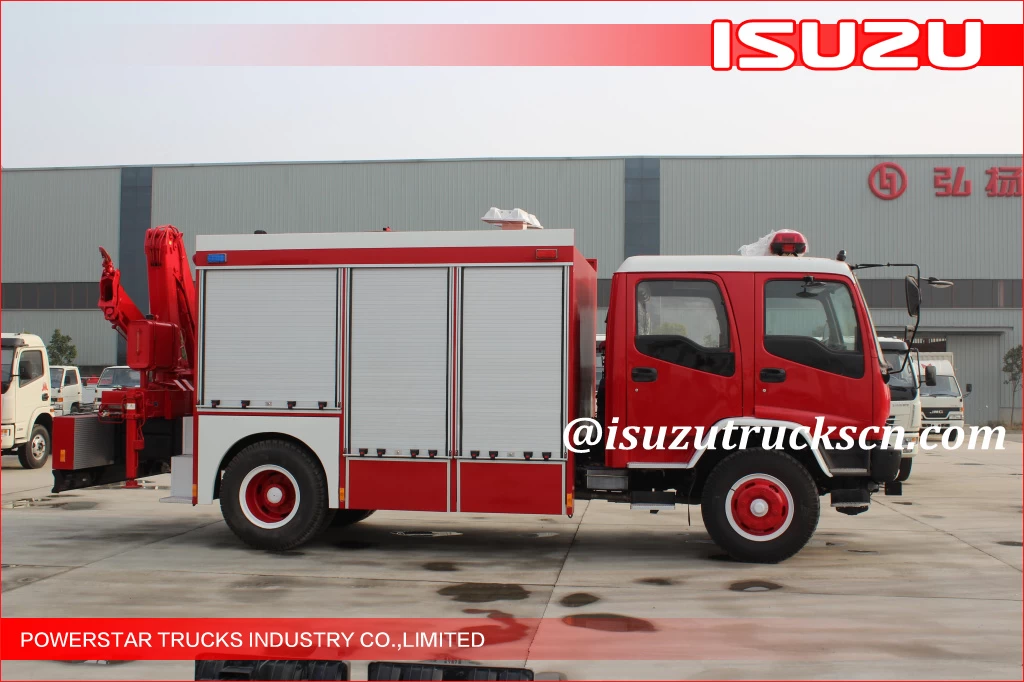

2015 Isuzu Lighting Emergency Rescue Vehicle Fire Truck with Truck Crane

Feature:

◆  With crane function.

◆  With electric winch.
◆  With Super Lighting system.
◆  With power supply.

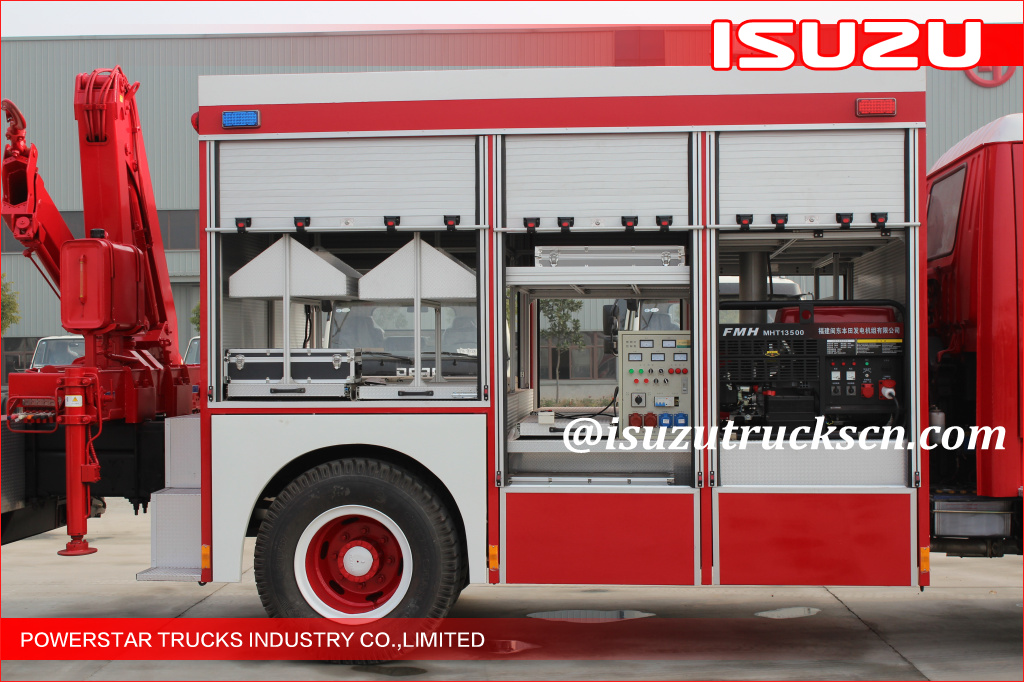

◆  With ample tools space
◆  Other tailored function.

• ISUZU Emergency Rescue Vehicle

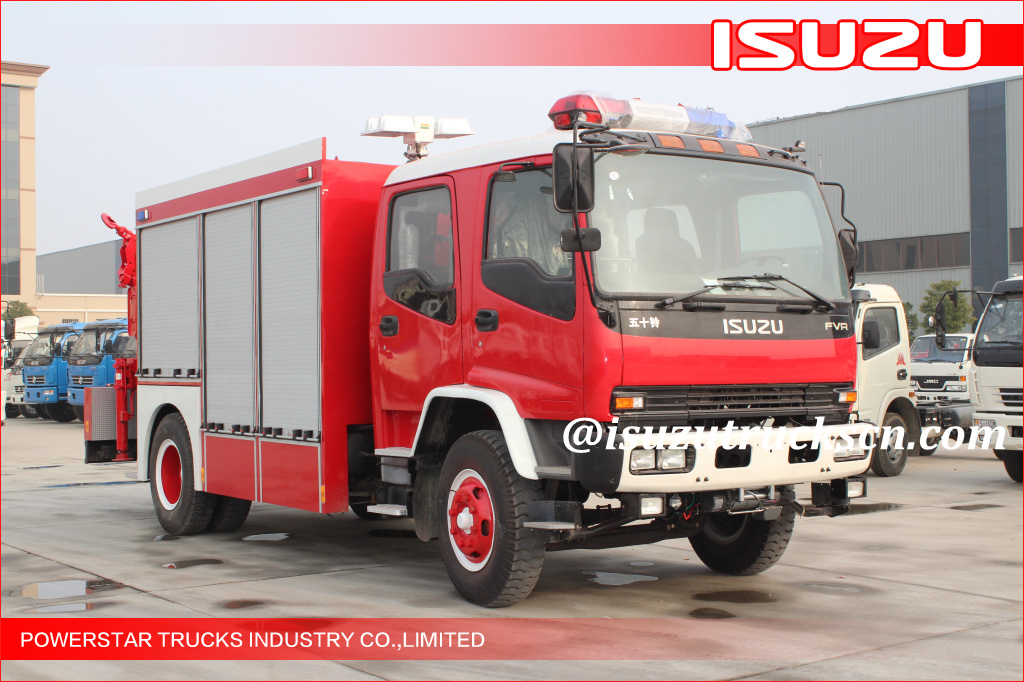

  ISUZU：	FVR chassis，Single Row or Double，191kW，Wheelbase：Two shaft 4500mm

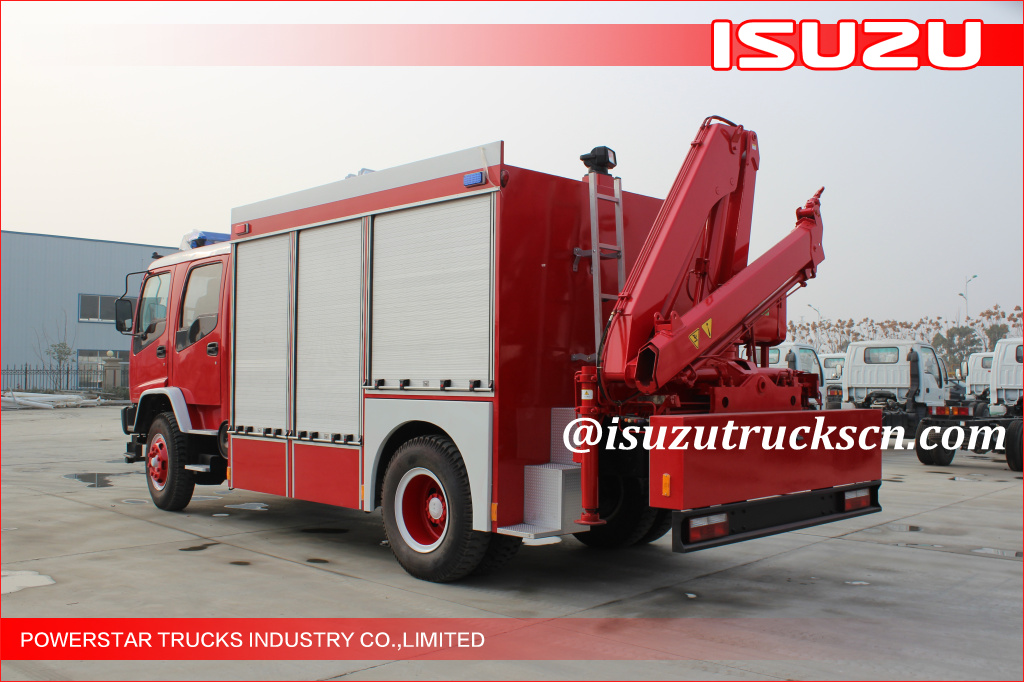

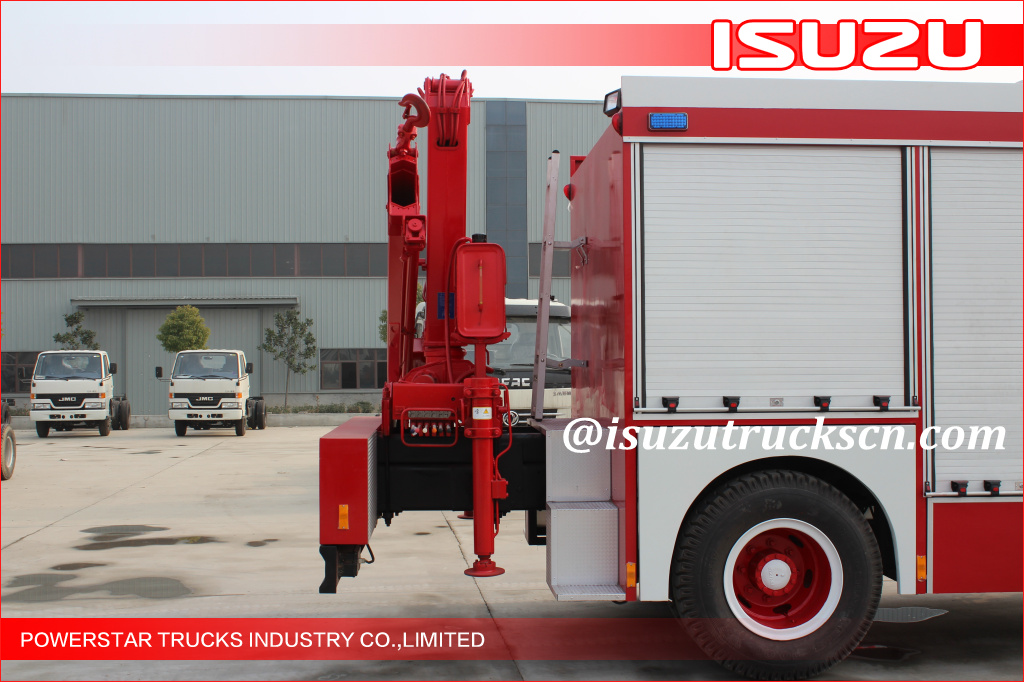

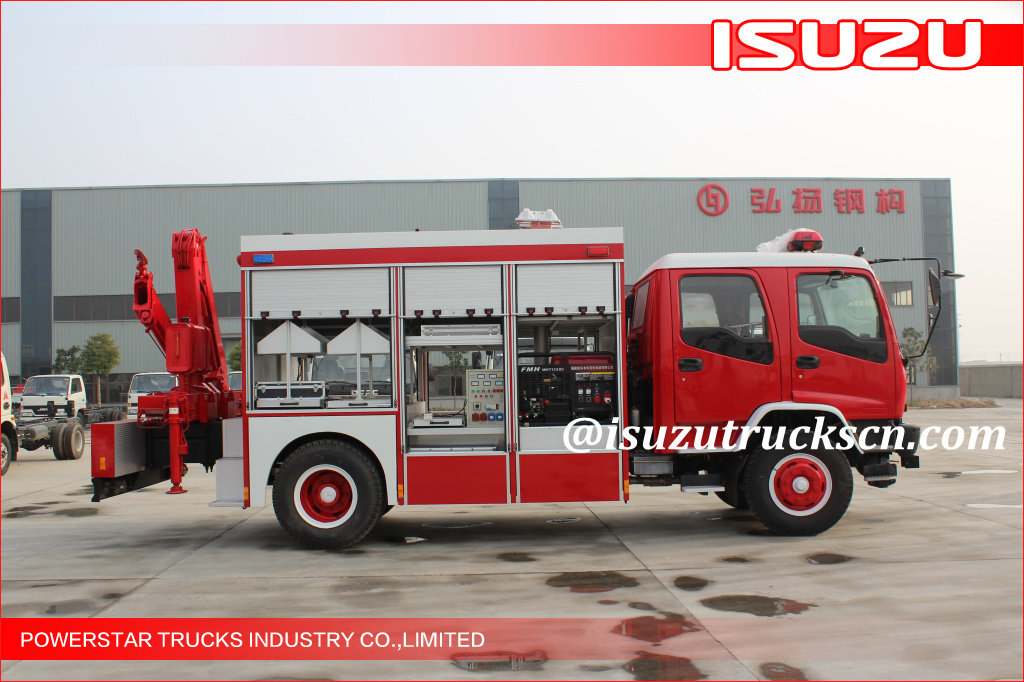

  Truck crane：	Max. lifting weight:3.2T，rear-mounted，Outrigger span:4.2m，Max. amplitude:7.56m，Max.working height:10m，Rotation angle:410°

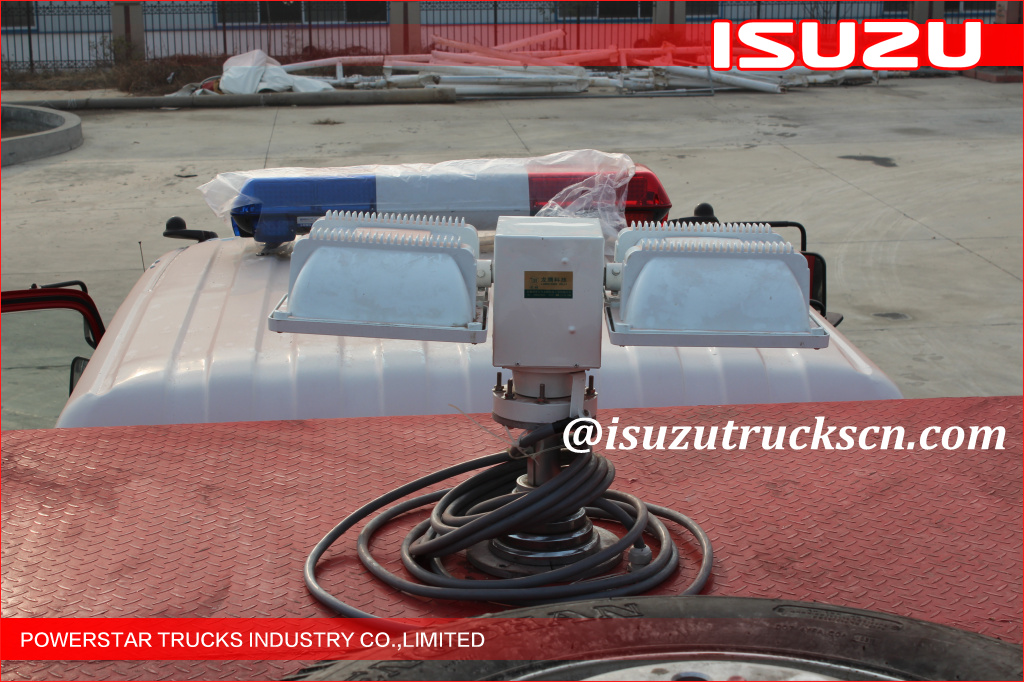

  Light Mast System：	Ground height≥8m，Work cycle time≤500S，Level rotary time≤180S，Level rotation angle:-150°TO +150°，Elevation Angle≥+30°，Depression Angle≤-15°，Elevation and Depression Time≤120S
  Traction winch：	Max. tension：49kN，10800 kgf，Max. towing speed:3.57 m/min，Front-mounted.

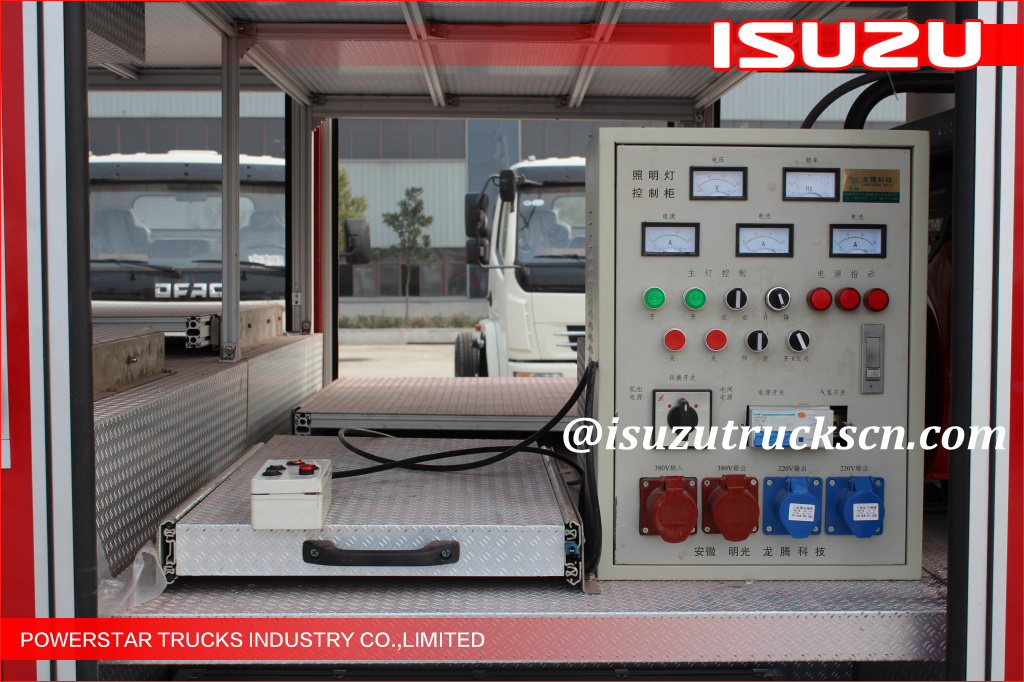

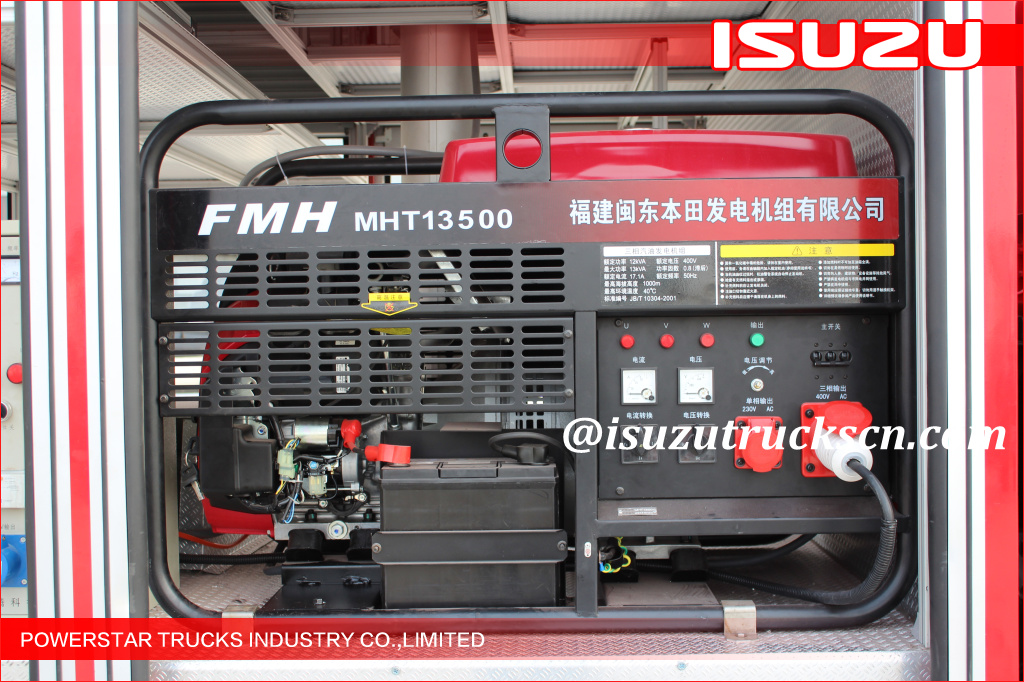

  Generator：	HONDA Generator Set，Power:5kW，Rated voltage:220V
  Fume extractor：	Mechanic Operating，delivery capacity:9000 m3/h，Power:1.5 kW
  Overall Dimension：	8290×2500×3400mm
