Frame
|

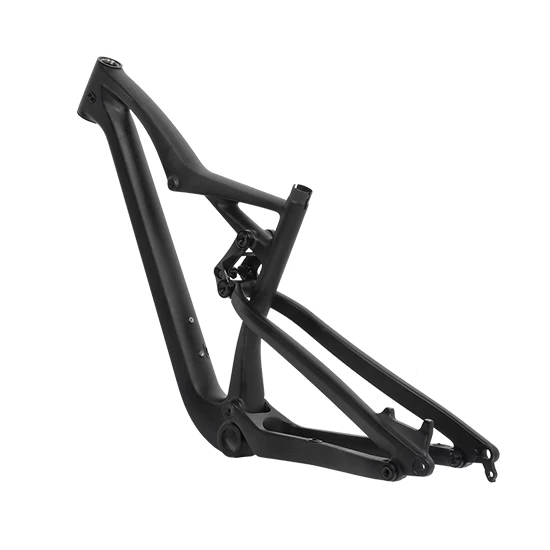

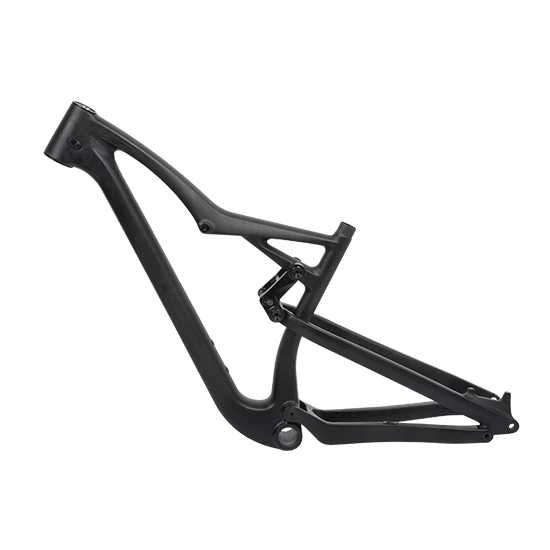

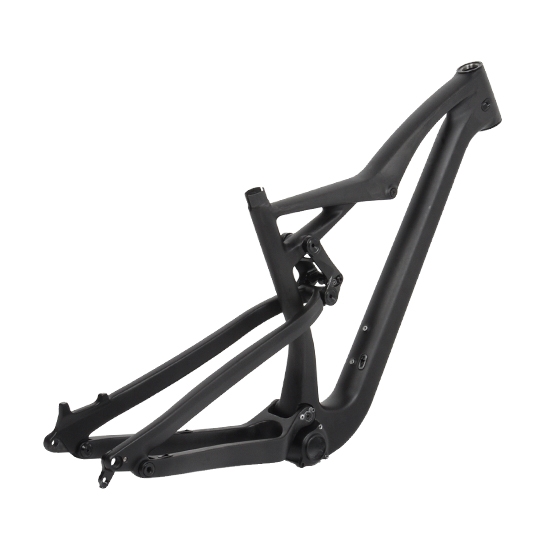

2019 new all-mountain suspension enduro frame
|
|
Material
|
High modulus Toray T700 carbon fiber
|
Size
|
15.5, 17.5, 19.5, 21 inch
|
|
Rear Travel
|
135~152mm
|
|
Headtube
|
Tapered 1.5" - 1 1/8" OD 51/62mm / ID 44/56mm
|
|
Weight
|
2500g/17.5
|
|
Seatpost Diameter
|
31.6mm(dropper seat post insert length S-300/M-350/L-400mm
|
|
Bottom Bracket
|
Press Fit BB92 boost
|
|
Max Tire Clearance
|
27.5* 2.6 ~3.0'' &29*2.4''
|
|
Max Compatible Chainring
|
34T
|
|
Brake Type
|
Post Mount Disc brake 180mm（Rear）
|
|
Front Derailleur
|
Side Swing front derailleur compatible with Shimano E-type/Sram S3
|
|
Rear Shock
|
Shock eye-eye: 200-22-22x∅8.0 SHOCK TRAVEL:57MM rear travel 152mm
Shock eye-eye: 200-22-22x∅8.0 SHOCK TRAVEL:50MM rear travel 136mm
Shock eye-eye: 210-22-22x∅8.0 SHOCK TRAVEL:55MM rear travel 152mm
Shock eye-eye: 210-22-22x∅8.0 SHOCK TRAVEL:50MM rear travel 141.5mm
Shock eye-eye: 210-22-22x∅8.0 SHOCK TRAVEL:47.5MM rear travel 136mm
|
|
Dropout
|
Thru Axle 12*148mm boost
|
|
Test Standard
|
ISO4210
|
|
Warranty
|
2 years
|

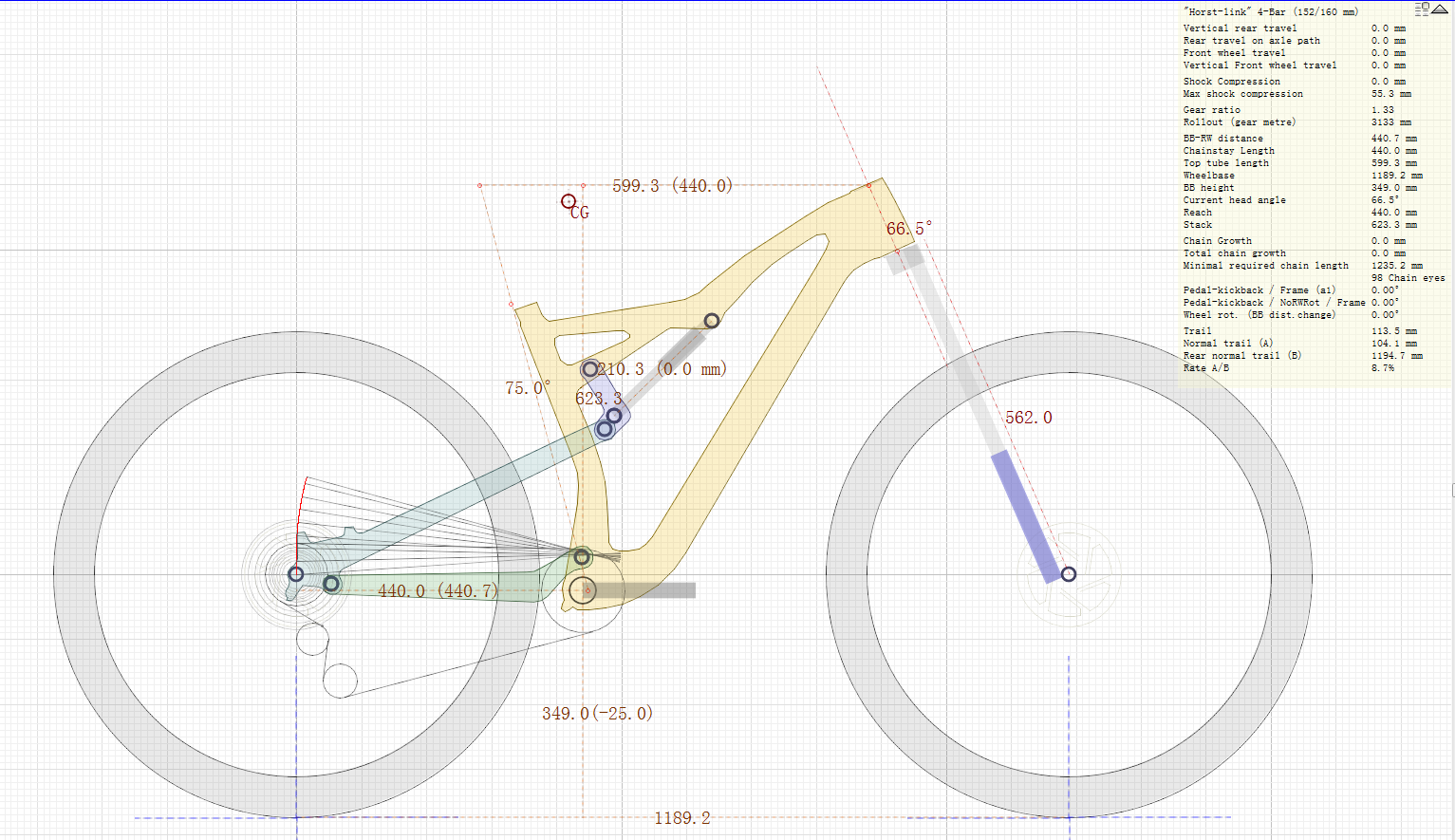

Frame Simulation Analysis Items
Shock Compression, Leverage Ratio, Chain Growth, Magnified axle path, Chainline-IC offset, Pedal-kickback, anti-squat and Anti-rise, etc

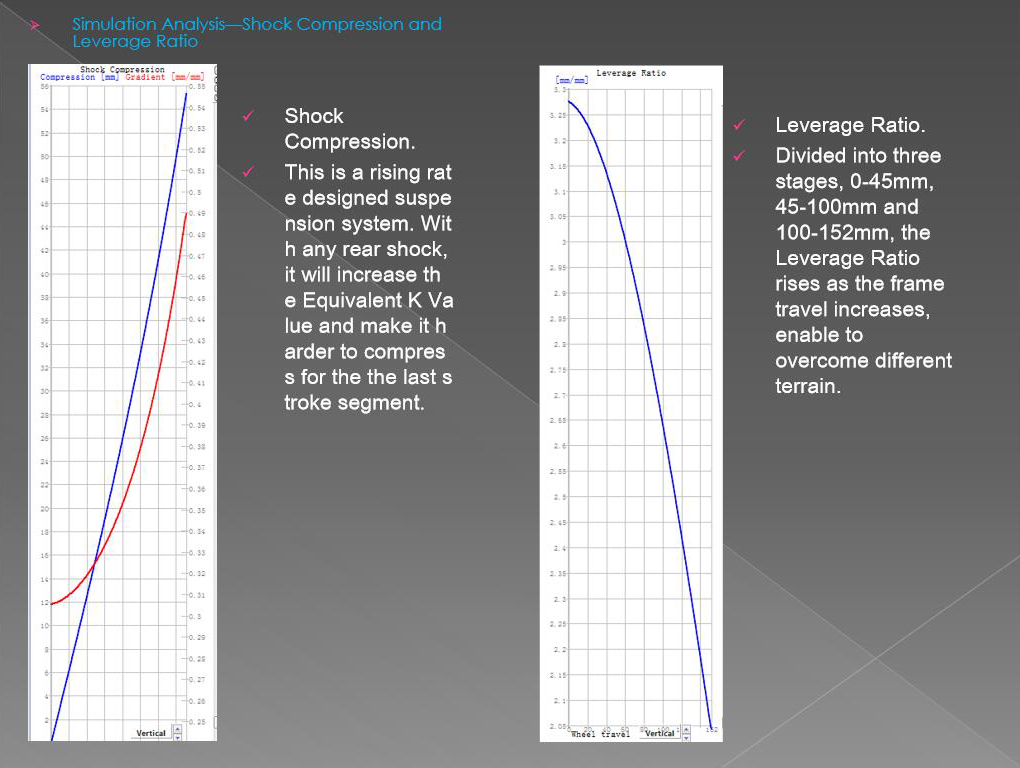

Shock Compression&Leverage Ratio

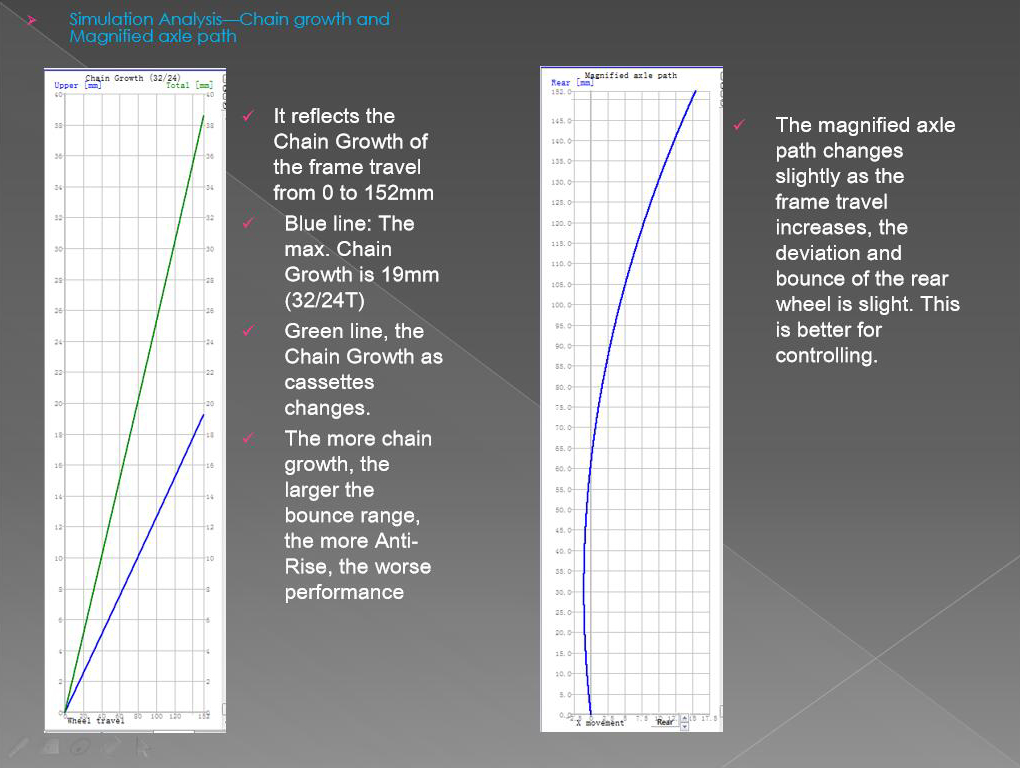

Chain Growth&Magnified axle path

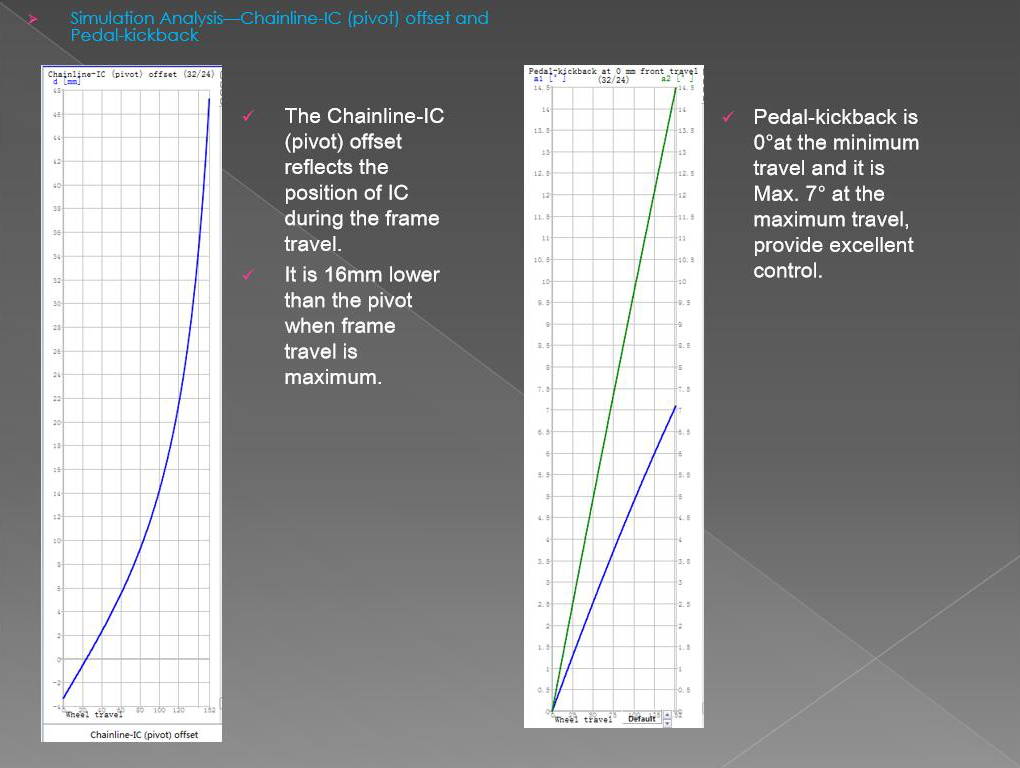

Chainline-IC offset&Pedal-kickback

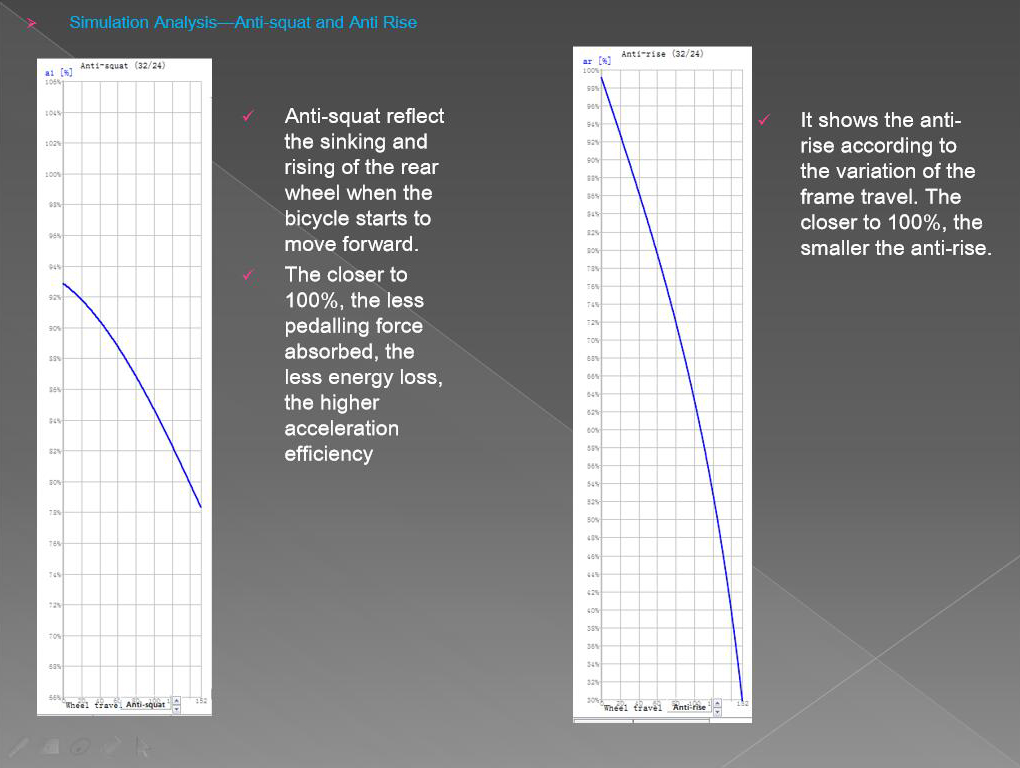

Anti-squat & Anti-rise
