2030/40S New Design Single Cage Construction Building Hoist

The new designed model 2030/40S construction lift is Rack and Pinion construction hoist, material  lifts for building and also passenger lift. Rack and pinion elevator widely applies to such contruction sites as industrial and civil architecture,bridge,underground,large chimney,and ship industry,etc. It suits the vertical transport of materials and personnels and also suits such different occasions as warehouses,high towers, etc.



2030/40S New Design Single Cage Construction Building Hoist

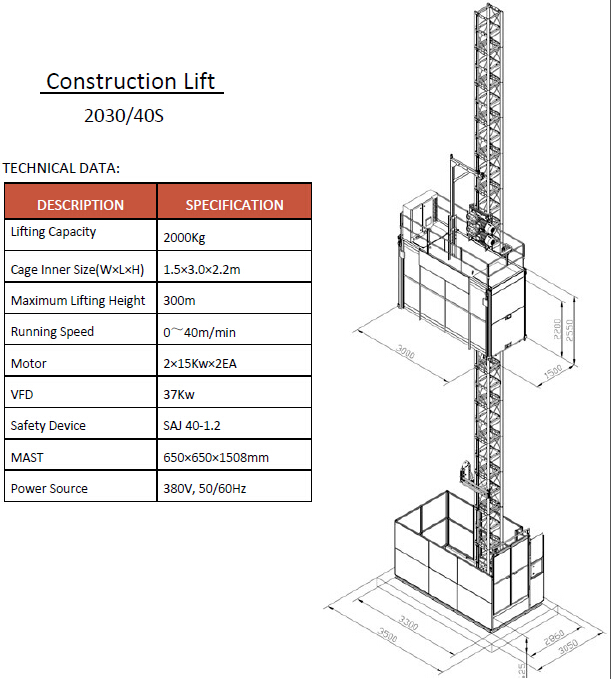

1. Main Technical Parameters of 2030/40S Construction Hoist



2. Characteristics of our construction building hoist

A: Cabins (Cages)

Main materials: High quality steel plate Q235B bended by special machine: Thickness 5mm.

Aluminum plate punching or steel plate punching (specially bending type).

B: Mast section

Main materials:

a. high quality steel plate Q235B bended by special machine: thickness 5mm.

b. welded steel tube Q345B (seamless steel tube 20# is also available): Ø76×4.5mm or Ø89×4.5mm (Thickness of 6mm or 8mm is also available)



3. product advantages of our construction hoist

A: high-quality configuration

a) There is PLC system in the construction hoist without inverter. It keeps the hoist running smoothly when starting and breaking.

b) The mast section is welded by robot, and there is rarely deformation of the mast section mode.

B. High stablity

a) the rack's raw material adopts 60# steel, and the general error within 0.3-0.4mm is more accurate than normal error.


b) the mast section stulls are change to U-shape structure refers to the Alimak Hek technology, and they can be more solid than domestic general types.


C. high security

a) When the hoist moves too fast, or overruns the limit speed that we set, the safety device will start to work  and stop the hoist.


b) The limit switch will make the hoist stop when it moves to the top and bottom of the mast sections.


c) The overland alarm apparatus.


d) the hoist still supports lighting when it stops running with the door open.




Commercial Terms

MOQ: 1set

Tradeterms: FOB (Qingdao) or as per your request

Theabroad market: MiddleEast, South Asia, Africa, Russia, etc.

Deliverytime: 10-15 days after receiving 30% advanced payment

Termsof Payment: T/T or L/C (30% advanced payment, 70% before shipment)

Package:nude in 1*40"HQ containers for basic height (50m)

Warranty:12 months


Our Service

 ----timely delivery, in time shipping notice

 ----1 year warranty of products quality and full set ofspare parts

 ----training installation, guidance of operation and maintenance

 ----engineers have rich experience, can solveall your problems

  As a professional exporter,our target is to serve worldwide clients with high-quality products, great-reliability, devoted responsibility,professional services and honorable credibility to meet customers’ requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.


Looking forward your kindly inquiry and hope to help your strong business in near future!
