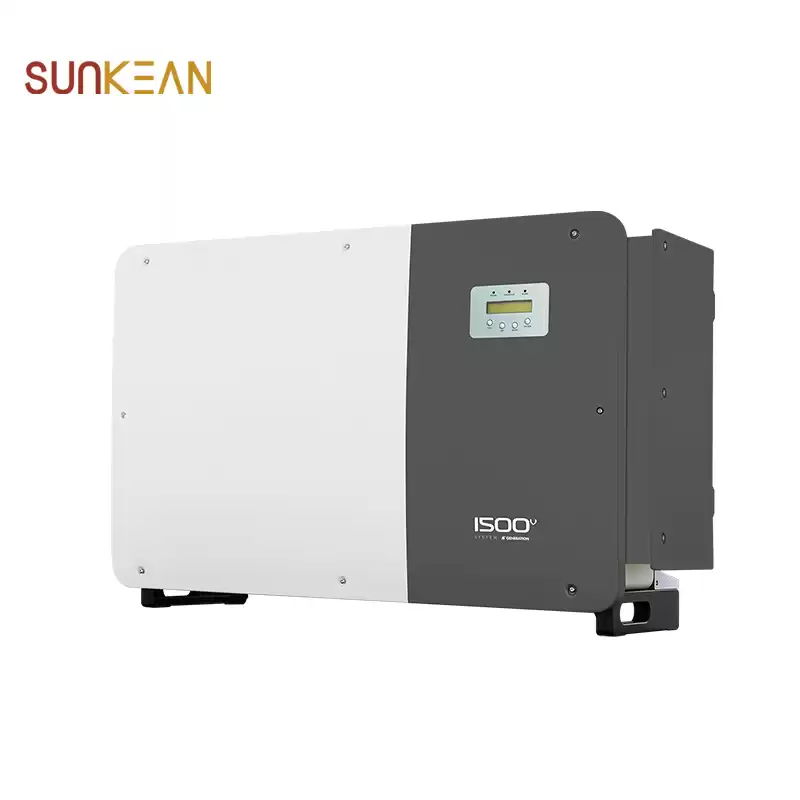

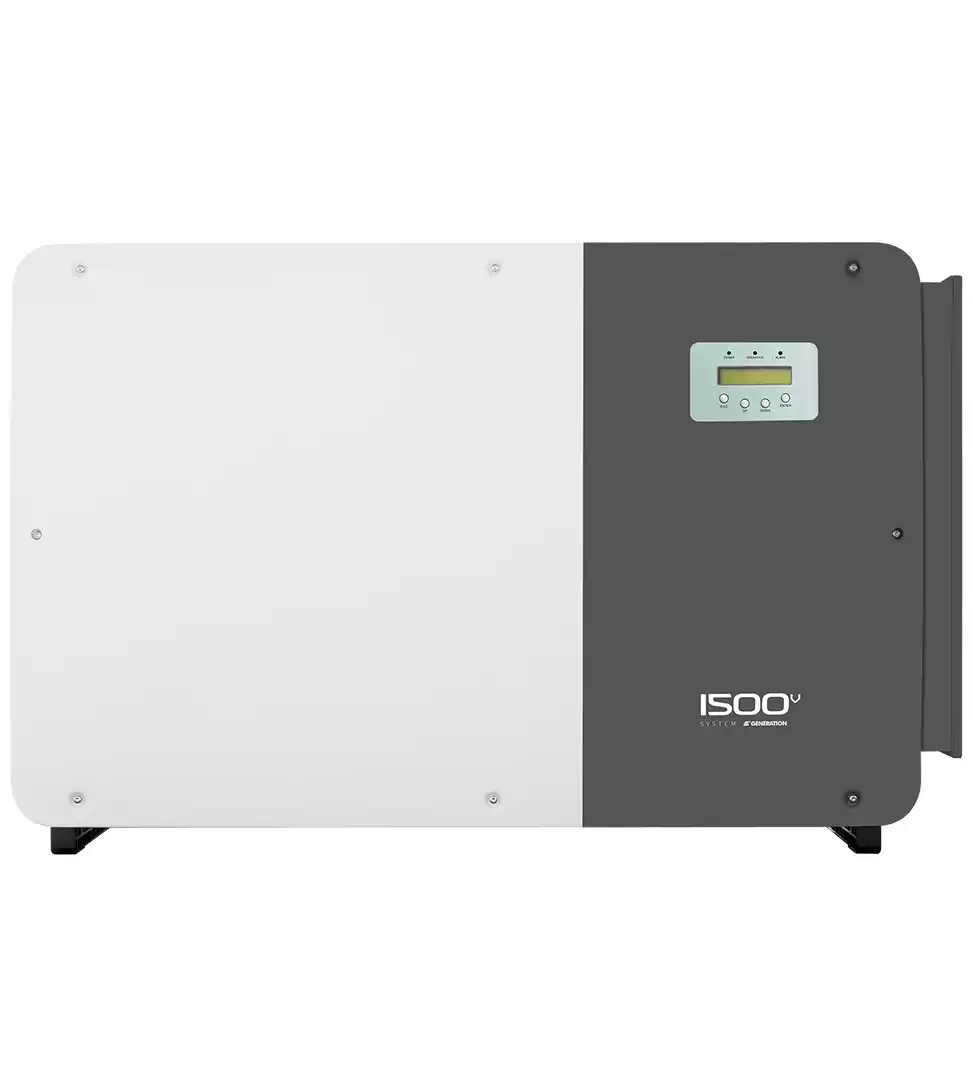

208-255K-EHV three phase Solar Inverter

Three phase Inverters convert DC power from the photovoltaic(PV) array into alternating current(AC) power that can satisfy local loads as well as feed the power distribution grid.



208-255K-EHV three phase Solar Inverter

255kW three phase series string inverter have Maximum 28 strings input, support "Y" type connection in DC side. Maximum string input current 15 A, support bifacial modules access.Supports anti-PID function to improve system eff iciency. High-precision intelligent strings monitoring reduces fault location time.


Product Information:



Datasheet
Model Name SKE-208K-EHV SKE-255K-EHV SKE-255K-EHV-5G
Input DC
Max. Input voltage 1500V
Rated voltage 1080V
Start-up voltage 600V
MPPT voltage range 580-1500V
Max. input current 9*30A 12*30A
14*26A
Max. short circuit current 9*50A 12*50A
14*40A
MPPT number/Max. input strings number 9/18 12/24 14/28
Output AC
Rated output power

208kVA@30°/ 200kVA@40°/

192kVA@50°C

255kVA@30°C/

235kVA@40°C/

220kVA@50°C


255kVA@30°C/

235kVA@40°C/

220kVA@50°C


Rated grid voltage

3/PE, 800V

Grid voltage range

640-920V

Rated grid frequency

50/60Hz

Max. output current 150.1A 184.0A 184.0A
Power Factor >0.99 (0.8 leading - 0.8 lagging)
THDi <3%
Efficiency


Max. efficiency 99.0%
EU efficiency 98.8% 98.7%
Protection


DC reverse-polarity protection Yes
Short circuit protection Yes
Output over current protection Yes
Surge protection

DC Type II / AC Type II

Grid monitoring Yes
Anti-islanding protection Yes
Temperature protection Yes

Strings monitoring

Yes

I/V Curve scanning

Yes


Night time SVG function

Yes

Anti-PID function

Yes
Integrated DC switch Yes
General Data
Dimensions (W'H'D)

1125*770*384 mm

Weight 113kg
Topology Transformerless
Seif consumption <2W (night)
Operating ambient temperature range -25~+60°C
Relative humidity 0-100%
Ingress protection IP66
Cooling concept

Intelligent redundant fan-cooling

Max. operation altitude 4000m
Grid connection standard

EN50549, G99, AS4777.2, VDE0126-1-1, IEC 61727, VDE4105, CEA 2019

Safety/EMC standard

IEC62109-1/-2,EN61000-6-2/-4

Features
DC connection MC4 connector
AC connection

OT terminal (max. 300 mm²)

Display LCD
Communication

RS485, Optional: PLC


Product Features:

*Efficient

-----9/12/14 MPPTs, max. efficiency 99%

-----200% DC/AC ratio

-----High power tracking density 60MPPT/MW

-----Compatible with bifacial modules

*Safe

-----IP66

-----Built-in PID recovery for better module performance

-----Fuse free design, safe and maintenance free

-----Globally recognised branded component for longer life

*Smart

-----Night SVG function

-----Intelligent string monitoring. Smart I-Vcurve scan

-----Remote firmware upgrade with simpleoperation

*Economic

-----Power line communication (PLC) (optional)

-----DC side supports two sinks and one access

-----Supports aluminium wire access to reduce cost

-----Reserve DC energy storage access

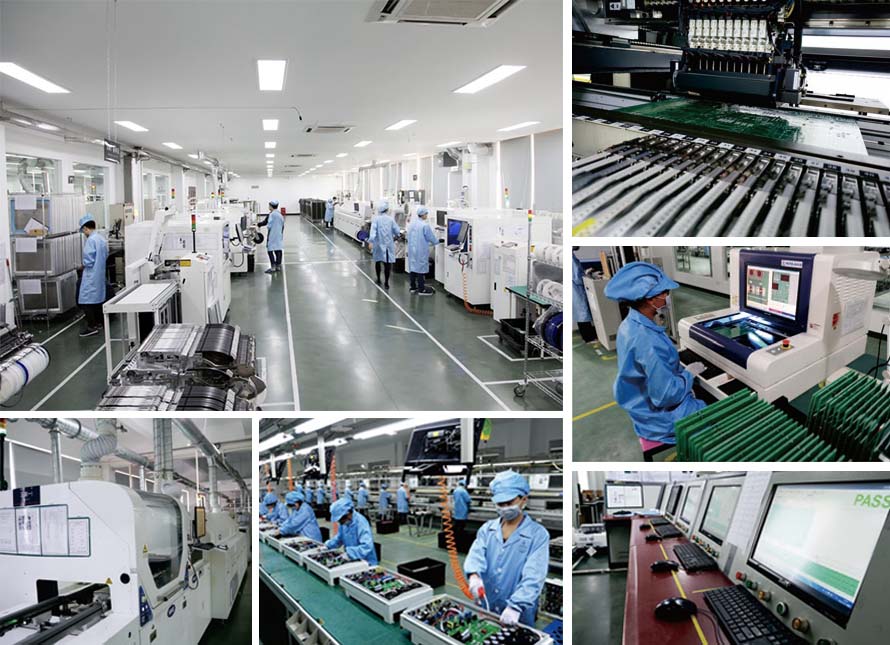

On Grid Solar Inverter production process:

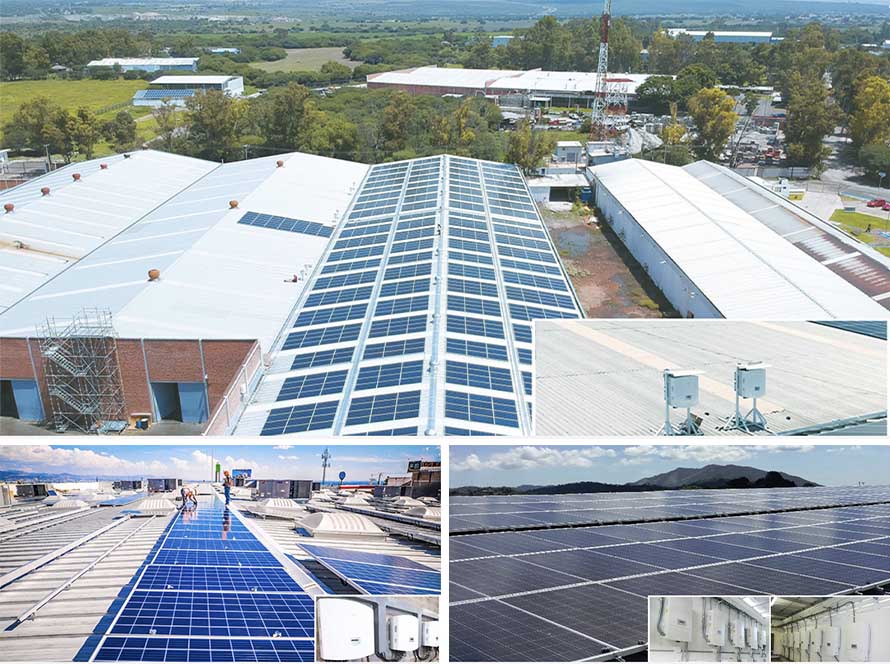

Application Scenario:
