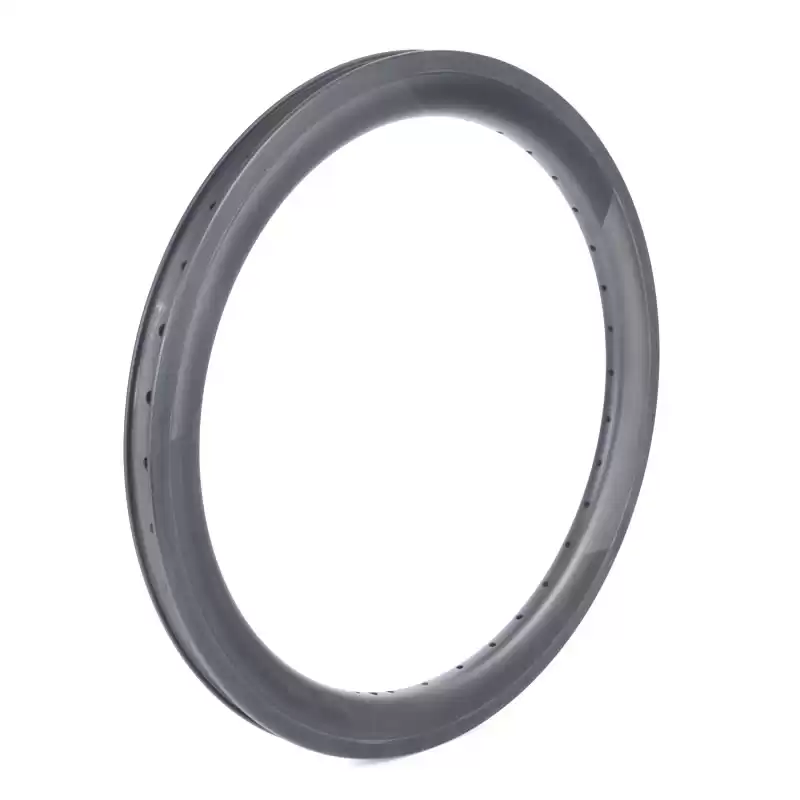

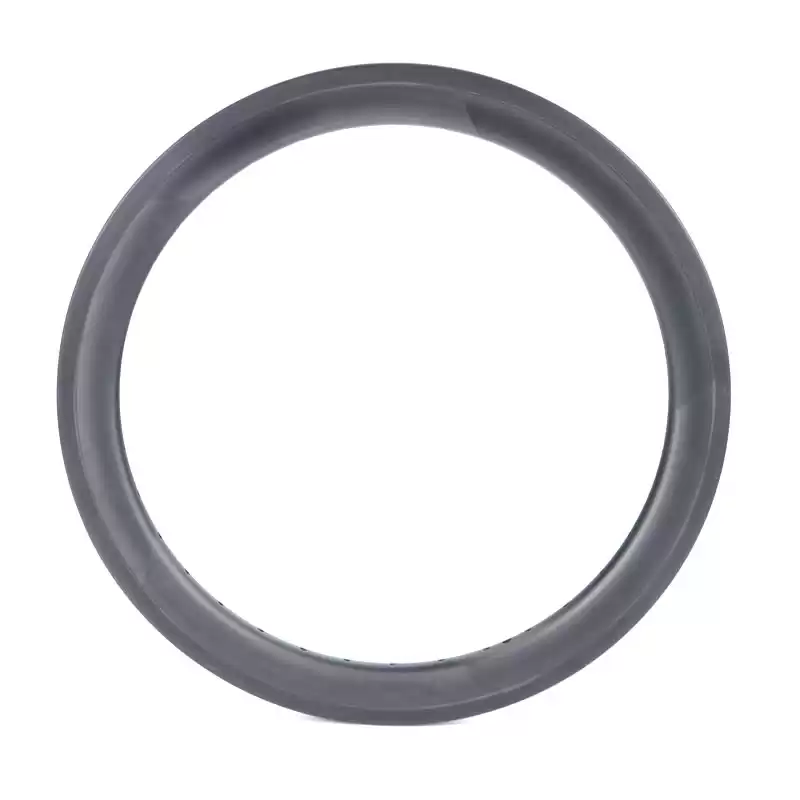

20inch 406mm BMX carbon rims clincher tubeless wheels

Type:406mm 20inch BMX bicycle clincher tubeless carbon rims

Deep:20mm/30mm/38mm/46mm

Wide:23mm/253mm/30mm

406mm 20inch Carbon Rims for BMX bike and folding bicycle

Appearance:3K/UD or customized

Made of Toray T700&T800

Lightweight 20inch clincher tubeless Rims

High quality carbon rims manufacturer




Product Model:Super light 20inch 406mm BMX bicycle carbon clincher rims

This 20inch BMX bike carbon rims made of Full carbon fiber T700,have great strength but light weight.better for folding bike and BMX bike.

20inch 406mm carbon Rims have basalt or Disc brake to choose.

Clincher and tubeless ready,thick wall desigh,for better strength and impact resistare.

406mm carbon BMX rims with 23mm/25mm/30mm wide,20mm/30mm/38mm/46mm Deep.

BMX 406mm rims made in high TG resin.

UD or 3K appearance to choose.also have matte or glossy to finish.

Wholesale carbon bicycle rims,with competitive price and fast delivery.






Features:

1.406mm 20inch BMX bicycle rims made of Full carbon fiber T700.Made in high TG resin with high performance brake surface.

2.406mm carbon BMX rims with 23mm/25mm/30mm wide,20mm/30mm/38mm/46mm Deep,20inch clincher and tubeless ready, have great strength but lightweight.406mm carbon rims is suit for BMX bicycle,folding bike and road riding.

3.20inch clincher rims 406mm, made for bead hook design,better hold tires under low tire pressure.
4.The new style 20er rims are made in one piece molding,thick wall design,for better strentgh and impact resistare.

5.20er 406mm carbon rims have basalt and Disc brake to choose.

6.We offer decal and painting service for OEM your brands.

7.We can customized Different appearance carbon rims.

8.Fast delivery,strong technical force and good service.

9.Best quality carbon wheels manufacturer.

10.5 years warranty


Specification:

Model

D38-W25-406mm

D30-W30-406mm
D46-W23-406mm
D20-W30-406mm

Size

406mm 20inch 406mm 20inch
406mm 20inch
406mm 20inch

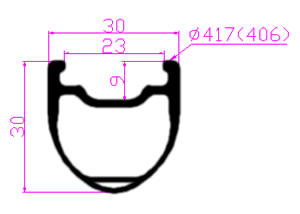

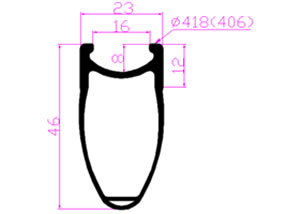

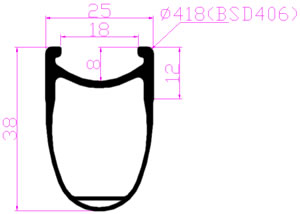

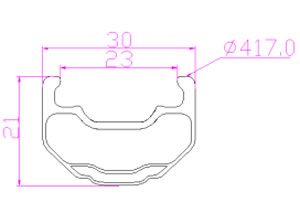

Sectional Drawing




Material

Toray T700

Toray T700
Toray T700
Toray T700

Depth

38mm

30mm 46mm 20mm

Wide

25mm

30mm 23mm 30mm

Weight

370+/-15g

345+/-15g
365+/-15g
310+/-15g

Appearance

3K/UD or Customized

3K/UD or Customized
3K/UD or Customized
3K/UD or Customized

Spokes holes

18-36#Customized

18-36#Customized
18-36#Customized
18-36#Customized

ERD

349mm

364mm 332mm 382mm

Assembly Hole Dia.

7.6mm

8mm 8mm 8mm

Spokes hole Dia

4.2mm

4.4mm 4.4mm 4.4mm

Valve hole Dia.

6.6mm

6.6mm 6.6mm 6.6mm

Flatness

<0.25mm

<0.25mm
<0.25mm
<0.25mm

Roundness

<0.5mm

<0.5mm
<0.5mm
<0.5mm

Max Spoke Tension

>300kg

>300kg
>300kg
>300kg

Ultimate Strength

>150kg

>200kg
>400kg
>400kg

Torsion Strength

>50kg

>50kg
>50kg
>50kg


Factory production manufacture

Factory carbon rim


100% Quality Inspection:

Our rims are made of 100% Full carbon fiber material to ensure the high quality of the goods. Each carbon rim by us has its unique serial ID number, which follow every step of the product. And confirm every rim to ensure the best after-sale service.

5 years warranty:

The warranty covers five years form the initial pruchase of the product.

The warranty applies to the original purchaser and the assignmnet is invalid.

The warranty requires proof of pruchase,product serial number and defect picture.

Please keep your proof of purchase for any future warranty problems.

This warranty does not cover:

1. Normal wear and tear and depreciation.

2. Any man-made damage caused by accident,misuse,etc.

3. Improper installation,maintenance or other conduct by an unauthorized technician.
