Product Name

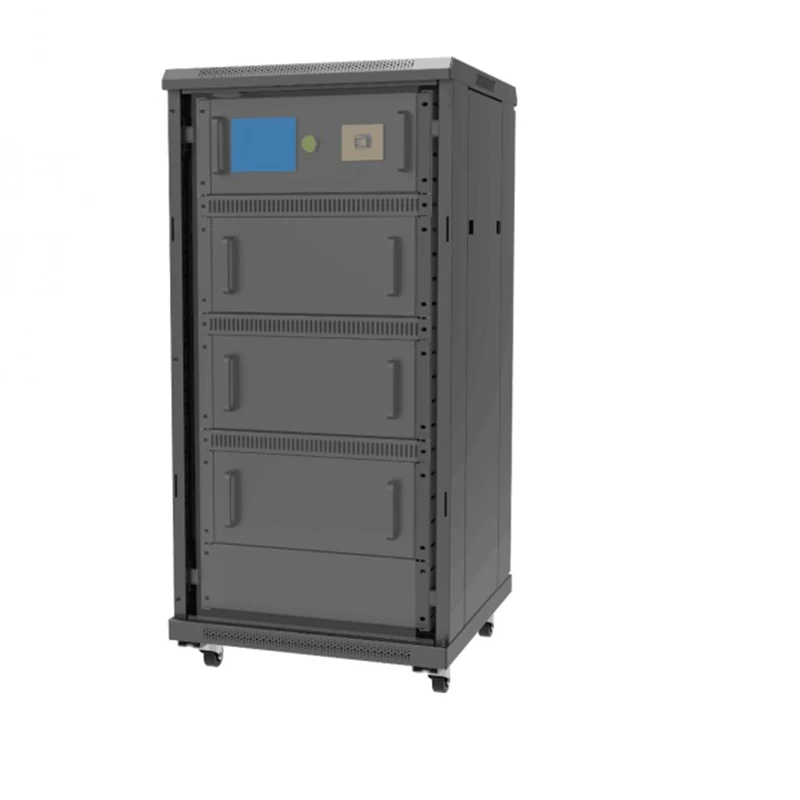

20KWh 384V 50Ah Energy Storage Battery System for Commercial Off-grid System
Highlights
-
Dramatic cost savings.
-
Longer life span up to 3000-4500 times
-
Longer warranties up to 3 years
-
Safety operations, no explode, no pollution
-
Efficient and fast charging and discharging
Technical Specifications
|
No.
|
Items
|
Specifications
|
|
1
|
Nominal Voltage
|
384V
|
|
2
|
Nominal Capacity
|
50Ah
|
|
3
|
Cell Inside
|
LiFePO4 3.2V 50Ah cell
|
|
4
|
Configuration
|
120S1P
|
|
5
|
Standard Charge Current
|
0.2C-0.5C
|
|
6
|
Max. Charge Current
|
1C
|
|
8
|
Continuous Discharge Current
|
200A
|
|
9
|
Peak Discharge Current
|
400A
|
|
10
|
Full Charged Voltage
|
438V(3.65V per cell)
|
|
11
|
Charge Cut-off Voltage
|
468V (3.9V per cell)
|
|
12
|
Discharge Cut-off Voltage
|
300V (2.5V per cell)
|
|
13
|
Net Weight
|
150kg (approx.)
|
|
14
|
Dimensions
|
Can be customized
|
|
16
|
Operating Temperature
|
Charging: 0°C ~ 45°C
Discharging: -20°C ~ 55°C
|
|
17
|
Storage Temperature
|
(Recommended to store 20 ± 5°C for long term storage)
|
|
18
|
Cycle Life
|
3500 times (80% of initial capacity at 0.2C rate, IEC Standard)
|
How to maintain a forklift battery pack?
Proper maintenance can extend forklift battery life up to ten years. Prolong the life of your forklift battery by following these easy care and maintain way when charging, operating and handling forklift batteries.
-
Remember to recharge the battery when it reaches 20-30%
-
Don’t deep-discharge because it will cause overheat and damage your lift truck.
-
Fully charge is advisable, partially charging a battery also use up a charge from its “bank.”
-
Using electronic battery tester to know the efficiency of your battery
-
Always check the water level because water protects the active material that lives on plates inside the battery
Switching traditional lead acid into lithium forklift batteries is saving your money. give us a shout or email at service@osnpower.com. We will provide you with qualified service technicians maintain and service

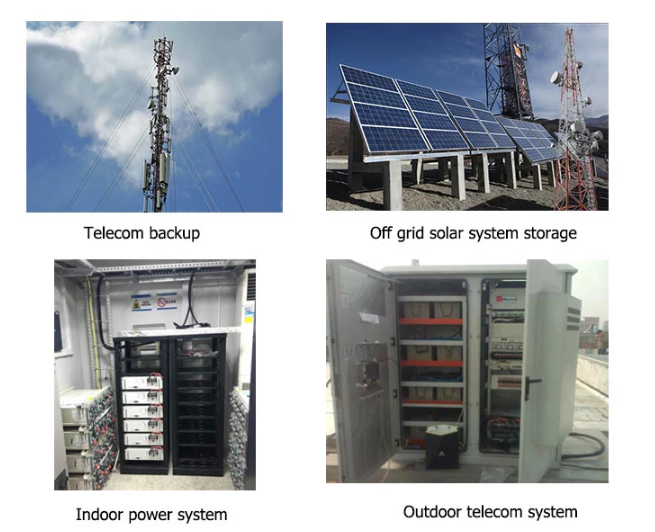

Application
