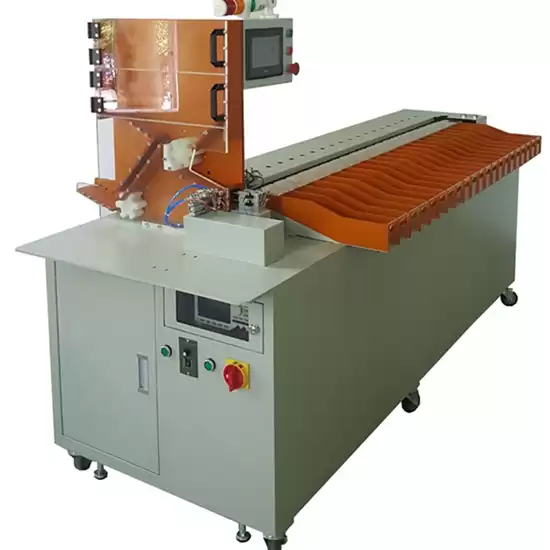

22 Channel 18650 26650 21700 32650 Cylindrical Battery Sorting Machine for High Productivity Battery Pack Assembly



Feature

1. Compact and reasonable equipment structure, beautiful appearance,small volume.

2. Simple equipment operation,workerscan easily learning.

3. The equipment is controlled by PLC and PC.The PLC is responsible for battery feeding, battery handling and battery sorting. The PC is responsible for battery testing data collection, voltage internal resistance rating, high work effienciency, saving manpower, good product perfermance.

4. Equipment materials are made of high quallity thick cold - rolled sheet metal, aluminum frame.


Specification

Channel No.

22

Production Efficiency

6000pcs/hour

Scope of Adaptation

Automated sorting voltage for 18650 or other cylindrical cores. Internal resistance can also be sorted separately or separately.

Automatic Online Interface

It can be customized to connect the outlet of the automatic surface cushion machine in the machine hopper to realize the automatic connection of the electric cores and save the labor cost.

External Connection

Customizable automatic connection automatic surface mattress machine (electric core poured into automatic surface mattress machine, pasted surface mattress automatically flowed into automatic sorter, sorting, saving manpower)

Equipment Power

1.6KW, 220V/110V AC input, 50Hz

Air Pressure

0.4-0.8Mpa

Voltage Setting

0.000V-6.000V

Internal Resistance Setting

000.0 milliohms - 999.9 milliohms

Standard Tester

HK3561 High Speed Tester

Voltage Accuracy :±0.1% rdg

Internal Resistance Accuracy: +/- 0.5% rdg



Cylindrical Battery Sorter


Battery Pack Assembly Equipment
