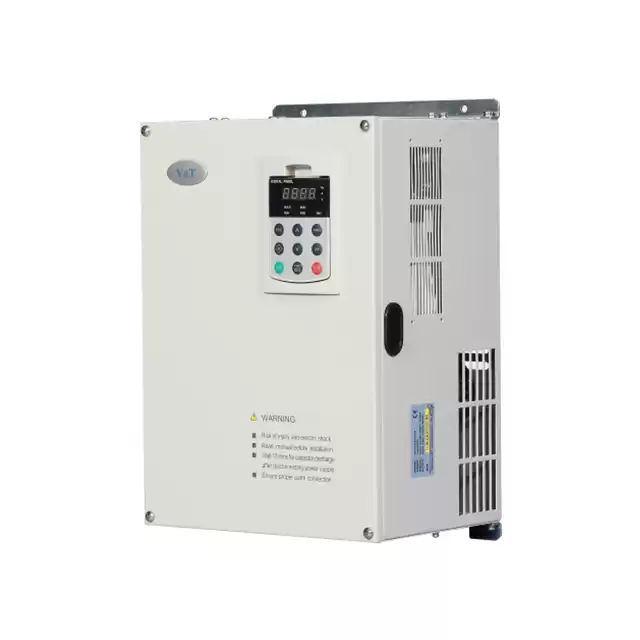

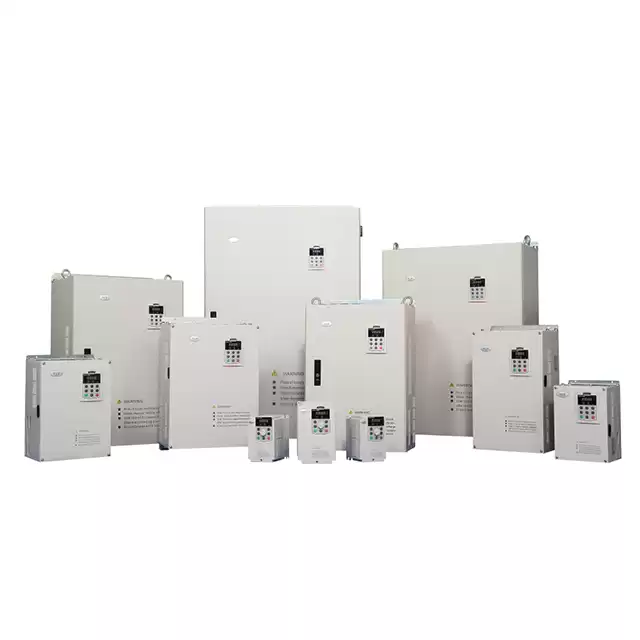

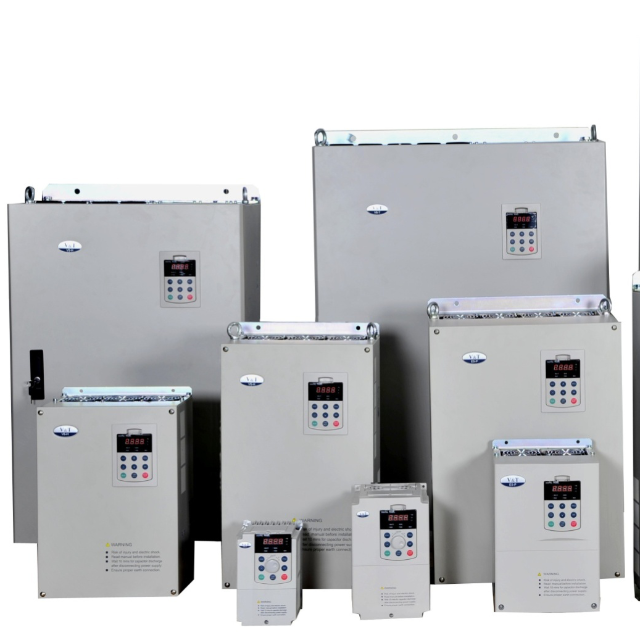

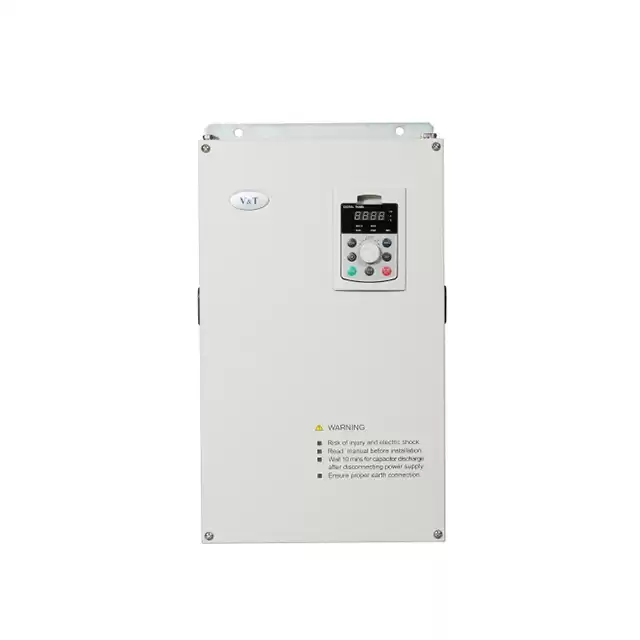

220V 22kW V5 Series High Performance Universal Inverter

As the VFD manufacturer in china, 220V V5-H series is a high-performance vector control variable speed drive. The product adopts open-loop vector control technology which is completely synchronized with the most advanced technology in the world. It has the excellent control performance with the international high-end AC drive. At the same time, It is combined with the use characteristics of China, and the reliability and environmental adaptability of the products are further strengthened, and the customized and professional design greatly meet the needs of various transmission applications.


  • PackageStandard Export Package Carton/Wood
  • TransportationExpress · Sea freight · Land freight · Air freight
  • Warranty18 Months
  • Delivery Time5-7 working days for standard series; 7-14 working days for customized AC drives
  • CustomizedYES
  • Term of paymentT/T, L/C, D/P
  • Sample freight payerBuyer
  • Sample provideYES
  • AvailabilityOEM/ODM, Minmum Order Request
  • Place of OriginChina
  • Shipping PortShenzhen
  • CertificationCE, EAC, ISO9001, OHSAS18001, TS16949, SG

Product Overview

Item Description
Product Name Frequency Inverter/ AC Drive
Model Number V5-H-2TxxG/xxL
Power Range 0.4kW-132kW
Rated Input Voltage 3 phase 200V/240V
Rated Output Voltage 3 phase 0 to rated input voltage
Input Frequency 50Hz/60Hz
Adaptable Motor Asynchronous Motor
Control Mode V/F Control, Vector Control, Sensorless Vector Control, Vector Torque Control
Communication Modbus 485 RTU
IP Class Standard IP20
Overload Capacity 150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)


Feature

■ Open loop vector control technology with high performance.

■ Inverter operates stably without tripping under any acceleration and deceleration time and any impact load.

■ Independent input and output port of high speed pulse, which can realize high speed pulse cascade function.

■ Accurate speed identification and rotor flux orientation, the torque can also respond quickly and operate stably when a load of 0.25hz breaks.

■ High-precision current detection and protection, high-precision hall to detect output current, realization of fast real-time control and protection of software and hardware, and assurance of performance and reliability of the whole machine.


Model Explanation


Product Catalogue

V5−H−2T□□□G Three-phase 200V Constant torque/heavy-duty application


Technical Specifications

Control characteristics

Control mode

Vector control 1

Vector control 2 (Without encoder)

Starting torque

0.50Hz  180%

0.25Hz  180%

Range of speed regulation

1:100

1:200

Precision of steady speed

± 0.5%

± 0.2%

Product functions

Key functions

Under-voltage regulationswitchover of run command source(operation panel, terminal and communication), speed tracing function, torque limit, multi− step frequency reference(up to 23 step frequency), motor data identification, S curve acceleration and deceleration, slip compensation, PID regulation, droop control, current limit, switch-over between torque control and speed controlmanual torque boost and auto torque boost, programmable digital inputs and programmable digital outputs

Frequency reference mode

Parameter setting, operation panel UP/DNterminal, terminal UP/DN, communication, analog ( AI1/AI2/AI3), pulse DI , etc.

Frequency range

0.00 ~ 300.00Hz

Note:

In the control mode of vector control 1, frequency range from 0.0Hz to 3000.0Hz can be customized according to the customer demand

Start frequency

0.00 60.00Hz

Acceleration time and deceleration time

0.1 36000s

Dynamic braking

Braking unit action voltage: 650 ~ 750V; operating time: 100.0s

The braking unit can be built-in for V5−H−4T75G and below equipment

DC braking

DC braking start frequency: 0.00 ~ 300.00Hz

DC braking current: constant torque: 0.0 120.0%, variable torque: 0.0 90.0%

DC braking time: 0.0 ~ 30.0s; DC braking function does not required waiting time to start to realize quick braking

Magnetic flux braking

Enabled or disabled during deceleration are optionalthe default setting is enabled

Unique functions

Multi-function M key

The unique multi-function key can be set to frequently used operations: such as JOG, emergency stopswitchover of run command sourceswitchover of parameters display mode, etc.

Multiple parameters display modes

Basic parameters display mode, fast parameters display modenon−factory setting parameters display mode, last changed 10 parameters display mode

Parameters copy

The standard operation panel can realize the parameters upload, download and display the copy progress. Users can set to forbid overwriting the uploaded parameters

Displayed and hidden parameters group

The customer can select to display or hide the parametergroup by themselves

Dual 485 communication ports

Dual 485 communication ports support Modbus protocol (RTU). The maximum distance is 500 meters

Operation panel

Key type or shuttle type operation panel are optional

Protection level: IP20 as standard, IP54 as option

Common DC bus

All series product support common DC bus

Independent duct

All series product adopts independent duct design and supports the installation of heat-sink outside the cabinet

Universal expansion interface

Universal expansion board equipped with CPU for supporting customers secondary development: physical interface SPI bus, software protocol Modbus

Expansion card

Injection molding machine interface card, PG feedback card, air compressor control cardcommunication adapter card, three phase power supply monitoring card, three phase-sequence detection card, external power rectifying card

Power-On-Self-Test

(POST)

Realizing the POST of internal and peripheral circuits, including motor grounded, abnormal +10V power supply output, analog input and disconnection, etc.

Protection function

Power supply under-voltage, over-current protection, over-voltage protection, interference protection, abnormal comparison levelmotor data identification failure, module(IPM) protection, heat-sink over temperature protection, inverter overload protection, motor overload protection, peripheral protection, abnormal current detection, output short circuit to ground , interruption of power supply when in running status, abnormal input power, output phase loss, abnormal EEPROM protection, abnormal pre-charging contactor detection, temperature sampling disconnection, encoder disconnection, abnormal +10V power supply, abnormal analog input, motor over temperature protection(PTC), abnormal communication, abnormal software version compatibility, abnormal copying, abnormal expansion card connection, terminal mutual exclusion detection, hardware overload protection

Efficiency

At rated power: 7.5kW and below power class ≥93%

                45kW and below power class ≥95%

                55kW and above power class ≥98%

Environment

Operating site

The product should be mounted vertically in the electric control cabinet with good ventilation. Horizontal or other installation modes are not allowed. The cooling medium is the air. The product should be installed in the environment without dust, corrosive gas, combustible gas, oil mist, steam, drip and free from direct sunlight

Ambient temperature

−10 to +40ºC, the product must be de-rated rated output current for the ambient temperature between 40ºC to 50ºC, the rated output current must be de-rated for 1% per 1ºC temperature rise

Humidity

to 95%, no condensing

Altitude

to 2000m, the product must be de-rated rated output current for the altitude above 1000 meters, the rated output current must be de-rated for 1% per 100 meters rise

Vibration

3.5m/s2,2 to 9Hz; 10 m/s2,9 to 200Hz; 15 m/s2,200 to 500Hz

Storage temperature

−40 to +70ºC


Terminal Wiring



Products Installation



V5−H−2T3.7GX and blow power class




V5−H−2T5.5GX and above power class


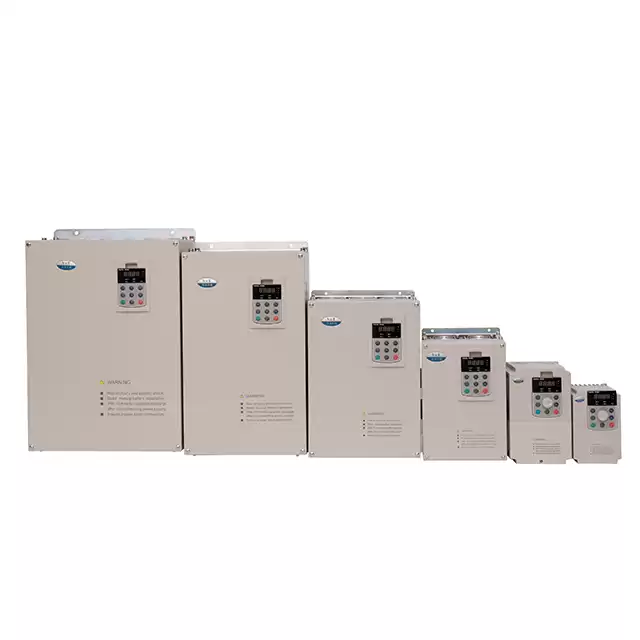

Product Appearance, Installation Dimensions, Approximate Weight

Voltage Model Appearance and Sizemm Weight kg
W H D W1 H1 D1 T1 hole d
220V V5−H−2T0.4G 118 190 155 105 173 40.8 3 5.5 1.5
V5−H−2T0.75G 175 60.5 4 2.2
V5−H−2T1.5G 155 40.8 3 1.5
V5−H−2T2.2G 175 60.5 4 2.2
V5−H−2T3.7GX 155 249 185 136 232 69 8 5.5 3
V5−H−2T5.5GX 210 337 200 150 324 107.5 2.5 7 8.5
V5−H−2T7.5GX
V5−H−2T11GX
V5−H−2T15GX 285 440 220 200 425 107.5 2.5 7 17
V5−H−2T18.5GX
V5−H−2T22GX 315 575 227 220 553 123.5 2.5 10 25
V5−H−2T30GX 400 615 265 270 590 123.5 3 10 35
V5−H−2T37GX
V5−H−2T45GX
V5−H−2T55GX 465 745 325 343 715 156 3 12 55
V5−H−2T75GX
V5−H−2T90GX 540 890 385 370 855 205.5 4 14 85
V5−H−2T110GX
V5−H−2T132GX 700 1010 385 520 977 210 4 14 125

Applications













Representative Industry

The technology of variable speed control power overcomes the small range and poor speed adjustment performance. The high performance universal 200V Frequency Drive of Shenzhen V&T Technologies Co.,Ltd. is suitable for Fan, Pump, Printing Packaging, Petrochemical, Textile, Cable Machinery, Machine Equipment, Food Packaging, Electric Vehicles, Washing Equipment, Plastic Machinery, Metal Products Equipment, Centrifuges and the applications of required open-loop vector.
