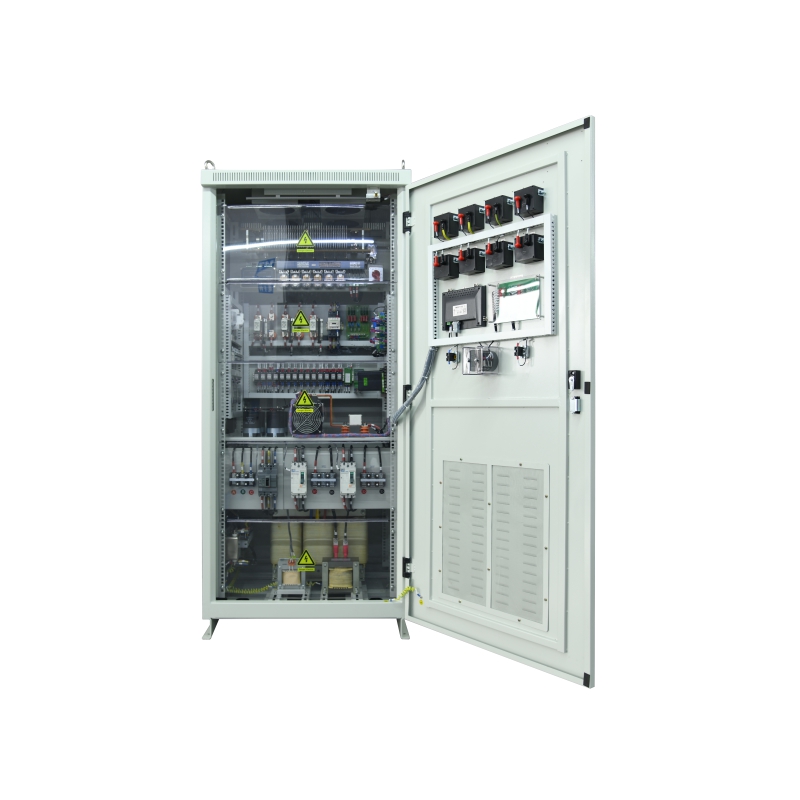

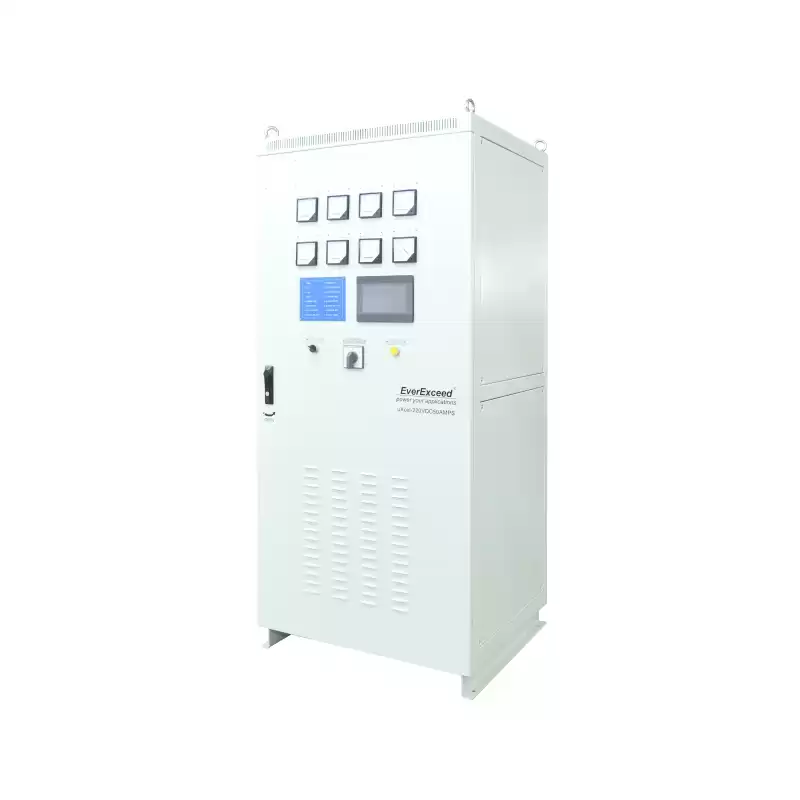

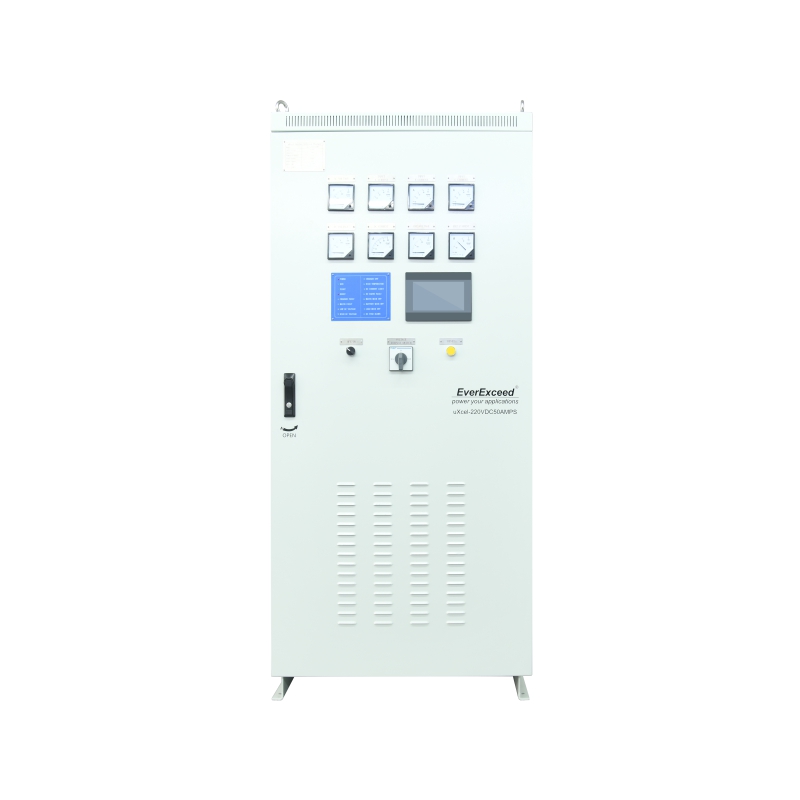

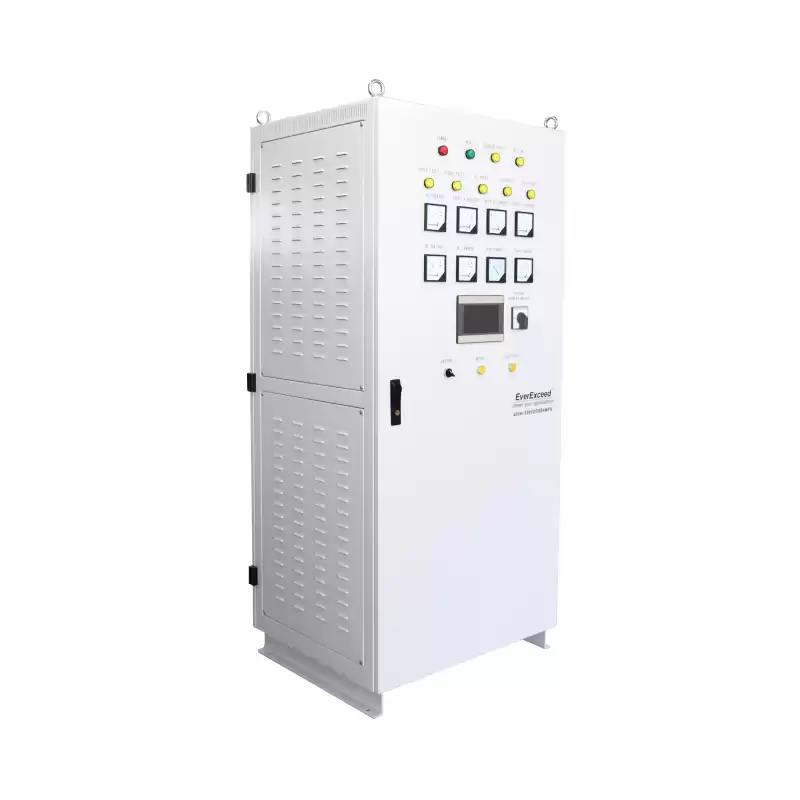

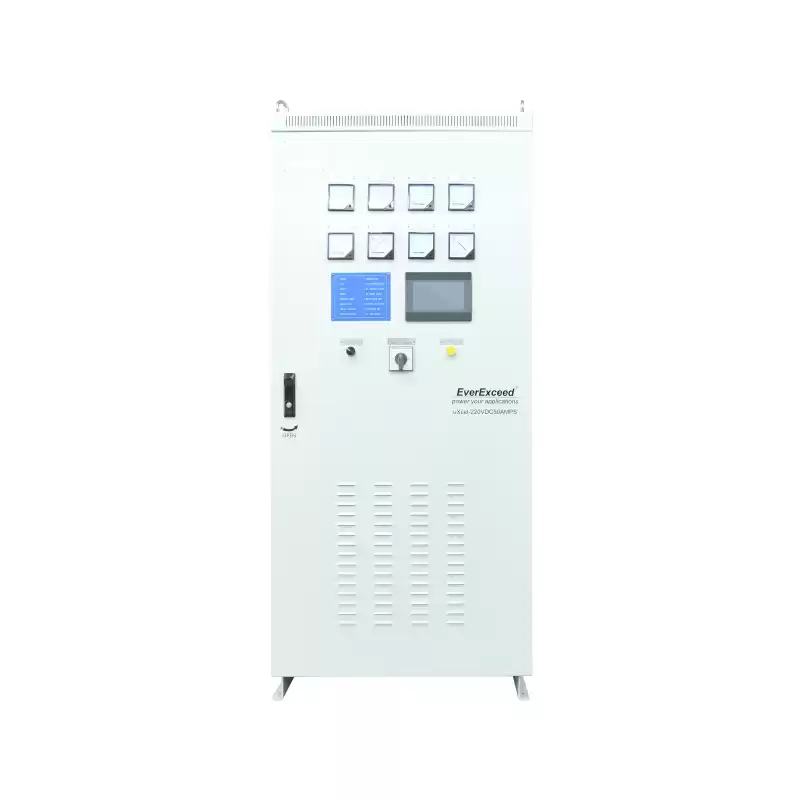

220V 50Ah High Frequency Rectifier / Thyristor Charger/ DC UPS

The EverExceed uXcel range industrial battery charger is the flagship charger of EverExceed Industrial Power solutions. It integrates proven design topology with the latest advanced digital control technology to control the thyristor bridge rectifier and provides the most reliable and trouble-free performance in any electrical and industrial environments.



Technical Features:


  • Versatile constant voltage and constant current charging modes.
  • Enhanced Robustness: Mechanical design to withstand vertical and horizontal acceleration stress up to 0.5g as standard.
  • Leading Technology - Phase-controlled Thyristor technology.
  • The embedded micro-computer controller processes signals 10 time faster than standard analog methods.
  • Flexible maintenance and Reduced MTTR:  The design makes it easy for front-access to all vital modules of the charger.
  • Long design life up to 20+ years:  system design life up to 20+ years in continuous operation under the condition of appropriate maintenance.
  • Isolation transformer.
  • Multilingual digital graphic display with embedded event log.
  • Full compatibility with lithium battery, lead-acid and nickel- cadmium batteries, sealed or vented.
  • Large LCD display: User-friendly operation with large LCD display, touch screen optional with the choices of 8 languages made to order.
  • Smart Communication and Remote Monitoring: Through isolated RS232, RS485, Ethernet. Full data logging.


Applications for DC Power Solution:


The EverExceed uXcel Rectifier-Charger range suits all DC applications requiring a large battery back-up:

  • Power transmission and distribution;
  • Continuous process industries;
  • Oil and Gas and petrochemical industries;
  • Transportation (Rail, metro,tramway).
