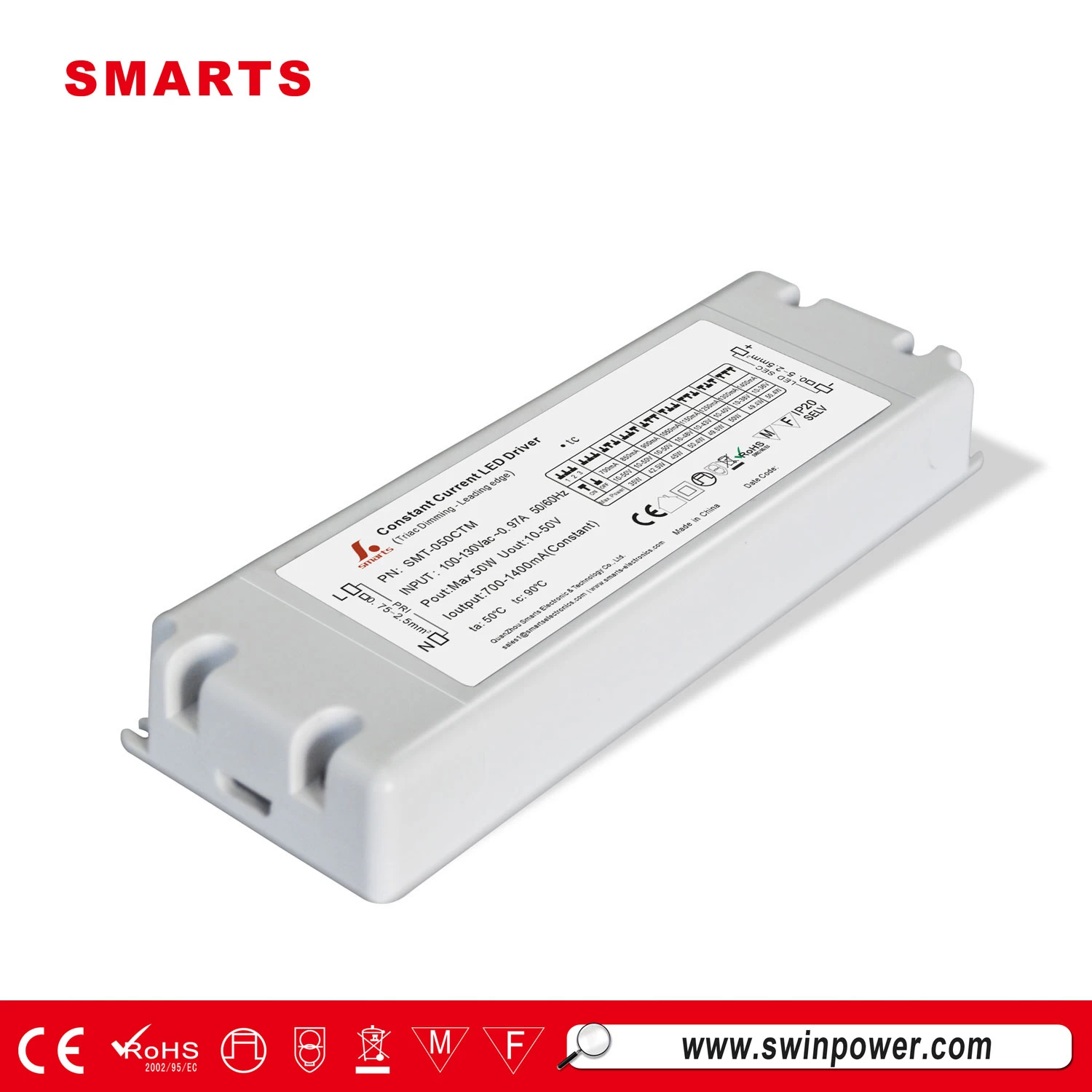

220v 50w 700ma Dimmable Constant Current LED Driver Transformer Manufacturers
SMT-050CMT is a 50w led driver with multi-stage constant current output; allowing a single unit to be used for applications with potential for multiple current levels, such as project style lighting designs. The current levels, 700mA, 850mA, 900mA, 1050mA, 1150mA & 1250mA,1300mA,1400mA, are easily switched by adjusting the built-in DIP switch. and was designed to work with leading edge TRIAC dimmers, such as Lutron, C-BUS, Clipsal etc..
Do all of these units have protection from thermal overload (excessive heat), voltage overload, short circuit, and power surge?
Answers: Yes, all of those units have the protection from thermal overload (excessive heat), voltage overload, short circuit, and power surge.
|
Model
|
SMT-050CTM
|
|
Output
|
Rated current
|
1400mA
|
1300mA
|
1250mA
|
1150mA
|
1050mA
|
900mA
|
850mA
|
700mA
|
|
Current Tolerance
|
±5%
|
|
DC Voltage
|
10-36V
|
10-38V
|
10-40V
|
10-43V
|
10-48V
|
10-50V
|
10-50V
|
10-50V
|
|
Rated power
|
50.4W
|
49.4W
|
50W
|
49.45W
|
50.4W
|
45W
|
42.5W
|
35W
|
|
Input
|
Rated Input Voltage
|
170-265VAC
|
|
Rated Frequency:
|
47-63HZ
|
|
Power Factor
|
PF≥0.65/170VAC PF≥0.65/230VAC PF≥0.65/240VAC(Full loading)
|
|
Full Load Efficiency(Typ.)
|
81%
|
81%
|
81%
|
81%
|
81%
|
82%
|
82%
|
82%
|
|
AC Current(Max.)
|
0.96A
|
0.94A
|
0.95A
|
0.94A
|
0.96A
|
0.85A
|
0.80A
|
0.66A
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed
|
|
Output No-Load Voltage
|
52-60V
|
|
Over Load
|
≤120%
|
|
Protection Class:
|
II
|
|
Environ-
ment
|
Working TEMP.
|
-40-+60℃
|
|
Working Humidity
|
20-95%RH,non-condensing
|
|
Storage TEM. Humidity
|
-40-+80℃,10-95%RH
|
|
TEMP. coefficient
|
±0.03%/℃(0-50℃)
|
|
Vibration
|
10-00Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
|
|
Safety & EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1500KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
EN55015, EN61000-3-2,3 (≧50% load)
|
|
EMC IMMUNITY
|
FCC Part 15 B
|
|
Others
|
Weight
|
0.32Kg
|
|
Size
|
178*61*24mm(L*W*H)
|
|
packing
|
outside carton: 290*215*240mm 20PCS/CTN G.W: 7.5KG/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set us tolerance, line regulation and load regulation .
|

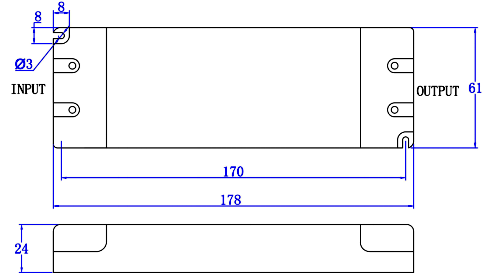

50W triac dimmable LED driver Mechanical Specification:
Ø Input with Live Wire AC (L), Neutral Wire AC(N)
Ø Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED Lamps.
Ø Suggested wire diameter:Input 18-14AWG; Output: 20-14AWG
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged

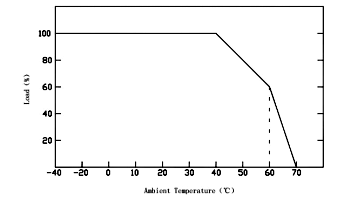

Derating Curve for led driver 700ma:
Triac Dimmable LED Driver Connection Diagrams
