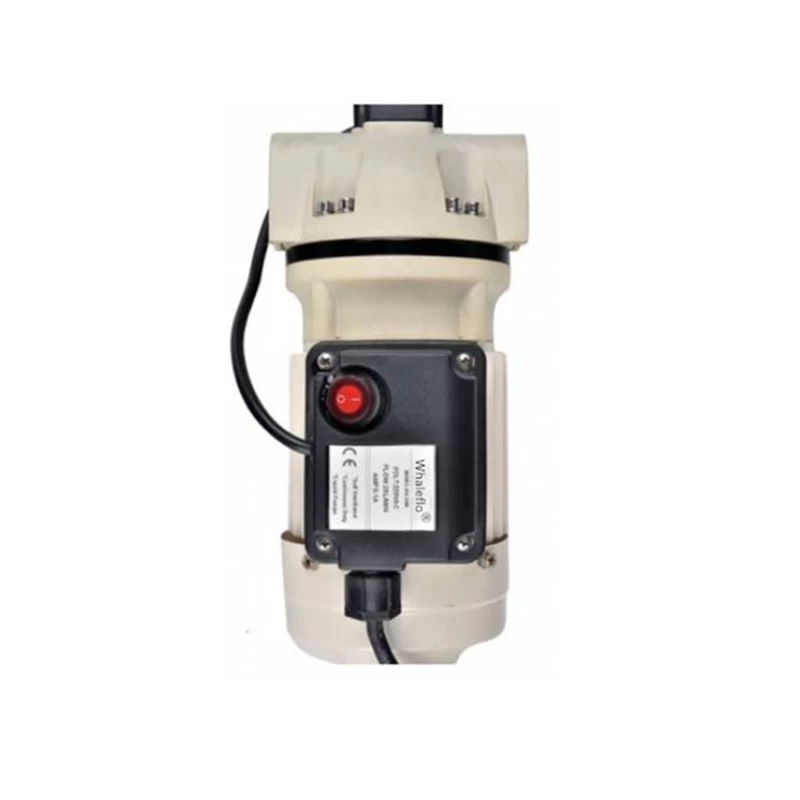

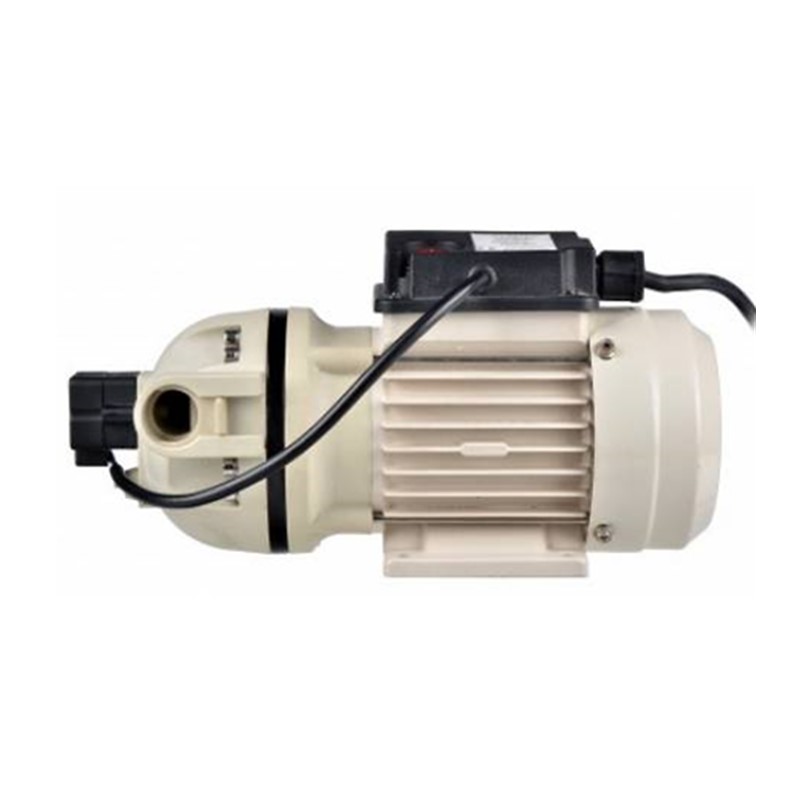

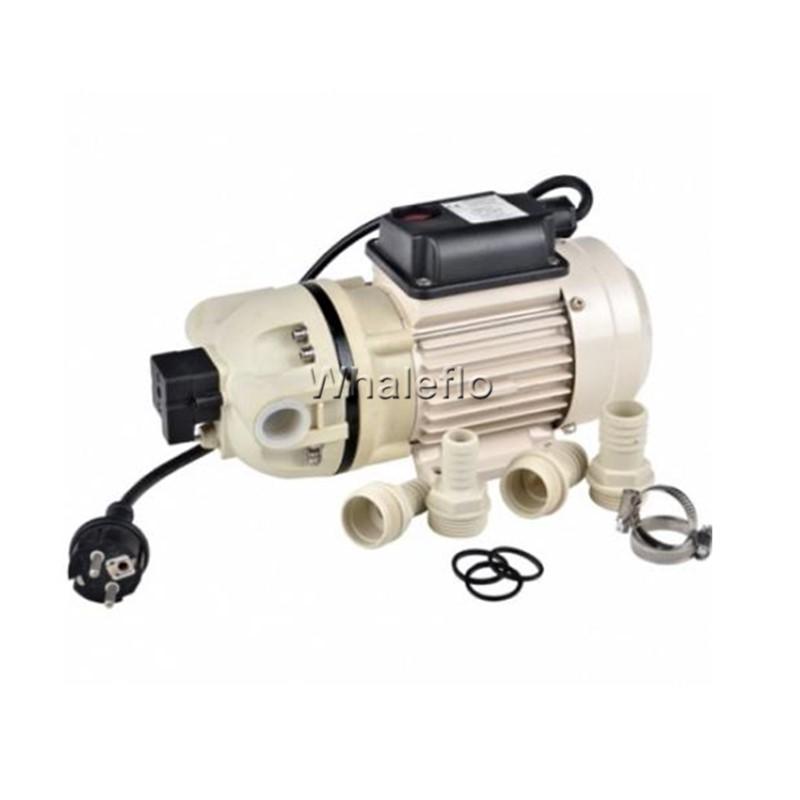

220V AC Self-priming AUS32 25Liter/min Adblue Transfer Diaphragm Pump

220v AC Pump for Transferring Adblue DEF From IBC to Vehicle



220V AC Self-priming AUS32 25Liter/min Adblue Transfer Diaphragm Pumpwhaleflo ac adblue transfer pump

Whaleflo Diaphram Adblue pumps and accessories

 Suitable for use other liquids from the urea manufacturing process. They are diaphragm pumps with a by-pass Which is designed to dispense products called Ad Blue, AUS32 or water, and also widely used in chemical equipment, agriculture (lawn and garden), carpet cleaning, floor/ground cleaning, and water treatment equipment.

Suitable for IBC transmission systems, permanent magnet pumps work continuously.

we offer 12v/24v/110v/230v adblue pump.

Specification

Model Number: HV-25A
Body Materials: Aluminum
Voltage: AC 220V
Current: 1.0A
Pressure off: 60~80PSI
Frequency: 50/60Hz
Flow(Liters/Min):17- 25L(4.5-6.6GPM)
Power: Electric
Pressure Switch: Build in
Speed: 2700rpm
Liquid of Transfer: AdBlue, AUS 32, Water etc.

IP55 Protection, CE

Features&Highlights

Whaleflo Diaphragm Adblue Pump material: aluminum alloy, durable, corrosion resistant, high quality
Permanent magnets and continuous load: maintain a good motor to maintain a stable temperature of the 2m wire plug of the pump body

Whaleflo Self-priming water pump: can be located above the water tank and dry in a short time (up to 20 minutes) without damage

Easy to operate: on/off switch, built-in pressure switch for automatic start or stop when the faucet is opened and closed

Application: Suitable for applications where liquids are transferred from one location to another, such as AdBlue, AUS32 or water etc, spraying, recycling, irrigation and distribution

Note:They must not pump gasoline, chemicals, high viscosity liquids, solvents, etc.

Item Code
Volt Flow Rate(L/min) Pressure (PSI) Amps(A) Speed(rpm)
HV-25A 12V DC 17-25 60-80 10.0 2700
HV-25B 24V DC 17-25 60-80 6.0 2700
HV-25S 115V AC 17-25 60-80 1.5 2700
HV-25M 230V AC 17-25 60-80 1.0 2700
