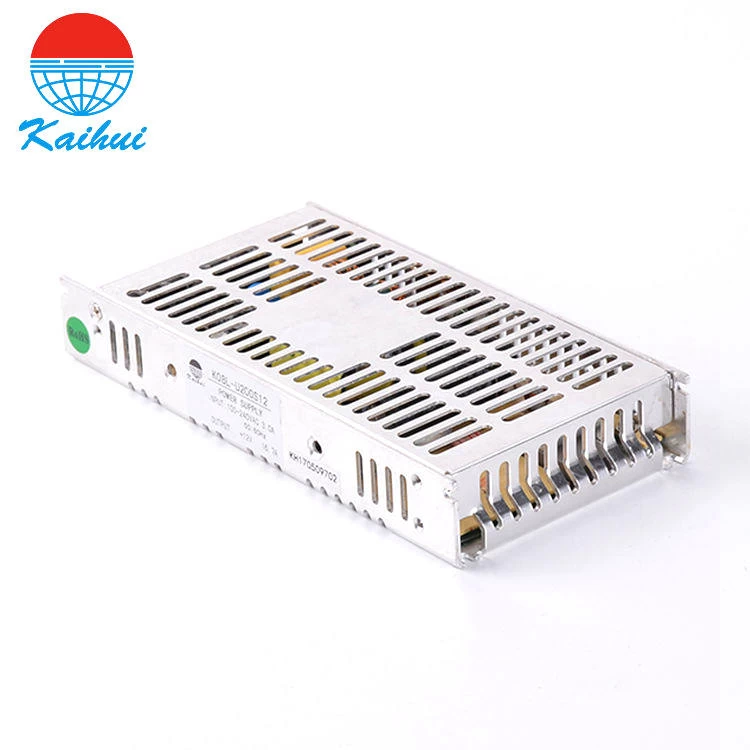

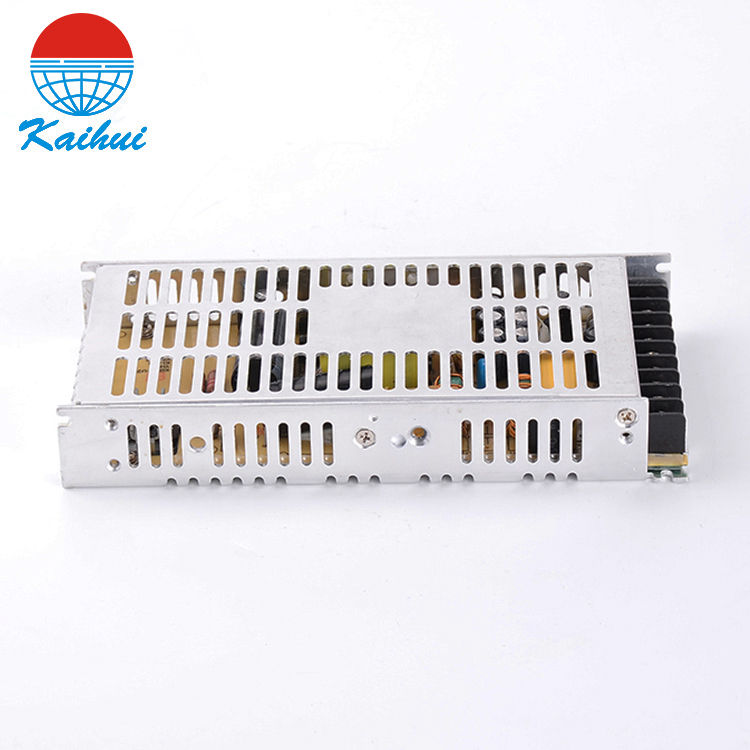

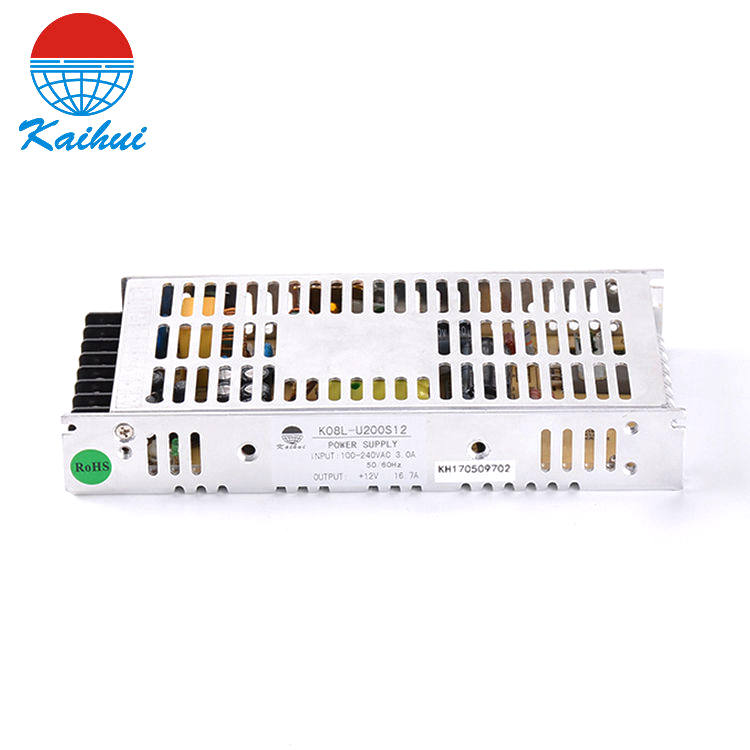

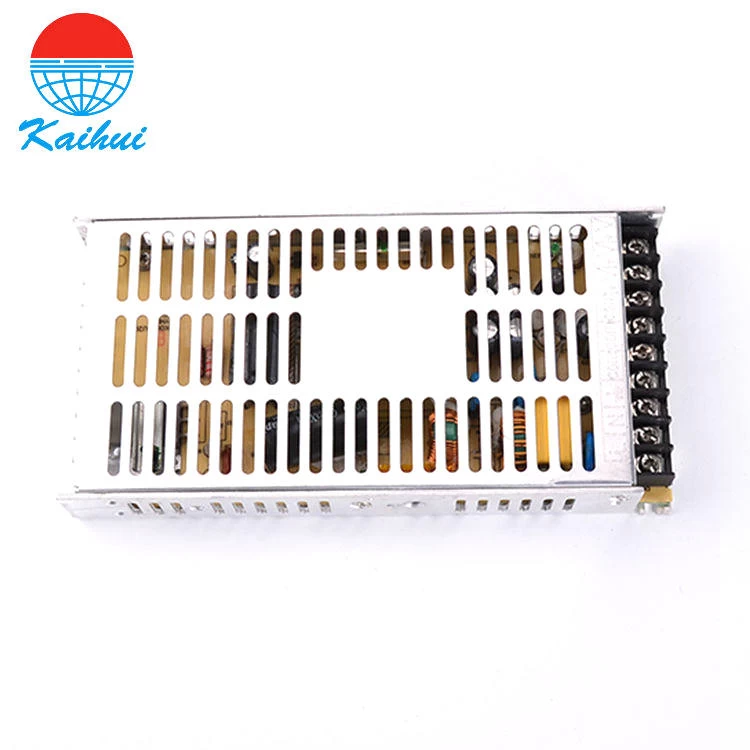

KAIHUI CE certificated 12v 24v 36v 48v 60v Ultra-thin single output power supply smps for industry
Description:
K08L-U200S series 200W 12Vdc 16.7A switching power supply has high efficiency, wide range of AC input voltage and 12v 24v 36v 48v 60v output voltage adjustable with 2 years warranty, it can used in industrial automation products.
Features:
1, 200w contains filter, low output noise;
2, DC 12V 200w power supply wide range of input voltage;
3, 12v 200w power supply short circuit and overload protection.
|
Parameter
|
|
Item NO
|
K08L-U200S12
|
K08L-U2000S24
|
K08L-U200S48
|
K07L-U120S48
|
K08L-U200S60
|
|
Output
|
DC Output Voltage
|
+12V
|
+24V
|
+36V
|
+48V
|
+60V
|
|
Output Rated Current
|
16.7A
|
8.3A
|
5.6A
|
4.2A
|
3.3A
|
|
Current Range
|
0-16.7A
|
0-8.3A
|
0-5.6A
|
0-4.2A
|
0-3.3A
|
|
Rated Power
|
200.4W
|
199.2W
|
201.6W
|
201.6W
|
198W
|
|
Ripple & Niose
|
150mVp-p
|
240mVp-p
|
360mVp-p
|
480mVp-p
|
600mVp-p
|
|
DC Adjustable range
|
±10%
|
±10%
|
±10%
|
±10%
|
±10%
|
|
Voltage Tolerance
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
500mS,50mS,20mS
|
|
Input
|
Voltage Range
|
100V~240V AC
|
|
AC Current
|
3A@115Vac, 1.5A@230Vac
|
|
Input Frequency
|
50-60Hz
|
|
Efficiency
|
86% @230Vac
|
87% @230Vac
|
88% @230Vac
|
88% @230Vac
|
88% @230Vac
|
|
Power Factor
|
-------
|
|
Inrush Current
|
Cold Start
15A@115Vac ,30A@230Vac
|
|
Leakage Current
|
<0.5mA@240V
|
|
Protection
|
Over Load Protection
|
110~150%
Automatic protection
|
|
Over Voltage Protection
|
15-18V
|
27-30V
|
40-44V
|
52-56V
|
66-72V
|
|
Over Temp. Protection
|
------
|
|
Environment
|
Working Temp., Humidity
|
-20~40℃,10~90% RH,No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety & EMC
|
Safety Standards
|
GB4943，EN60950
|
|
Withstand Voltage
|
I/P-O/P:3KV; I/P-FG：1.8KV；O/P-FG:0.06KV AC 1min.
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
EN55022B
|
|
Others
|
Dimension
|
200*99*31mm
|
|
Weight
|
0.47KG
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|
