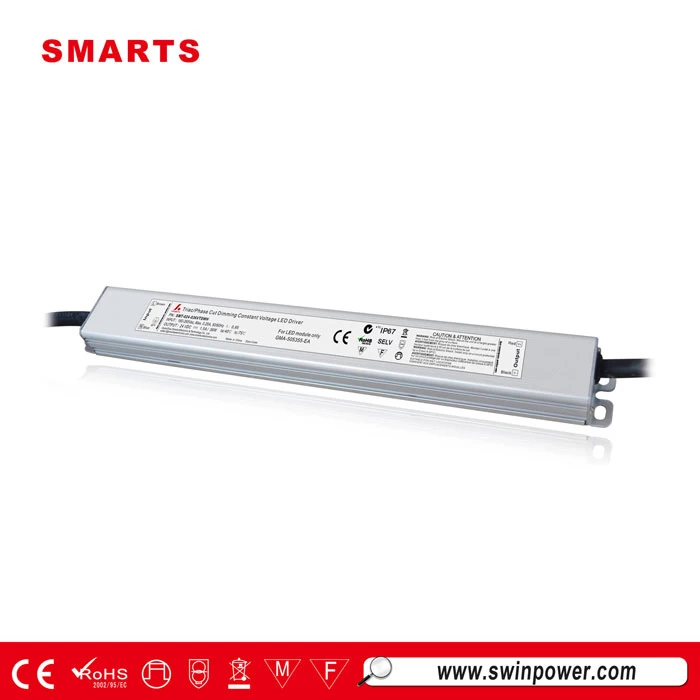

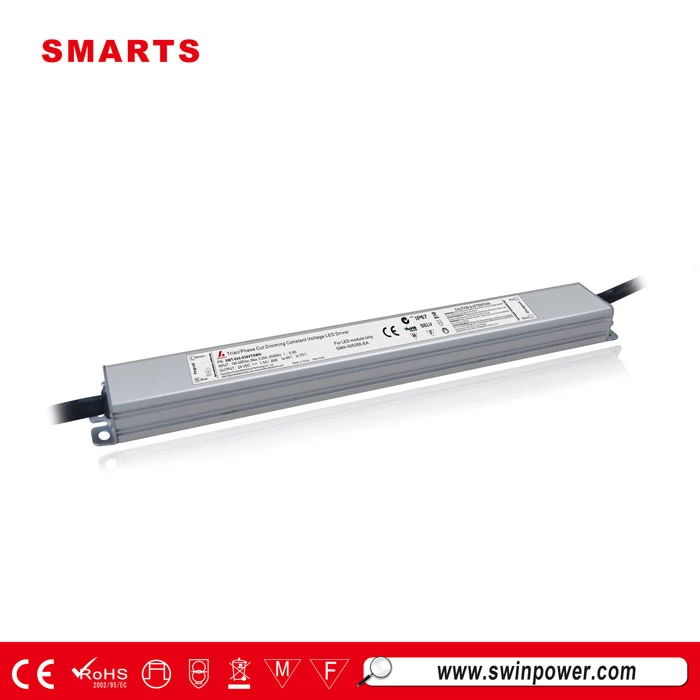

220vAC to 24vDC triac dimmable led driver 36w power supply for led panel light

A series of slim shape triac dimmable led driver divide 12v triac dimmable constant voltage led driver & 24v triac dimmable constant voltage led driver. they are SAA CE ROHS approval. We give 7 years warranty


  • Size262*32*20mm
  • Dimming modeTriac Dimmable
  • Working Modeconstant voltage
  • Output Current36w
  • Output Voltage24v
  • Input Voltage180~265V
  • CertificationSAA CE ROHS

220vAC to 24vDC triac dimmable led driver 36w power supply for led panel light


This model 36w slim size triac dimmable LED driver  have short circuit/overload/over temperature protection.Through 100% full load burn-in test.



  Specification


model

SMT-012-036VTSWH

SMT-024-036VTSWH

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

3.0Amp

1.5Amp

Rated power

36W

36W

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

180-265 VAC

Frequency Range

4763HZ

Power Factor ( Typ.

PF≧0.95

Full Load EfficiencyTyp.

>83%

>84%

AC CurrentTyp.

0.5A/100VAC  /  0.23A/277VAC

Inrush CurrentTyp.

7A, 50%, 420us

Leakage current

<0.27mA/110VAC; 0.25mA/277VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:2KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.35Kg

Size

260*32*20mm (L*W*H)

packing

50PCS/CTN



Triac dimmable led driver
dali led power supply
0-10v led driver
slim size led driver



  Problem analysis


1. Question: If all dimmable LED drivers we ordered will provide more than 12 or 24 volts? As our some of LED lighting 's voltage is more than 24VDC a bit .

Answer:  ±0.5% is the acceptable margin of error for both 12v dc and 24vdc led drivers.



2.Question:  Do all of these units have protection from thermal overload (excessive heat), voltage overload, short circuit, and power surge?

Answers: Yes, all of those units have the protection  from thermal overload (excessive heat), voltage overload, short circuit, and power surge.



3.Question: Do you have any customers in the US? I have not heard about your company before.

Answer: 1) Light Blue LLC

               2) Diode LED
