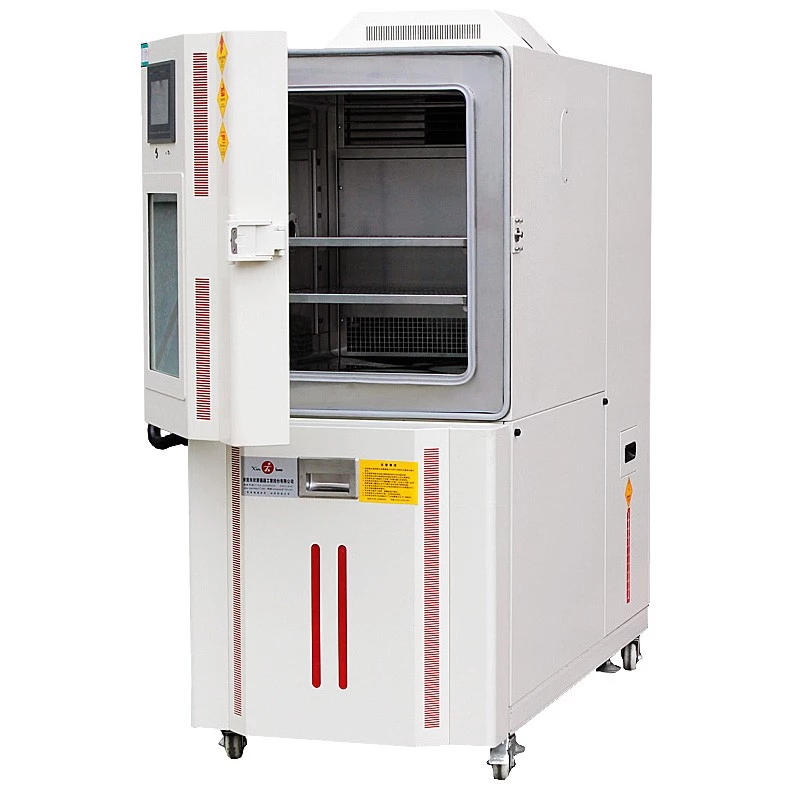

225L Programmable Fast Change Rate Temperature Test Chamber
Introduction:Test material heat, cold, dry resistance, humidity resistance.Suitable for electronics,
electrical appliances,communications, instrumentation, vehicles, plastic products, metal, food,
chemical, building materials, medical, aerospace and other products.
|
Model
|
XB-OLT-80
|
XB-OLT-150
|
XB-OLT-225
|
XB-OLT-408
|
XB-OLT-800
|
XB-OLT-1000
|
|
Inner size(W*H*D)CM
|
40*50*40
|
50*60*50
|
50*75*60
|
60*85*80
|
100*100*800
|
100*100*100
|
|
External size (W*H*D)CM
|
90*136*94
|
100*146*104
|
100*161*117
|
110*171*137
|
150*186*137
|
150*186*157
|
|
Temperature range
|
-70°C~+150°C(180°C)(A:-20°C B:-40°C C:-60°C D:-70°C )
|
|
Humidity range
|
20%~98%R.H.(10%-98%R.H/5%~98%R.H)
|
|
Temp humidity
analytic accuracy/uniformity
|
±0.1°C;±0.1%R.H./ ±1.0°C;±3.0%R.H.is special optional condition.
|
|
Temperature humidity
control accuracy/fluctuation
|
±1.0°C;±2.0%R.H./ ±0.5°C;±2.0%R.H.
|
|
Heat/cooling time
|
About 5.0°C/min;about 1.2°C/min (5~10°C/min is a special optional condition )
|
|
Inner and outer materials
|
SUS#304 Stainless steel for inner chamber and
Carton Advanced cold plate nano paint for outer.
|
|
Insulation materials
|
Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials
|
|
Cooling system
|
Air cooling/single segment compressor(-20°C) ,air and water double segment compressor
(-40°C~-70°C)
|
|
Protection devices
|
Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch,
super humidity over-temperature protection switch, fuse, failure warning system
|
|
Parts
|
Watching window,50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauze
|
|
Controller
|
TEMI1500 TH-900C South Korea
|
|
Compressor
|
Original France“Tecumseh”brand
|
|
Power
|
1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz
|
*.High-texture appearance, the body adopted an arc shape, surface matte stripes processing, and flat-handle,
easy to operate, safe and reliable.
*.Rectangular multi-layer glass View window, the use of guinea pigs observed in the test window witt anti-sweat
heaters device prevents water gas condensate ,Knot, water droplets, PL fluorescent lamps to keep the inside
lighting.
*.Door bunk isolated airtight packing, can be effectively isolated from the internal temperature of the leak
*.With external water supply system, convenient to supplement the cylinder water supply, and automatic recovery using.
*.Compressor cycling system used France“Tecumseh”brand which can effectively remove condenser pipe
and between capillary Lubricating oil and whole series adopt environmental protection refrigerant
(R23, R404, R507)

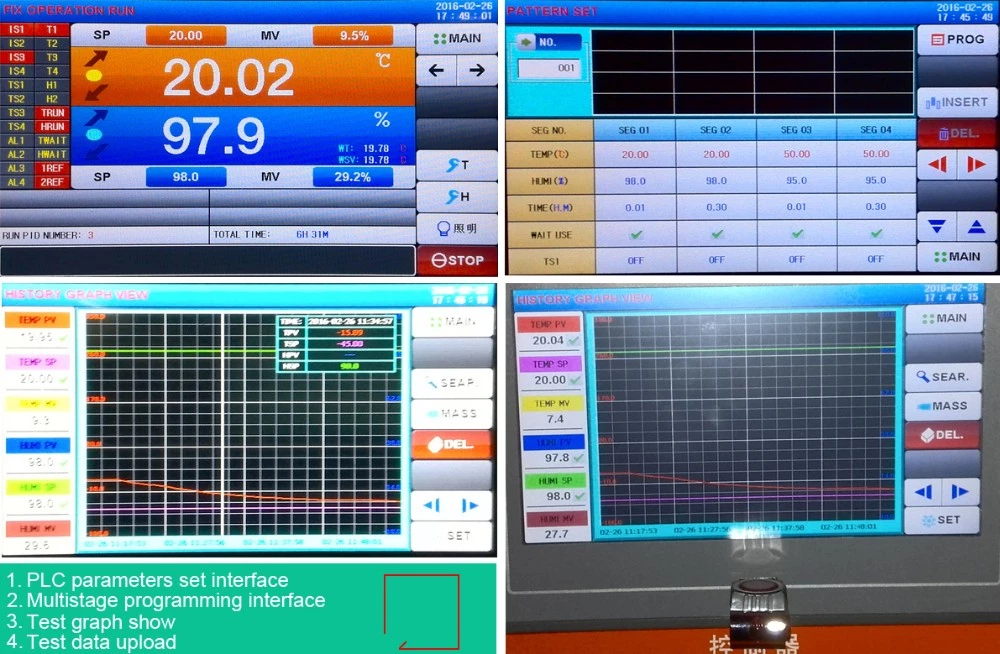

*.Controller uses the imported LED display screen, can display measured values and setting time
*.Controller with multi-segment program editor and temperature and humidity can be fast (OUICK) or slope (SLOP) controlled.
*.Built-in mobile wheels allow easy movement and placed and has a strong positioning screw position.
Standard:
GB11158 GB10589-89
GB10592-89 GB/T10586-89
GB/T2423.1-2001 GB/T2423.2-2001
GB/T2423.3-93 GB/T2423.4-93
GB/T2423.22-2001 IEC60068-2-1.1990
