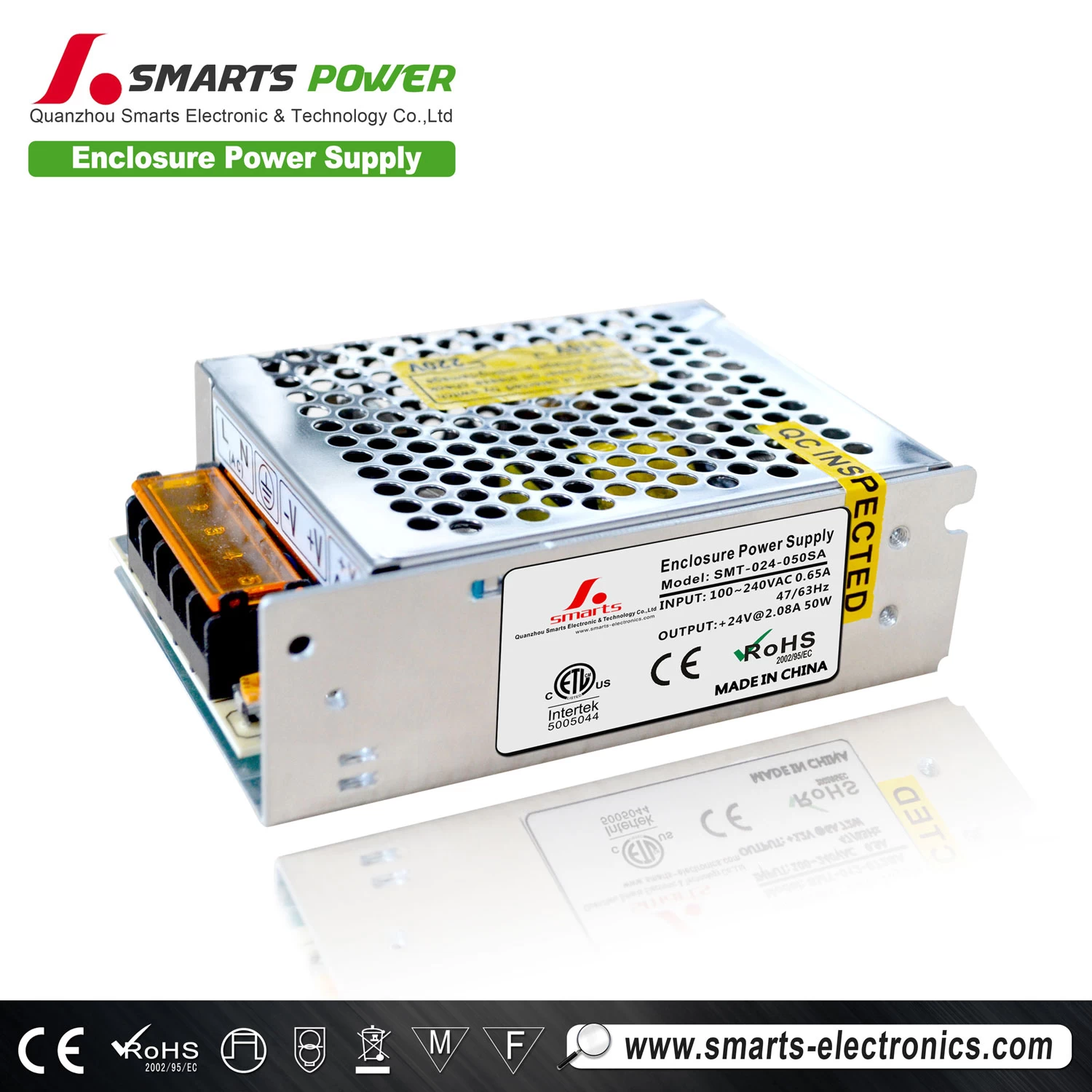

230vac to 24vdc 50W enclosure power supply with CE approval

Description:

1. Input voltage.:100-240V AC

2. Efficiency>82%

3. Warranty: 2 years

4. CE,ROHS approval

5. product  dimension(L x W x H): 112*88*34mm

6. Net weight: 400g/pc

7. Case material:Aluminum

8. Waterproof rate:  IP20

9. output voltage: 12v ,24v, 36v, 48v

10. output power:  50watt

Features:

1. Constant voltage design with high accuracy.

2. International wide input voltage.

3. output voltage 5v/12v/24v/36v/48v selectable.

4. Wattage: 15w-600w.

5. High efficiency, save energy, protected environment.

6. High stability and low ripple, increase light efficiency and decrease light attenuation.

7. Meet to safety standard and EMC.

8. Assure LED stability long lift and light efficiency by constant voltage.

9. Overcurrent, overvoltage, overheat, short curcuit protection:Auto-recovery

10. Start,raise,stable time:  500ms,30ms,40ms/230VAC,500ms,30ms,16ms/115VAC

11. Cooling by free air convection.

12. 100% full load burn-in test.

13. Brand electrotronic components.

14. ROHS material.

15. Well match with LED guardrail lamp, Flood light, light word, street lamp etc, For LEDs series-parallel.

16. Competitived price and high reliability

17. 105 °C Output capacitor

18. AC input power suitable for the world

19. High efficiency and low operation temperature

20. Soft-start current can reduce the AC input impact effect

21. With short-circuit and overload protection

22. Compact size, light weight

23. 100% full-load burn-in test

24. Installed with EMI filter, minimum wave

25. 2 years warranty

Environment:

Working temp,humidity: -25°C~+50°C,20%~90%RH

storage temp,humidity:  -20°C~+85°C,10%~95%RH non-condensing

Withstand vibration:  10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes



Safety:

Withstand voltage:  I/P-O/P:2.0KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance:  I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC

EMC standard: Comply with EN55022,CLASSA

parameter:

Model			SMT-012-036SA	SMT-024-036SA	SMT-036-036SA	SMT-048-036SA
output	DC voltage		12V	24V	36V	48V
	Voltage tolerance		±1%	±1%	±1%	±1%
	Rated current		4.17A	2.08A	1.38A	1.04A
	Current range		0~4.17A	0~2.08A	0~1.38A	0~1.04A
	Rated power		50W	50W	50W	50W
	Ripple&noise		150mvp-p	150mvp-p	150mvp-p	150mvp-p
	DCvoltage ADJ.range		±10%	±10%	±10%	±10%
input	Voltage range	100~240Vdc
	frequency	47~63HZ
	AC current	3.4A/115VAC,2.2A/230VAC
	efficiency		>82%	>82%	>83%	>83%
	Inrush current	Cold start current 18A/115VAC,36A/230VAC
	Leakage current	< 1mA/240VAC
protection	overload	Rated output power115%~150% start over load protection
		protection type:cutoff output,recovery after restart power
	Over voltage		15.5~17.4V	18.5~20.4V	30.2~33.1V	33.2~35.6V
		protection type:hiccup mode,auto-recovery after fault condition is removed
	Short circuit	protection
		protection type:hiccup mode,auto-recovery after fault condition is removed
environment	Working temp,humidity	-10°C~+60°C,20%~90%RH
	Storagetemp,humidity	-20°C~+85°C,10%~95%RH non-condensing
	Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
safety	Withstand voltage	I/P-O/P:2.0KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
