23mm Wide Road Wheels Carbon Road Wheels

-  Clincher 23mm Wheel Set for Road Bike

- Novatec Hubs with High Quality

-  Pillar 1423 Spokes, 20-24H


  • PaymentPaypal, Bank Transfer, West Union
  • Rim TypeClincher
  • FinishUD, 3K, 12K, 3K Twill, 12K Twill
  • Brake SurfaceBasalt, Disc Brake, Twill, 3K, Special Design

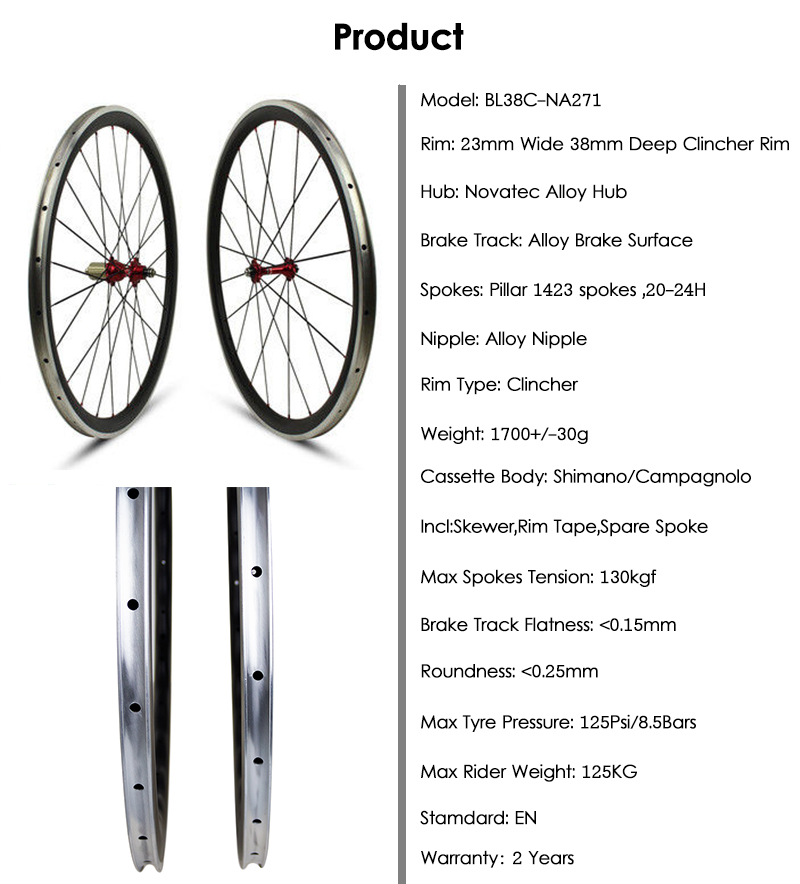

Model: BL38CA-NA271 Brand Name: Superroad
Wheel Material: Carbon + Alloy Size: 700C
Rim Width: 23mm Hub: Novatec Hubs
Rim Depth: 38mm Spokes: Pillar 1423 spokes, 20-24H
Rim Type: Clincher  Spoke Hole: 20-24H
Weight: 1700+/-30g Nipples: Alloy Nipple
Finish: Matte/Glossy Max Tyre Pressure: 125Psi/8.5Bars
Weave: UD /3K /12K Max Rider Weight: 125kg
Brake Track: Alloy Brake Surface Max Spokes Tension: 130kgf
Cassette Body: Shimano/Campagnolo             Brake Track Flatness: <0.15mm
Incl: Skewer,Rim Tape,Spare Spoke Roundness: <0.25mm
Decal: Customized Standard: EN
Business: OEM&ODM Warranty: 2 Years


How much spoke tension should I use?

Although the maximum spoke tension of our rims is 150kgf, we do not recommend to lace your
wheelset so intense. Generally, 3 of charging tension are involved in wheel building.


Riding comfortability and performance are supposed to be considered while choosing charging tension.

A. Tension for "transportation riders" (Comfortability)
80-90kgf are ideal for regular transportation riders or exercise on a regular basis.
B. Tension for "enthusiast riders" (Balance)
100-110kgf are good for people with enjoyful and training purpose.
C. Tension for "professional riders" (Performance)
120-130kgf are charged for riders who are expertized in riding or competition.

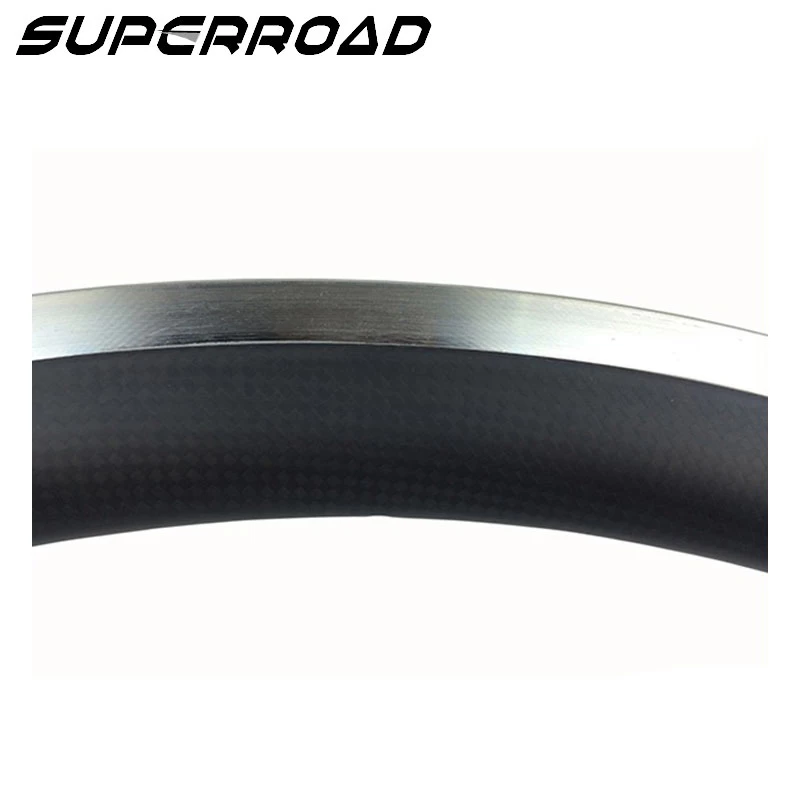

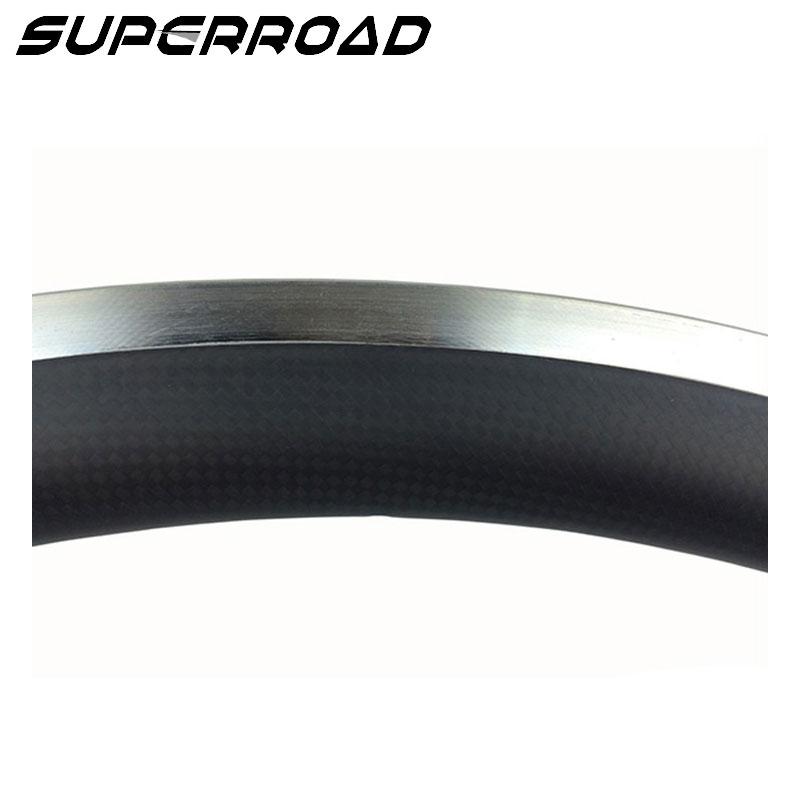

Superroad Bike Brake Surface



Description Of Toray T700 U-shaped 35mm Carbon Road Clincher Wheels Tubeless Compatible.

700C 25mm wide 38mm deep u-shaped carbon bicycle clincher wheels tubeless compatible. Novatec alloy hub into our superroad basis level carbon wheels, with high TG 240 braking track resin prevents heat distortion. Molded carbon brake track technology, high tg 240 temperature for our carbon tubeless road bicycle rims, it is difference for 180℃ version from other supplier. 25mm U-shaped wider rims for this wheels better control and handle. 35mm carbon road rims also available in road disc brake wheels. With our new design rim tape , the plastic rim tape just 3.7g/rim, you also can order some our new design light weight rim tape for test your market. New design rims tape , as picture:


Why the tubeless compatible road rims? Improved rolling resistance over standard clincher, make more power for cyclist. the second, it will be reduced the tire pressure. The third, more aerodynamic than standard clincher.

Why we choose U-shaped carbon road rims? It will be reduced rolling resistance, as we know, when the rims is slightly wider than the tyre when the it contacting the ground, it will be provide huge benefit in terms of lateral resistance, you are going to get better control and handling. The result in faster speed and less power from yourself. You also will get a Aerodynamic benefit. The trend of carbon rims is 20.5mm, 23mm wide carbon rims to wider rims in the future.

Oem carbon bicycle wheels are available,if you need other hub,spokes and rims for wheels,please feel free to message us.

Providing any decals you need are available.If you have any requestment for decals,please ready the font file and pantone color before contact us.
