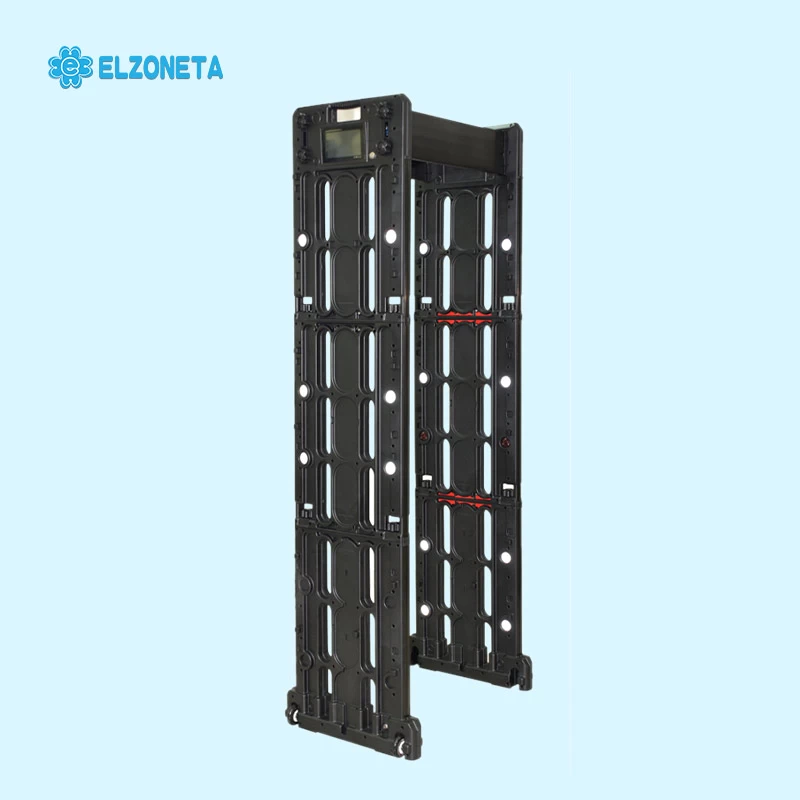

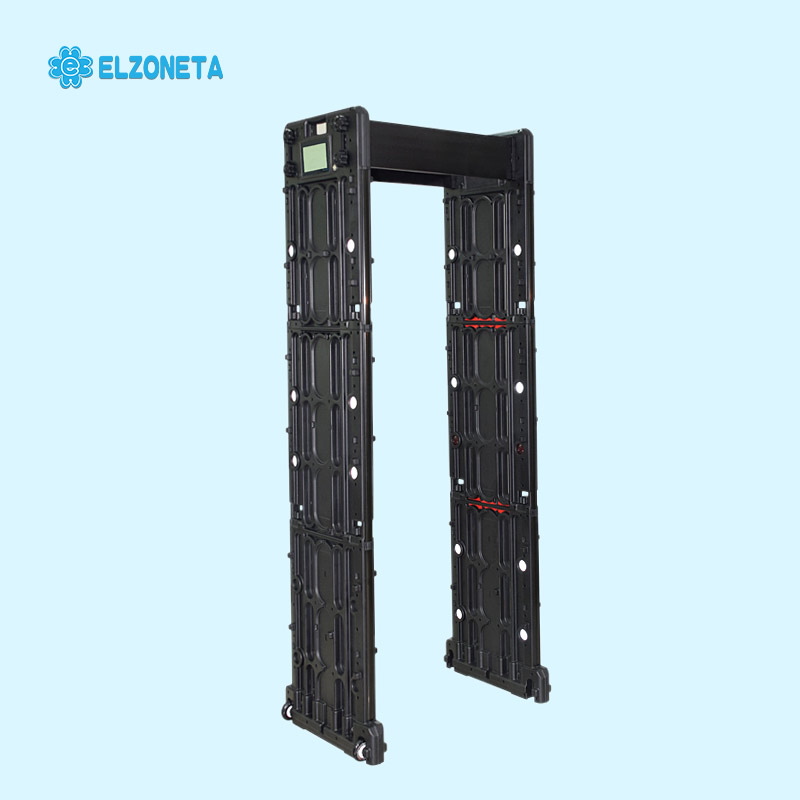

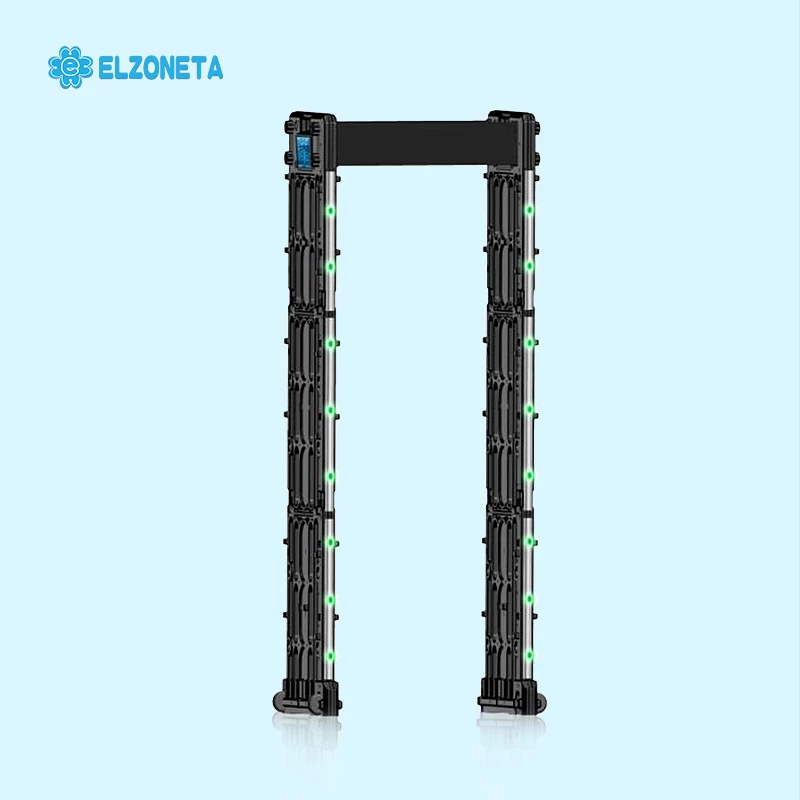

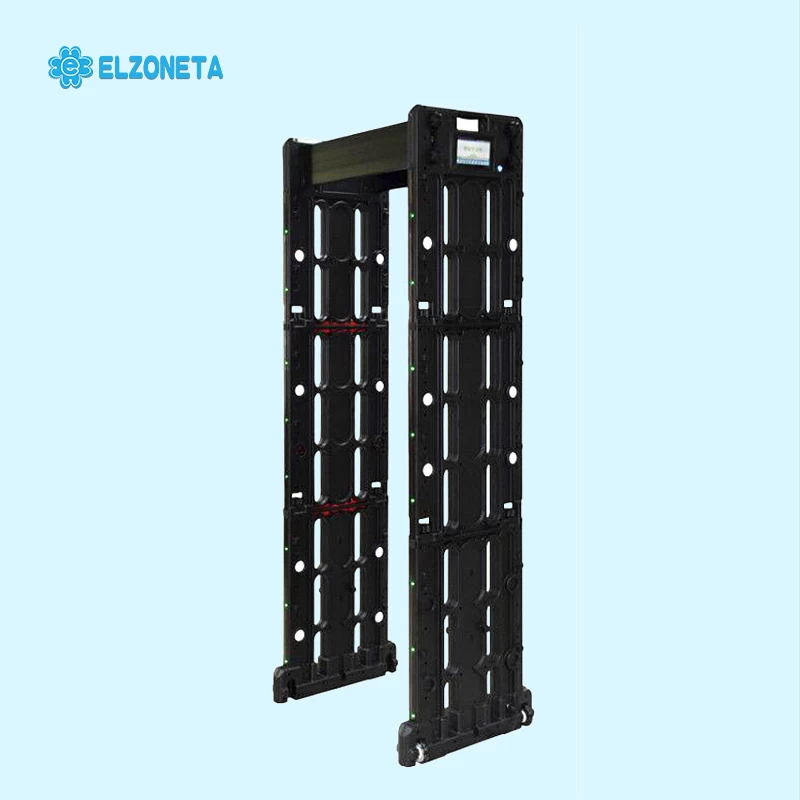

EC-ACS-DDP03 Portable Walk through Metal Detector
Advanced Technology
1．Multi-zone technology: 24,33 detection zones,can change detection zones intelligently (upgrade technology of each zone can be provided).
2．Touch screen: 7-inch HDMI LCD touch screen,iPad interface style,easy to operate and understand.
3．Mobile connection technology: realize mobile APP remote control
4．IP Grade: IP65 superior waterproof performance(optional)
5．Self calibration once power on
6．Self diagnostic, it will inform the user when exit the system
7．Start-stop technology:infrared devices with automatic
Features and Functions
1．Adjustable sensitivity of each detection zone
2．Multi-alarm sounds to choose
3．Operating frequency can be adjusted manually or automatically

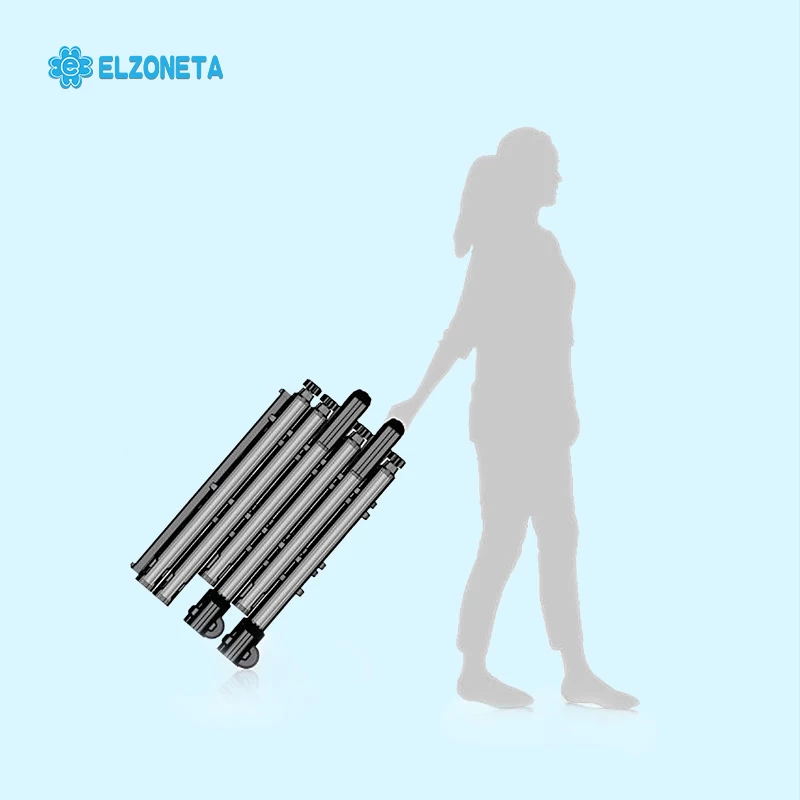

4．Move after folded or installation(two move methods to choose)
5．Detection technology: Even detection technology,no blind spot
6．Internet technology:Remote upgrade system and remote control system
7．Working band: 100 working bands
8．Sensitivity of each detection zone:255 level
9．Statistics: Record the pass and alarm numbers
10．Query function: The system has real-time information query function
11．Intelligent Standby: The system has intelligent standby operation alerts
12．Detection speed: more than 60 people pass and detect in 1 minute
Technical Parameters
● Detection objects: knives,guns,coins
● External Dimension: 2250x850x500mm
● Passage Dimension: 2051x710x500mm

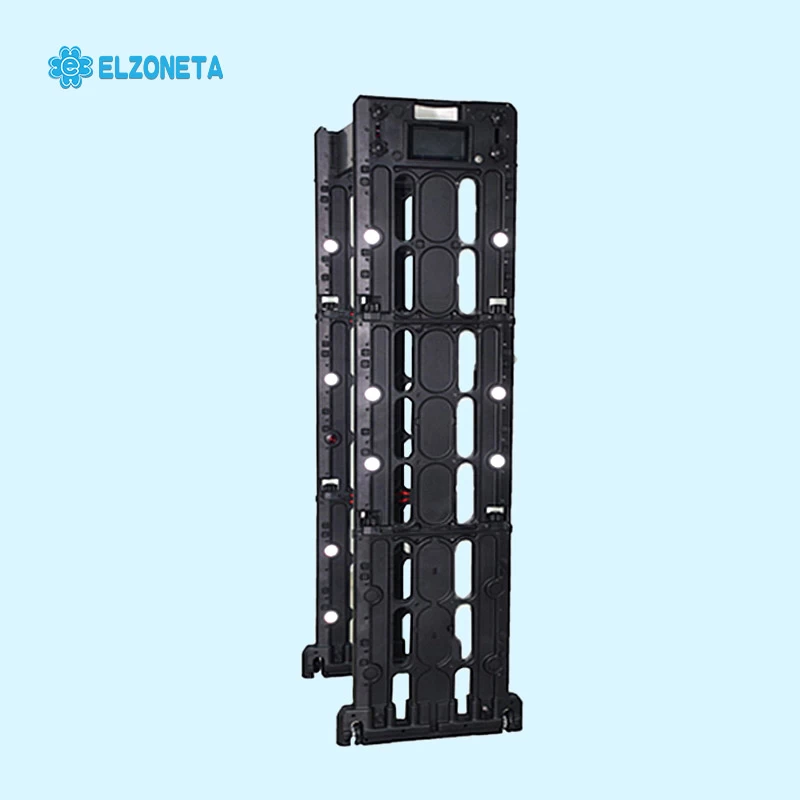

● Fold Dimension: 889x606x484mm
● Packing Dimension: 1000x720x590mm
● Humidity: 99%, non-condensing
● Working environment: -20 ℃~65 ℃
● Weight: NW 48KG, GW 53KG
● Input : AC 110V~240V/50Hz~60Hz
● Output : DC 12V/5A 12W
● Power supply: the whole system is equipped with polymer battery,life time 8,16,24,48,72 hours (optional).
SPECIAL FEATURES

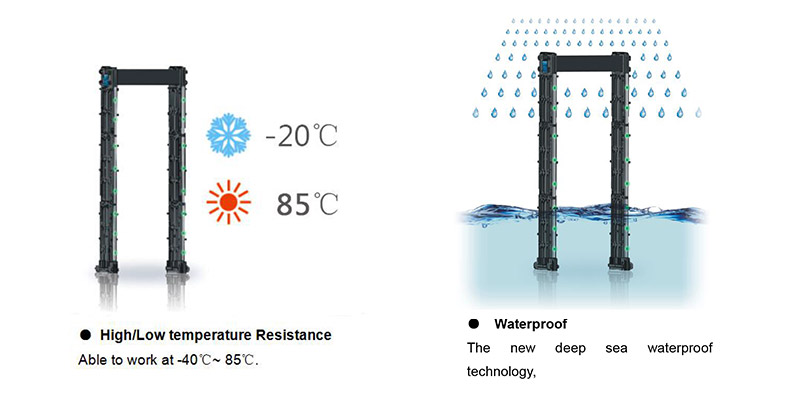

● High/Low temperature Resistance: Able to work at -40℃~ 85℃.
● Waterproof: The new deep sea waterproof technology
● Wireless connection: Control the walk through metal detectors anytime and anywhere. Through WiFi, 4G data, Bluetooth, access the wireless Internet, via mobile phone APP, PC to realize remote control and data monitoring.
● Long time power supply: Lithium battery,the whole system is equipped with polymer battery,life time 8,16,24,48,72 hours (optional).
More Details

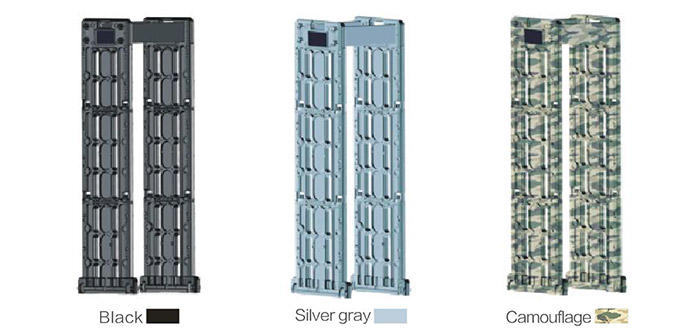

Three Colors Optional

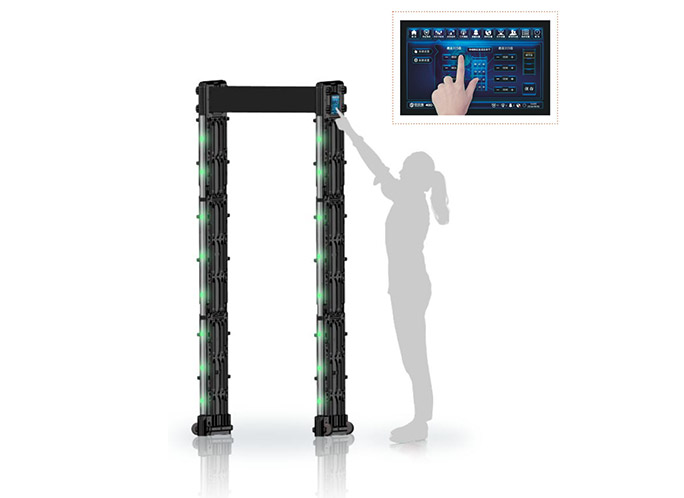

7 Inch LCD Touch Screen

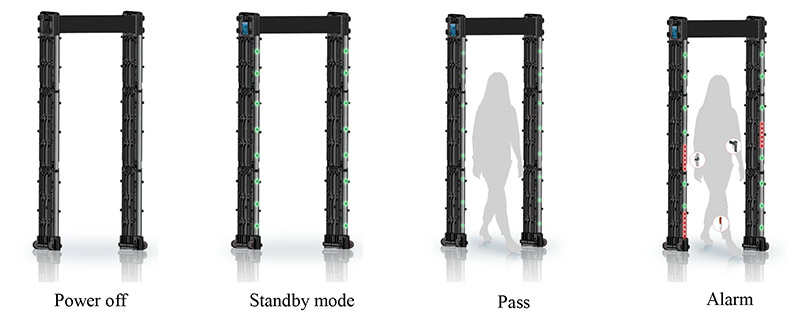

Operation Procedure
Weatherproof

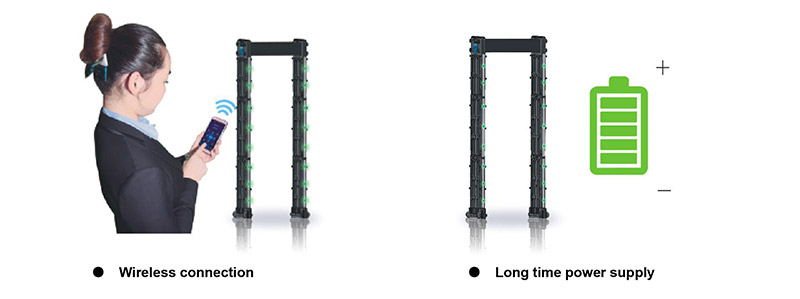

WIFI Connection & Long Time Power Supply

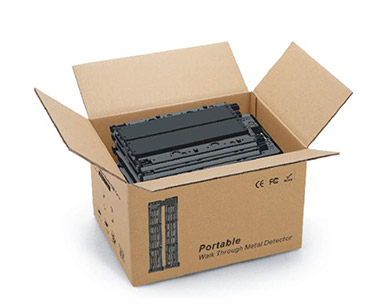

Package
