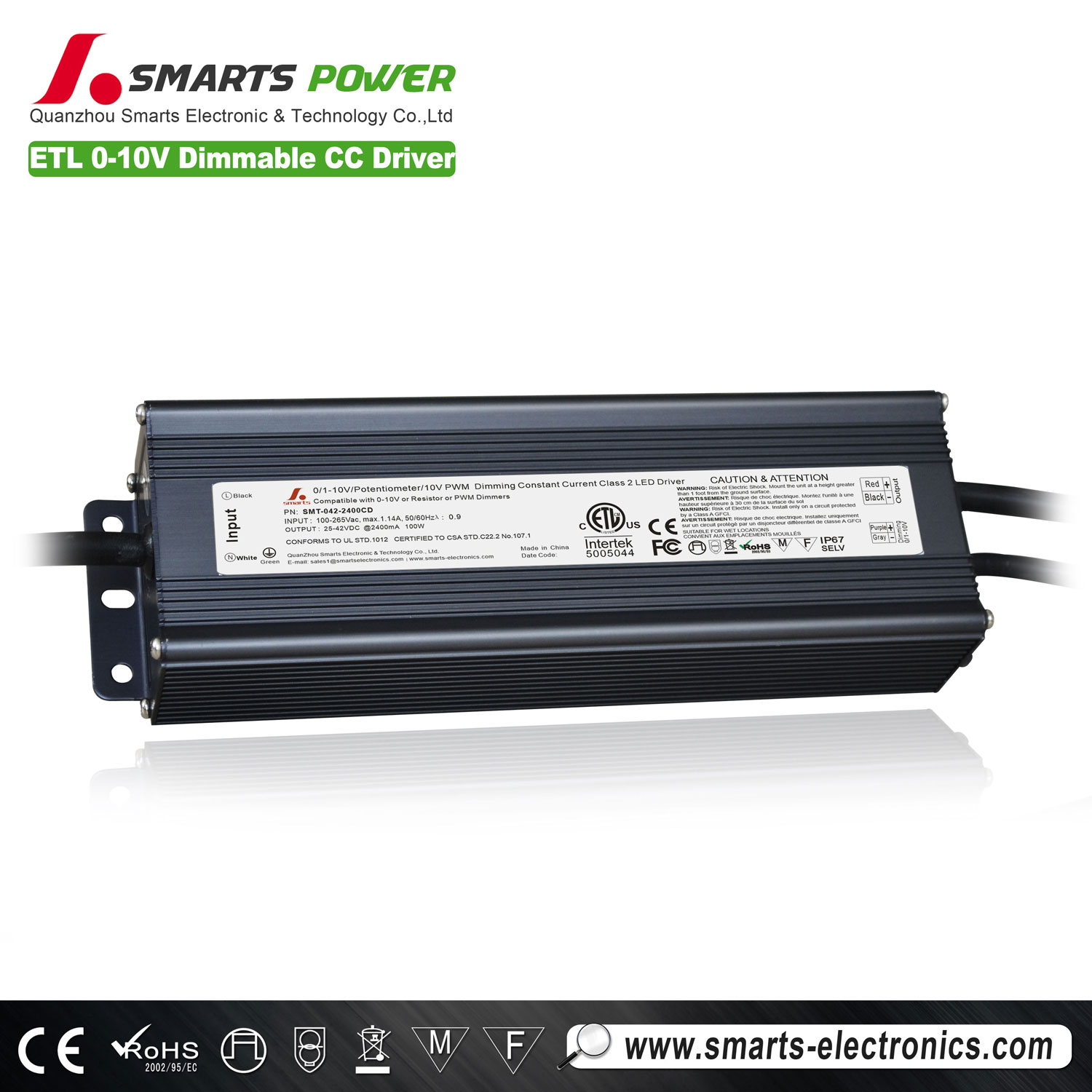

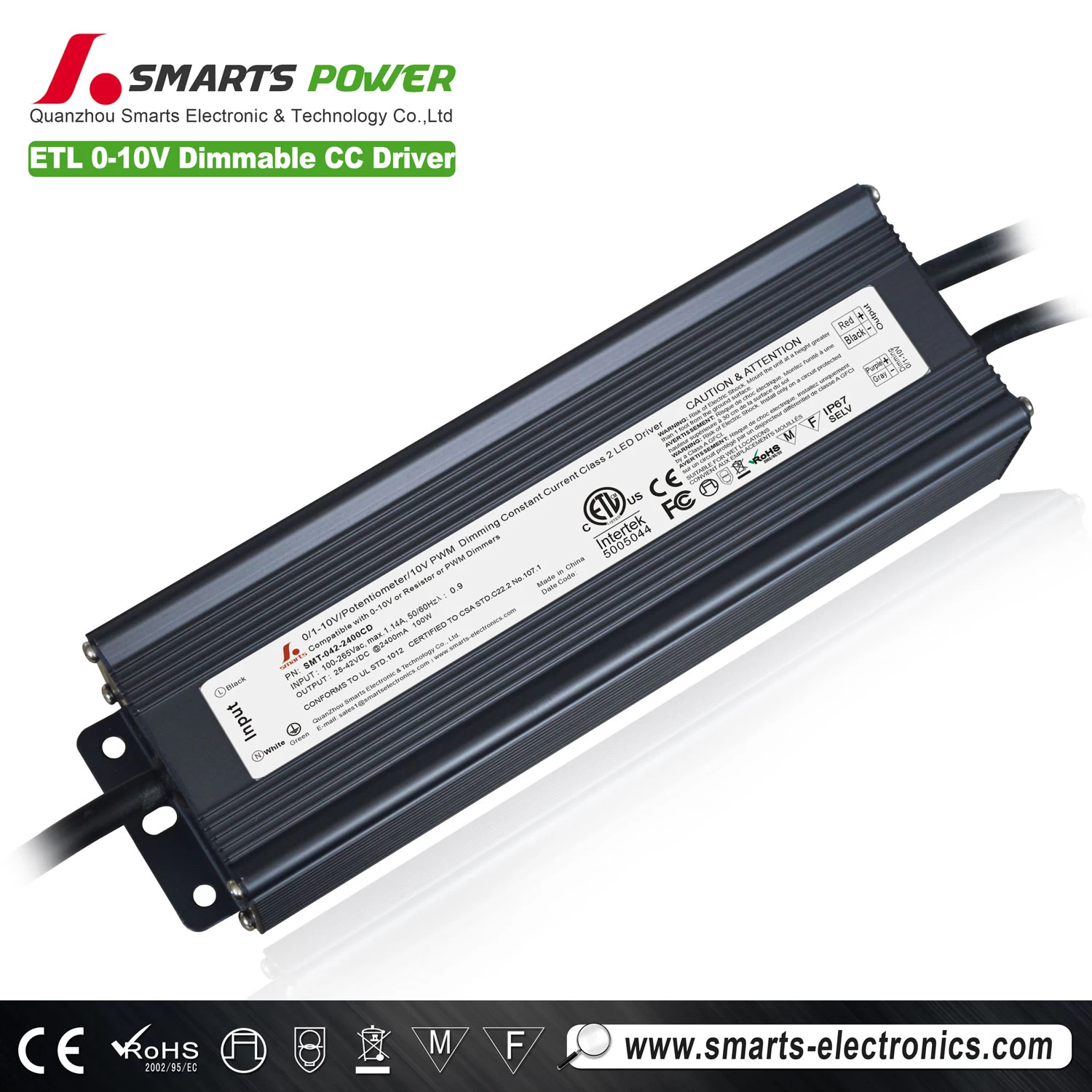

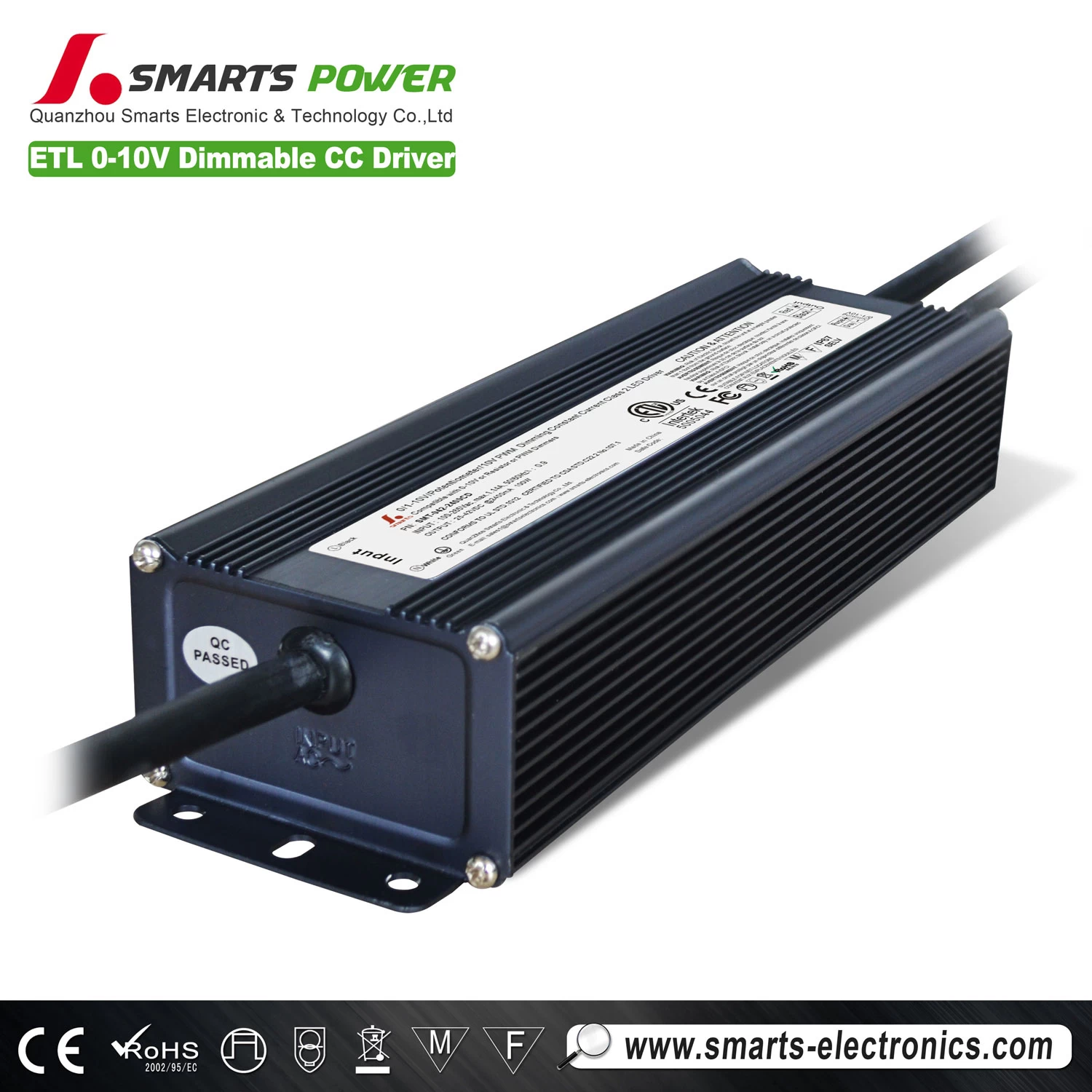

2400mA 100w 0-10v/PWM constant current dimmable led power supply

2400mA 100w dimmable led power supply ; 0-10v/PWM constant current dimmable led power supply

Facebook Twitter Pinterest LinkedIn 分享

2400mA 100w 0-10v/PWM constant current dimmable led power supply



Product Description



Model

Input voltage(vAC)

Working

Frequency

 (Hz)

Output voltage

(vDC)

Output

Current

power

(Watt)

Working.

 Temp

Protection

grade

SMT-042-2400CD

100-265V  /170-375V

47~63Hz

25-42V

2400mA

100W

-40~50°C

IP67



Features:

  • Input range :100-265VAC / 170-375VAC
  • Built-in PFC function
  • Efficiency > 84%  / PF>0.9
  • Protections:Short circuit/over Voltage
  • Fully isolated aluminum housing
  • Easy installation
  • Cooling by free air convection
  • Work with leading edge and trailing edge TRIAC dimmers
  • Strong compatibility, flicker-free dimming
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • 3 years warranty
  • Lifespan:(MTBF)50,000 hours

Protection:

  • Short Circuit:  Hiccup mode, recovers automatically after fault condition
  • Over voltage: <270VAC 0r =270VAC

Environment parameter:

  • Working temperature: -40~+60℃
  • Working humidity:20~90%RH,non-condensing
  • Storage TEM.,Humidity:  -40~+80℃,10~95%RH
  • TEMP.coefficient:  ±0.03%/℃(0~50℃)
  • Vibration:  10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z  axes

Safety &EMC:

  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC
  • EMC EMISSION:   Compliance toEN55015,EN61000-3-2 (> or=50%load)
  • EMC IMMUNITY :  Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry level (surge4KV)

Application:

  • Outdoor LED illuminating lights
  • LED Neon, LED City Decoration
  • LED Lighting Advertising, LED Display
  • Safety Protection Apparatus, Telecommunications
  • Networks, Vehicle Lights, Controller Panels

We offer a variety of wattages and types of Constant Current Led Power Supply for the increasing demand of LED lighting applications.


Packaging & Shipping
2400mA 100w 0-10v/PWM constant current dimmable led power supply
 Net weight (g) Gross Weight/ctn  Qty/ctn  Carton size(mm)
1300    g 15 kg 10 pcs 414*308*174mm
