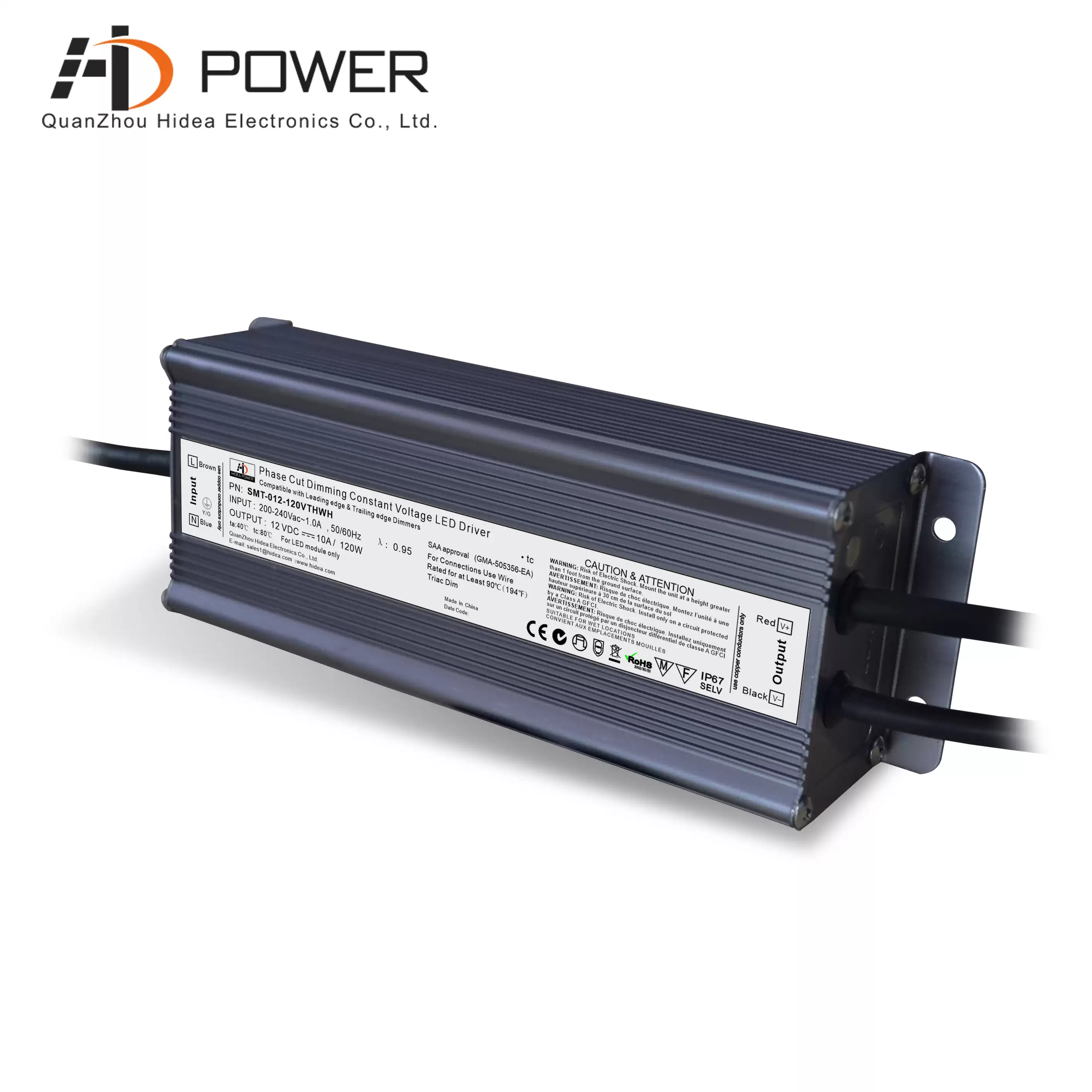

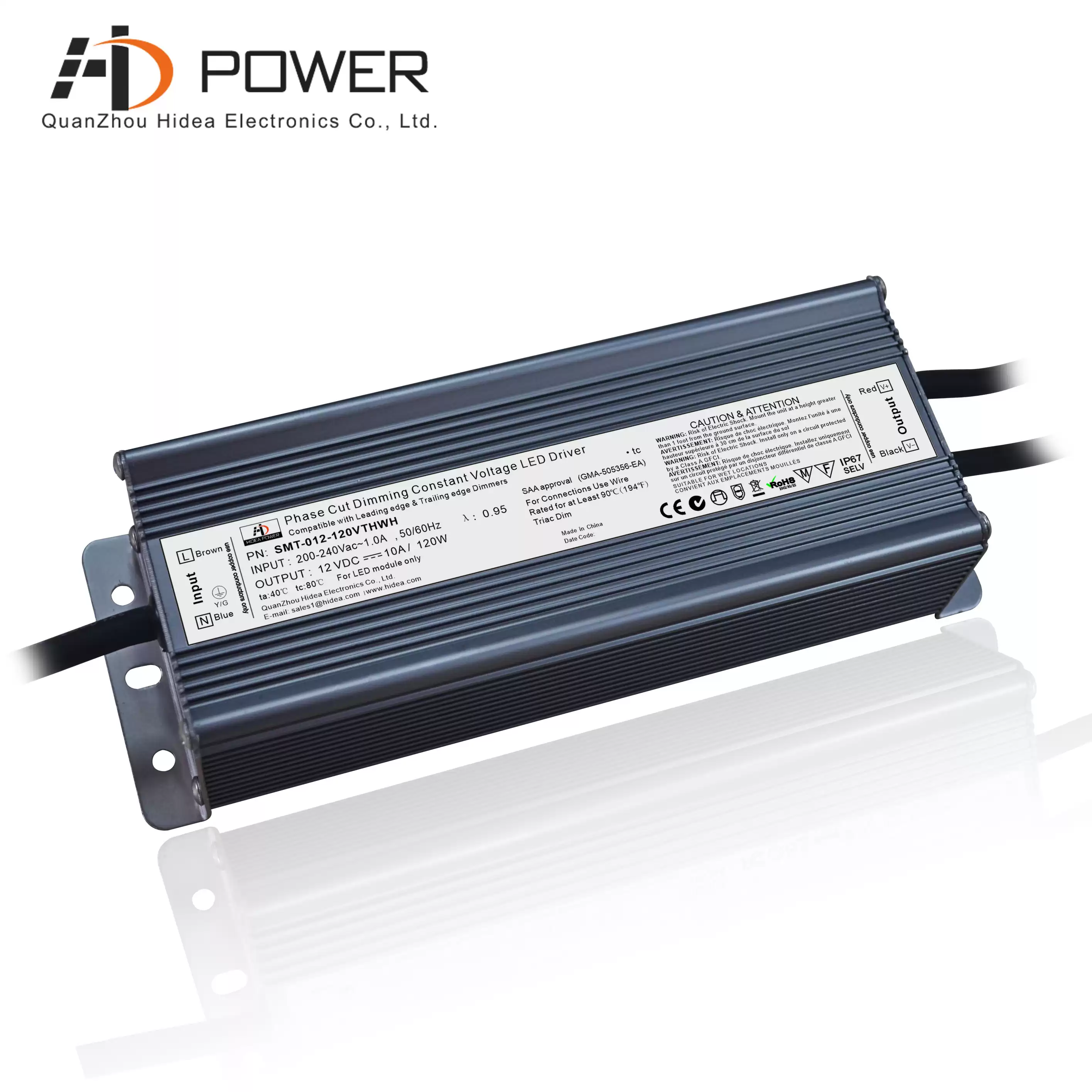

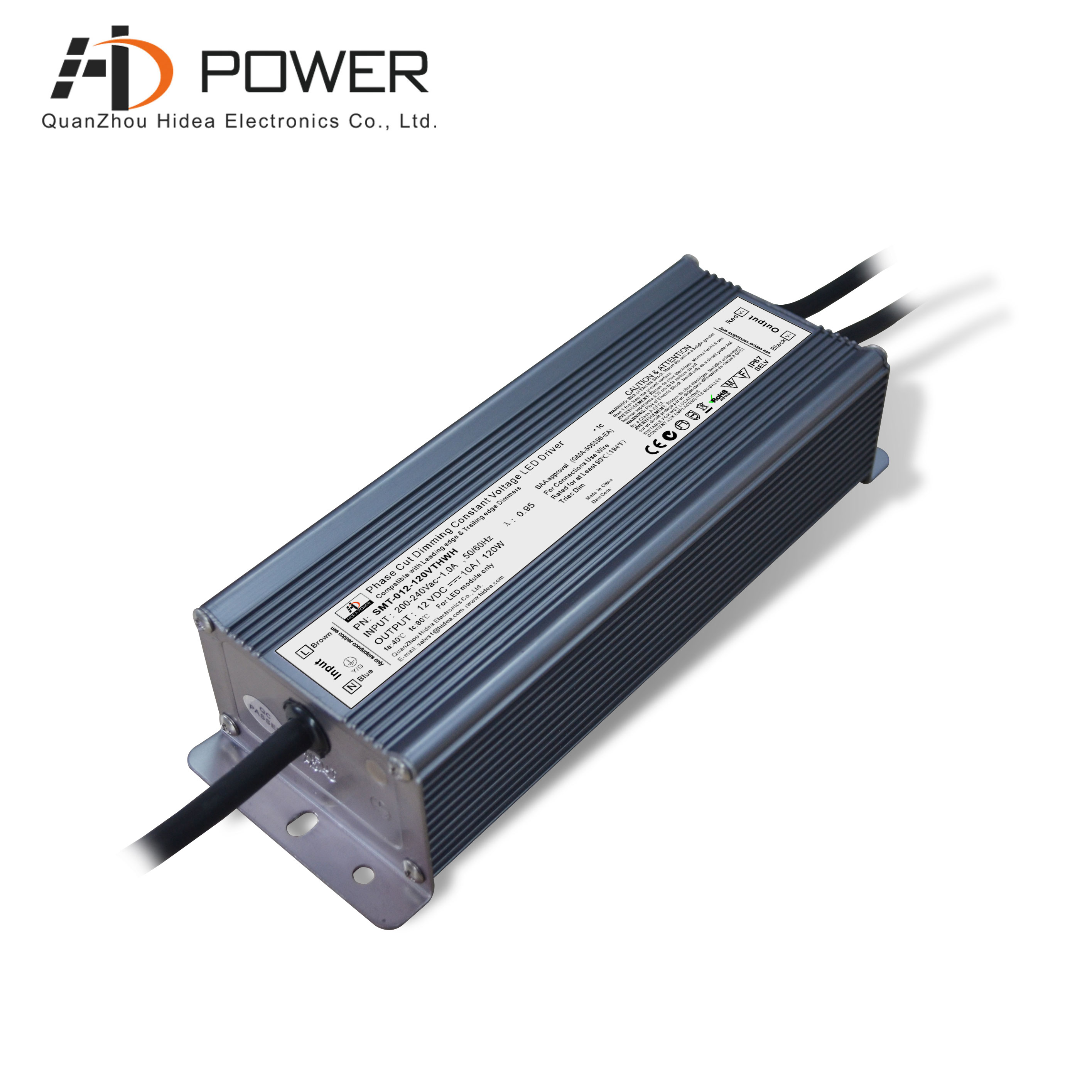

240v ac to 12/24v dc triac dimmable 120w led transformer strip light driver
120W constant pressure LED driver triac dimming has short circuit, overload, overload protection, good waterproof performance, can effectively waterproof and dust, protect the service life of the power supply
Specification
|
model
|
SMT-012-120VTHWH
|
SMT-024-120VTHWH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
10A
|
5A
|
|
Rated power
|
120W
|
|
Input
|
Voltage Range
|
200-240V AC
|
|
Frequency Range
|
47-63HZ
|
|
Power Factor
|
PF≧0.97/200VAC PF≧0.97/230VAC PF≧0.97/240VAC(Full loading)
|
|
Full Load Efficiency(Typ.)
|
84%
|
85%
|
|
AC Current (Max.)
|
1.0A
|
1.0A
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over load
|
≤120% constant current limiting, auto-recovery
|
|
Over Temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (Refer to Derating Curve -- Page 4)
|
|
Working Humidity
|
20~95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~40℃)
|
|
Vibration
|
10 - 500Hz, 5G 12min./1 cycle, period for 72min.each along X,Y,Z axes.
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
EN55015,EN61000-3-2,3 (≥60%loading)
|
|
Others
|
Weight
|
1.1kg
|
|
Size
|
230*70*43mm(L*W*H)
|
|
packing
|
245*75*65mm inner box, 340*275*170mm outside carton 10PCS /CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃
|
|
of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
|
3.Loading range from 10% to 100%
|
Related Products
|

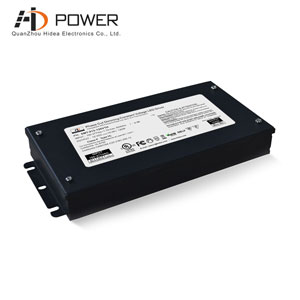

J-Box Triac Dimming LED DRIVER, input voltage 100-277VAC, passed UL certification, suitable for indoor and outdoor lighting projects
