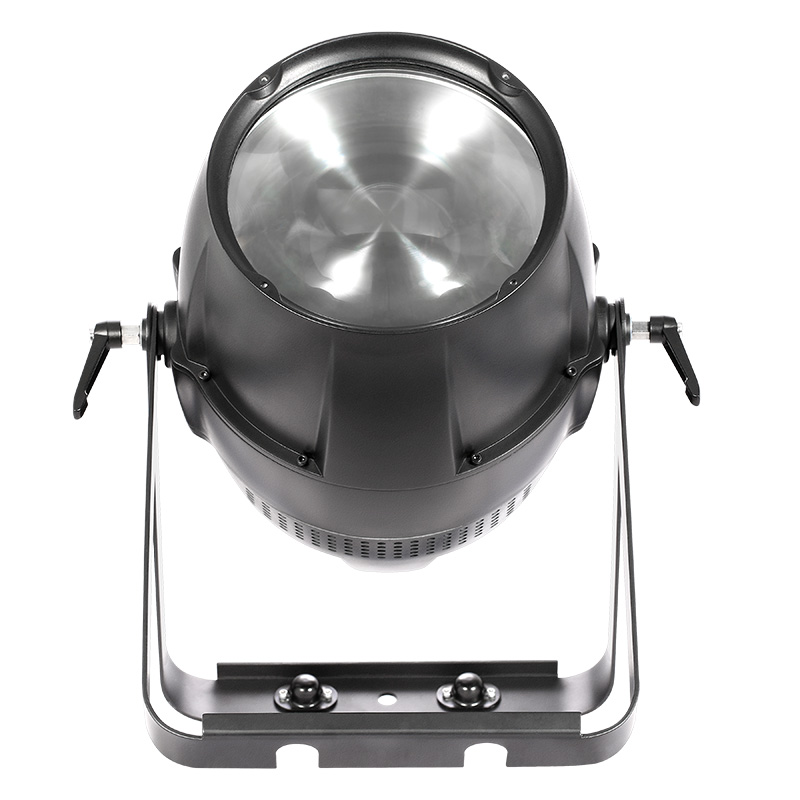

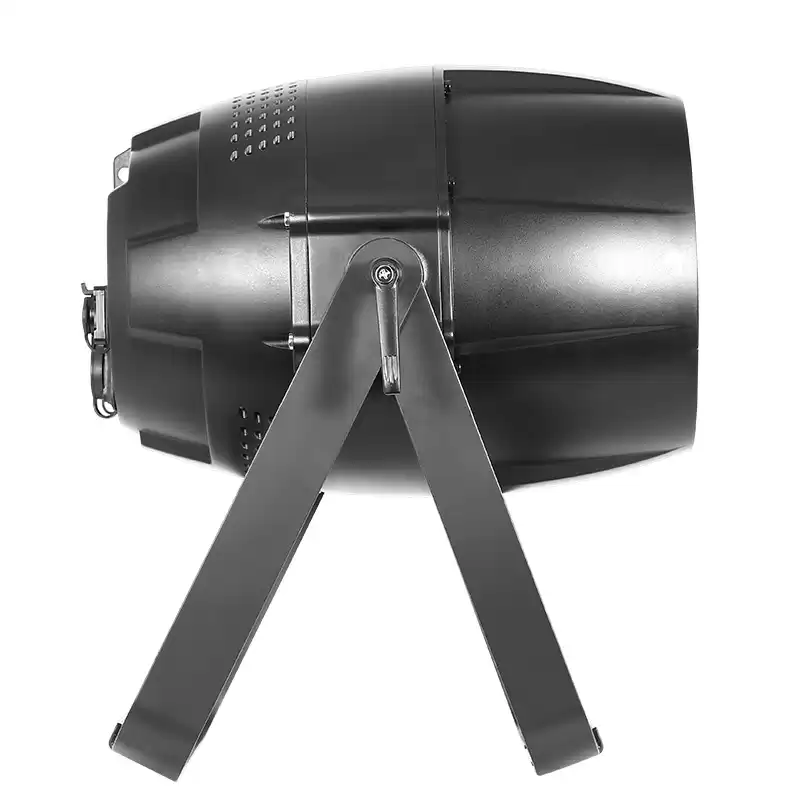

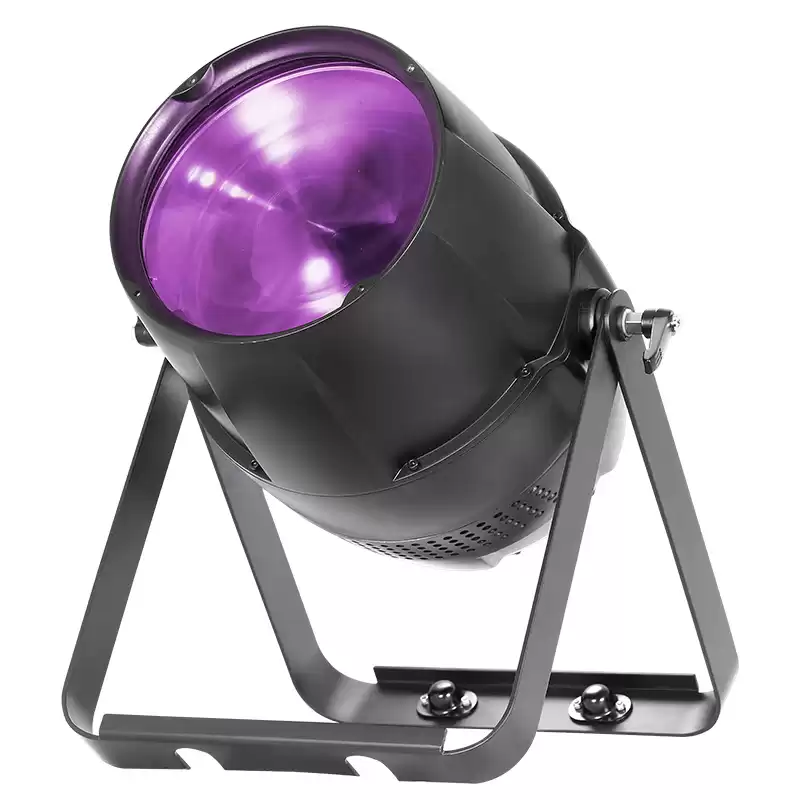

It use a fully die-cast aluminum housing, the design is novel, unique and generous. It uses 240W RGBW (customizable RGBY and RGBA) LED, advanced patented optical system, and 4-50° zoom. Its brightness is high and its color is bright. The special heat dissipation system makes LEDs more efficient and has a long life. The LED has temperature detection, and the fan can control the fan speed as the LED temperature changes. In addition to DMX control, there is powerful RDM control, which can be widely used in projection lighting, stage, theater, etc.

●  Optics

. LED qty：240W RGBW LED module

. Lens：180mm frensnel lens

. Beam angle：4-50°Zoom

. Lifetime：50000H，low ower consumption, energy conservation

and environmental protection

●  Colors

. Uniform mixing color system

. Static color set up

. LED macro color

●  Specification

. 4 DMX channel modes：3CH/4CH/6CH/12CH international standard DMX-512 channel

. 3 control modes::DMX512、Sound、Master-Salve

. Beam angle：4-50°Zoom

. DMX function： Dimmer、Strobe、RGBW、Macro color、color jumping change、color gradual change 、Rainbow、Auto-program selection、Auto speed、dimmer curve selection、function setting

. Stand-alone mode：color jumping change、color gradual change、Auto-program、slave、Macro color、static color setting、Rainbow、Auto-program selection

. Strobe effect：0-20HZ strobe、Plus strobe、Ramp up strobe、Ramp down strobe、Random strobe、 Strobe Break Effekt, 5s…..1s、Strobe0-20Hz。

. Dimmer:0-100%16 bit dimming which can control brightness change and closing of 4colors at the same time

. LEDs of each line can be controlled in 4colors

. Dimming way：LED mode and Halogen lamp mode

●  Display

. 1.3inches OLED screen

. High anti-interference four touch buttons

. Settable button lock to prevent imoperation

. Display screen can be reversed 180° and fit for different places installation

●  Software

. Software upgrade：quick software upgrade via DMX cable

. Display the use time of the light, so that customers can know the use details of the light in time

. LED refresh rate：3000Hz

. 4kinds of dimming curve：linear dimmer、Sqaure dimmer、I. Sqaure dimmer、S-Curve dimmer

●  Other functions

. Setting and addressing：RDM

. LEDs temperature detection system to protect the LEDs

. Fan cooling(the fan change the speed with the temperature changes）

. Fan running mode：Auto mode and high speed mode

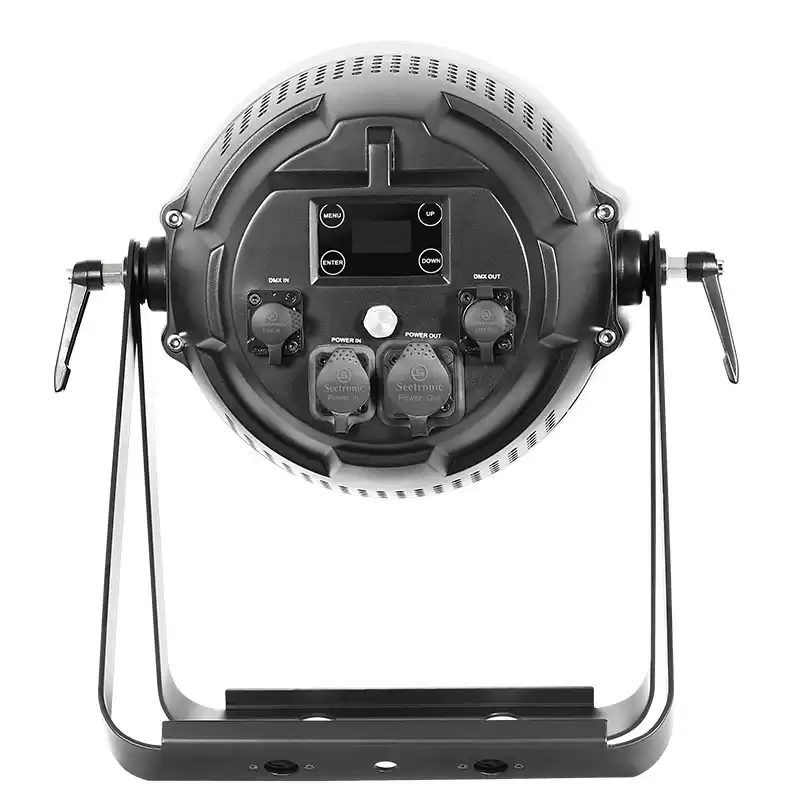

●  Power/Signal connection

. Power connection：waterproof Seetronic powerCON IN (SAC3MPX) / OUT (SAC3FPX)

. DMX input：Waterproof DMX XLR  3-pin Seetronic J3F2C-W

. DMX output：Waterproof DMX XLR  3-pin Seetronic K3F2C-W

●  Power

. AC100-240V 50/60HZ

. Power consumption：250W

●  Protection class

. Housing：Die-cast aluminium

. IP class：IP65

●  Operation environment

. operation temperature：-20°C～+40°C

●  Size/weight

. Packaging size：400x320x540mm

. Net weight： 9.2KG

. Gross weight：10KG

●  Certification：

. CE,ROHS
