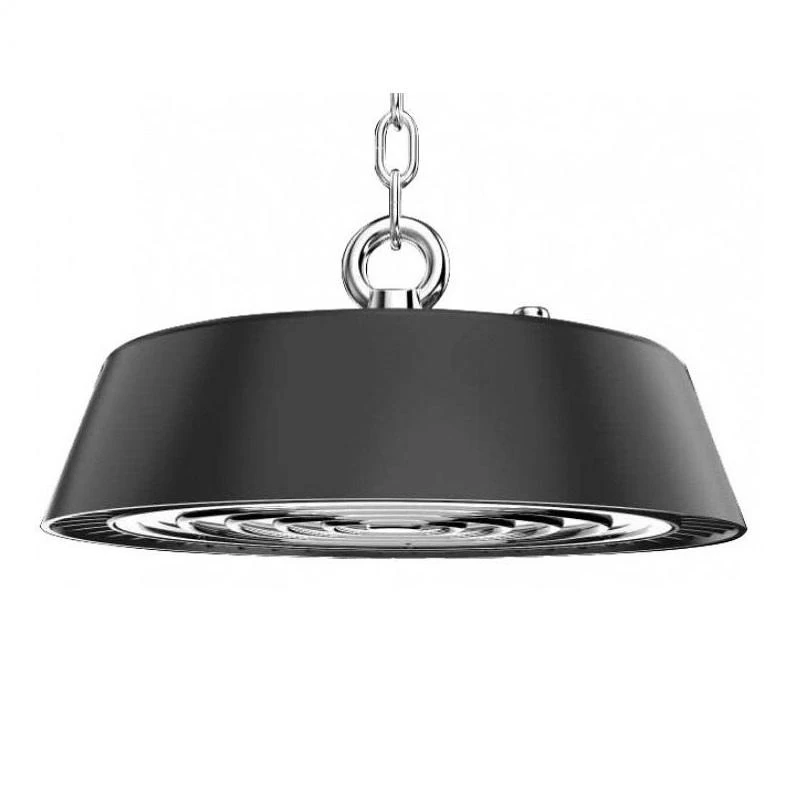

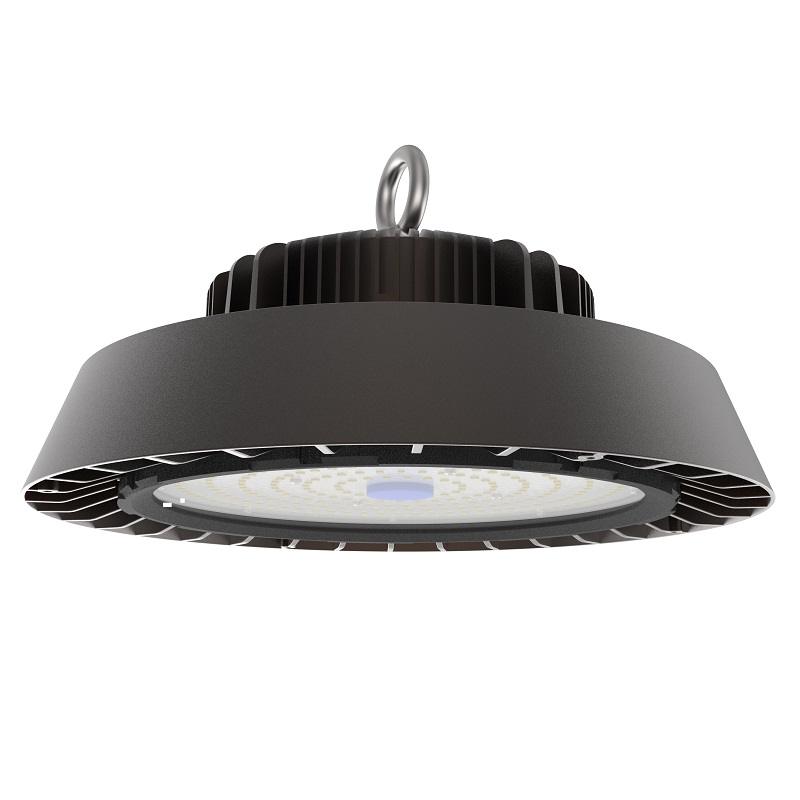

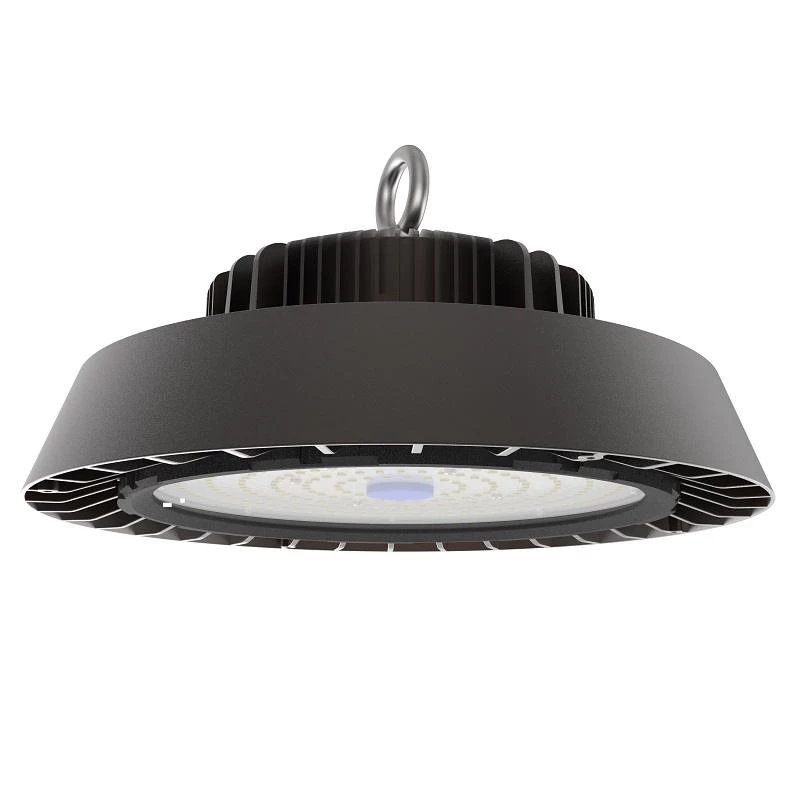

Product Item: 240W Industrial Lighting Dimmable Warehouse UFO LED Highbay Fixtures
Overview:
This LED high bay UFO light is suitable for a range of applications where the typical installation height is from 3m to 15m metres. The UFO high bay lights adopt Philips Lumileds SMD chip and a flicker free Mean Well driver with an IP65 rated die-cast aluminium body for superior quality suited to industrial environments.

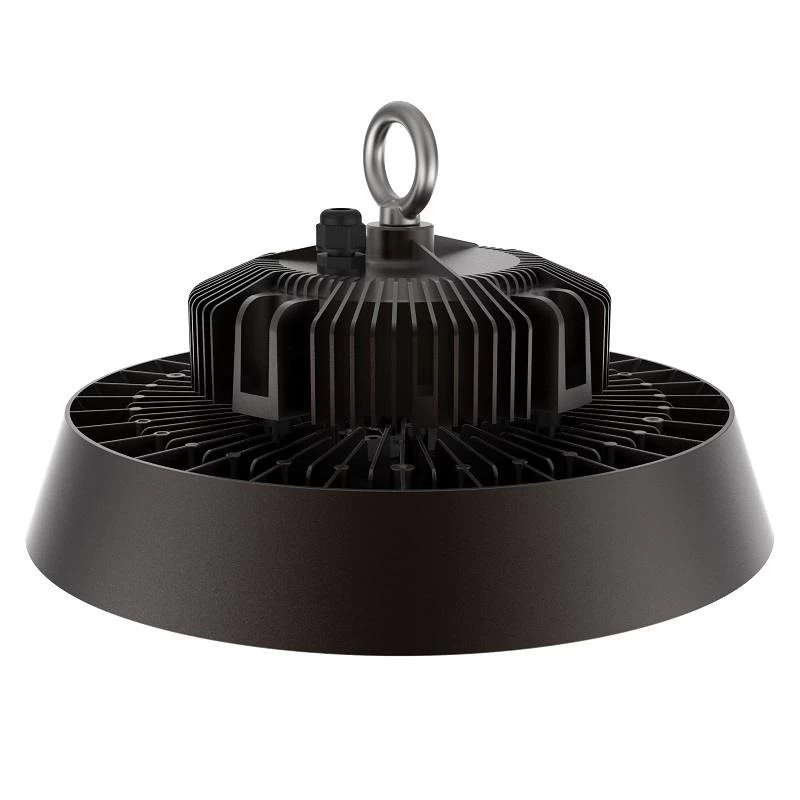

With new-style heat sink with aesthetics, the UFO lamp also has excellent heat dissipation by the good ventilation structure. Optional embedded microwave sensor specifically designed for this UFO LED high-bay lights to make it a smart energy-saving LED luminaire, minimizing energy consumption while extending the life span of the lighting system. For important industrial sector lighting, emergency battery can also be equipped to make it an emergency LED UFO high bay light.
Specifications:
|
Model
|
SR-HBUN-240W
|
Power
|
240W
|
Lumen Output
|
33,600lm
|
Light Source
|
LUMILEDS/OSRAM/NICHIA/CREE, etc.
|
Beam Angle
|
60°/90°/120°
|
Driver
|
MEAN WELL/PHILIPS/DRIVERLESS, etc.
|
Input Voltage
|
AC 90-305V, 50/60Hz
|
Power Factor
|
>0.95
|
CRI
|
Ra>80
|
CCT
|
3000K/4000K/5000K/5700K/6500K
|
IP Rating
|
IP65
|
Dimming
|
Dimmable/Non-dimmable
|
Material
|
Die-cast Aluminium, PC
|
Dimension
|
φ340x190mm
|
Weight
|
5.6KG
|
Warranty
|
5 years warranty
|
Features:
-
System wattage: 100W, 150W, 200W, 240W.
-

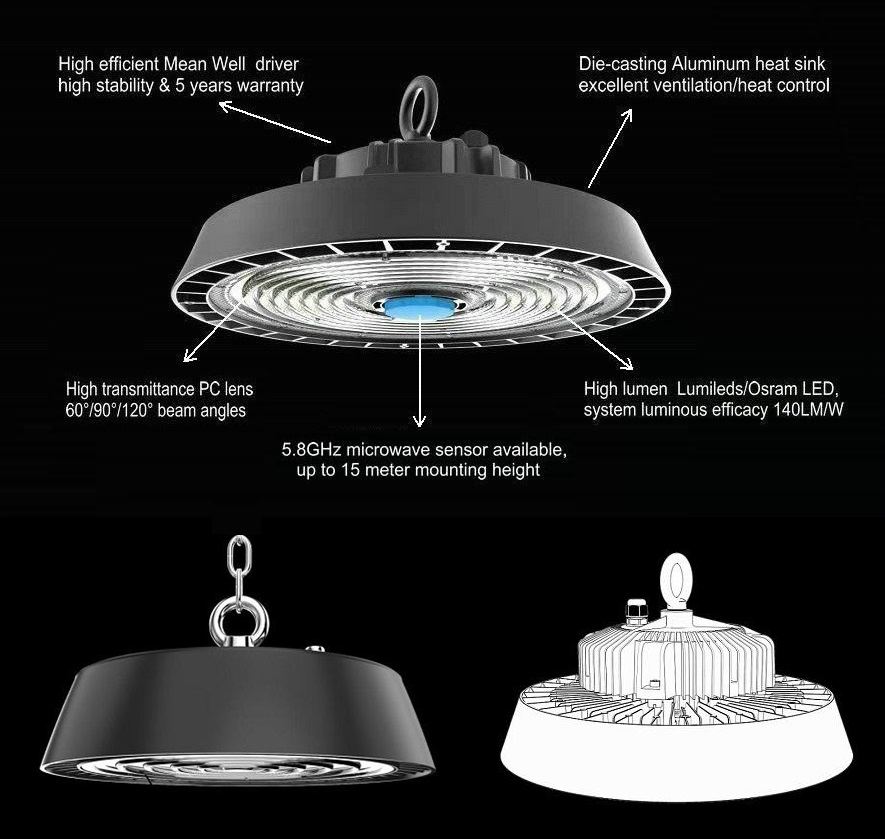

System luminous efficacy of this die-cast Aluminium LED UFO lamp is up to 140LM/W with high luminous flux Philips Lumileds/Osram SMD LED, more energy savings compared with conventional high bay lamps.
-
High power factor reliable Mean Well driver with high stability, ensuring 5 years warranty UFO High bay LED light with life span over 50,000 hours.
-
Professional lighting distribution 60°/90°/120° beam angle, flat PC cover, Fresnel lens or convex lens with high transmittance.
-
Efficient heat dissipation, fast heat direct up and down out, high lumen maintenance level.
-
Die casting Aluminium lamp body with powder coating, non-corrosive, high heat conductivity.
-
CRI>80, CCT: 2700K, 3000K, 4000K, 5000K, 5700K, 6000K, 6500K.
-
Long life span>50,000 hours, 70% energy saving, green lighting.
-
Control options: ZigBee, 1-10 V dimming, DALI dimming, microwave sensor, daylight sensor available
-
Suitable for high bay and low bay applications 3-15m, it can be classified as a multi-bay UFO light. (We also have super high power UFO high bay, as high as 400W, for 30m mounting height.)
-

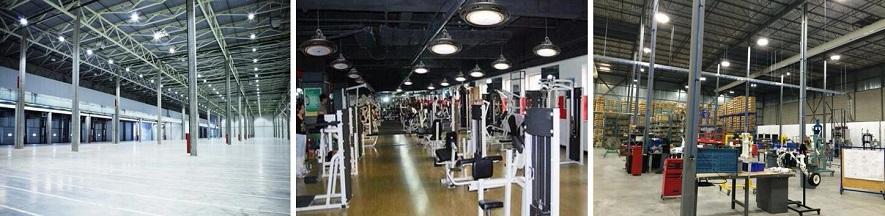

Application: indoor sports hall lighting, shopping centre lighting, warehouse lighting, manufacturing plant lighting, large conference centre lighting, airport hall lighting, gas station lighting.
|
|
|
|
