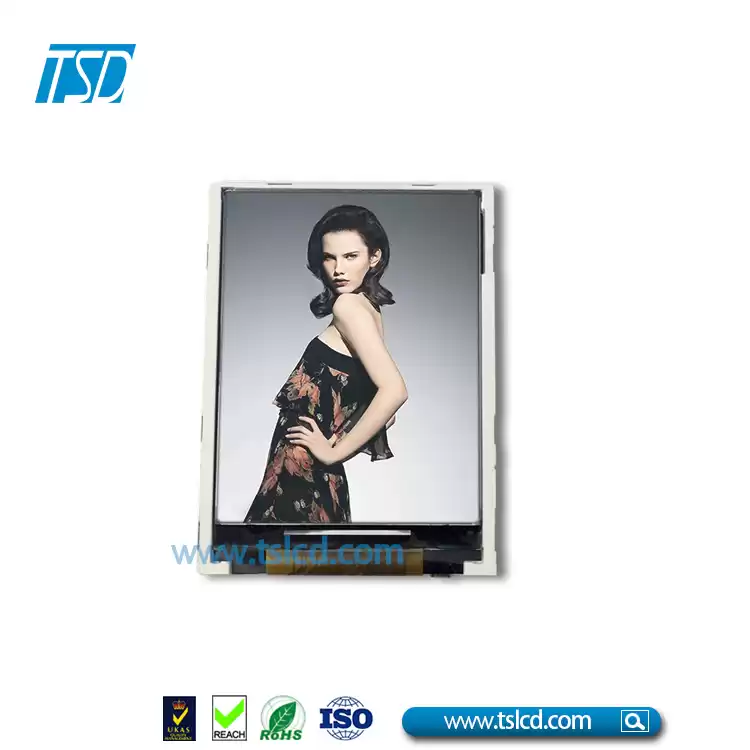

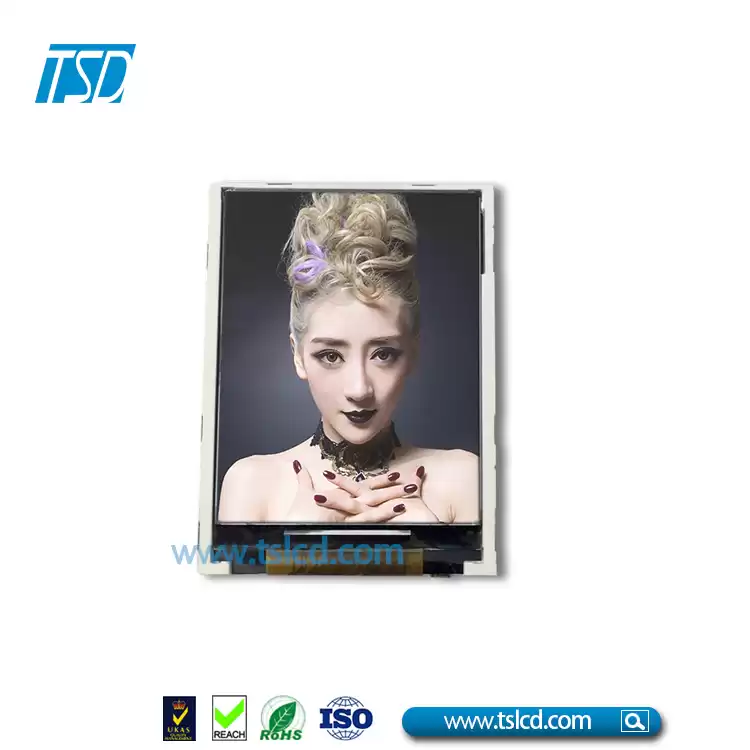

240x320 resolution 2.0" lcd panel 8bit parallel MCU interface lcd screen display

2.0" tft lcd screen display

240x320 resolution tft lcd

8bit parallel MCU interface



2.0" TFT lcd 240x320 with resistance touch screen

Specification
LCD type TFT,Transmissive,TFT color LCD
Display type 2 inch TFT, 262k color, normal white
Description 2.0" tft lcd 240x320
Driver element a-si TFT Active matrix
Outline Dimension(mm) 37.88*51.5*2.5mm
A.A.(mm) 30.6*40.8mm
Driver IC ILI9341
Resolution(dots)_ 240*RGB*320
Viewing Direction 6H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 320(H)x 3RGB x 240(V)
Pixel arrangement RGB Vertical Stripe
Display mode Normally white
Weight(g) TBD
Backlight  4LED, White
Touch panel 4 wire resistive touch panel
Weight(g) TBD
Interface 8080 system 8 bits parallel bus interface
Module lifetime(Hours) 50,000-100,000
