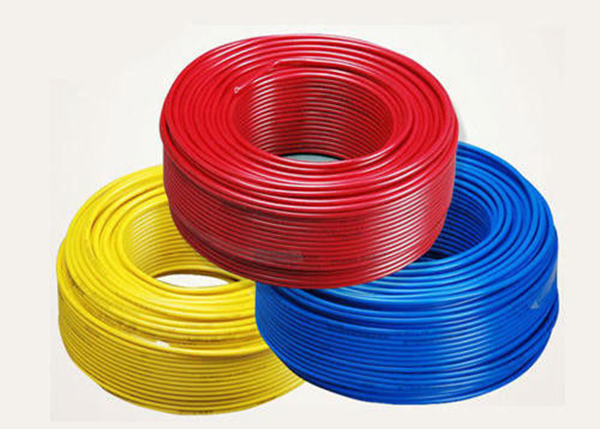

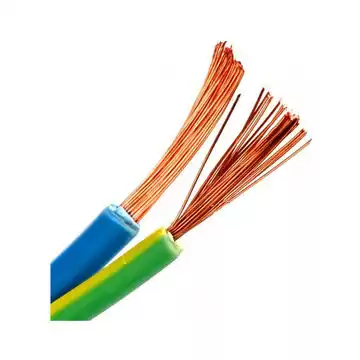

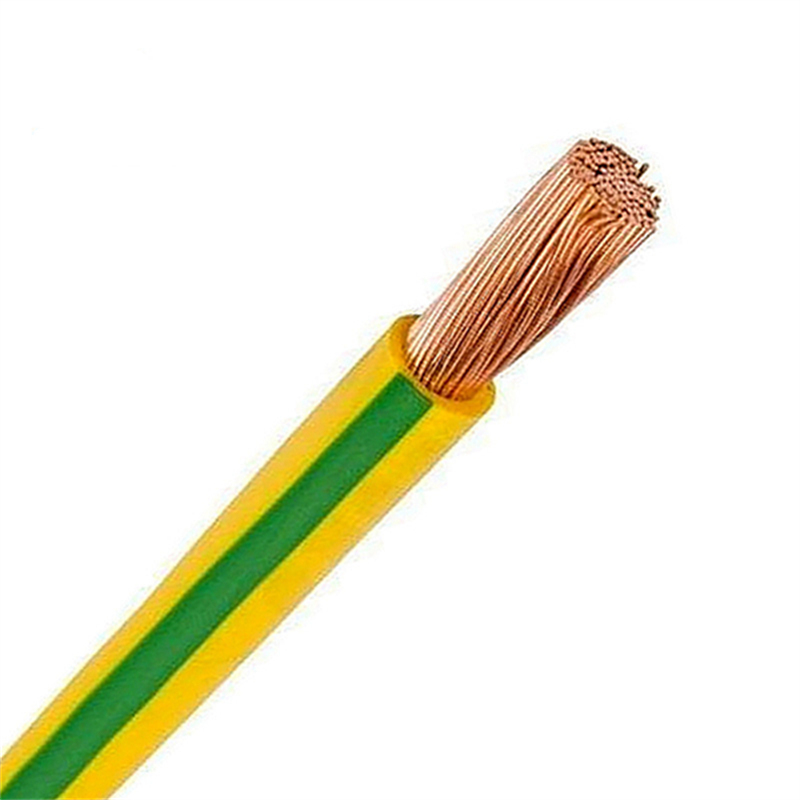

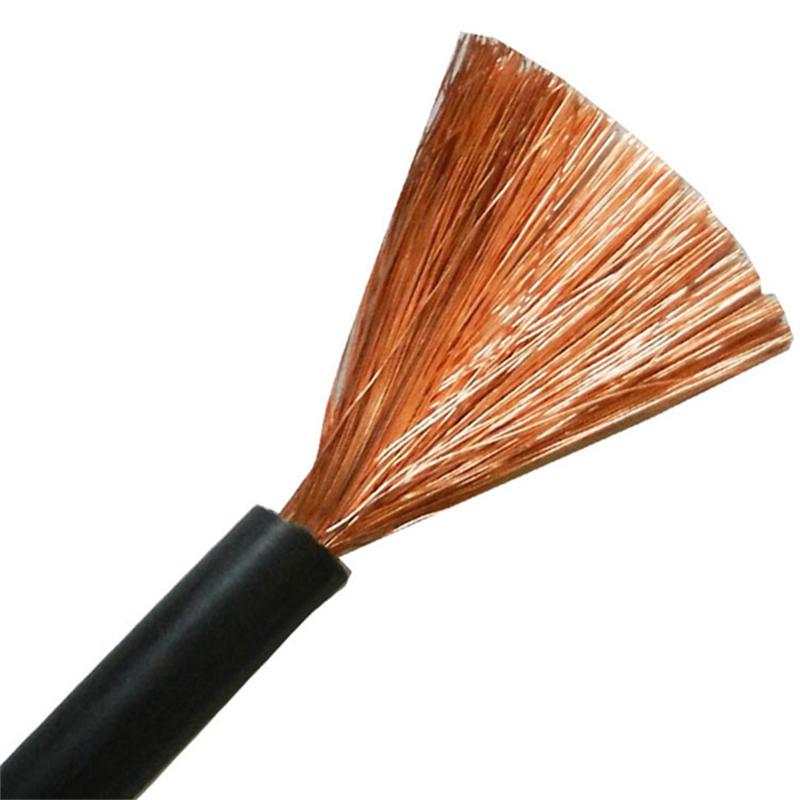

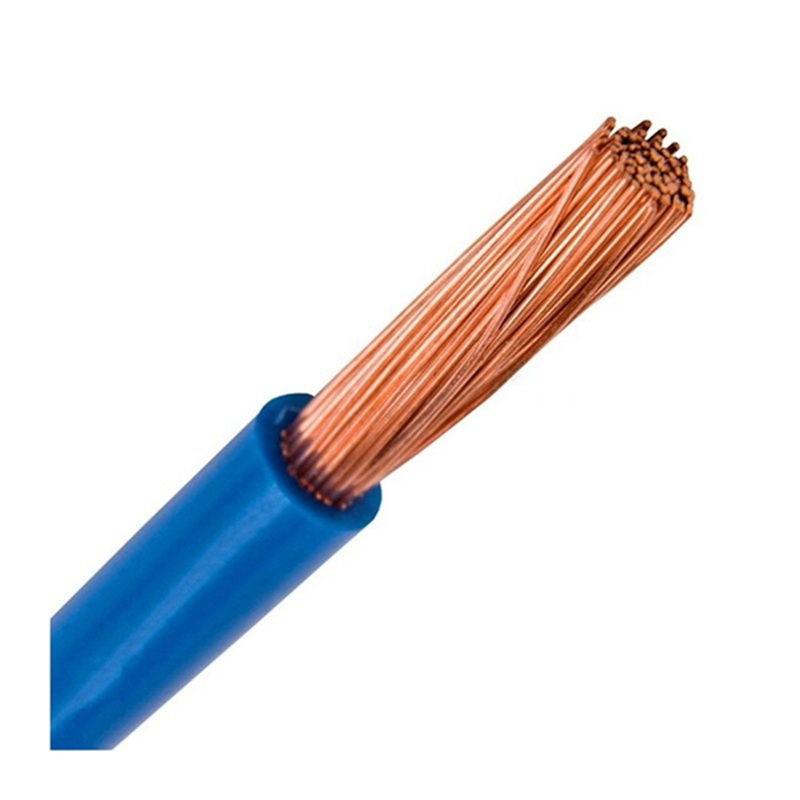

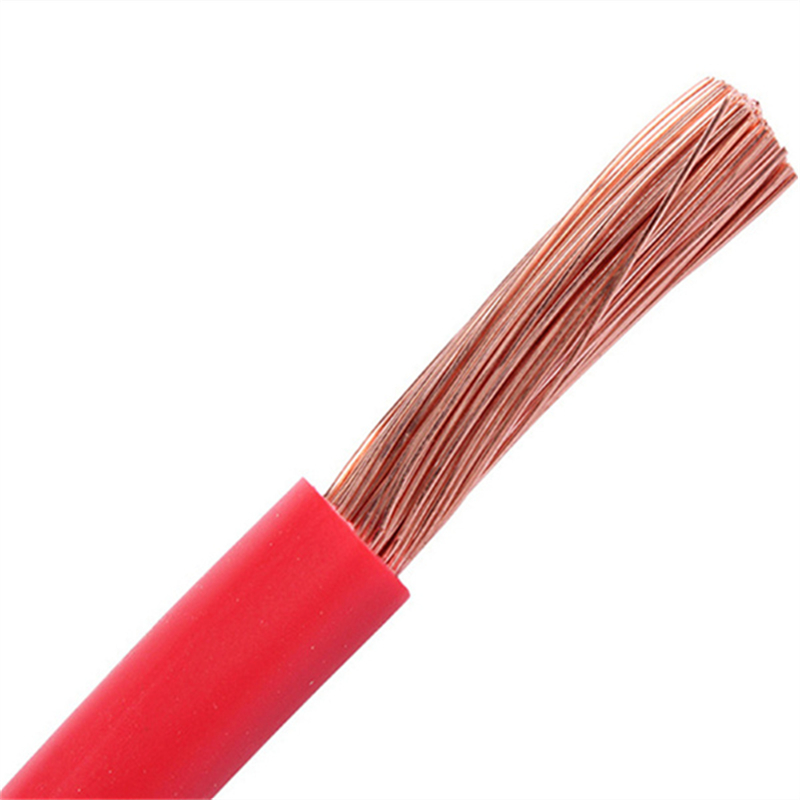

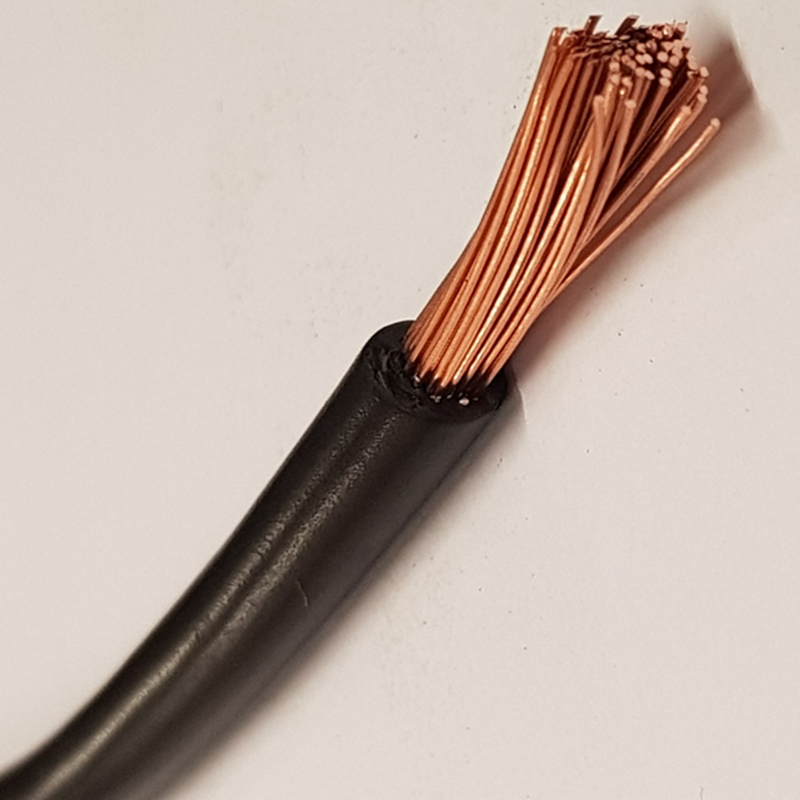

2491X H05V-K RV Stranded PVC Insulated Flexible Cable
PRODUCTS NAME
2491X H05V-K RV Stranded PVC Insulated Flexible Cable.
PRODUCTS KEYWORDS
H05V-K, H07V-K, 2491X, RV, stranded copper wire, single core flexible cable, pvc insulated cable, electrical wire, electric cable, wire and cables.
PRODUCTS APPLICATION
2491X H05V-K RV Stranded PVC Insulated Flexible Cable, for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.

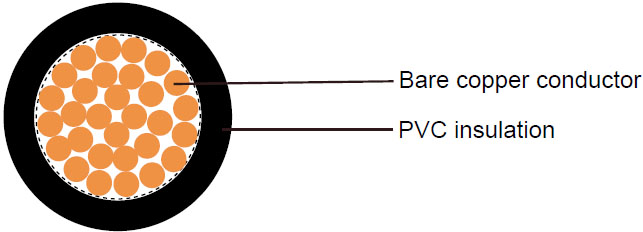

2491X H05V-K RV Stranded PVC Insulated Flexible Cable, the structure as below:
---Conductor Material

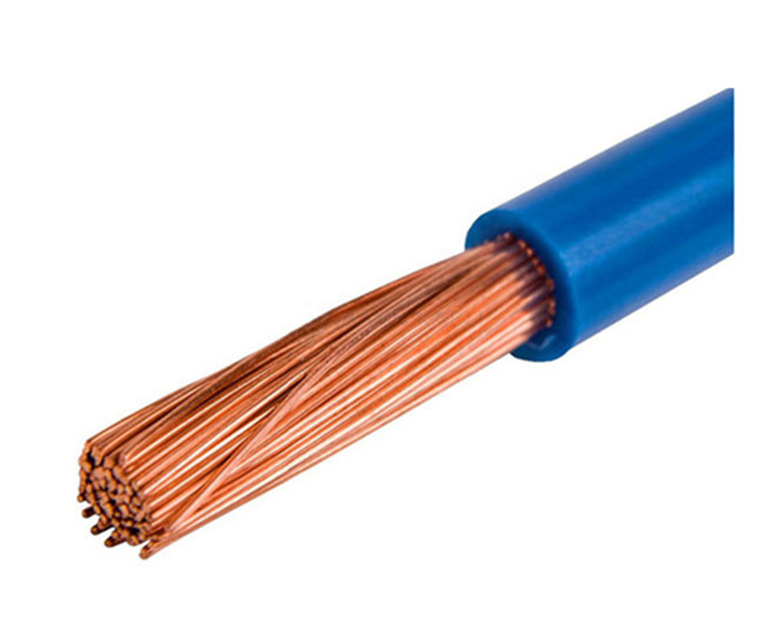

Plain annealed copper wire, stranded Class 5, or Class 6.
---Insulation Material
Flexible 85P PVC (polyvinyl chloride).
---Sheath Material
Non-Sheath.
---Core Number
Single core, 1C, 1 core.
PRODUCTS DIMENSIONS
|
Description of Cable
|
Products Main Technical Sheet
|
|
Products Name
|
2491X H05V-K RV Stranded PVC Insulated Flexible Cable.
|
|
Cross-section
|
1 x 0.75 mm2
|
|
Conductor Material
|
Plain annealed copper wires, stranded Class 5, or Class 6.
|
|
Conductor Structure
|
25/0.20 mm.
|
|
Insulation Material
|
PVC (Polyvinyl chloride).
|
|
Insulated Thickness
|
0.6mm.
|
|
Insulation Colour
|

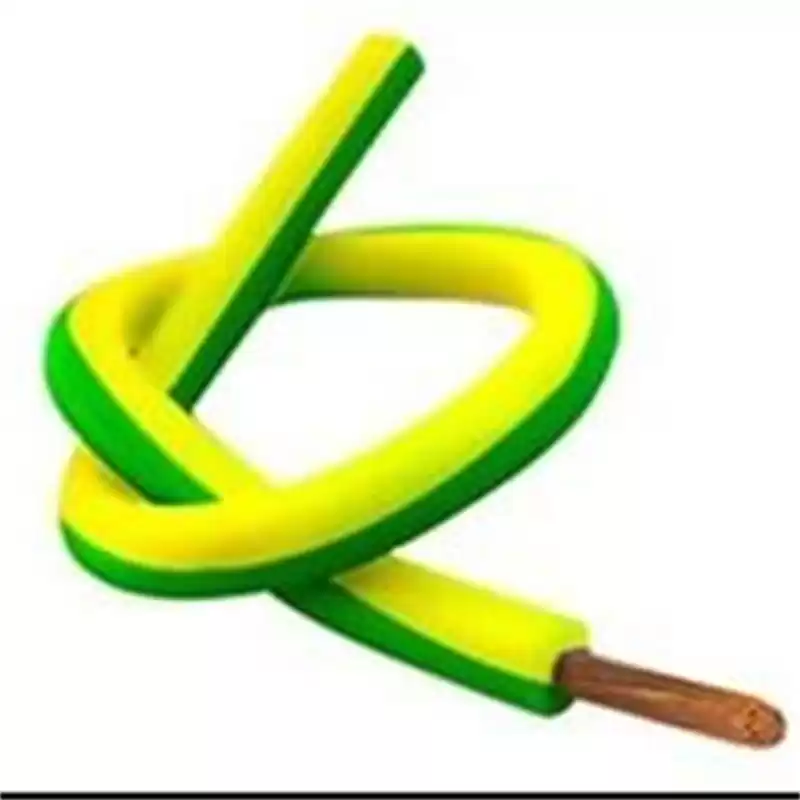

Red, yellow, blue, green, black, grey, white, yellow/green, or others.
|
|
Sheath Material
|
Non-sheath.
|
|
Core Number
|
Single core, 1 core, 1C.
|
|
Out Diameter
|
2.7 mm.
|
|
Voltage Rate
|
300/500V (U0/U).
|
|
About Net Weight
|
12 kg/km.
|
|
Production Standard
|
JB/T 8734-2016, GB/T 5023-2008, IEC 60227, EN 50525-2-31.
|
