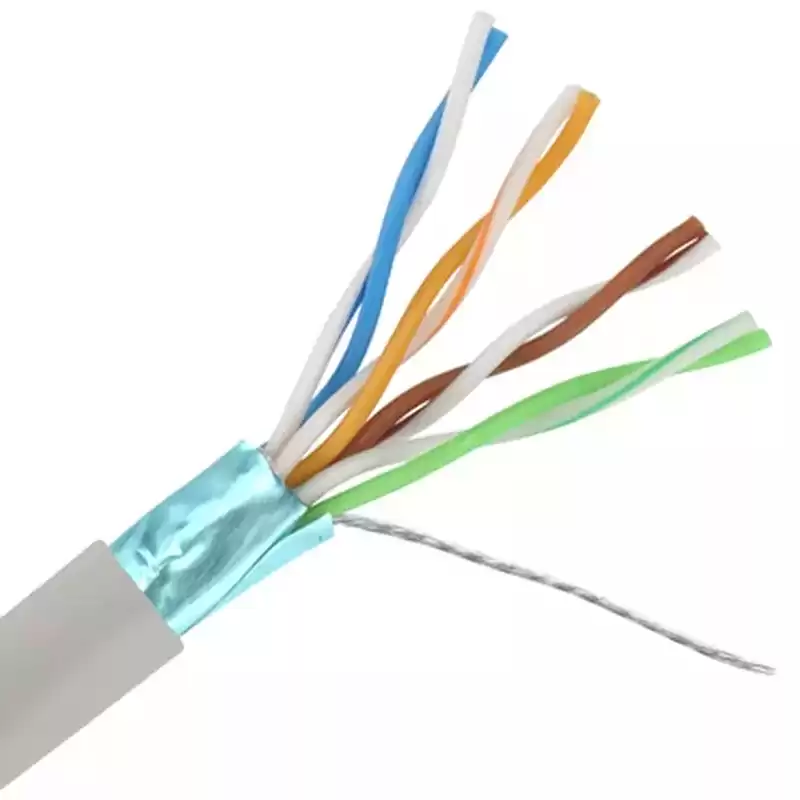

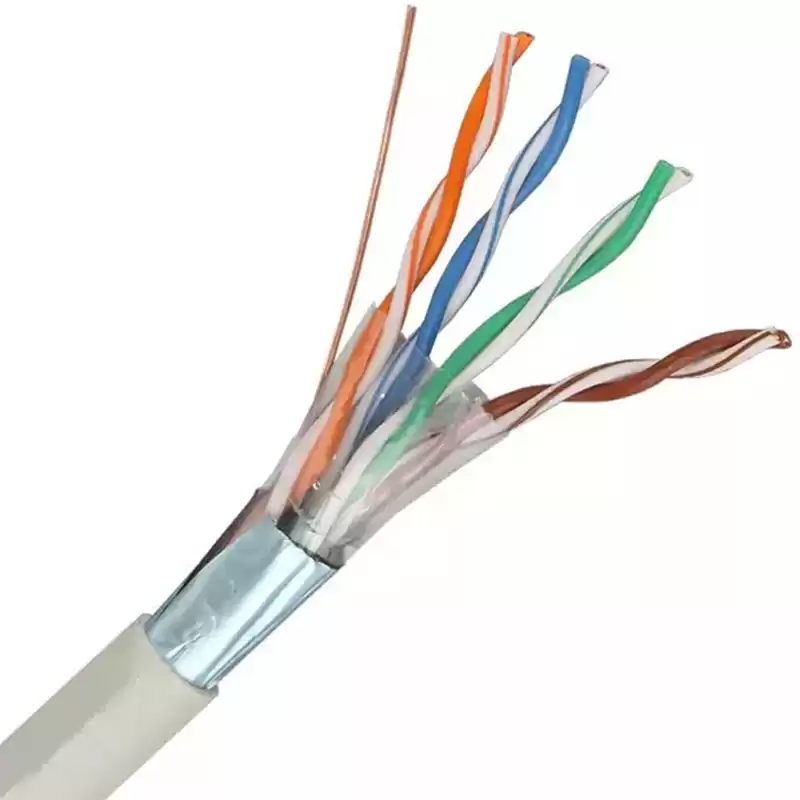

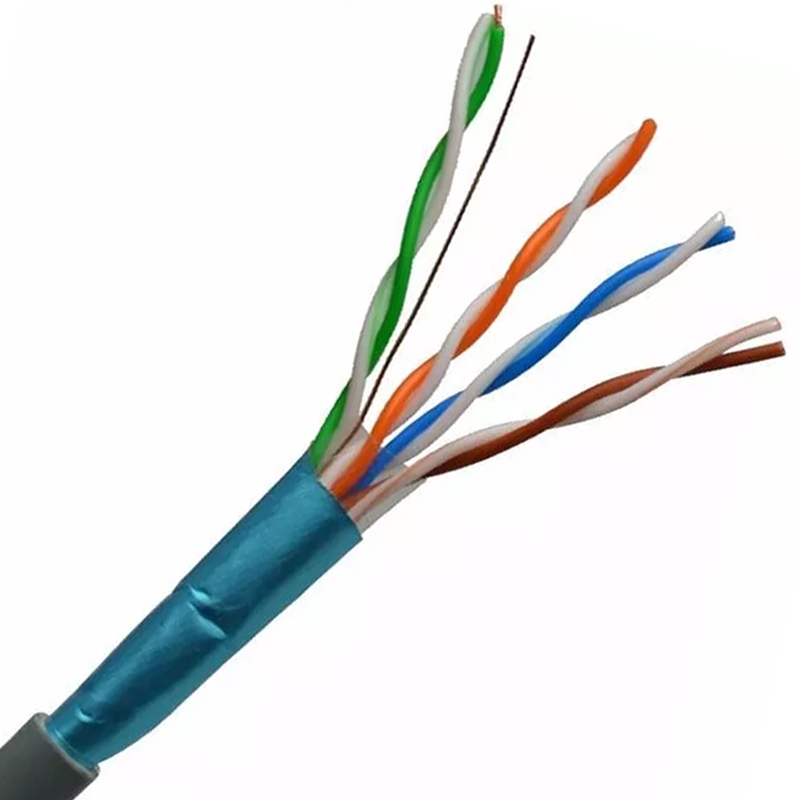

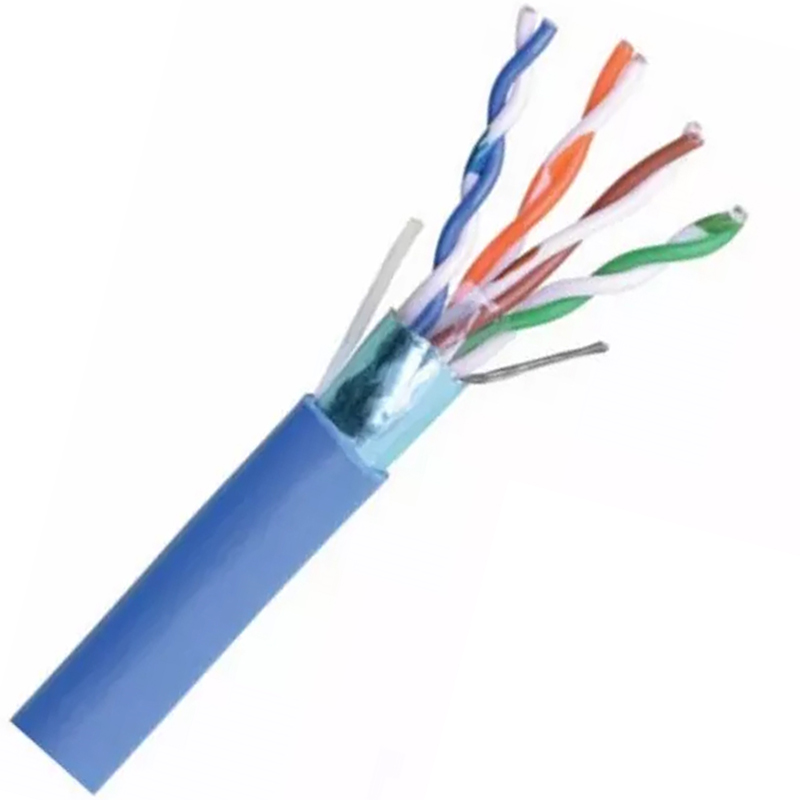

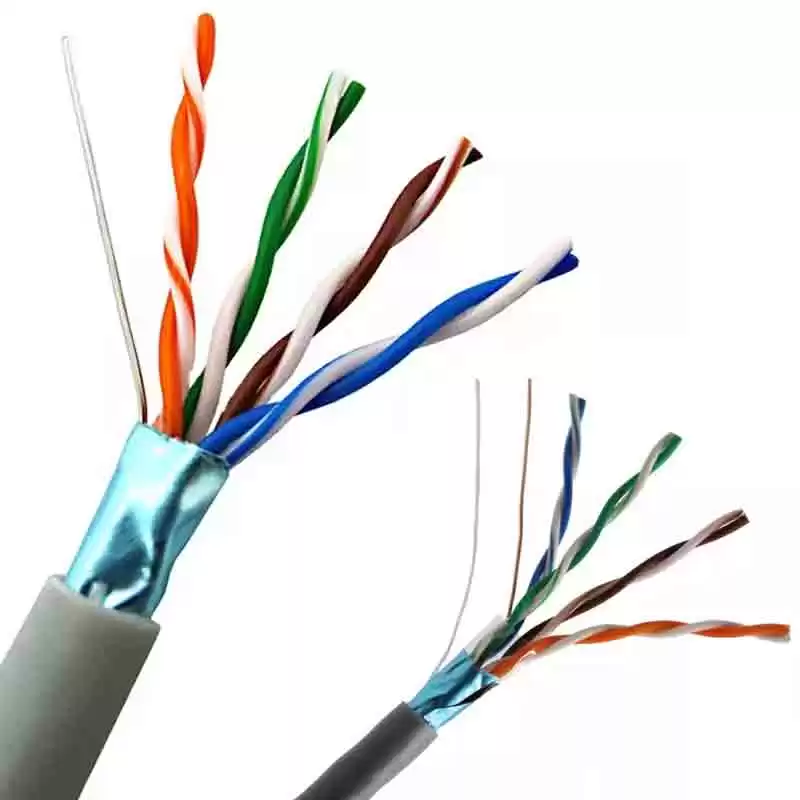

24AWG 4 Pairs PVC Sheath Solid Bare Copper Cat 5e FTP Network Cable

24AWG 4 Pairs PVC Sheath Solid Bare Copper Cat 5e FTP Network Cable

Cat 5e FTP is a foiled cable used when an extra form of protection is needed such as in devices where there is a high degree of EMI. These cables have been guaranteed to deliver 100MHz speed for fast data transmission. Unlike UTP cables where the cables are unshielded, FTP cables ensure further elimination of noise from crosstalks.

Facebook Twitter Pinterest LinkedIn 分享

Description

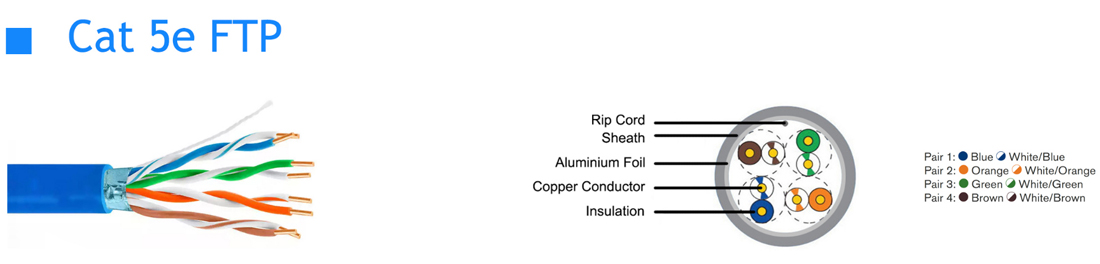

PRODUCTS CONSTRUCTION

Cat5e FTP Network Cable

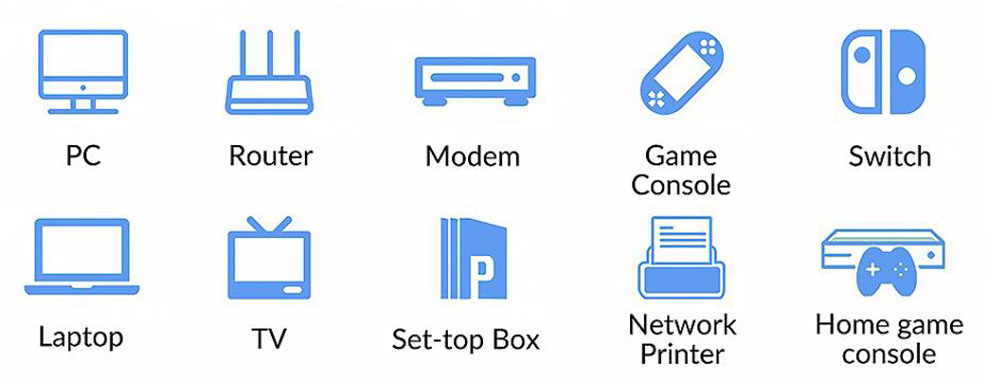

PRODUCTS APPLICATION

24AWG 4 Pairs PVC Sheath Solid Bare Copper Cat 5e FTP Network Cable. 4 pair high performance cable that consists of twisted pair conductors, used mainly for data transmission. Category 5E supports a frequency range of up to 100MHz and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet).

PRODUCTS SPECIFICATION

Description of Cable	Products Main Technical Sheet
Products Name	24AWG 4 Pairs PVC Sheath Solid Bare Copper Cat 5e FTP Network Cable.
Conductor Material	Plain annealed copper wires, bare copper, Class 1.
Conductor Structure	8C x 1/0.50 mm.
Insulation Material	HDPE (High Density Polyethylene).
Insulation Thickness	0.21 mm.
Insulation Color	Brown, brown/white; blue; blue/white; orange, orange/white; green, green/white.
Sheath Material	PVC (Polyvinyl Chloride).
Sheath Thickness	0.50 mm.
Sheath Color	White, brown, orange, grey, blue, or black.
Screen	Aluminium Foil
Core Number	8 cores, 8C, 4x2 Cores.
Out Diameter	6.2 mm.
About Net Weight	14 kg/box.
Production Standard	ANSI/EIA/TIA-568B, ISO/IEC 11801.

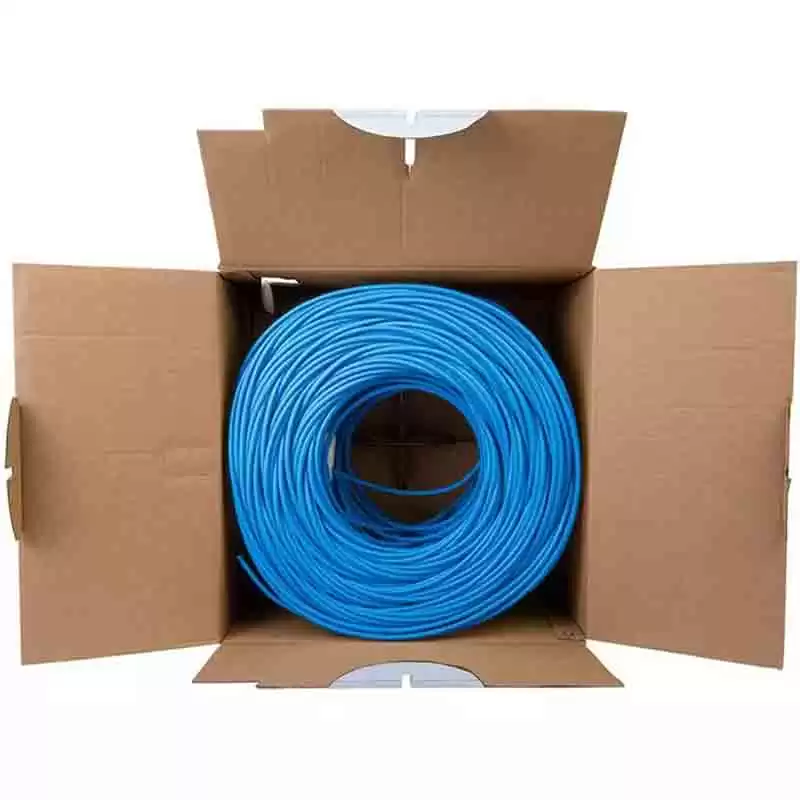

Packing Type	305 meters per box, 4 inner boxes has been loaded into 1 outer carton box.

ELECTRICAL CHARACTERISTICS

Frequency (MHZ)	Impendance (ohm)	Return Loss (dB)	Attenuation (dB/100m)	NEXT Power Pair (dB)	ACR (dB)	Next Power Sum (dB)	ELFEXT Worst Pair (dB/100m)	ELEXT Power Sum (dB/100m)	Nominal Velocity Propagation
0.772	100 ± 15	19.4	1.8	76.0	74.0	74.0	70.0	67.0	0.65
1.0	100 ± 15	20.0	2.0	74.3	72.0	72.3	67.8	64.8
4.0	100 ± 15	23.0	3.8	65.5	61.0	63.3	55.8	52.8
8.0	100 ± 15	24.5	5.3	60.8	55.0	58.8	49.7	46.7
10.0	100 ± 15	25.0	6.0	59.3	53.0	57.3	47.8	44.8
16.0	100 ± 15	25.0	7.6	56.2	49.0	54.2	43.7	40.7
20.0	100 ± 15	25.0	8.5	54.8	46.0	52.8	41.8	38.8
25.0	100 ± 15	24.3	9.5	53.3	44.0	51.3	39.8	36.8
31.25	100 ± 15	23.6	10.7	51.9	41.0	49.9	37.9	34.9
62.5	100 ± 15	21.5	15.4	47.4	32.0	45.4	31.9	28.9
100.0	100 ± 15	20.1	19.8	44.3	24.5	42.3	27.8	24.8
200.0	100 ± 22	18.0	29.0	39.8	10.8	37.8	21.8	18.8
250.0	100 ± 22	17.3	32.8	38.3	5.5	36.3	19.8	16.8
