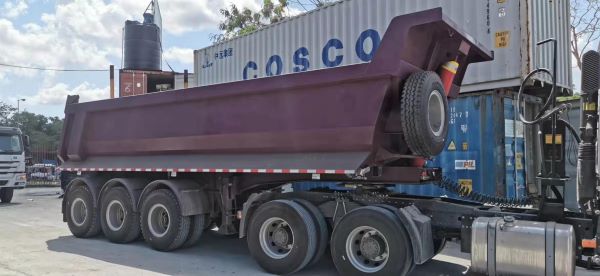

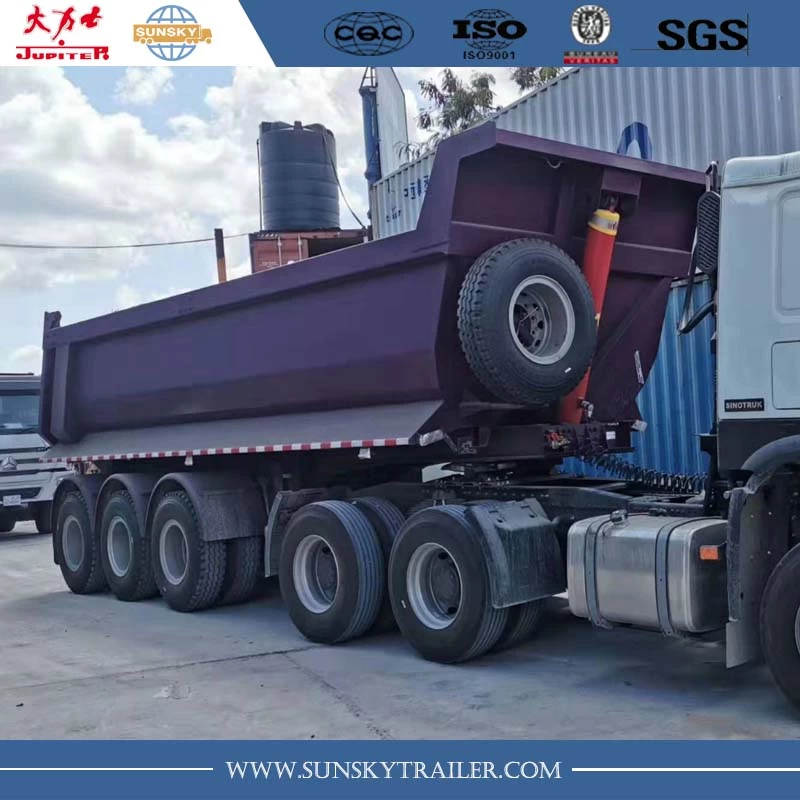

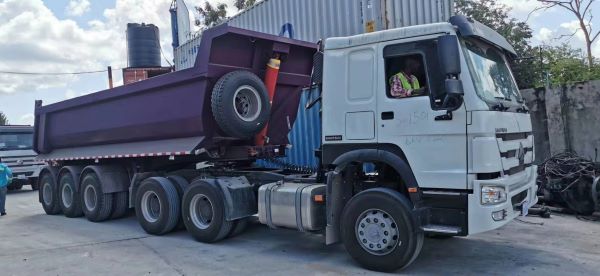

Item:24CBM 30 Tons Tri Axle Tipper Trailer
Tipper Trailers is used for carrying loose material like sand, steel bars, gravel, dirt generally for construction. In Tipper Trailers there we use world famous Hvya brand hydraulic to lift the trailer. SUNSKY Trailer can offer its customers different kind of Tipper Trailers solutions for according to their loads.
Features:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1) Manufacturer, 32 years professional experience.
2) Two years guarantee term provided freely.
3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) Products can be custom-made according to your design.
Specification:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
|
Style
|
24CBM 3-Axle U shaped Tipping Semi-trailer
|
|
Model
|
FTW9400ZZX
|
|
Dimension(L*W*H)mm:
|
9060*2600*3450
|
|
The material of body
|
BS700MC high tensible 4mm
|
|
Payload(kgs):
|
30000
|
|
Volume(CBM)
|
24 CBM
|
|
Tare weight(kgs):
|
9200
|
|
Kingpin
|
JOST 2” bolt-in
|
|
Landing gear
|
JOST19”
|
|
Tire and rim
|
12R22.5
|
|
Axle
|
3 Axle,13 Tons
|
|
Suspension
|
Germany type spring suspension with 8 pcs of leaf spring
|
|
Brake system
|
Wabco brand
|
|
Air Chamber
|
MBA T30/30
|
|
Hydraulic
system:
|
HYVA FE172-4-05390
|
Production detail:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
