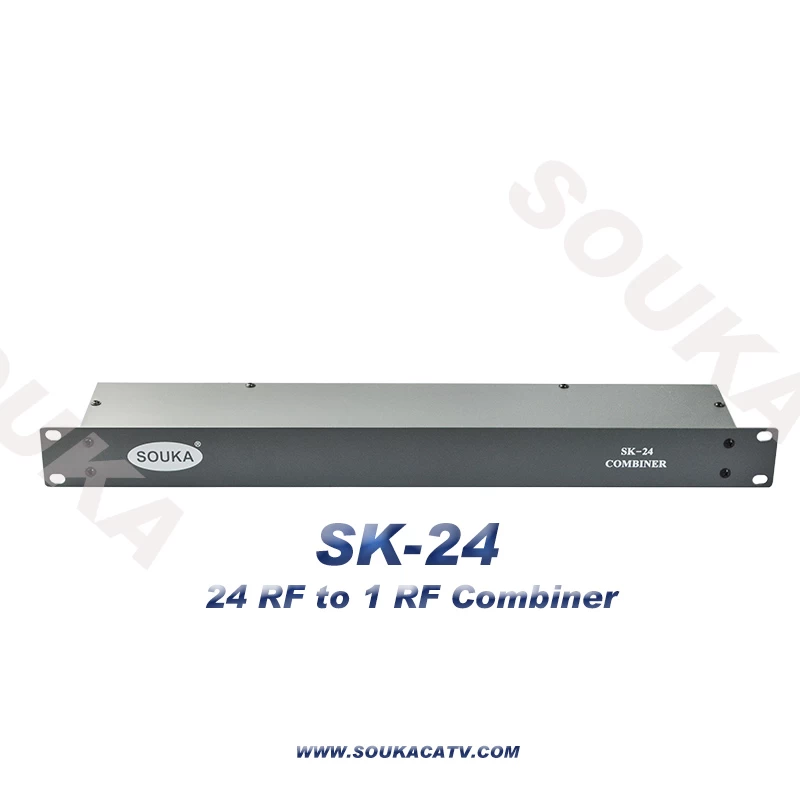

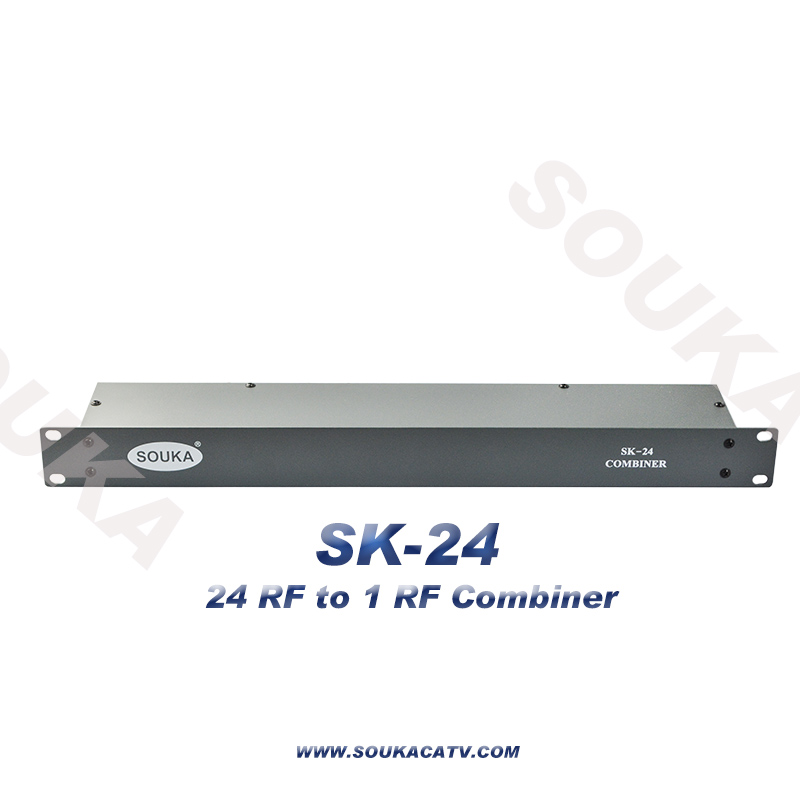

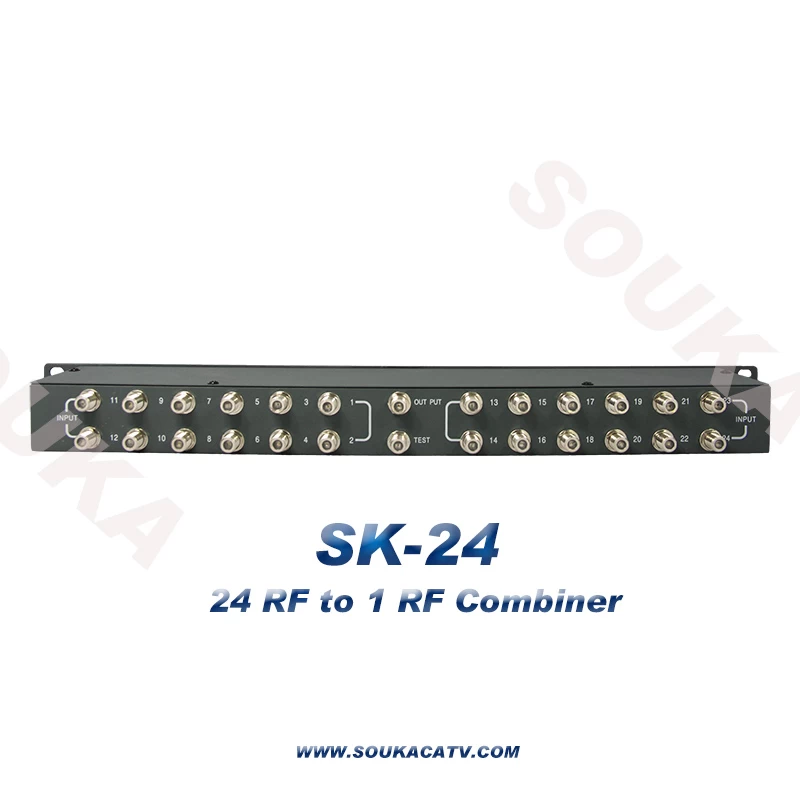

24Ports High Isolation Passive Combiner for Mixing RF Signal

24 RF signal input to 1 RF signal output





SK-24

The SK-24 is a professional quality 16-port passive output combiner designed for private cable networks employing multiple modulators and processing equipment.



Features:

1. Supports up to 24 modulators and processing equipment.
2. Broad frequency range of 45-860MHz
3. -20dB test port
4. Excellent value



Input Number:

24 ports

Frequency Range:

45-860MHz

Connector:

F type, Female

Impedance:

75Ω

Insertion Loss:

20±2dB

Port to Port Isolation:



Adjacent Ports:

30dB typical

Opposing Ports:

35dB typical
