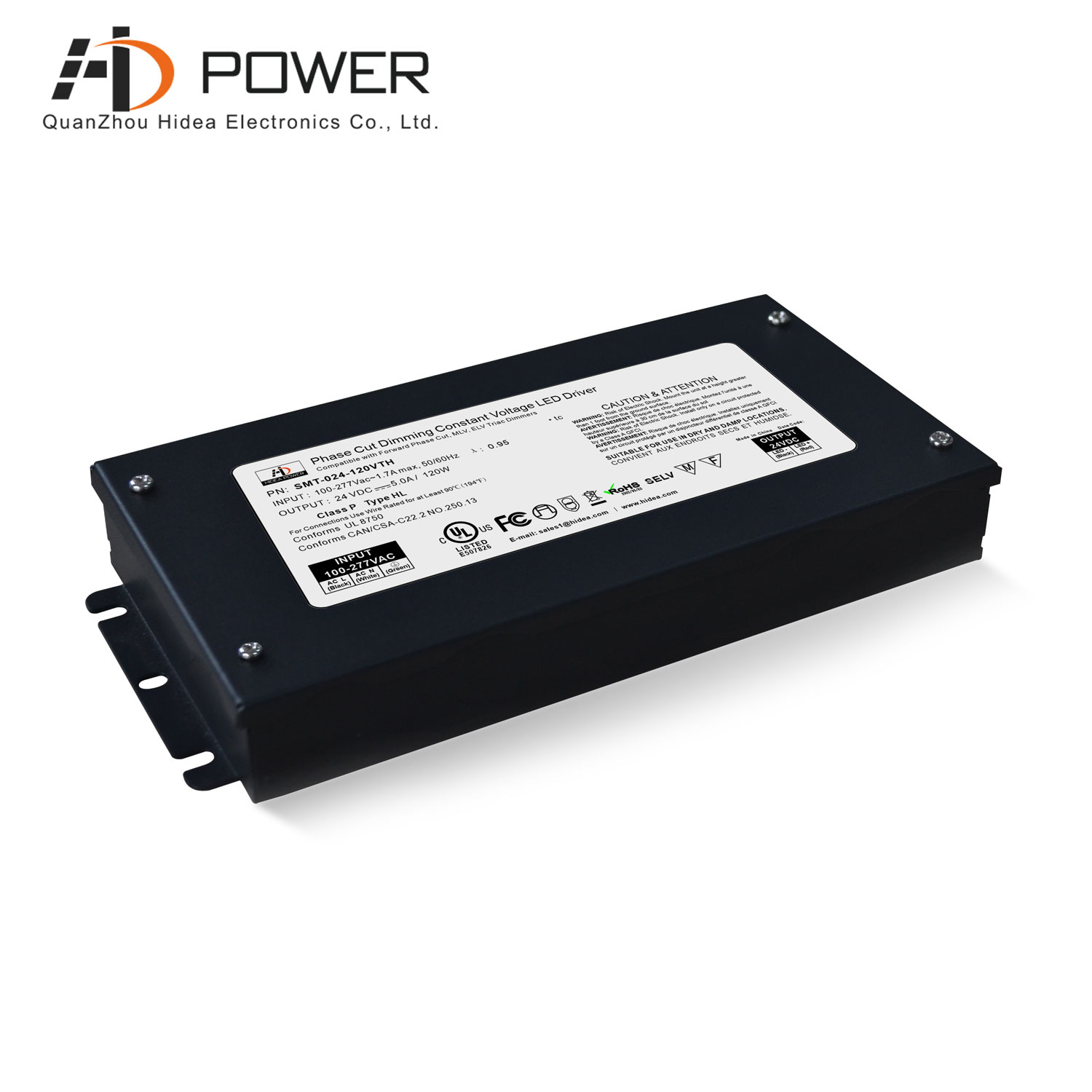

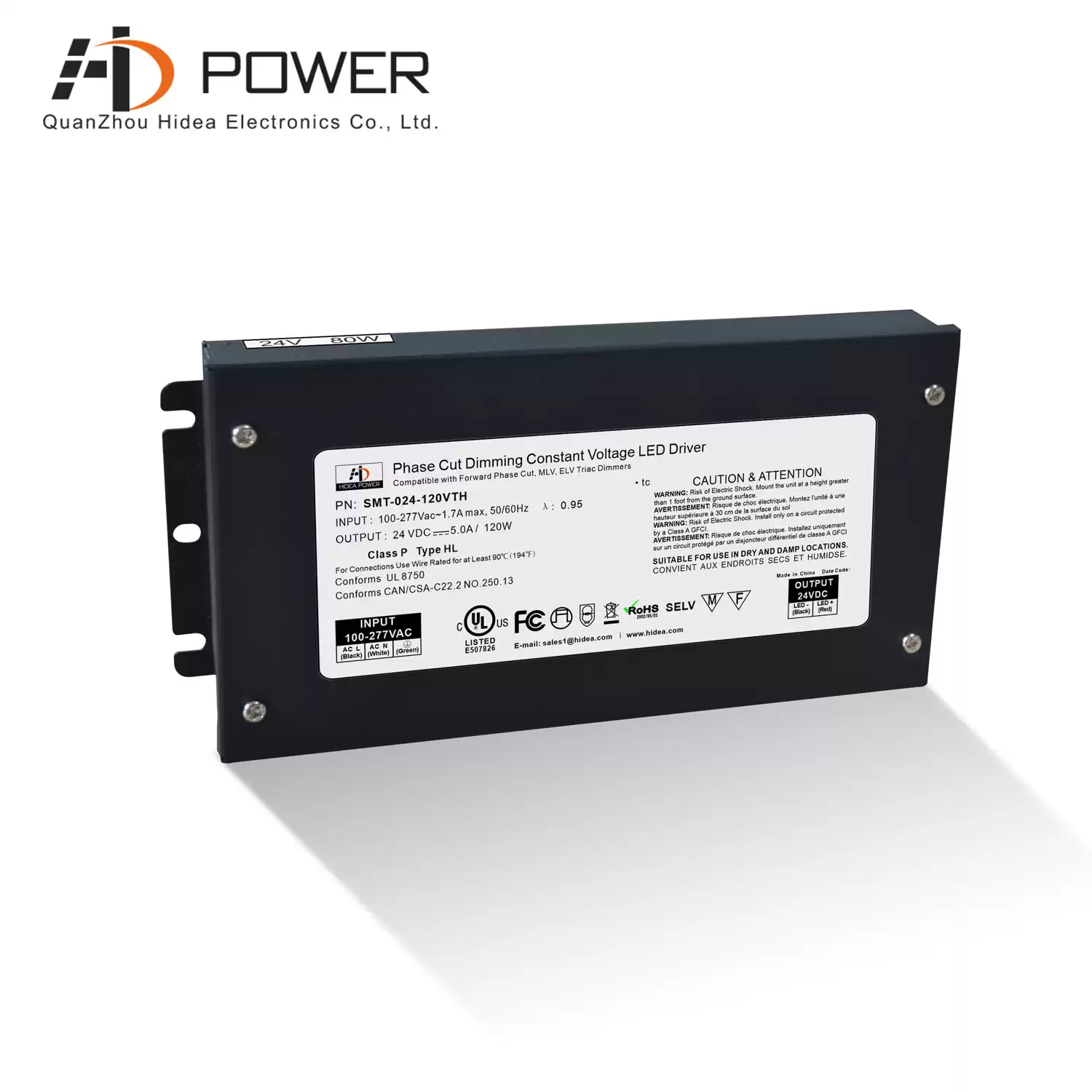

24v 120w triac dimming constant voltage strip light led driver inside junction box
This constant voltage 24v 120W triac dimmable LED driver has an input voltage of 100-277vac and a working efficiency of up to 83%. It has a metal shell design with good heat dissipation and can work perfectly under 10%-100% load.
Specification
|
Model
|
SMT-012-120VTH (1.0 ver)
|
SMT-024-120VTH (1.0 ver)
|
|
SMT-012-120VTHV2 (2.0 ver)
|
SMT-024-120VTHV2 (2.0 ver)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
10A
|
5A
|
|
Rated Power
|
120W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
±1%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63HZ
|
|
Power Factor(Typ.)@ full load
|
0.99@120VAC 0.96@277VAC
|
0.98@120VAC 0.96@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
82%
|
|
AC Current(Max.)
|
1.7A@100VAC
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.6ms
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90% RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.3Kg
|
|
Size
|
1.0 version: 220*93*41mm (L*W*H); 2.0 version: 220*94.5*40mm (L*W*H)
|
|
packing
|
329*279*176mm , 10PCS/ctn
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type
This Mini Neon has the same robust construction as Polar 2 Neon with our led 24v driver, but with higher impact due to the thin lens design. Available in 120V with eight color choices.
Related Products
|

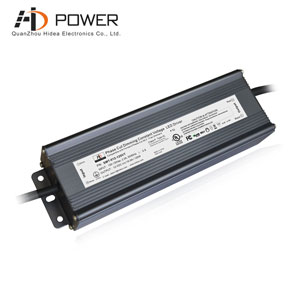

 triac dimmable led driver 120W aluminum shell design, waterproof grade ip67, can effectively prevent water and dust, strong compatibility, suitable for outdoor lighting projects
Mode：SMT-012-120VT
Dimming Mode : triac Dimming
Output Power : 120W
intput voltage：100~130V AC
Size：230*68*45MM （L*W*H）
|
